Horns Component Views

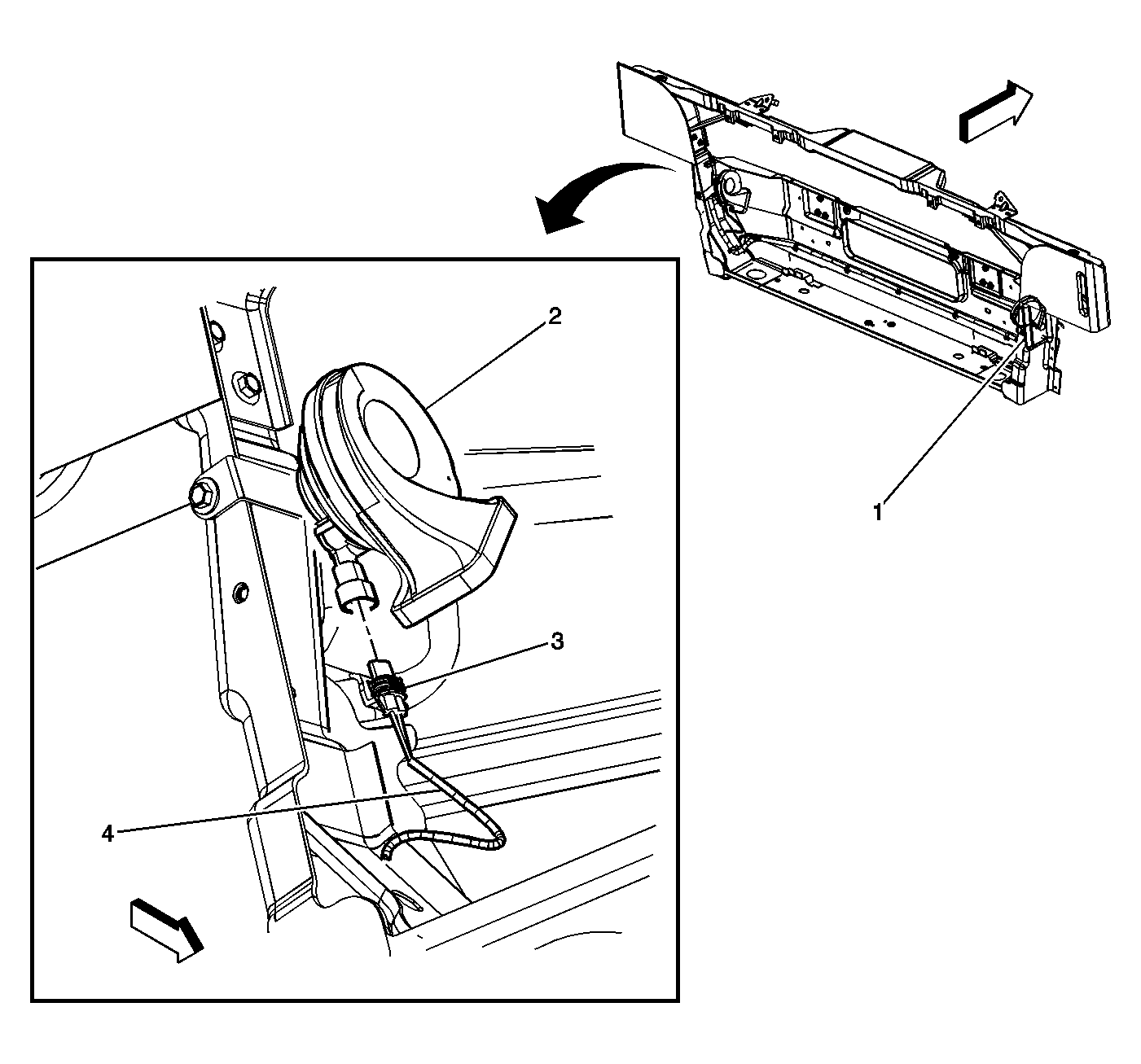

Fig 1: Horns - Low/High Note
GM826091Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn - Low Note
2 Horn - High Note
3 Horn Connector - High Note
4 Forward Lamp Harness

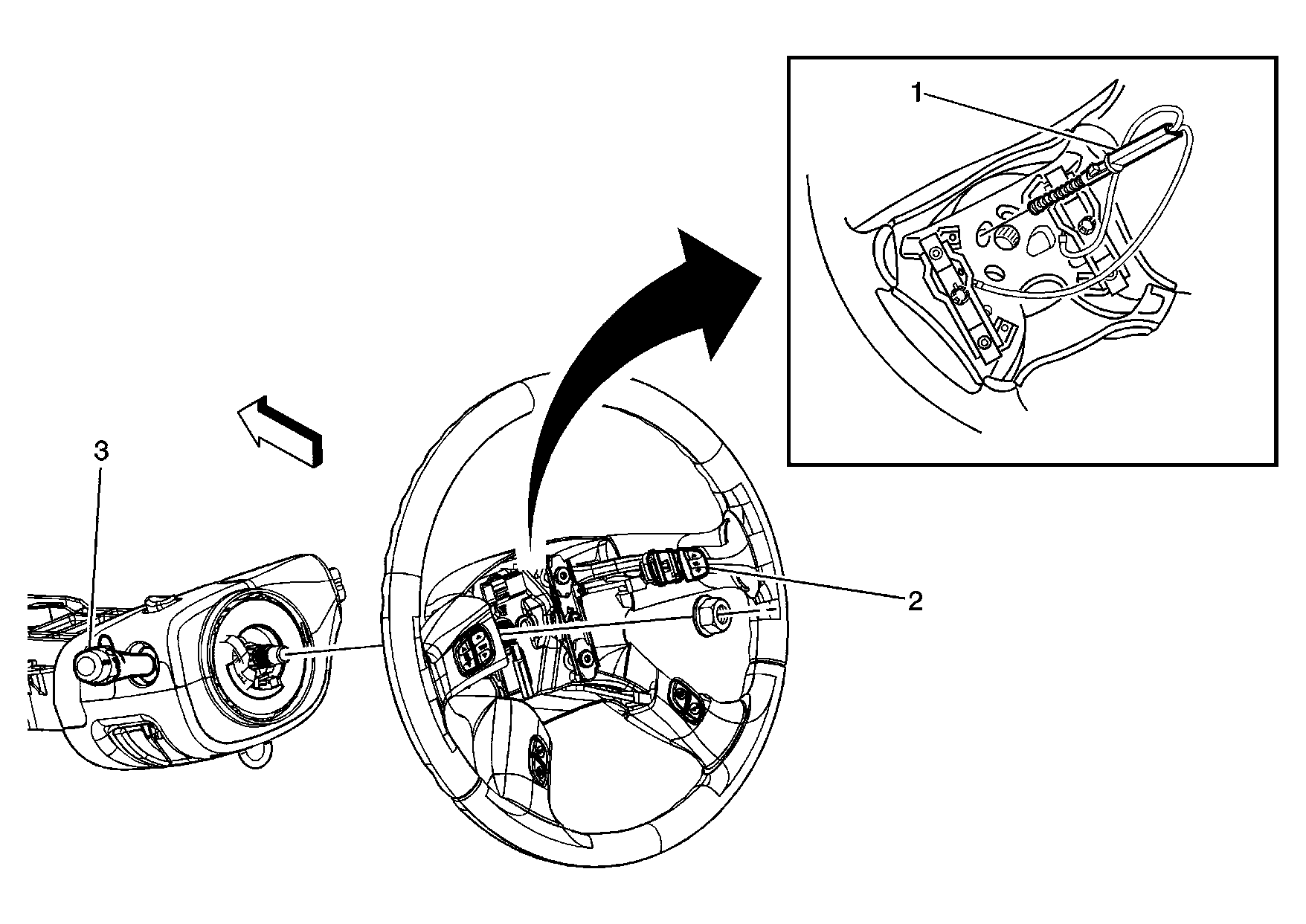

Fig 2: Horn Switch
GM851228Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn Switch
2 Steering Wheel Controls
3 Turn Signal/Multifunction Switch
