Installation Procedure

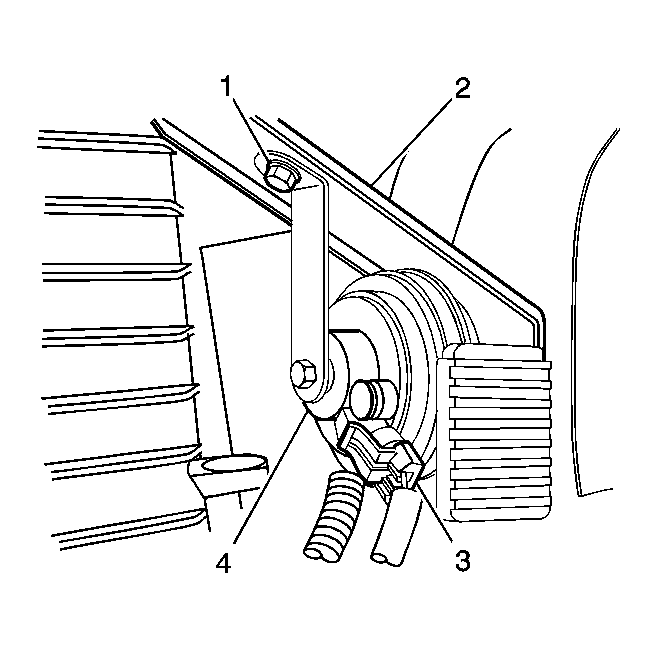

Fig 1: Horn

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Position the horn to the vehicle.
Install the bolt (1) to the horn bracket.
Tighten: Tighten the bolt to 9 N.m (80 lb in).
Connect the electrical connector (3).
Close the hood.
