Component Locator

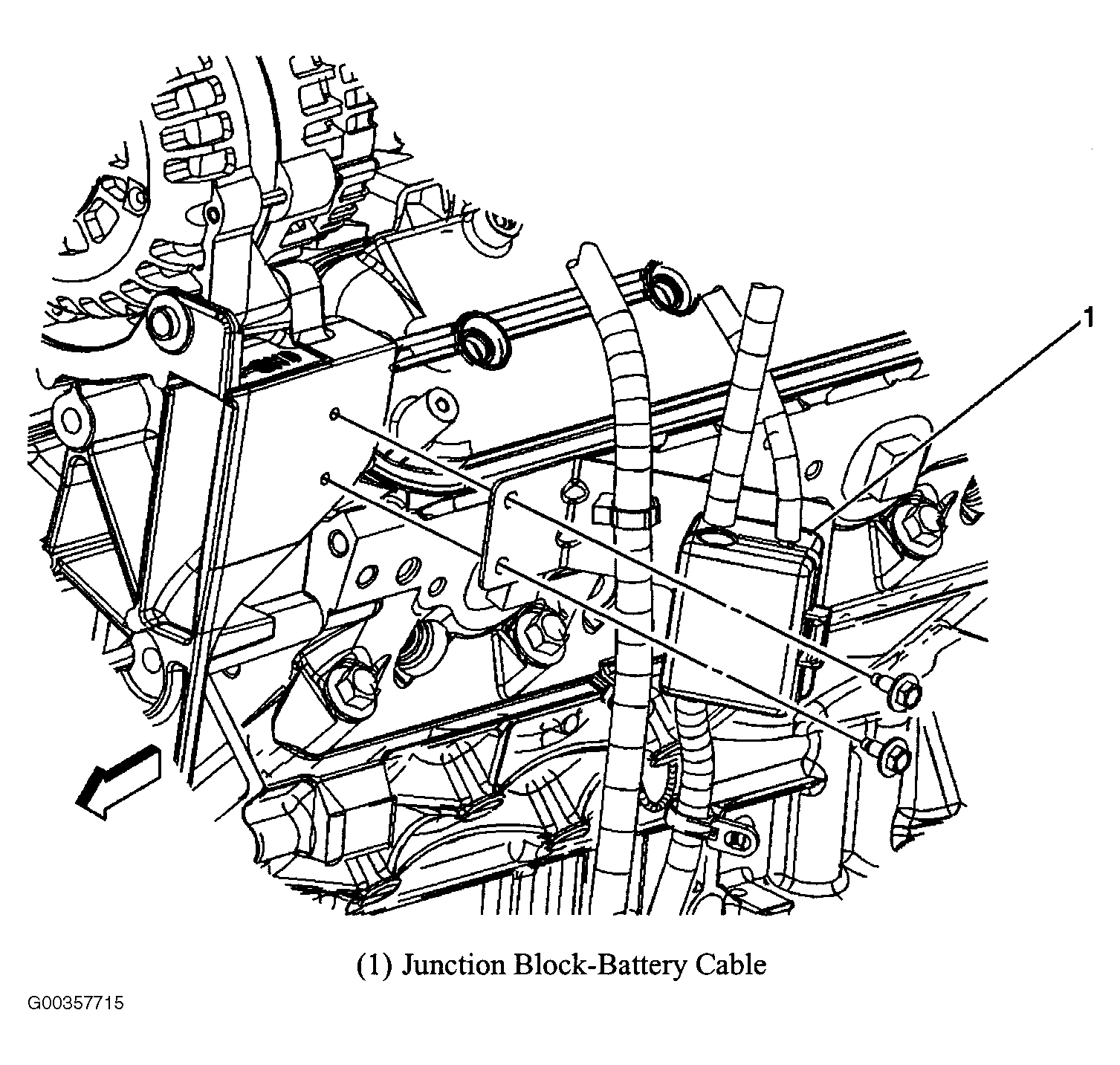

Fig 1: Locating Battery Cable Junction
G00357715Courtesy of GENERAL MOTORS CORP.

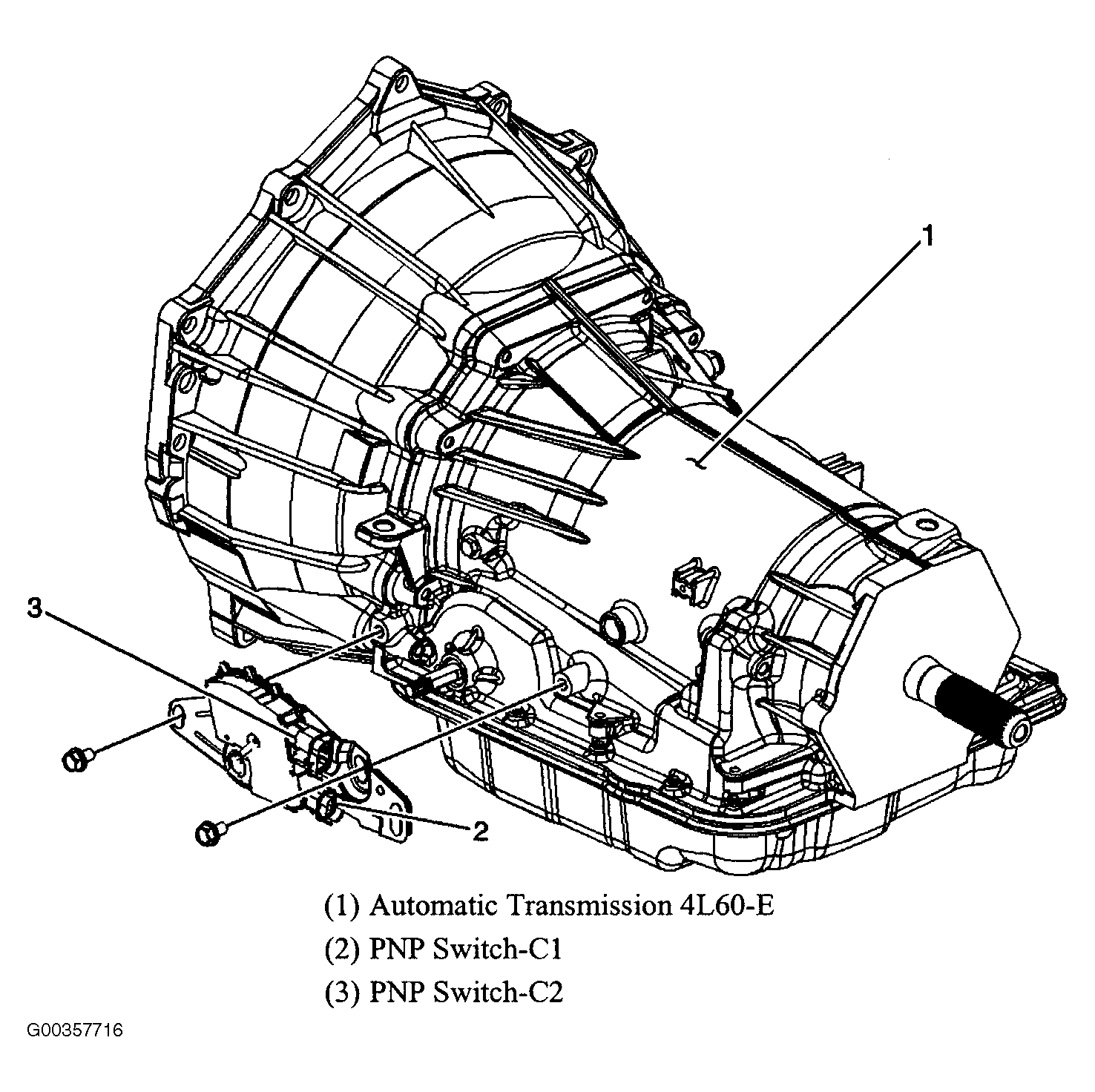

Fig 2: Locating Park/Neutral Switch (A/T)
G00357716Courtesy of GENERAL MOTORS CORP.

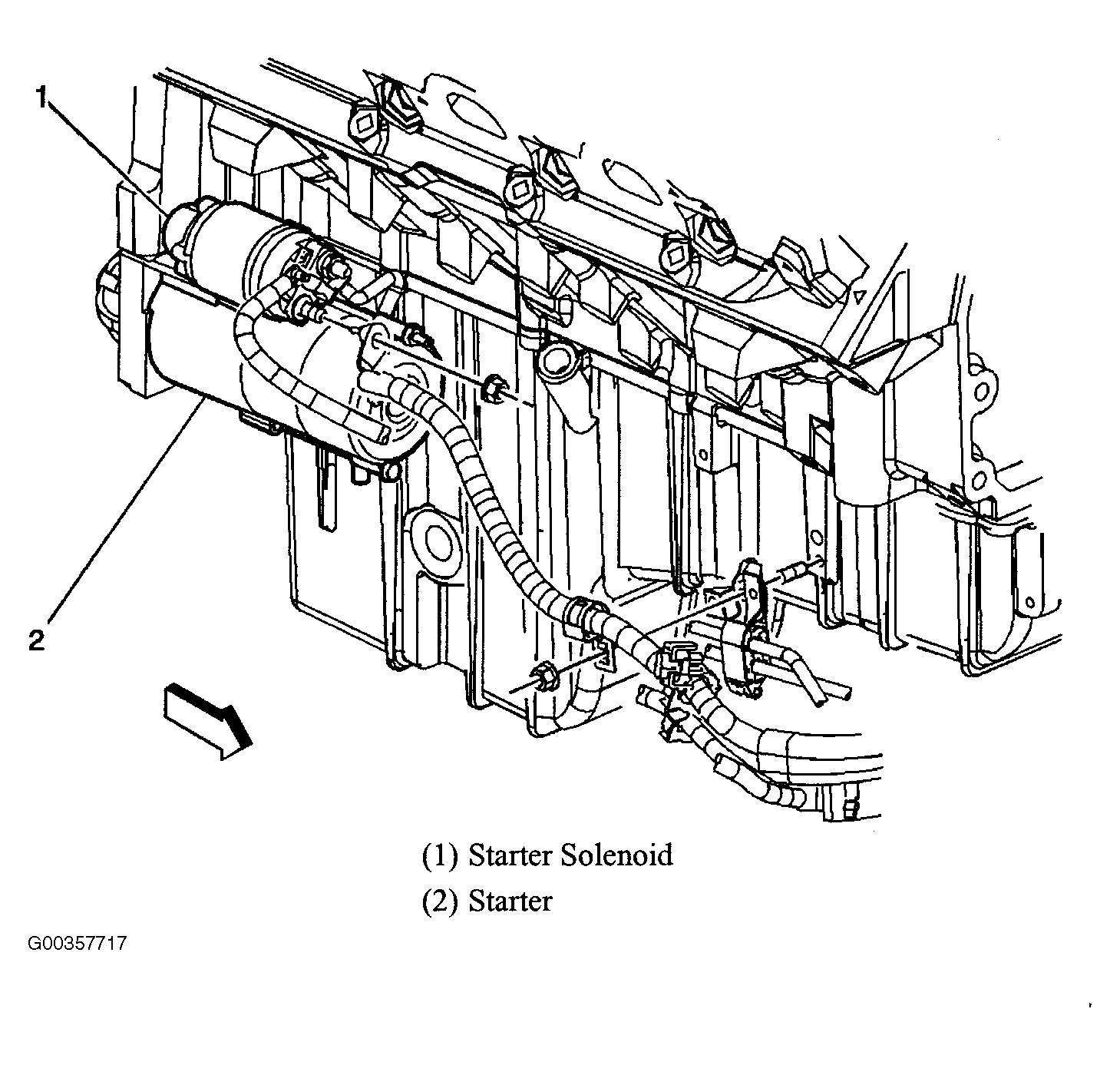

Fig 3: Locating Starter Assembly & Starter Solenoid
G00357717Courtesy of GENERAL MOTORS CORP.
