Tools Required

J 41712 Oil Pressure Switch Socket

Fig 1: View of Coolant Plug
Courtesy of GENERAL MOTORS CORP.
IMPORTANT:
• Engine block plug, oil gallery and coolant, sealing washers may be used again if they are not bent, scored or otherwise damaged.
• Apply the proper amount and type of sealant to the sealing washer as recommended in the service procedure.
1. Apply a 3.175 mm (0.125 in) bead of sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the engine block coolant heater sealing washer, if applicable. Refer to Sealers, Adhesives, and Lubricants .
NOTE: Refer to FASTENER NOTICE .
2. Install the engine block coolant heater to the engine block, if applicable.

   Tighten:  Tighten the block coolant heater to 40 N.m (30 lb ft).

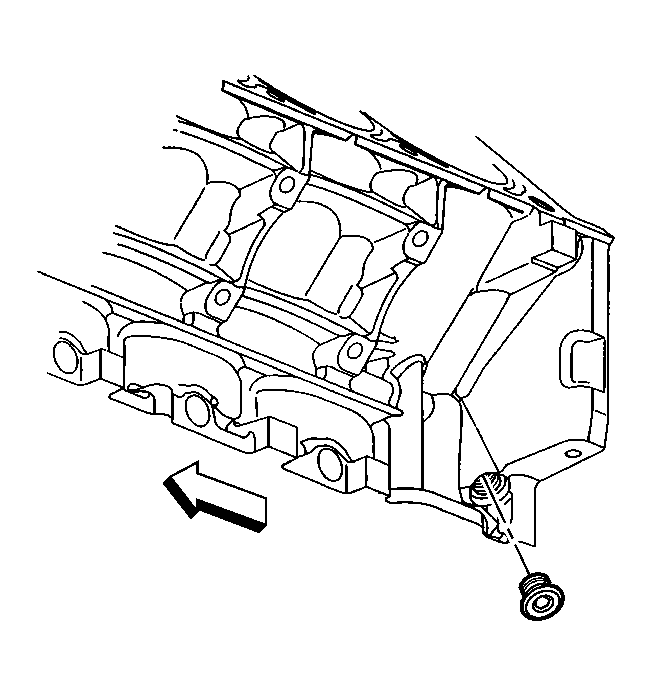

Fig 2: View of Coolant Drain Plug
Courtesy of GENERAL MOTORS CORP.
3. Apply a 3.175 mm (0.125 in) bead of sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the engine block left rear coolant drain plug sealing washer, if applicable.
4. Install the engine block left rear coolant drain plug, if applicable.

   Tighten:  Tighten the block left rear coolant drain plug to 60 N.m (44 lb ft).

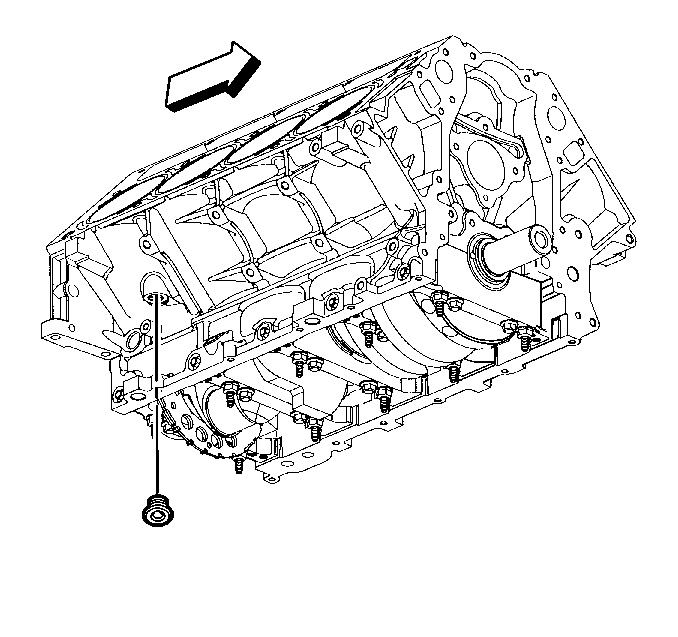

Fig 3: Identifying Plug Location On Underside Of Block
Courtesy of GENERAL MOTORS CORP.
5. Apply a 3.175 mm (0.125 in) bead of sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the engine block right rear coolant drain plug sealing washer.
6. Install the engine block right rear coolant drain plug.

   Tighten:  Tighten the block right rear coolant drain plug to 60 N.m (44 lb ft).

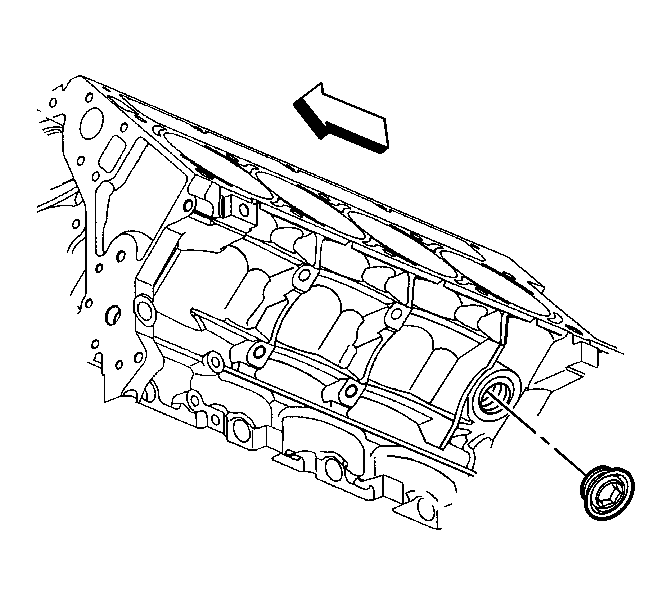

Fig 4: View Of Engine Block Left Front Oil Gallery Plug
Courtesy of GENERAL MOTORS CORP.
7. Apply a 3.175 mm (0.125 in) bead of sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the engine block left front oil gallery plug sealing washer.
8. Install the engine block left front oil gallery plug.

   Tighten:  Tighten the block left front oil gallery plug to 60 N.m (44 lb ft).

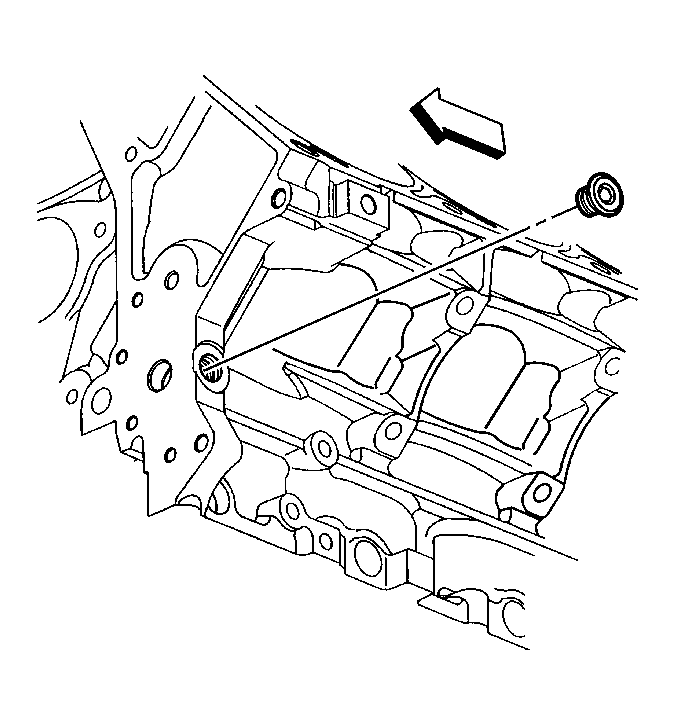

Fig 5: View Engine Block Left Rear Oil Gallery Plug
Courtesy of GENERAL MOTORS CORP.
9. Apply a 3.175 mm (0.125 in) bead of sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the engine block left rear oil gallery plug sealing washer.
10. Install the engine block left rear oil gallery plug.

    Tighten:  Tighten the block left rear oil gallery plug to 60 N.m (44 lb ft).

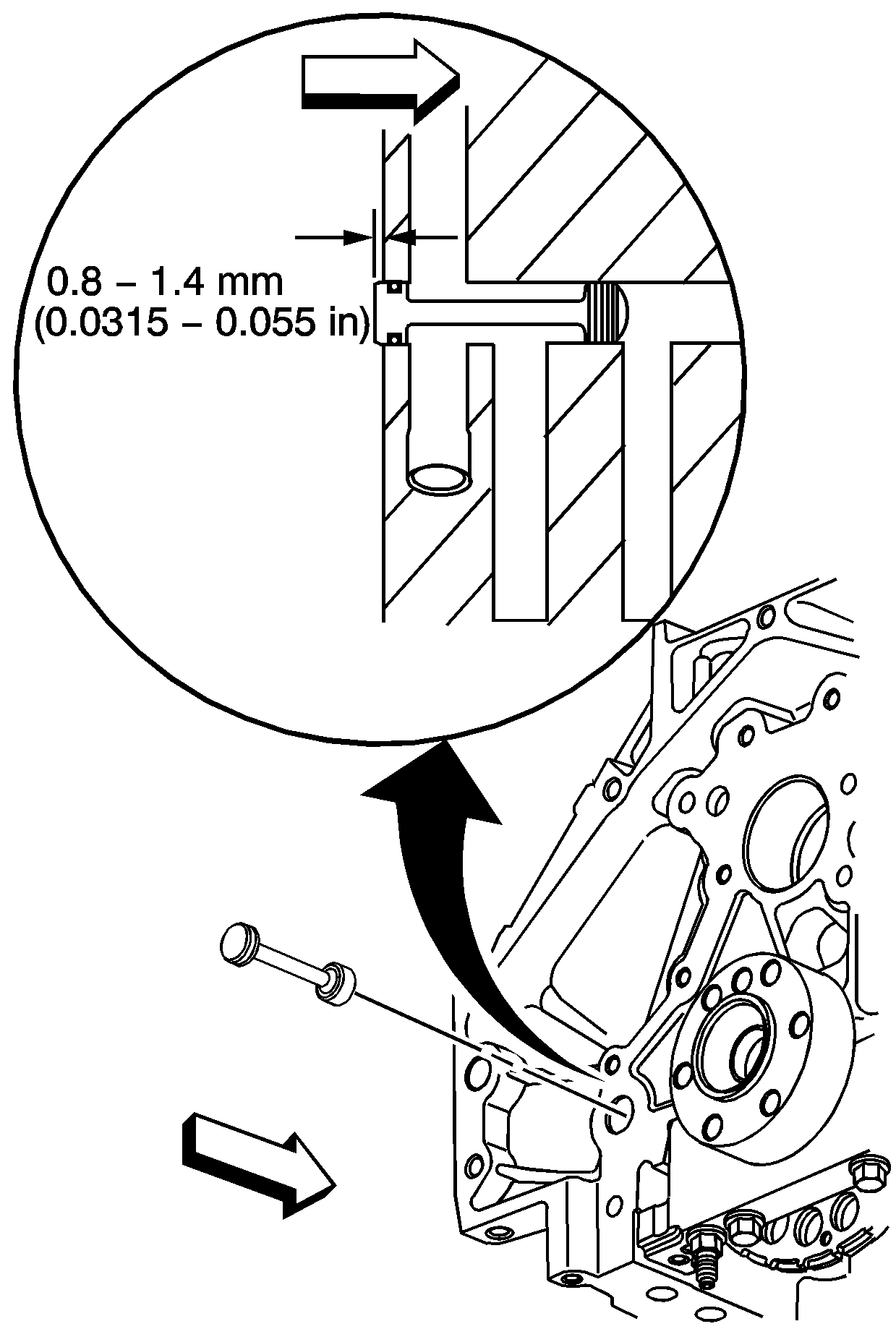

Fig 6: View Of Engine Block Rear Oil Gallery Plug
Courtesy of GENERAL MOTORS CORP.
11. Inspect the engine block rear oil gallery plug and O-ring seal. If the O-ring seal on the plug is not cut or damaged, the rear oil gallery plug may be used again.
12. Lubricate the O-ring seal with clean engine oil.
13. Install the block rear oil gallery plug into the oil gallery bore. A properly installed block plug will protrude 0.8-1.4 mm (0.0315-0.055 in) beyond the rear face of the block.

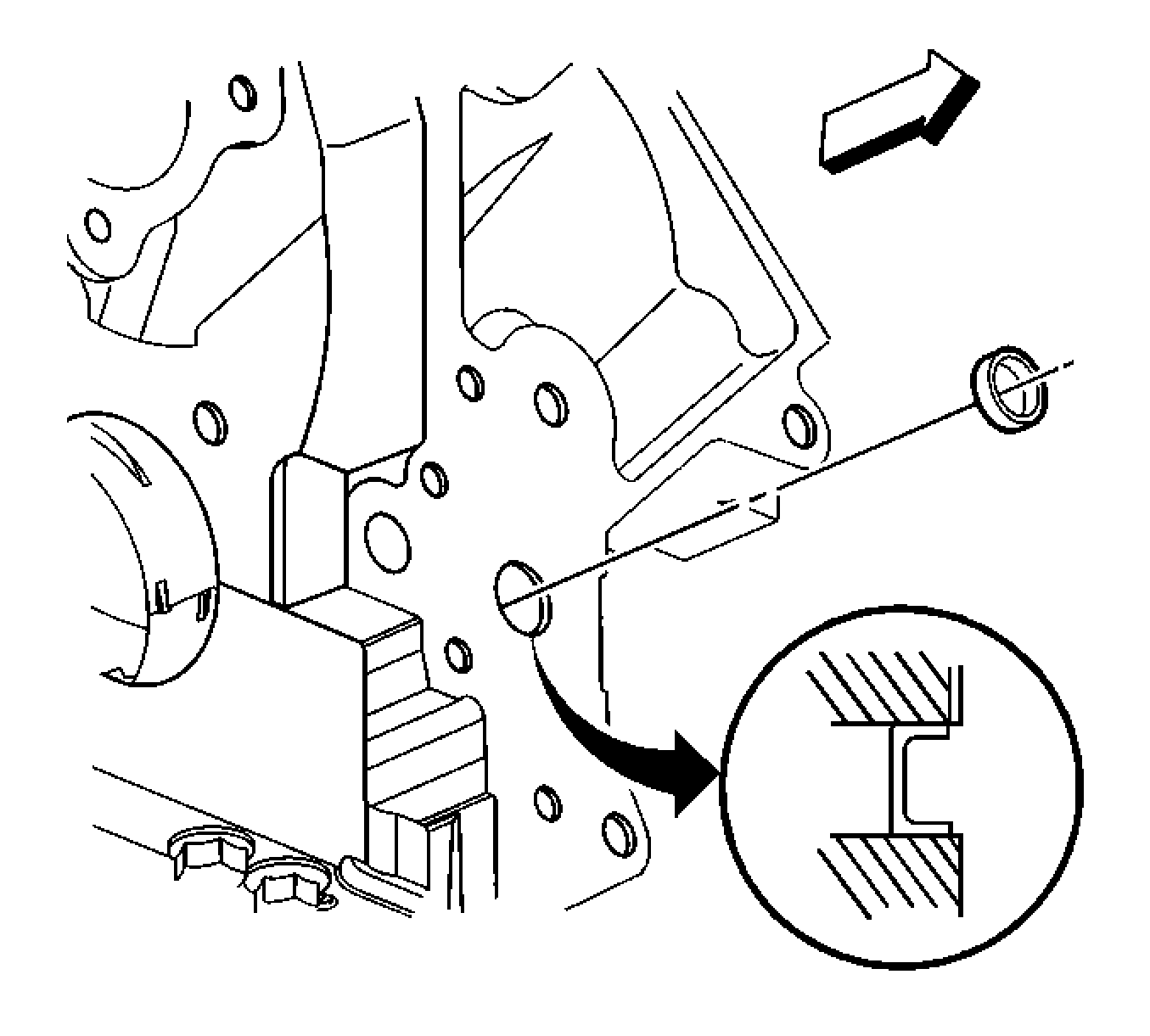

Fig 7: View Of Engine Block Front Oil Gallery Plug
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: The engine block front oil gallery plug should not be removed unless service is required.
14. Apply sealant GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the sides of the NEW front oil gallery plug.
15. Install a NEW engine block front oil gallery plug, if required. Install the front oil gallery plug into the oil gallery bore 2.2-2.8 mm (0.0086-0.011 in) below flush.

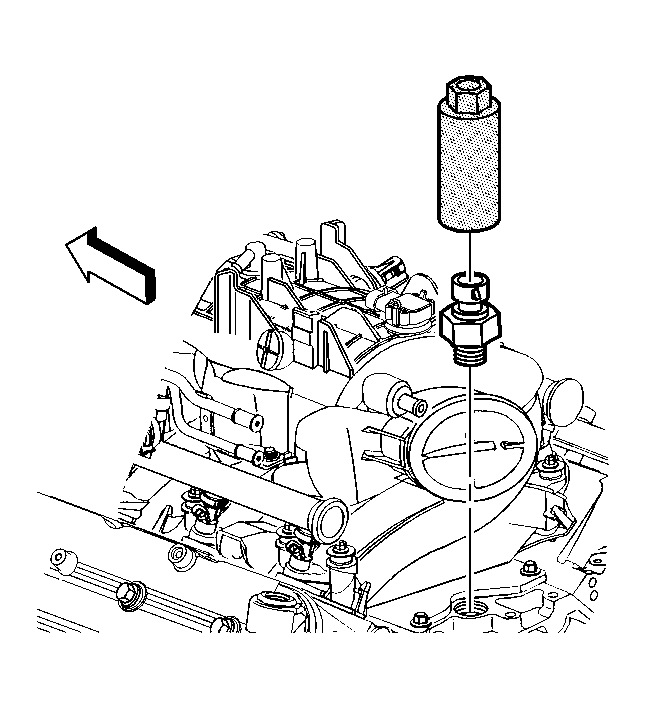

Fig 8: Installing Oil Pressure Sensor Using J 41712
Courtesy of GENERAL MOTORS CORP.
16. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the threads of the oil pressure sensor.
17. Use the J 41712 or equivalent in order to install the oil pressure sensor.

    Tighten:  Tighten the oil pressure sensor to 20 N.m (15 lb ft).
