Engine Controls - Service & Adjustment Specifications - 6.0L
>>
Ignition Systems
>>
Firing Order
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Firing Order

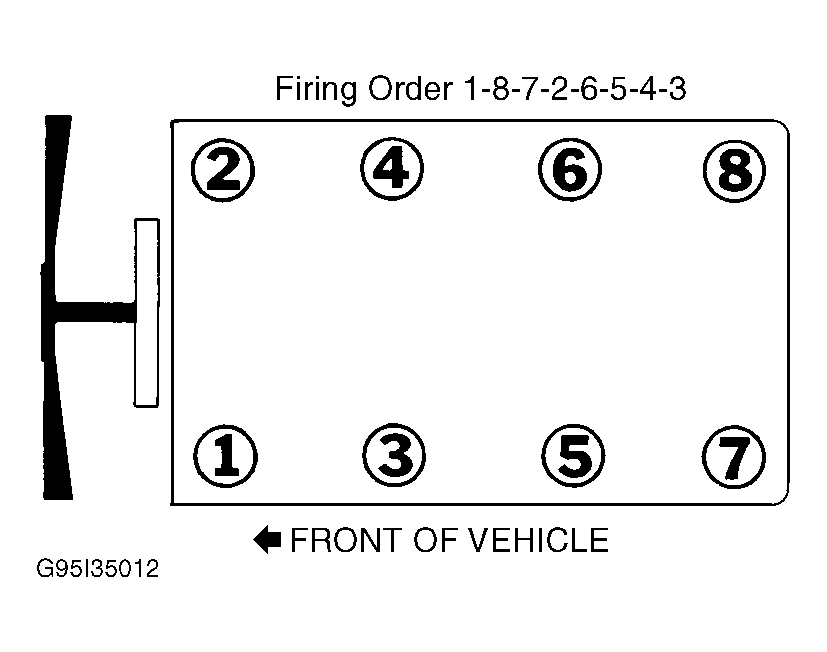

Fig 1: Firing Order (6.0L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
