Section 173 (Wheel Alignment Specifications): Specifications

WARNING: This page is about a different car, the 2003 Pontiac Bonneville, 2003 Oldsmobile Aurora, 2003 Buick Park Avenue, and 2003 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

Use illustration for wheel alignment specifications. See Fig 1 .

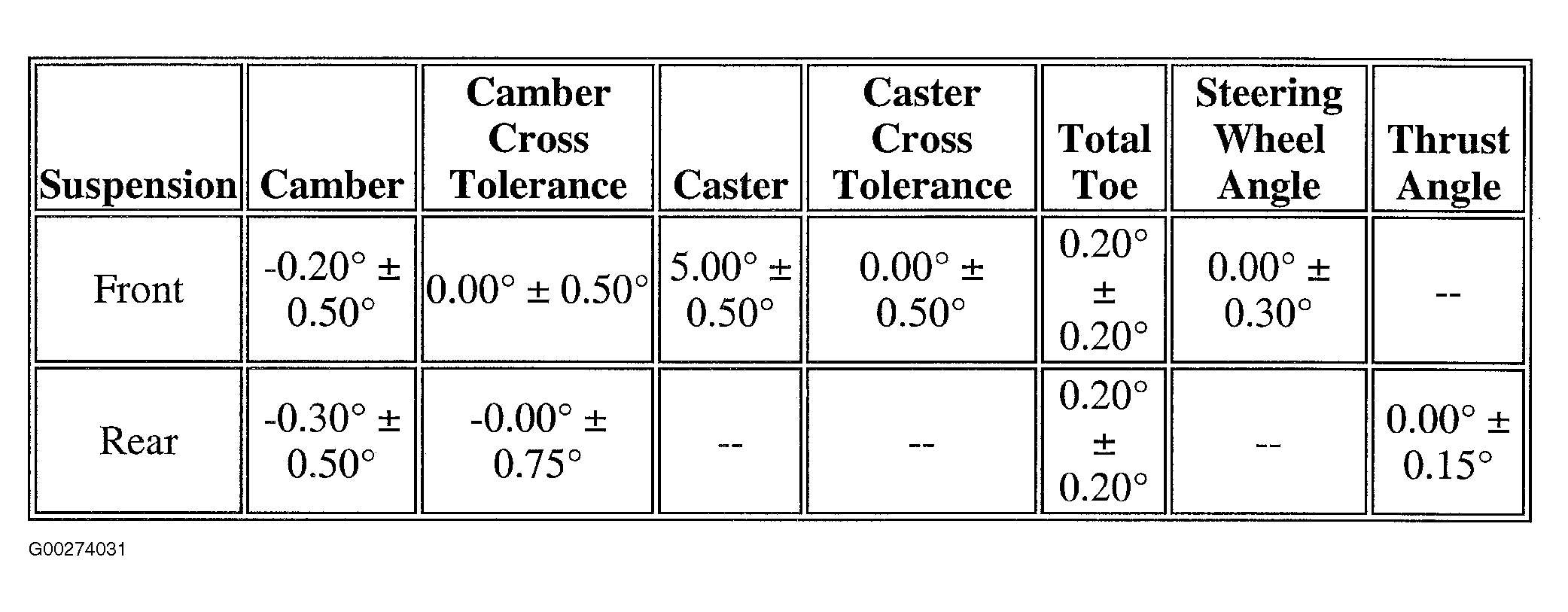

Fig 1: Wheel Alignment Specifications

Courtesy of GENERAL MOTORS CORP.
