Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Snap the remote control door lock receiver module (2) into the slots in the rear compartment.
Connect the electrical connector.

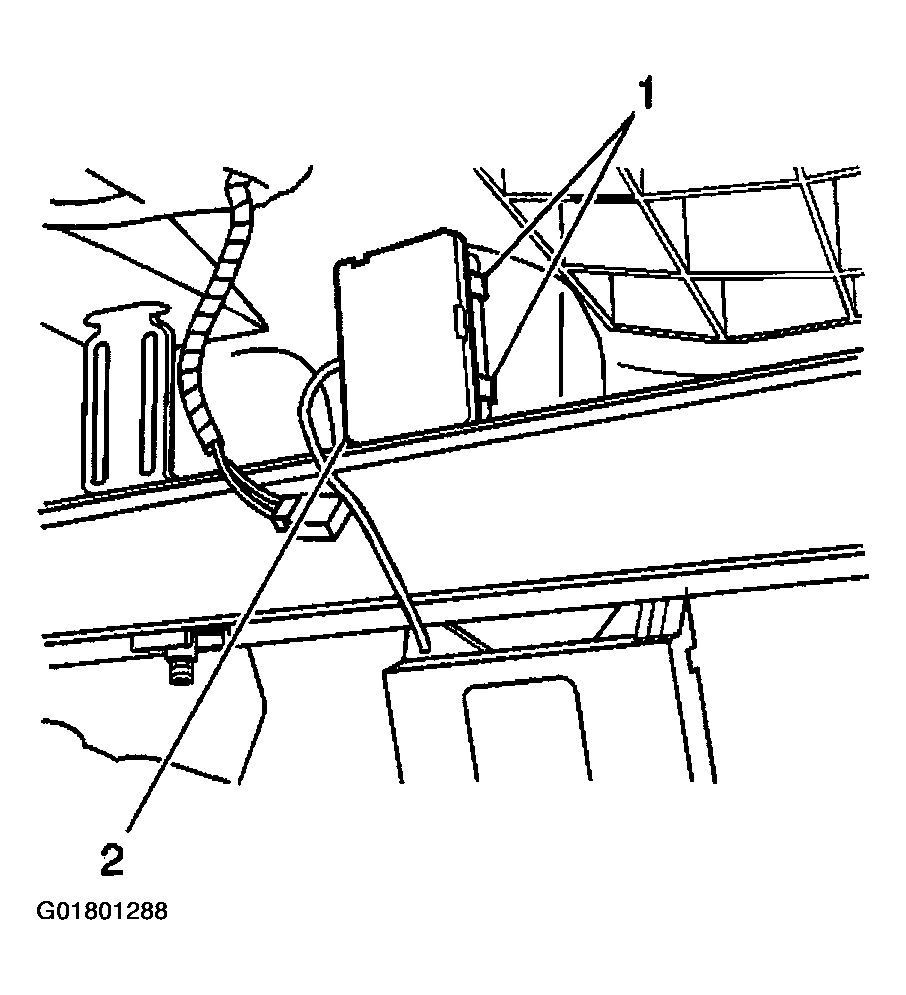

Fig 1: Installing Remote Control Door Lock Receiver Module
Courtesy of GENERAL MOTORS CORP.
Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT--REAR .
Program the remote control door lock receiver module. Refer to Transmitter Programming .

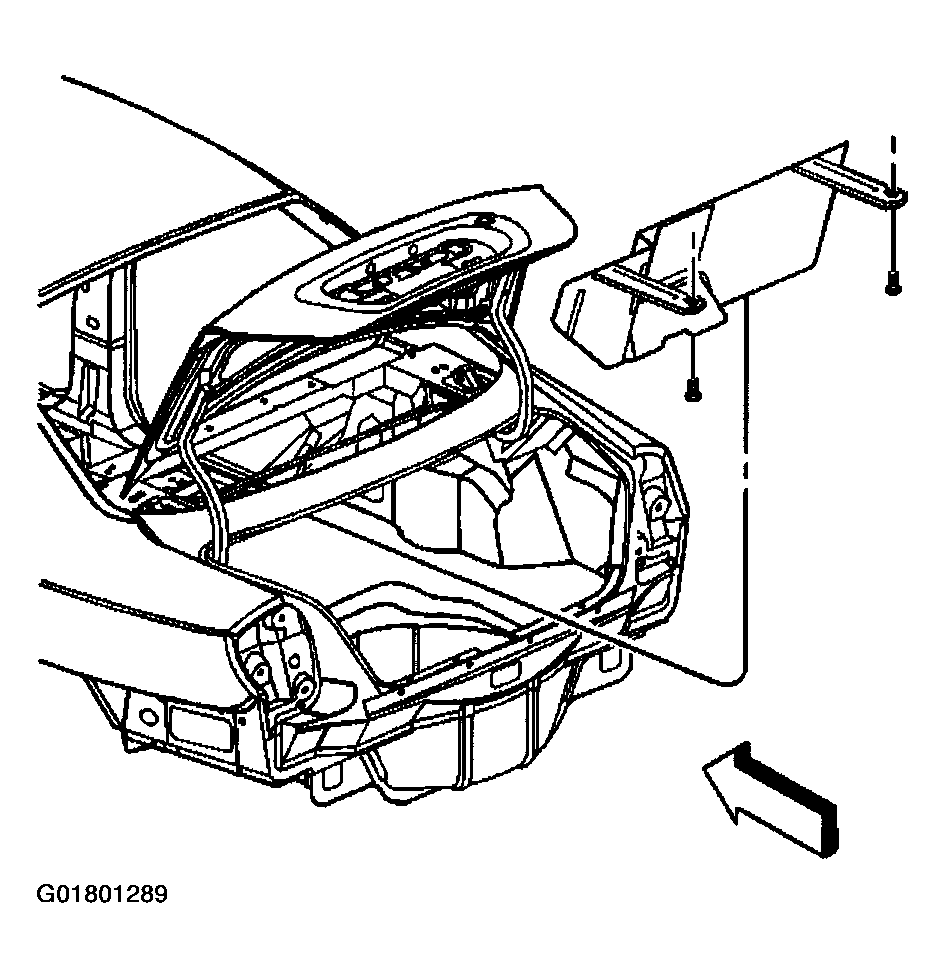

Fig 2: Installing Rear Storage Compartment Front Trim
Courtesy of GENERAL MOTORS CORP.
