Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors (1) to the DIM (2).
  2. Install the Dash Integration Module (DIM) into the bracket.

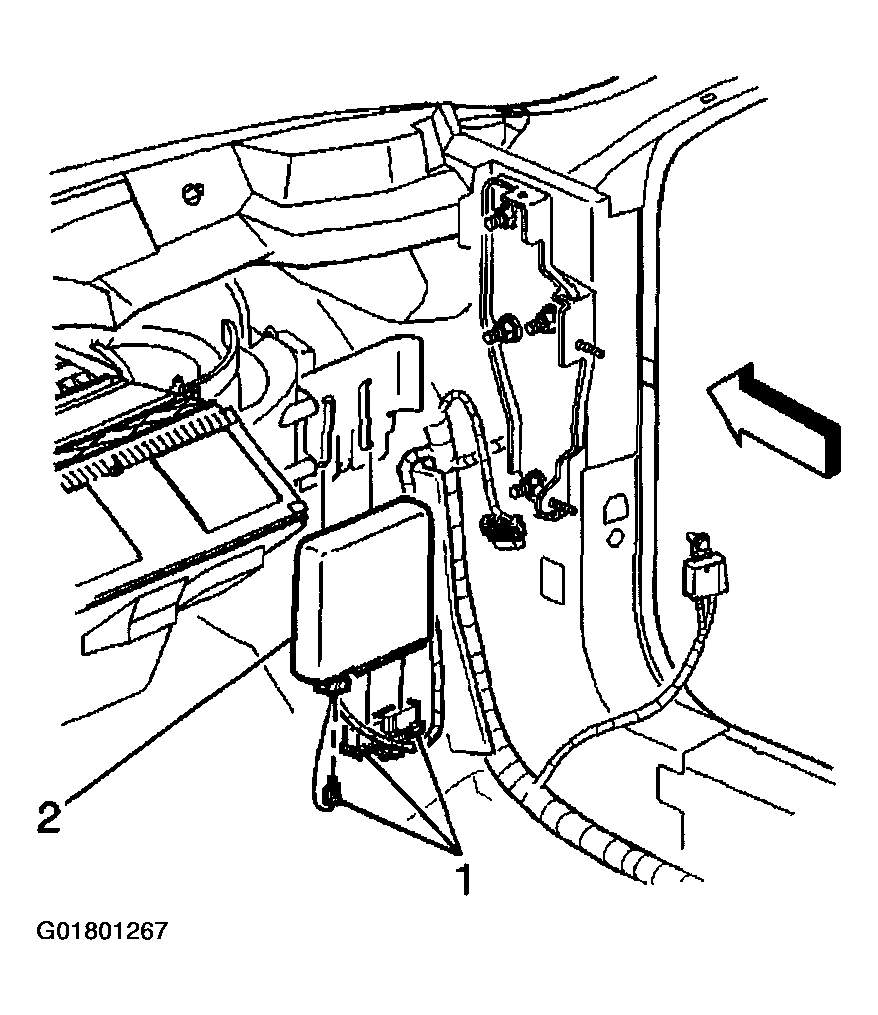

    3. Fig 1: Installing DIM Electrical Connectors
    G01801267Courtesy of GENERAL MOTORS CORP.
  3. Install the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
  4. Reprogram the DIM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)  or Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
