Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the instrument panel module (IPM) (1).
  2. Install the IPM (1) to the instrument panel (IP) retainer by inserting the top tab of the module into the slot on the IP retainer and rotating down.
    CAUTION: Refer to FASTENER NOTICE .

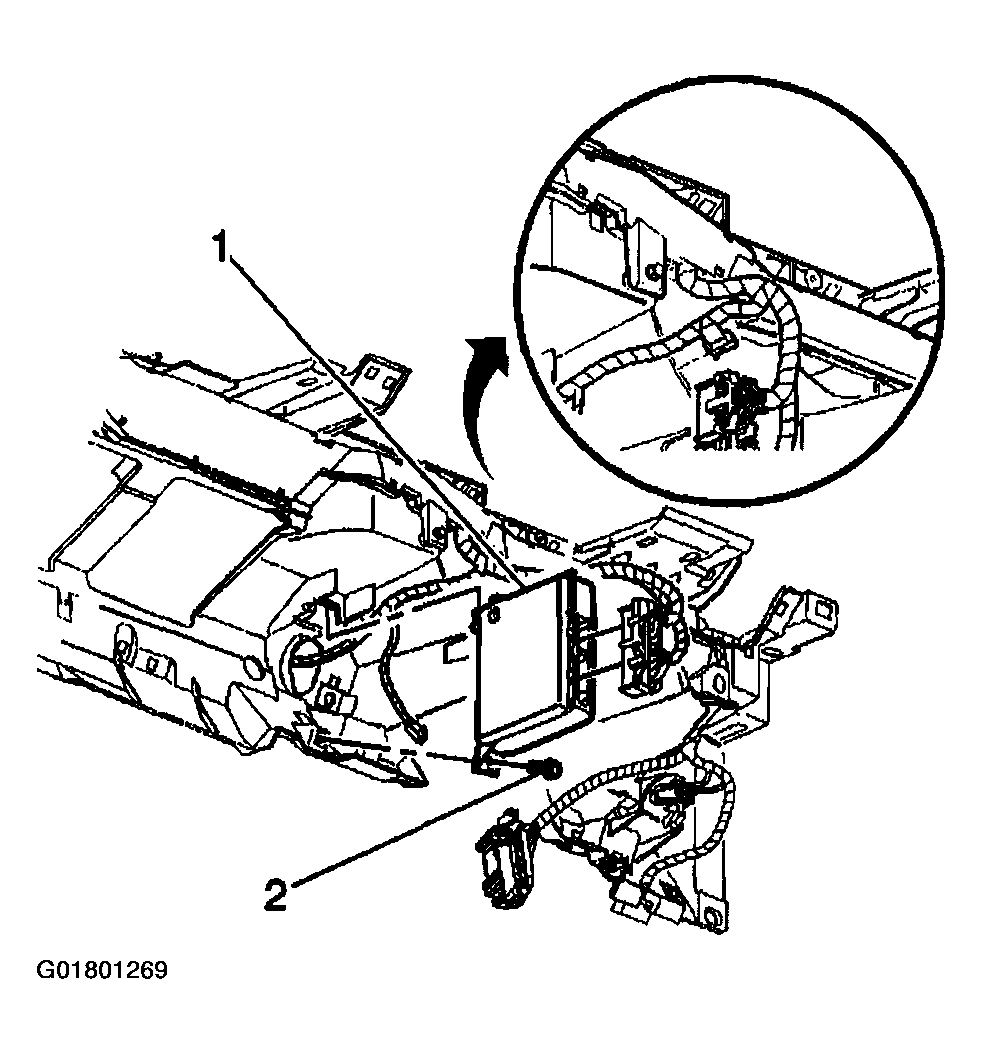

    3. Fig 1: Connecting IPM Electrical Connectors
    G01801269Courtesy of GENERAL MOTORS CORP.
  3. Install the fastener.

    Tighten

    Tighten the fastener to 2 N.m (18 lb in).

  4. Install the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  5. Reprogram the IPM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)  or Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
