Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

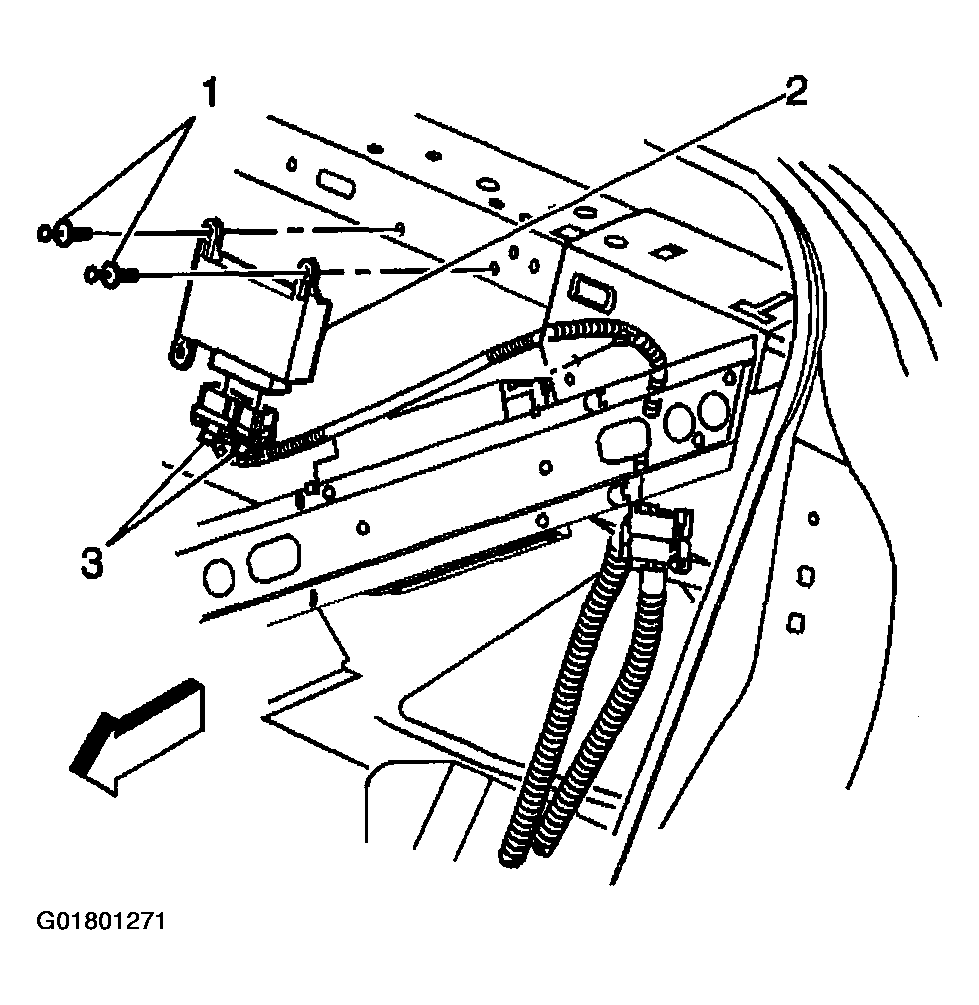

- Install the rear integration module (RIM).
- Connect the RIM electrical connectors (3).
- Install the RIM (2) with the push pin retainers (1).
- Reposition the rear seat back insulator.
- Install the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
- Install the rear seat belt buckle anchor bolts.
- Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
- Reprogram the RIM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) or Body Control Module (BCM) Programming/RPO Configuration (IPM) or Body Control Module (BCM) Programming/RPO Configuration (RIM) .
