Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before replacing the rear integration module (RIM), record the personalization settings to transfer to the new module (if they are available).
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  3. Remove the rear seat belt buckle anchor bolts.
  4. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  5. Move the rear seat back insulator aside.
  6. Remove the push pin retainers (1).
  7. Disconnect the RIM electrical connectors (3).
  8. Remove the RIM (2).

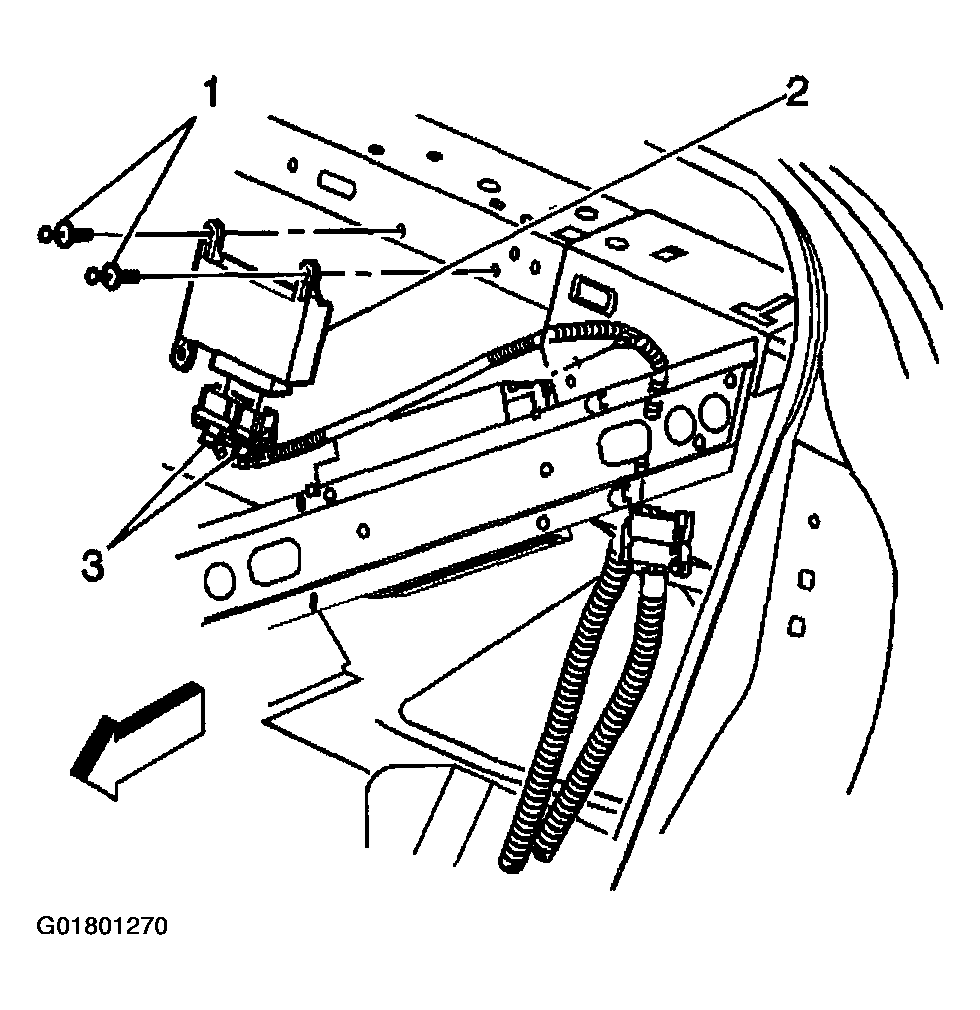

    Fig 1: Removing RIM
    G01801270Courtesy of GENERAL MOTORS CORP.
