Cellular Communication Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Vehicle Communication Interface Module (VCIM) C1 Terminals

Courtesy of GENERAL MOTORS CORP.

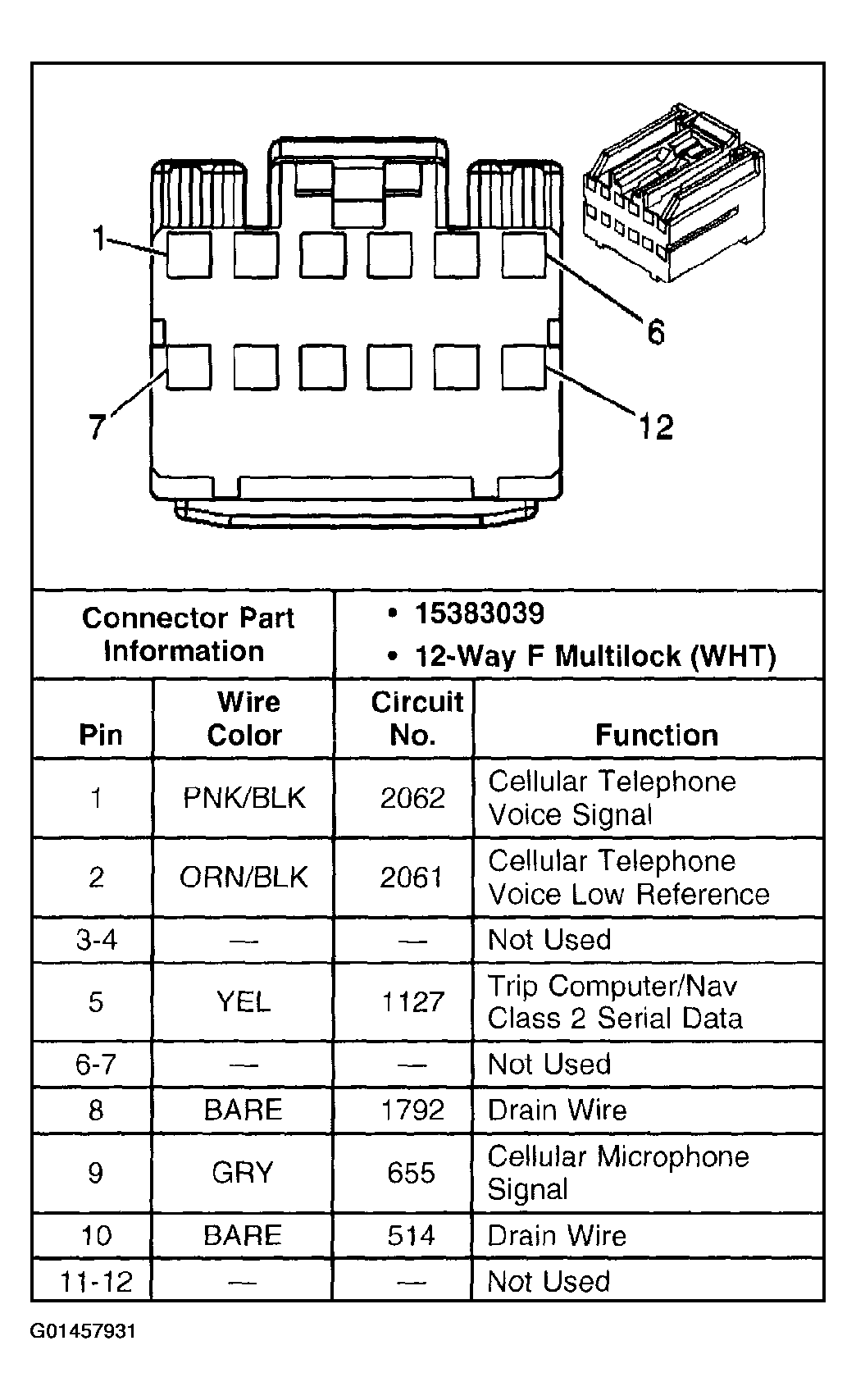

Fig 2: Identifying Vehicle Communication Interface Module (VCIM) C2 Terminals

Courtesy of GENERAL MOTORS CORP.

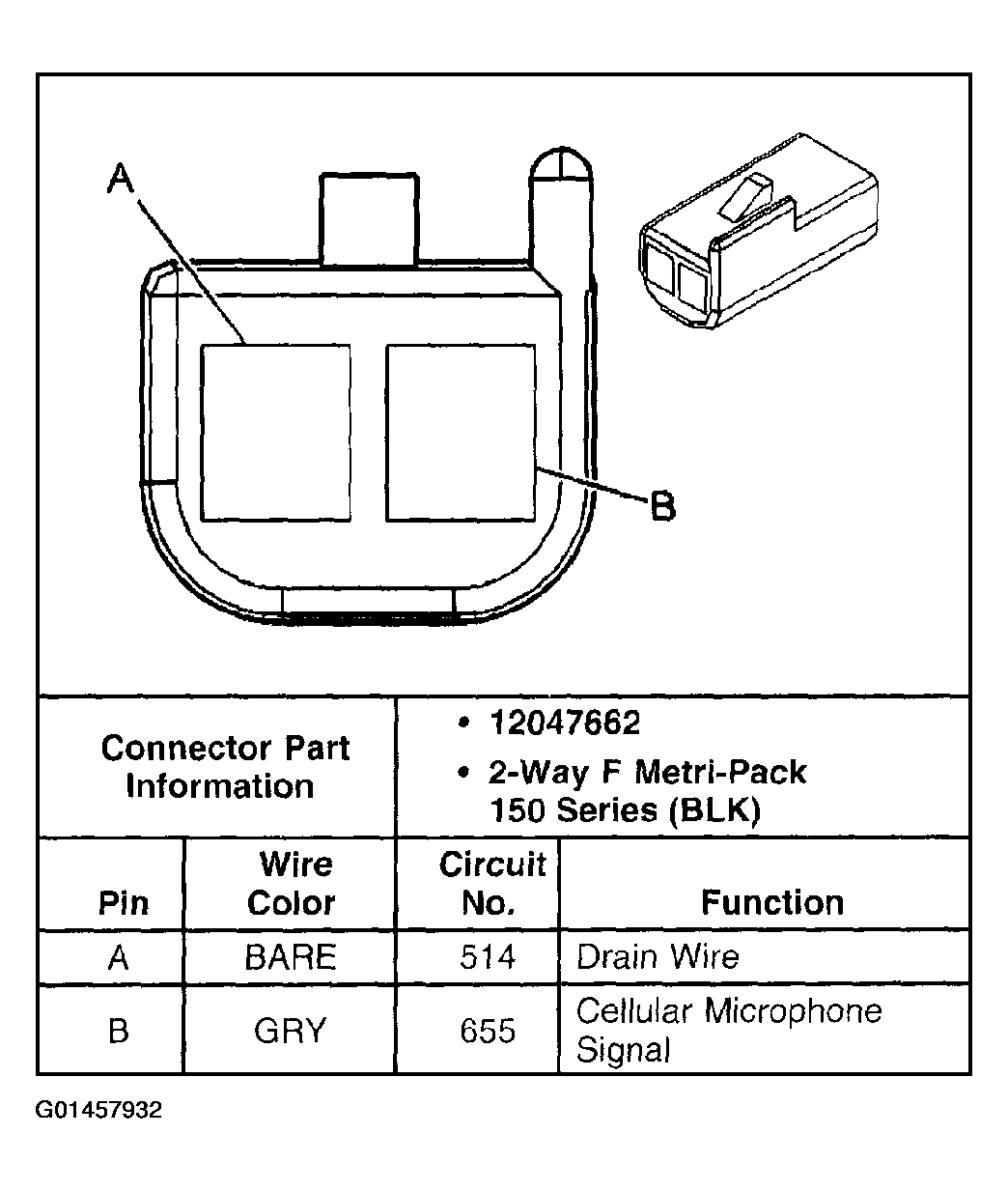

Fig 3: Identifying Cellular Telephone Microphone Terminals

Courtesy of GENERAL MOTORS CORP.
