Body Control System Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

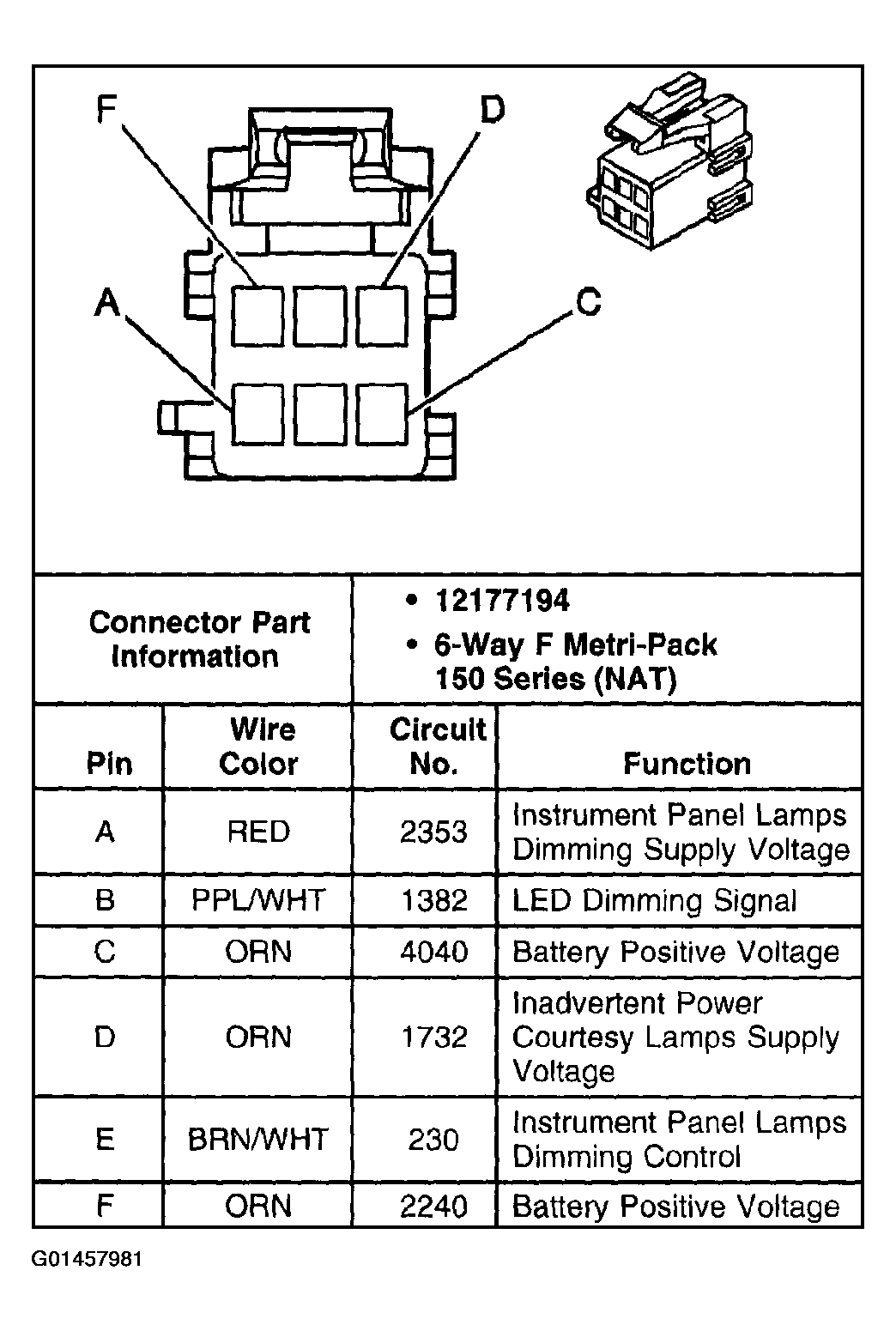

Fig 1: Identifying Body Control Module (BCM) - C1 Terminals

G01457981

Courtesy of GENERAL MOTORS CORP.

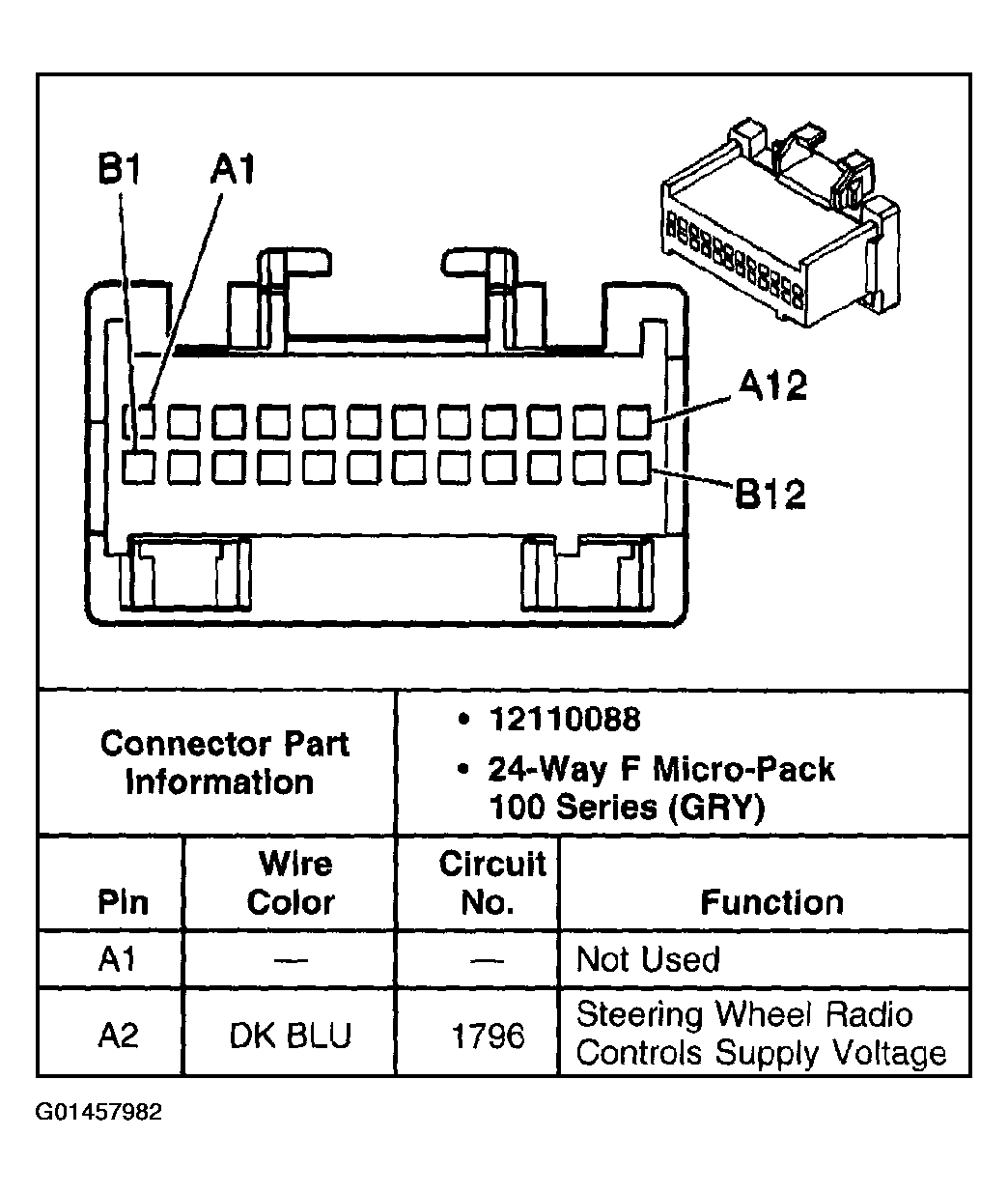

Fig 2: Identifying Body Control Module (BCM) - C2 Terminals (1 Of 2)

G01457982

Courtesy of GENERAL MOTORS CORP.

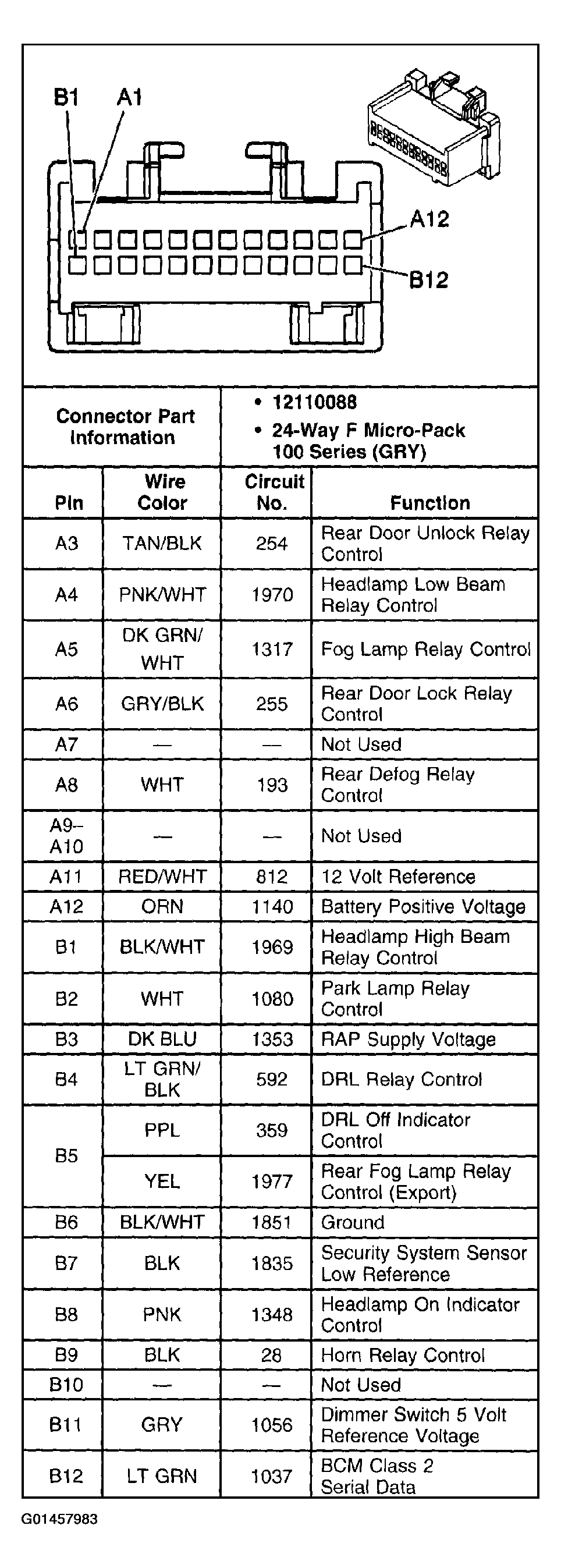

Fig 3: Identifying Body Control Module (BCM) - C2 Terminals (2 Of 2)

G01457983

Courtesy of GENERAL MOTORS CORP.

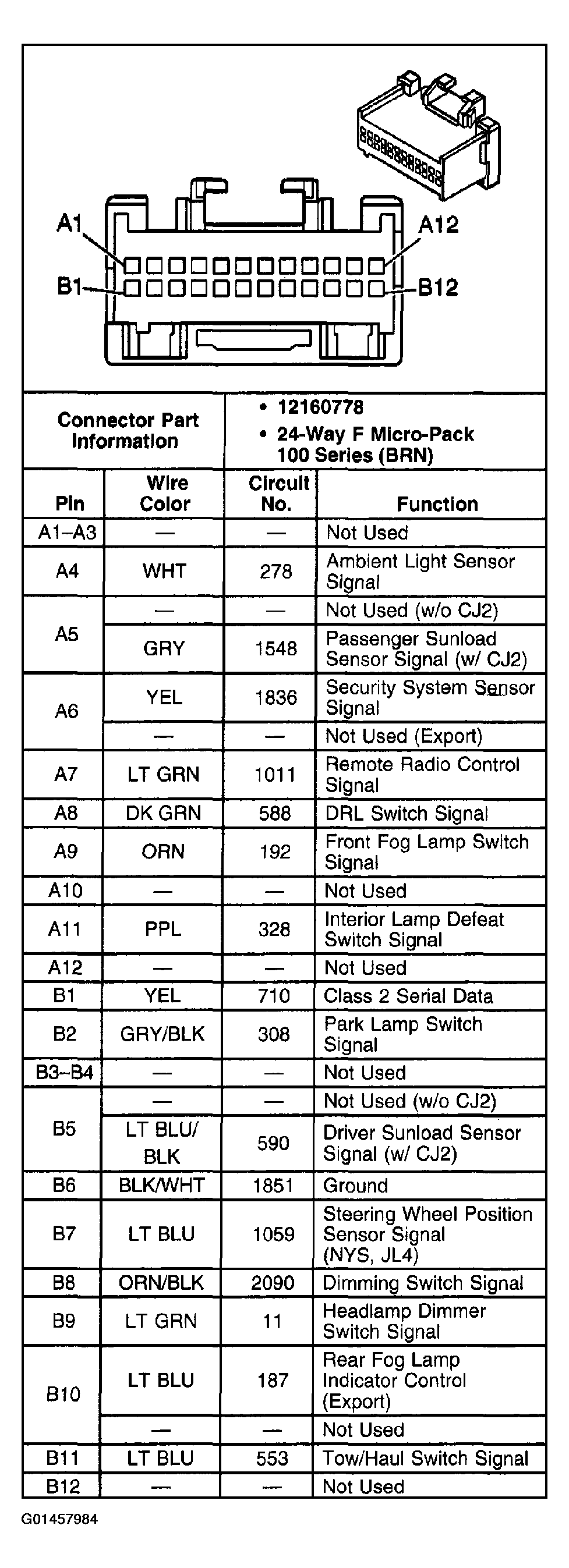

Fig 4: Identifying Body Control Module (BCM) - C3 Terminals

G01457984

Courtesy of GENERAL MOTORS CORP.

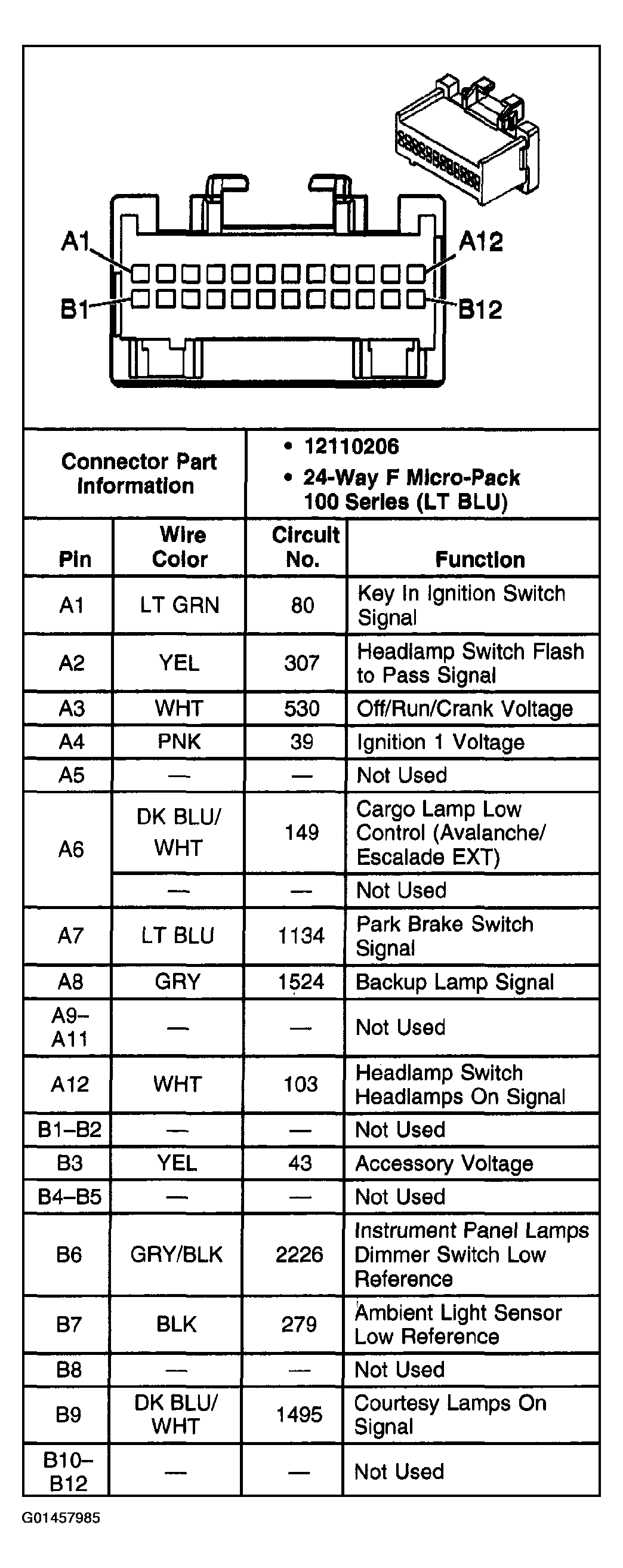

Fig 5: Identifying Body Control Module (BCM) - C4 Terminals

G01457985

Courtesy of GENERAL MOTORS CORP.

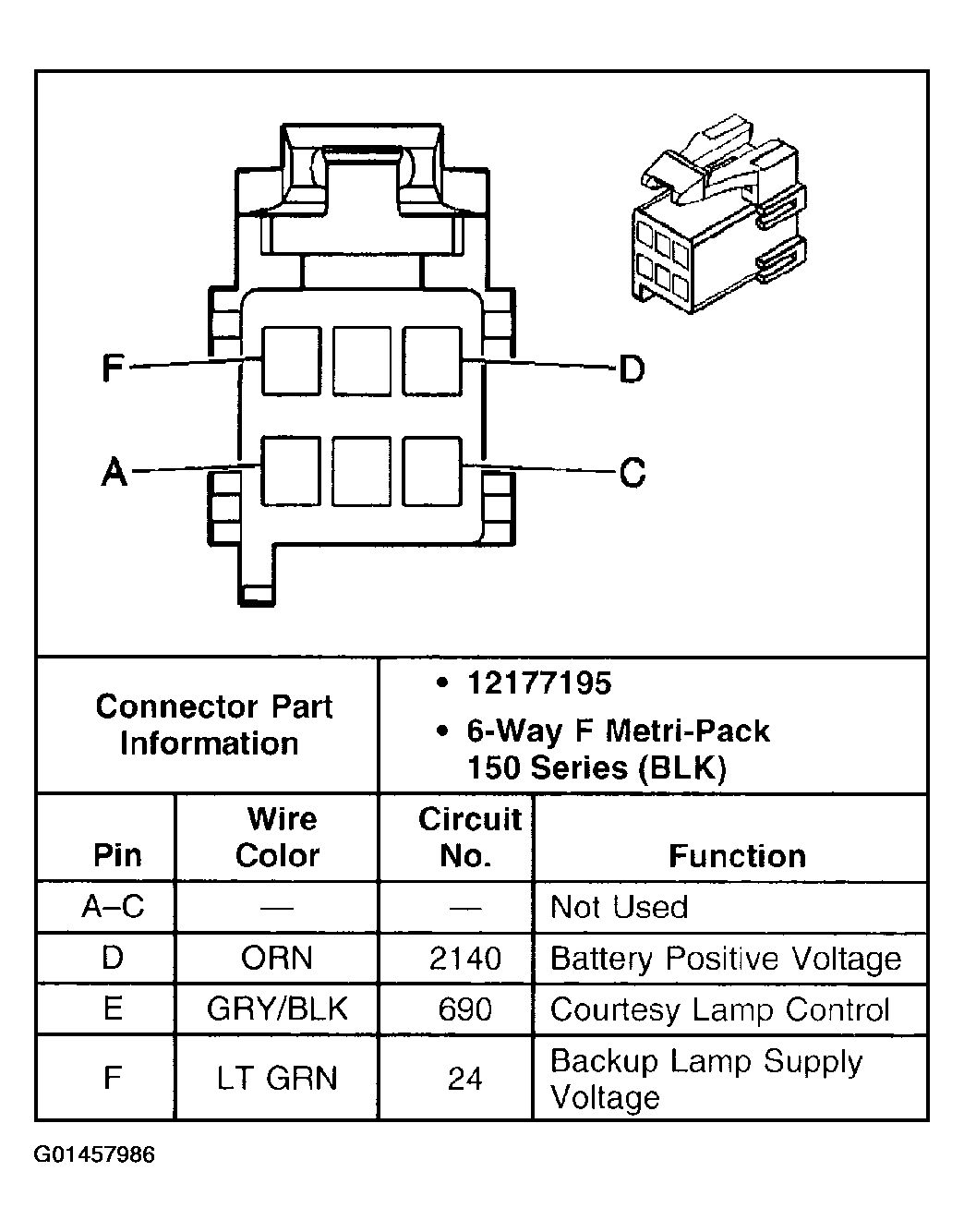

Fig 6: Identifying Body Control Module (BCM) - C5 Terminals

G01457986

Courtesy of GENERAL MOTORS CORP.

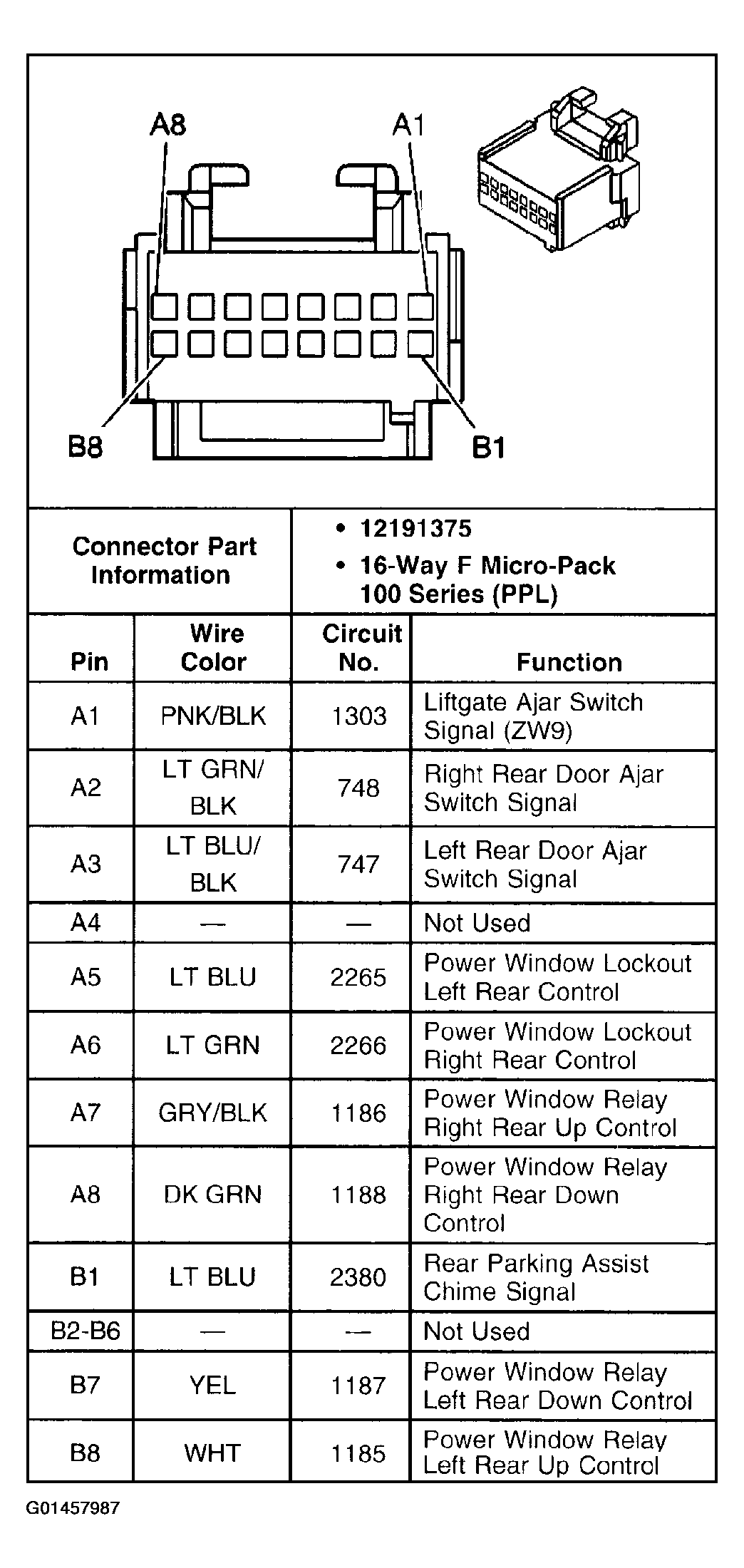

Fig 7: Identifying Body Control Module (BCM) - C6 Terminals

G01457987

Courtesy of GENERAL MOTORS CORP.
