Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Slide the BCM onto the bracket.
Connect all the connectors (1) except the brown connector.
Connect the brown connector.

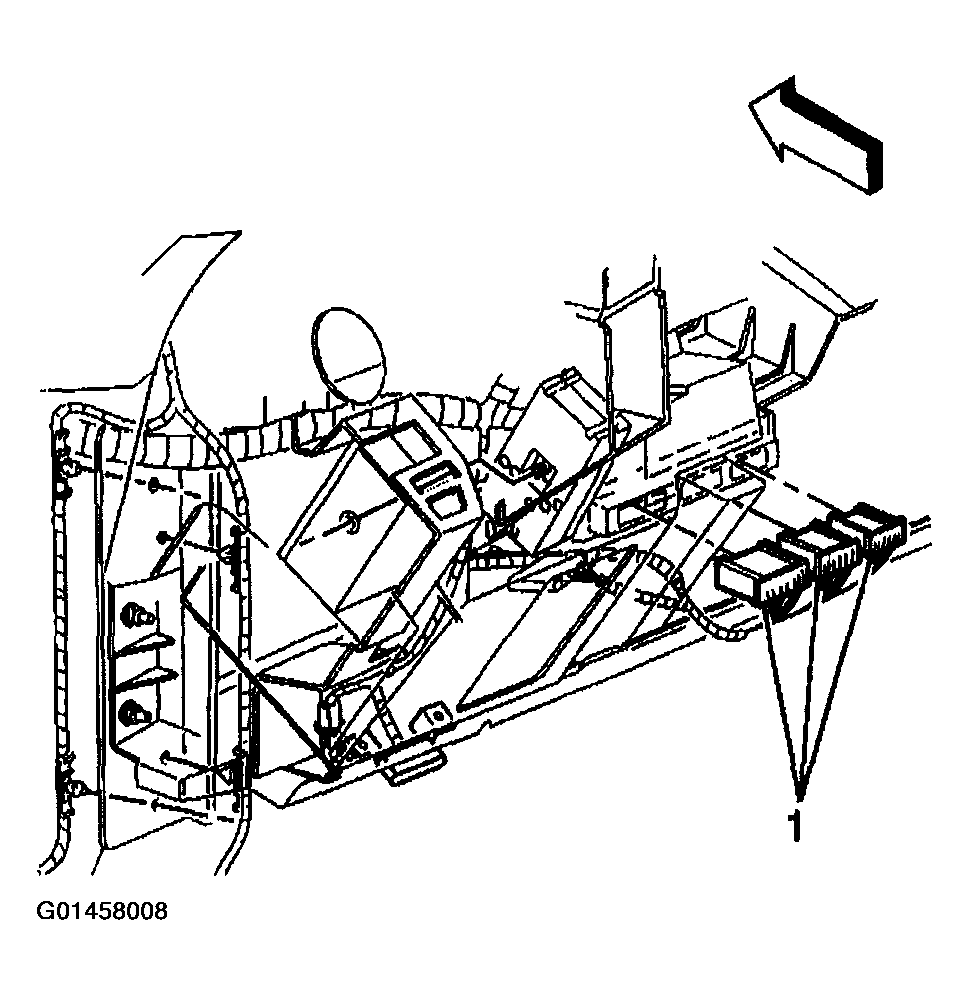

Fig 1: Sliding BCM Onto Bracket And Connecting Connectors
Courtesy of GENERAL MOTORS CORP.
Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages, and Console.
Connect the negative battery cable(s).
Reprogram the BCM. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION .
Perform the Passlock Learn Procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS in Theft Deterrent

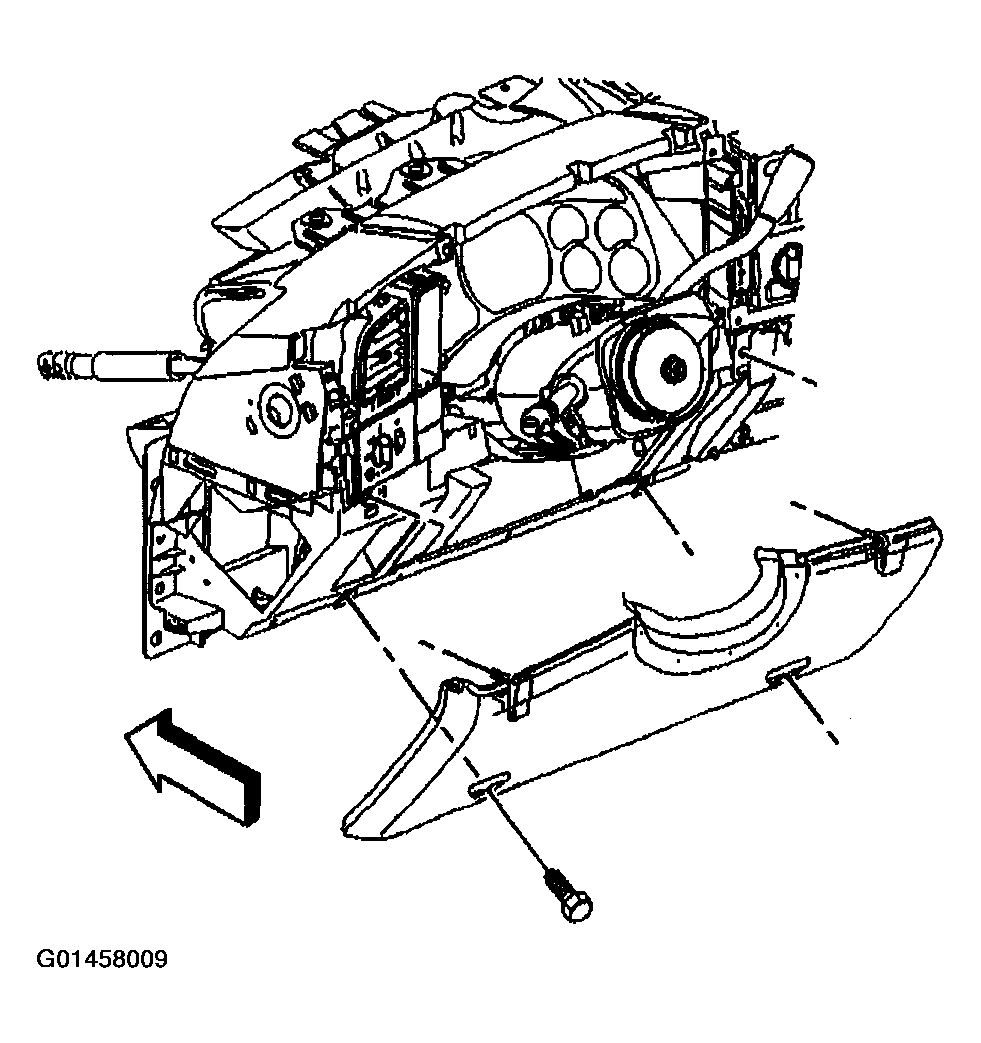

Fig 2: Installing Knee Bolster
Courtesy of GENERAL MOTORS CORP.
