Keyless Entry Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

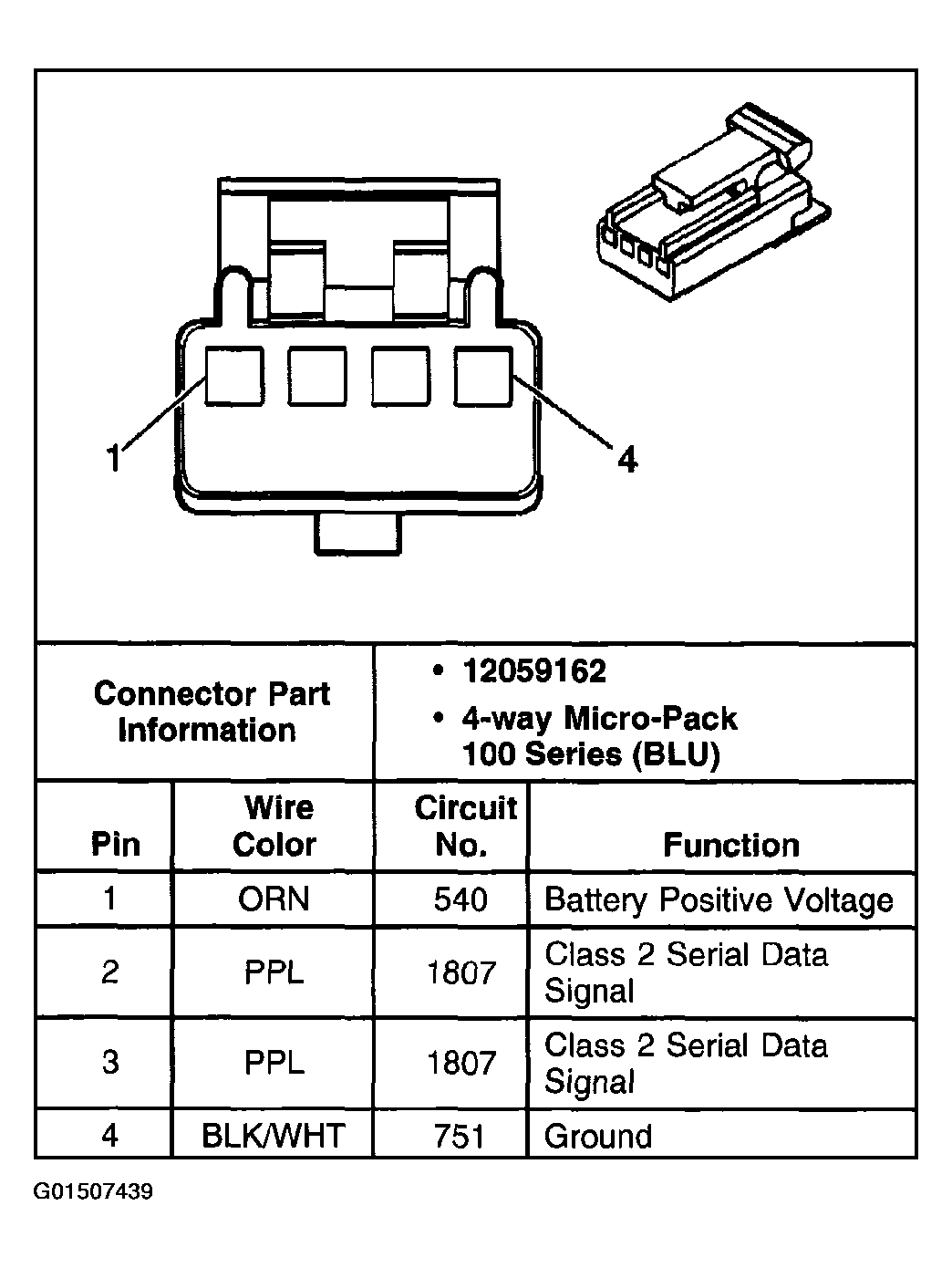

Fig 1: Identifying Remote Control Door Lock Receiver Connector End View
G01507439Courtesy of GENERAL MOTORS CORP.
