WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

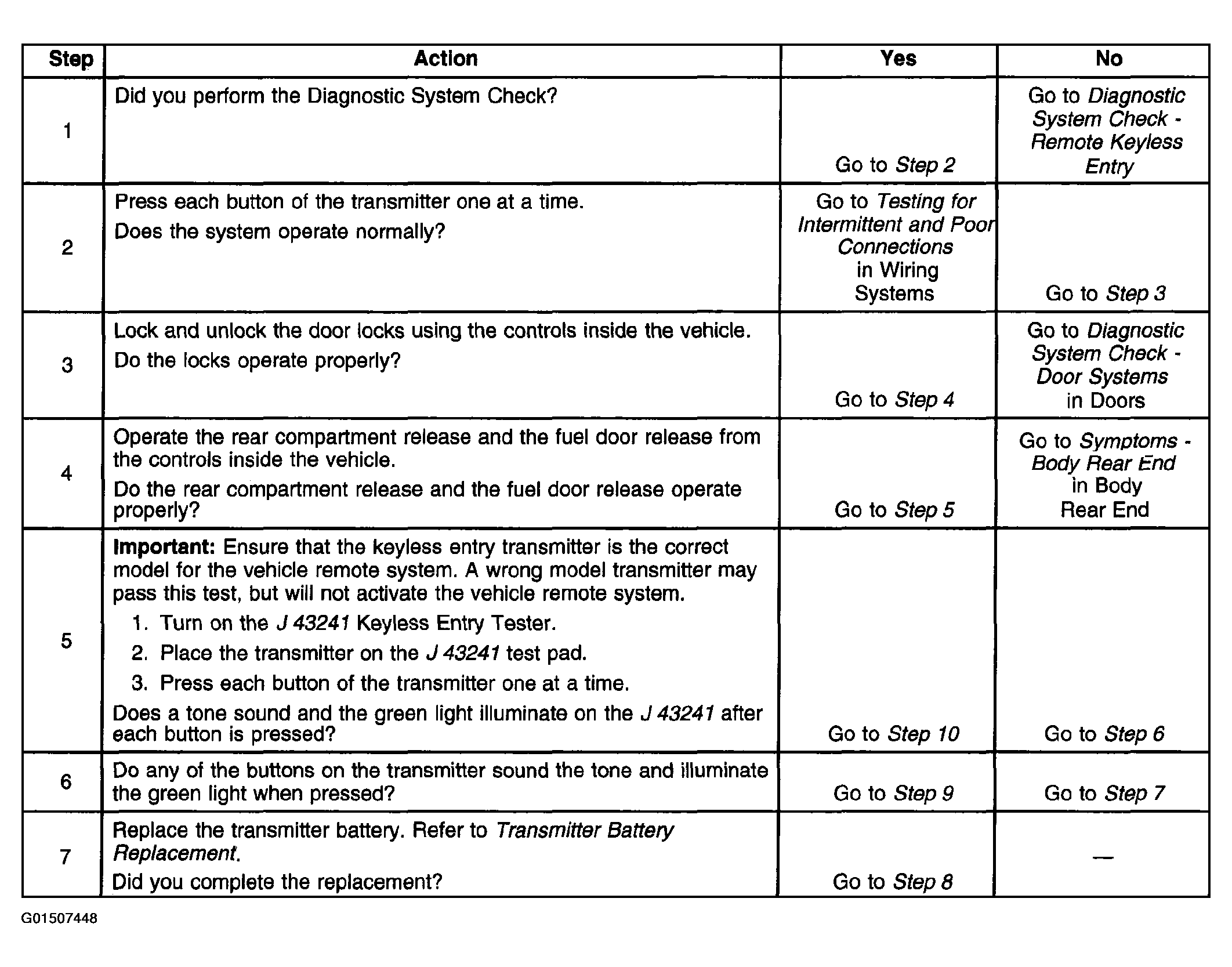

Fig 1: Keyless Entry System Inoperative (Steps 1-7)
Courtesy of GENERAL MOTORS CORP.

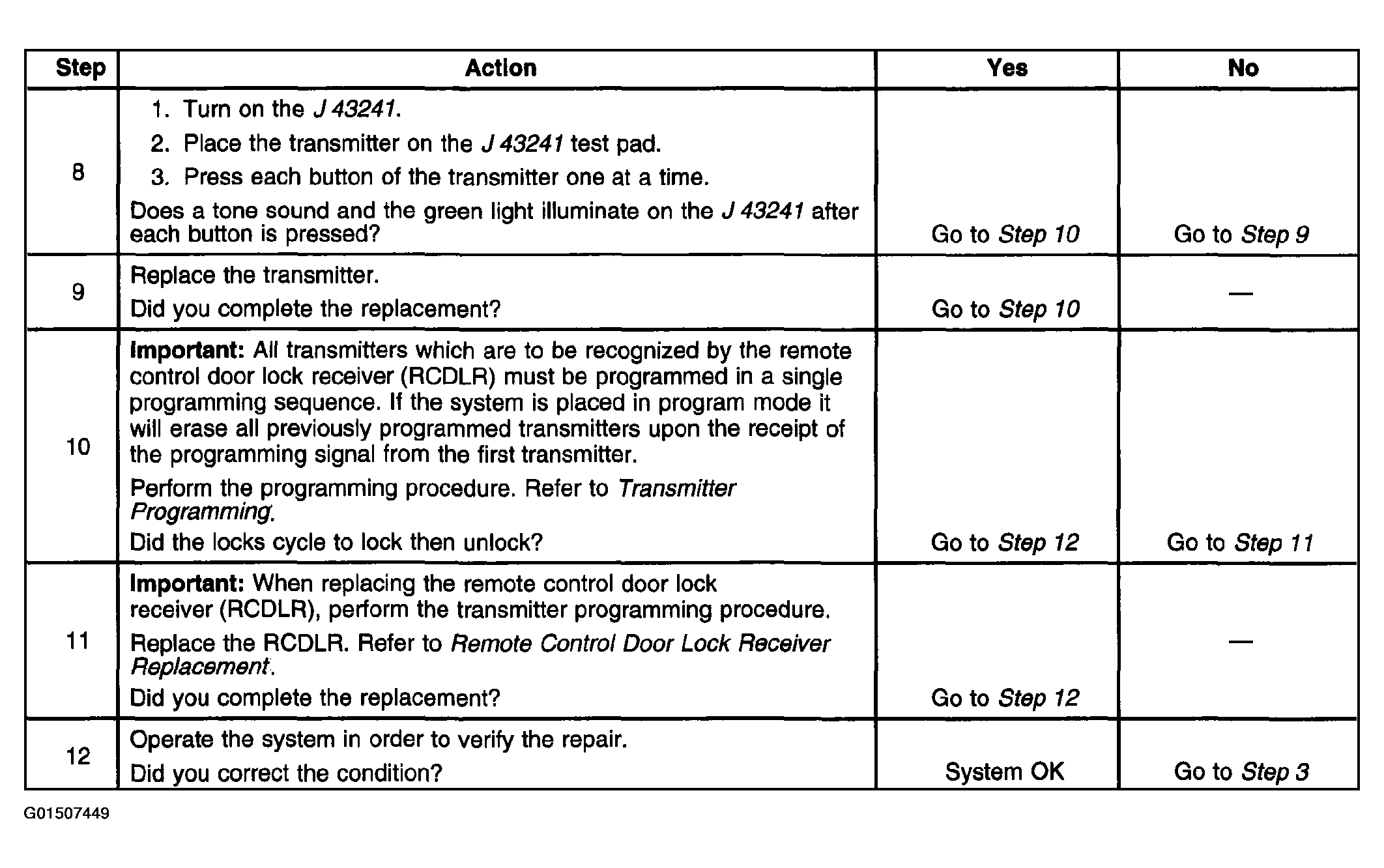

Fig 2: Keyless Entry System Inoperative (Steps 8-12)
