Remote Control Door Lock Receiver Replacement: Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Snap the remote control door lock receiver module (2) into the slots in the rear compartment.
Connect the electrical connector.

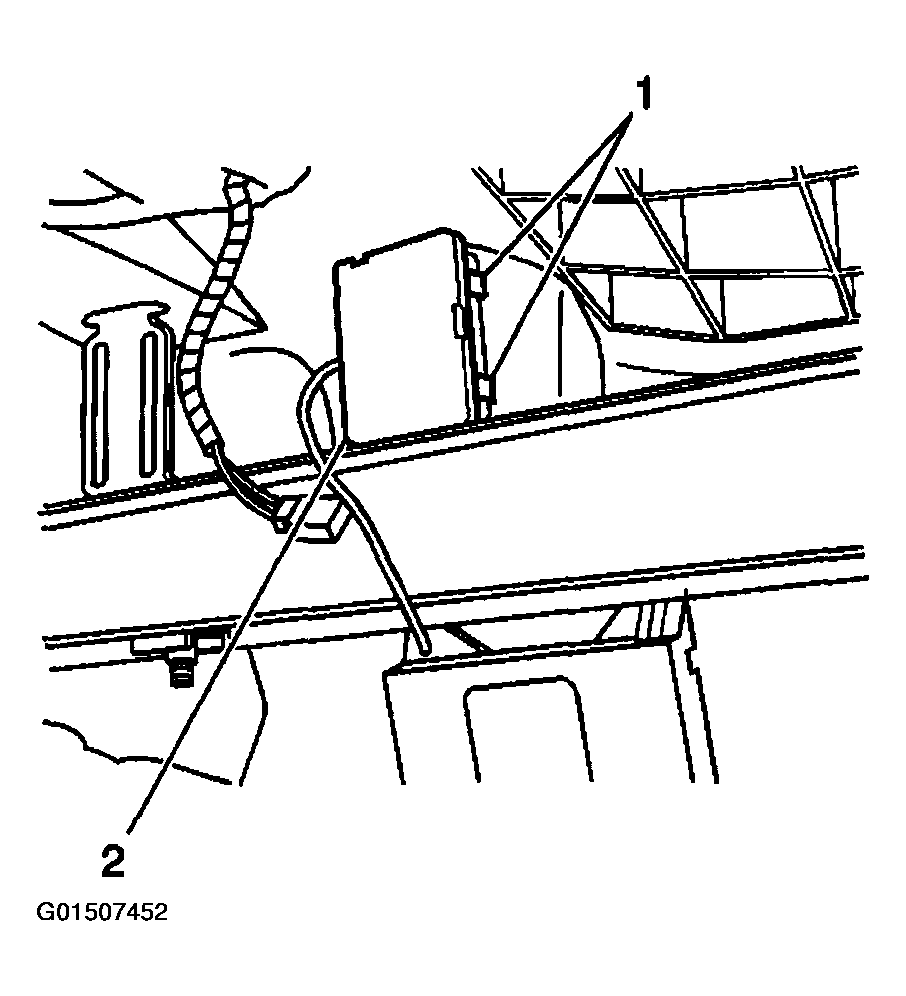

Fig 1: Installing Procedure Remote Control Door Lock Receiver (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
Program the remote control door lock receiver module. Refer to TRANSMITTER PROGRAMMING .

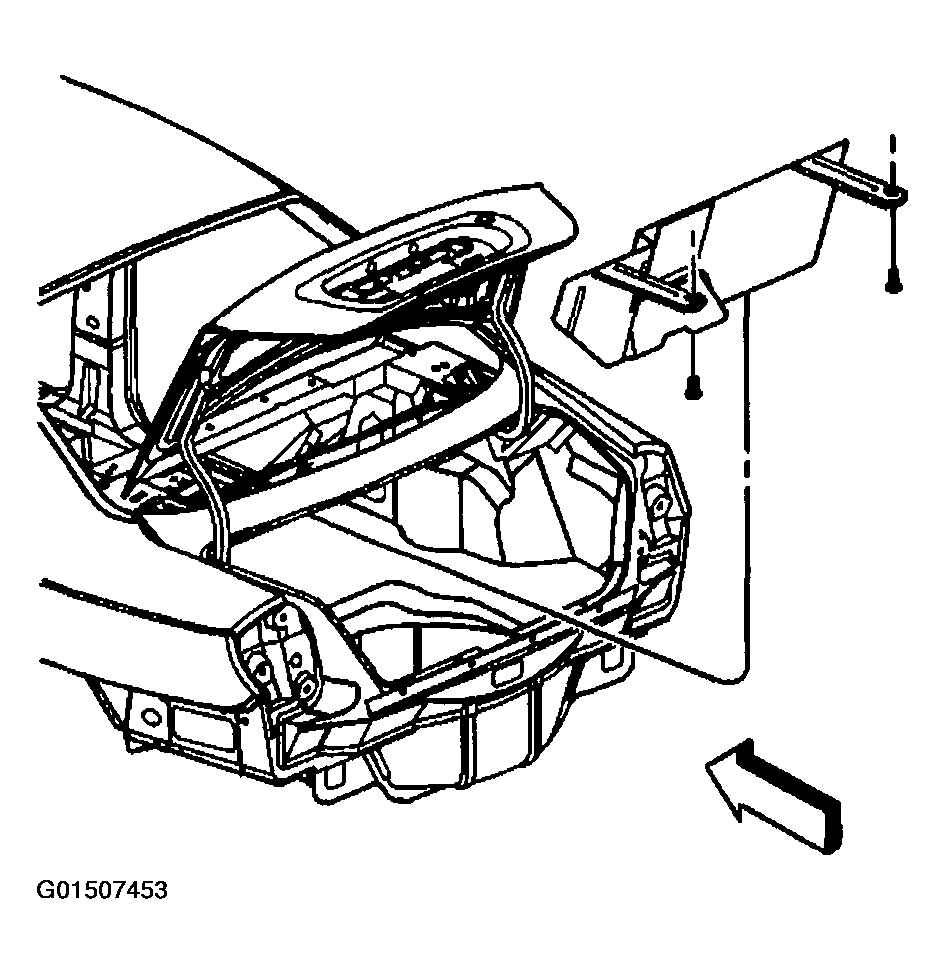

Fig 2: Installing Procedure Remote Control Door Lock Receiver (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
