Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front trim from inside of the rear storage compartment. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.

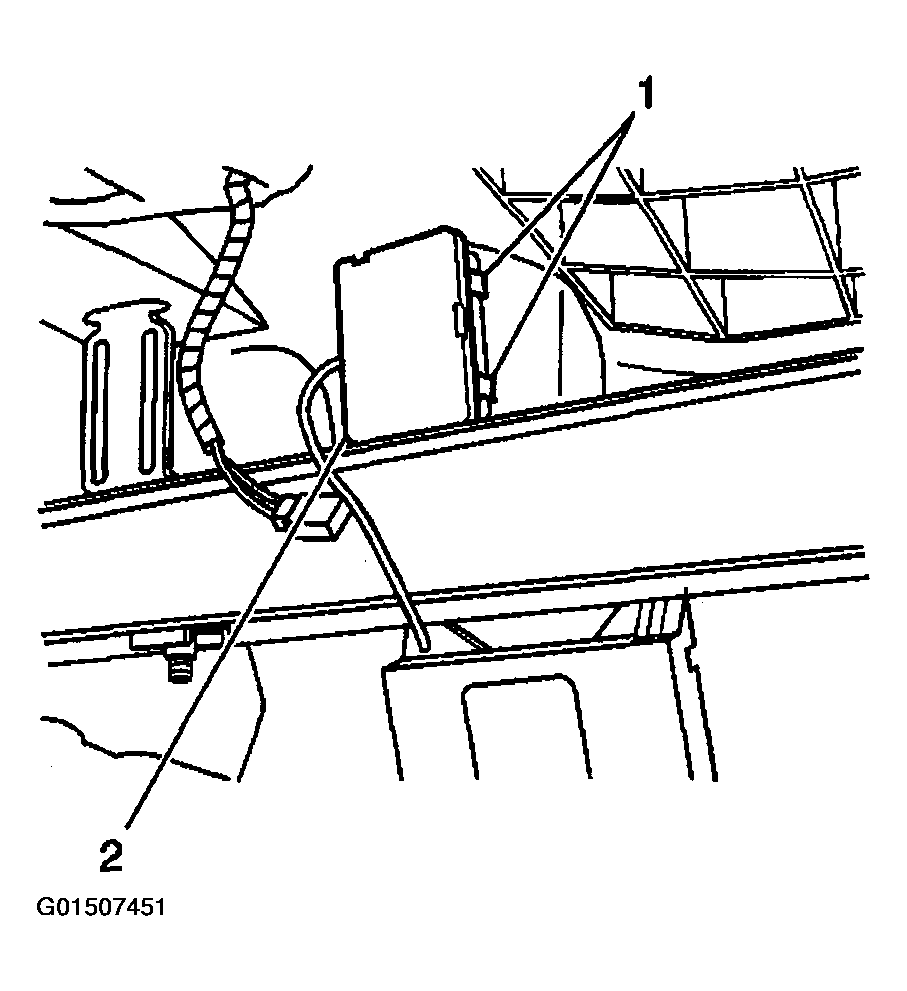

Fig 1: Removing Procedure Remote Control Door Lock Receiver (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector.
Depress the retainer tabs (1).
Remove the remote control door lock receiver module (2).

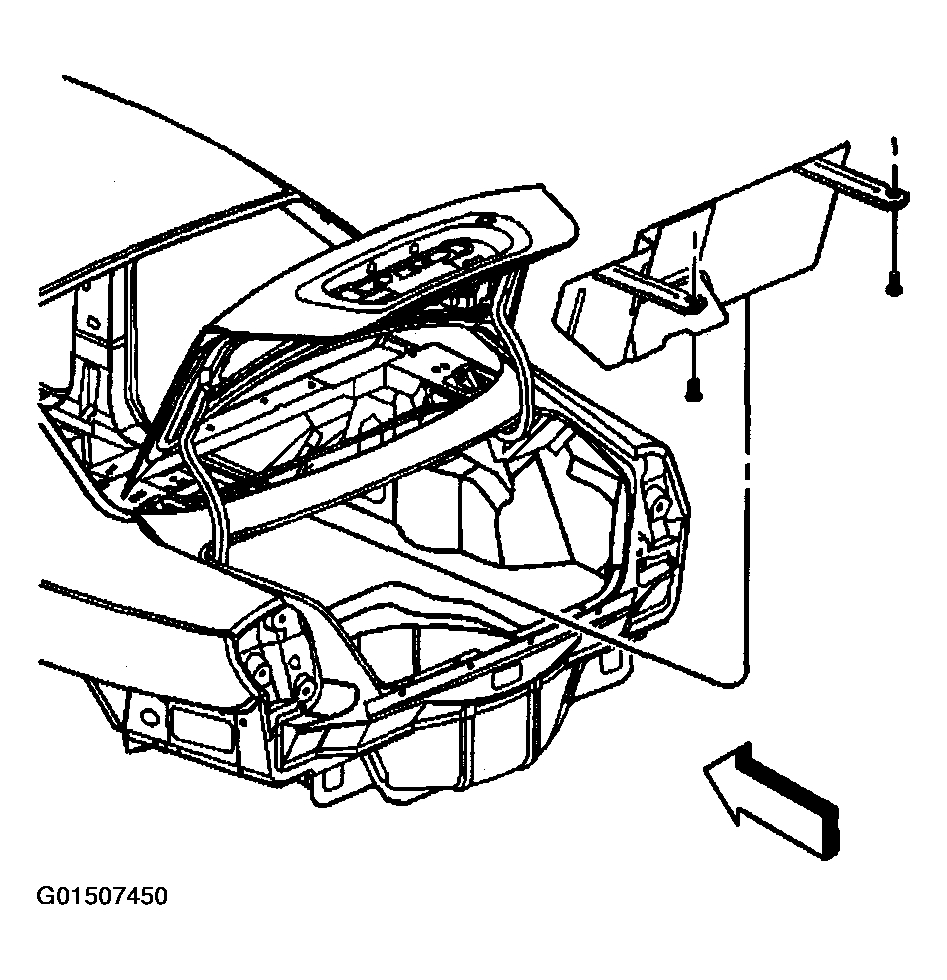

Fig 2: Removing Procedure Remote Control Door Lock Receiver (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
