Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the battery (2) with the positive (+) side down.
Use one 3 V CR2032 battery (or the equivalent).
Close the transmitter case (6,4).

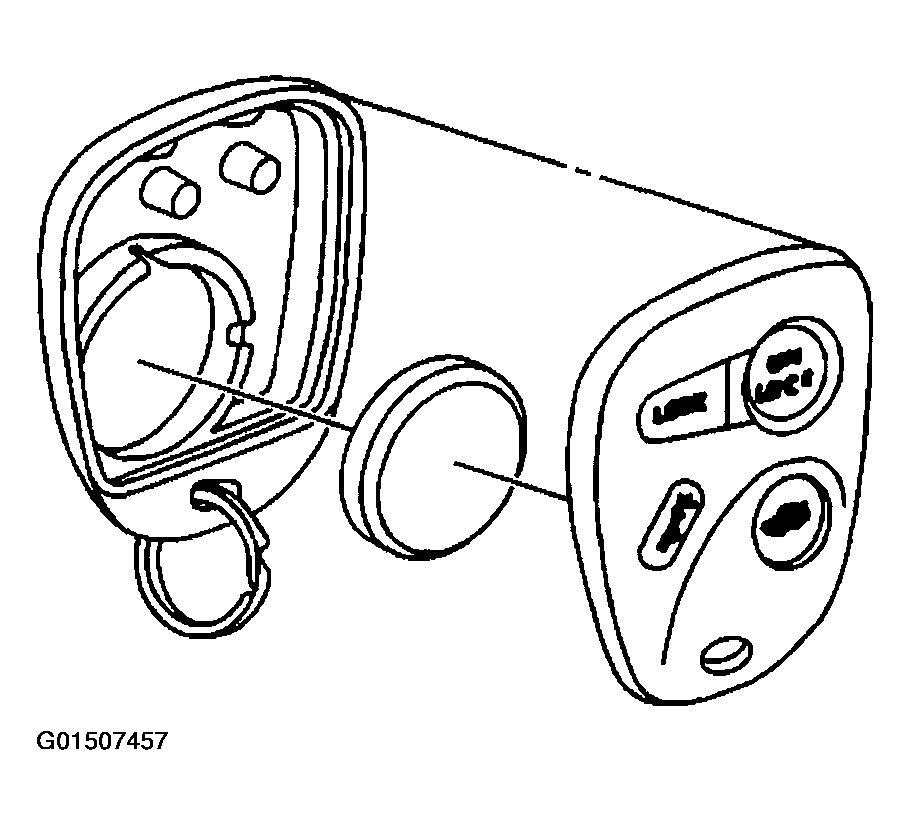

Fig 1: Installing Transmitter Battery (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Ensure that the seal is in position. Align the two halves of the case and snap the two halves together.
Reprogram the transmitter. Refer to TRANSMITTER PROGRAMMING .

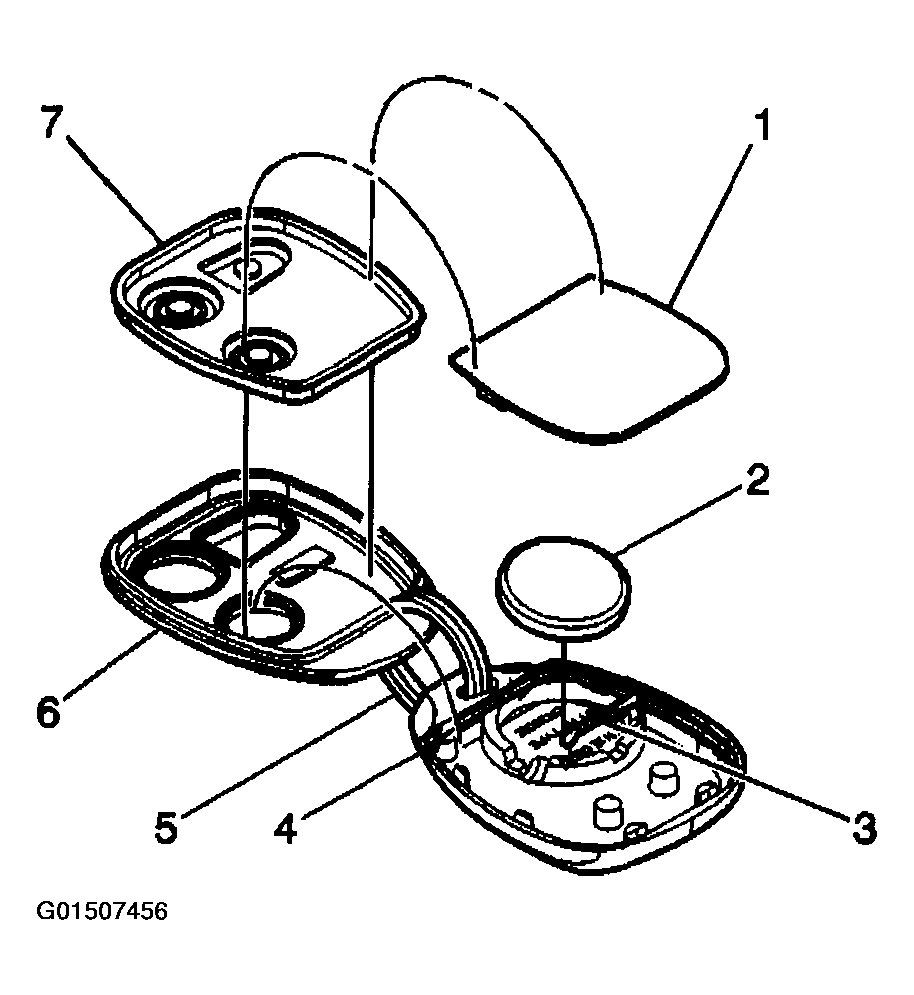

Fig 2: Installing Transmitter Battery (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
