Body Control System Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

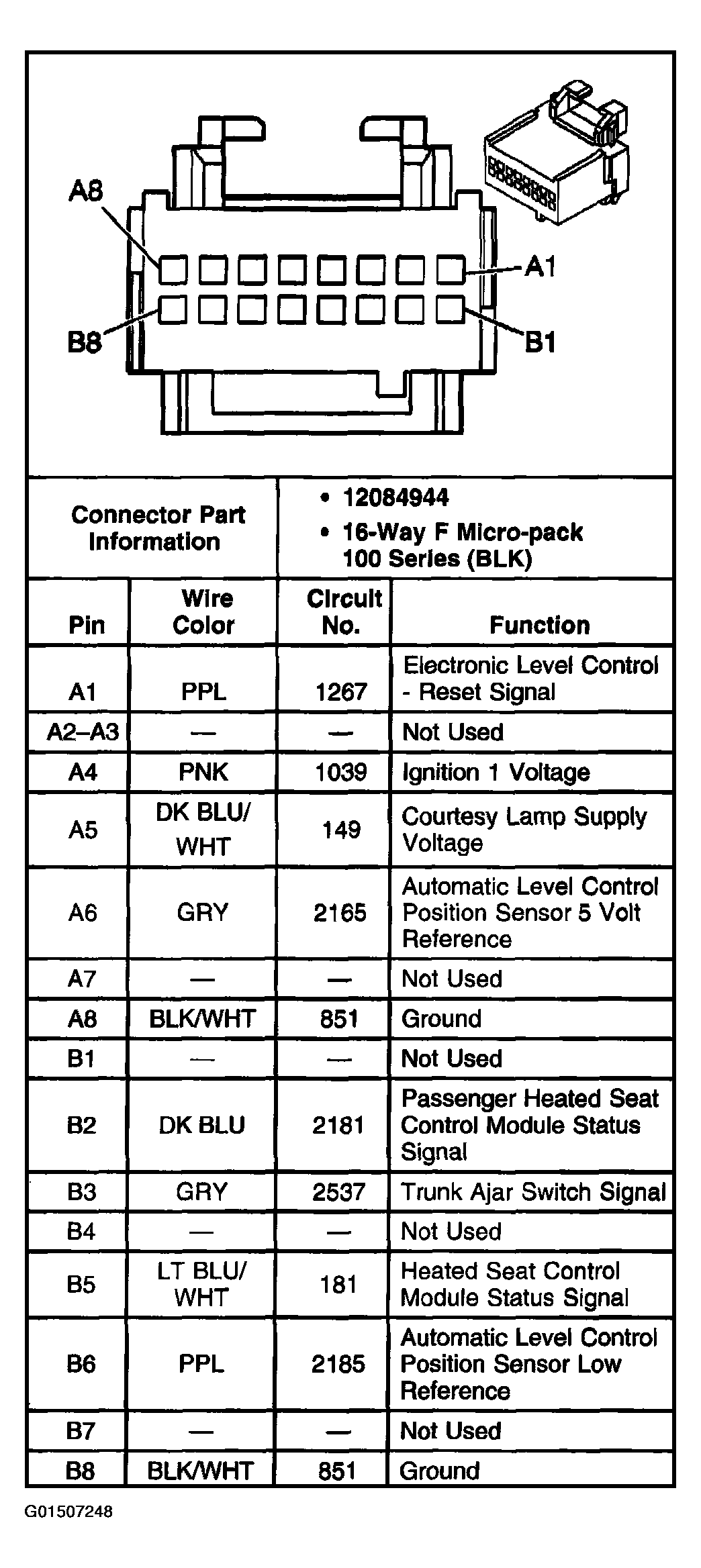

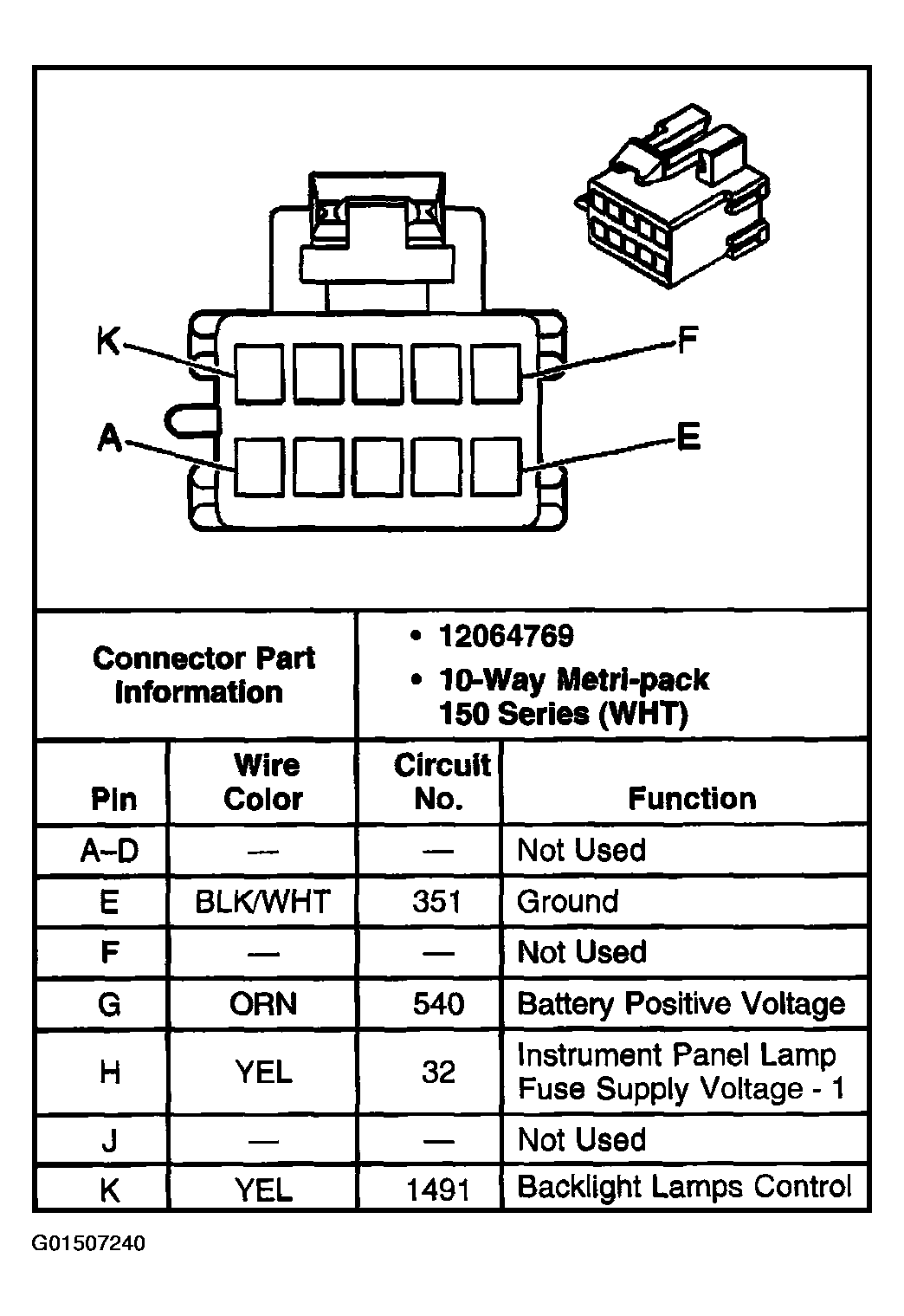

Fig 1: Identifying Dash Integration Module (DIM) C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

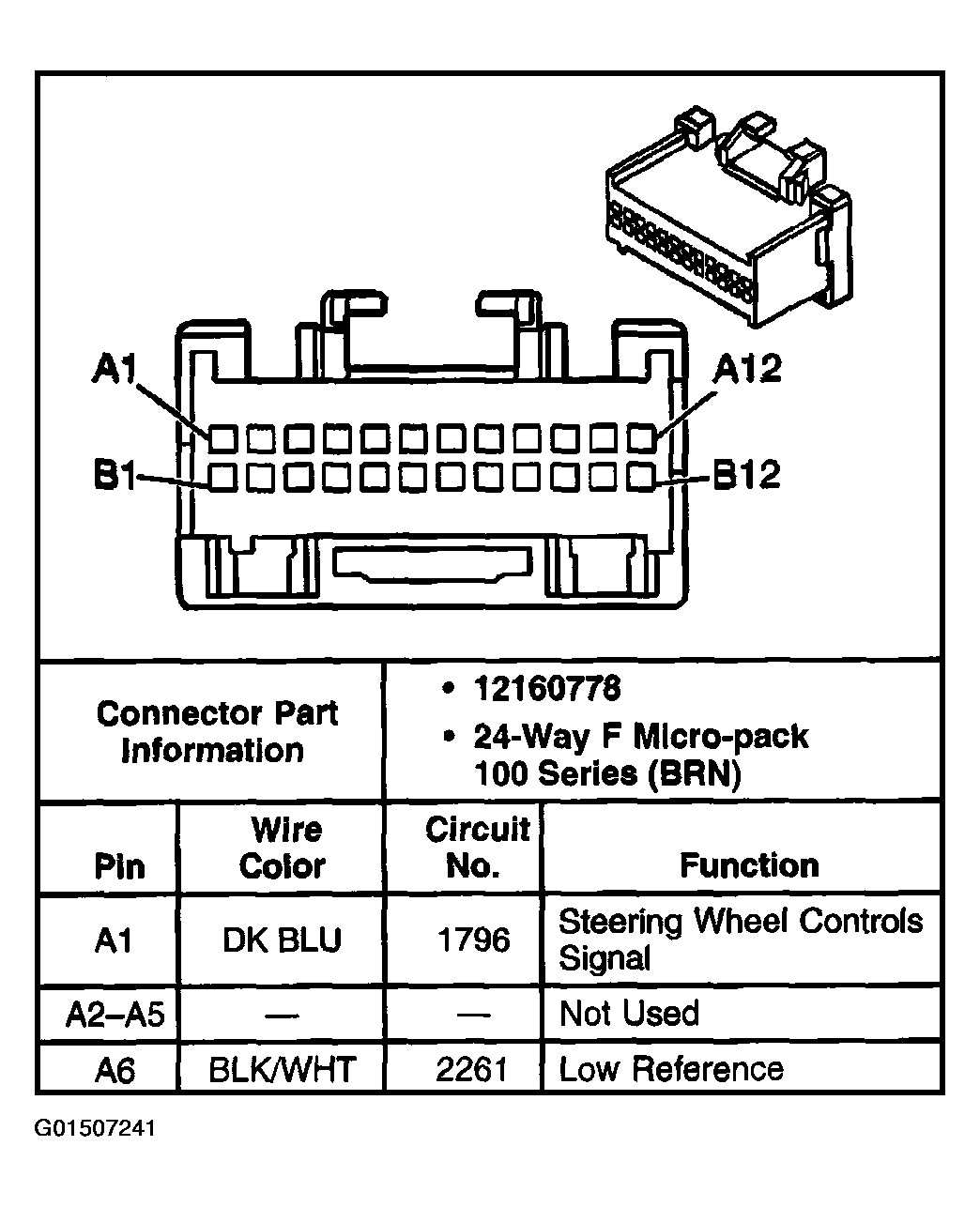

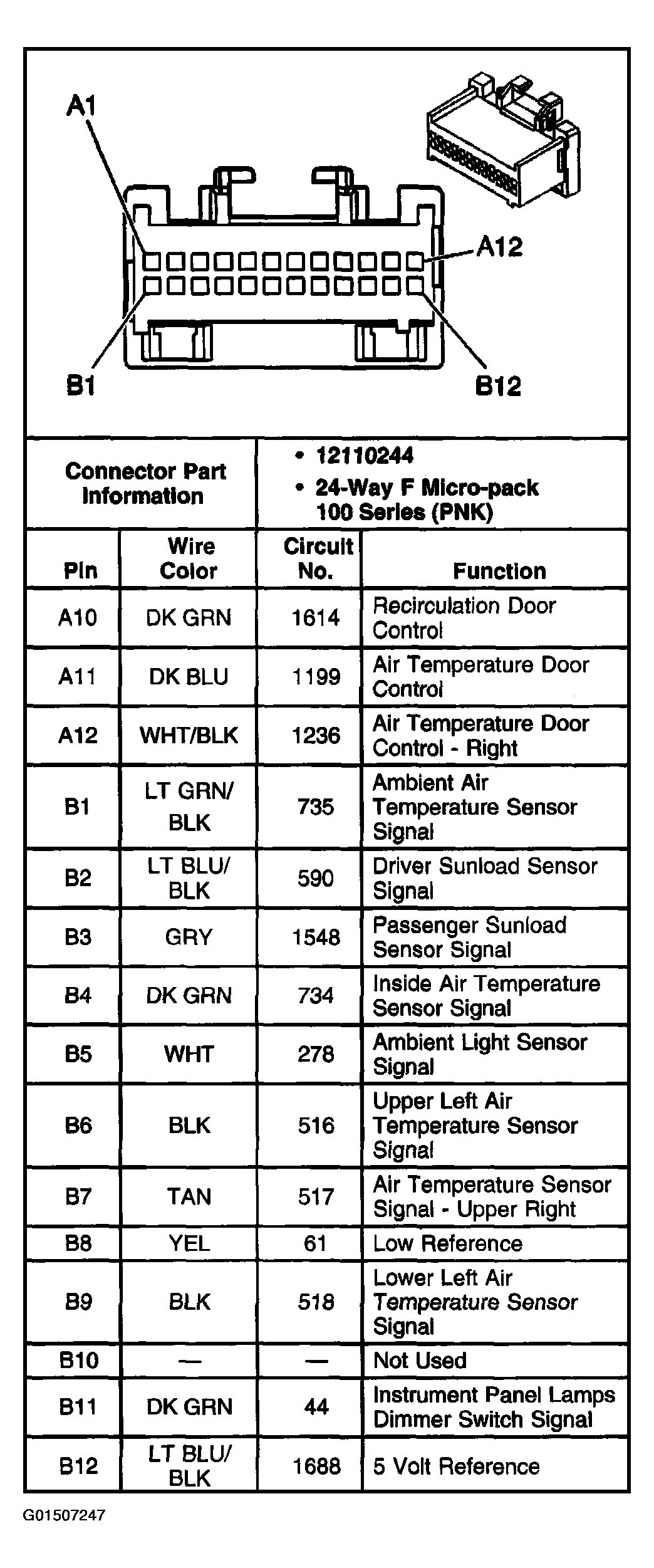

Fig 2: Identifying Dash Integration Module (DIM) C2 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

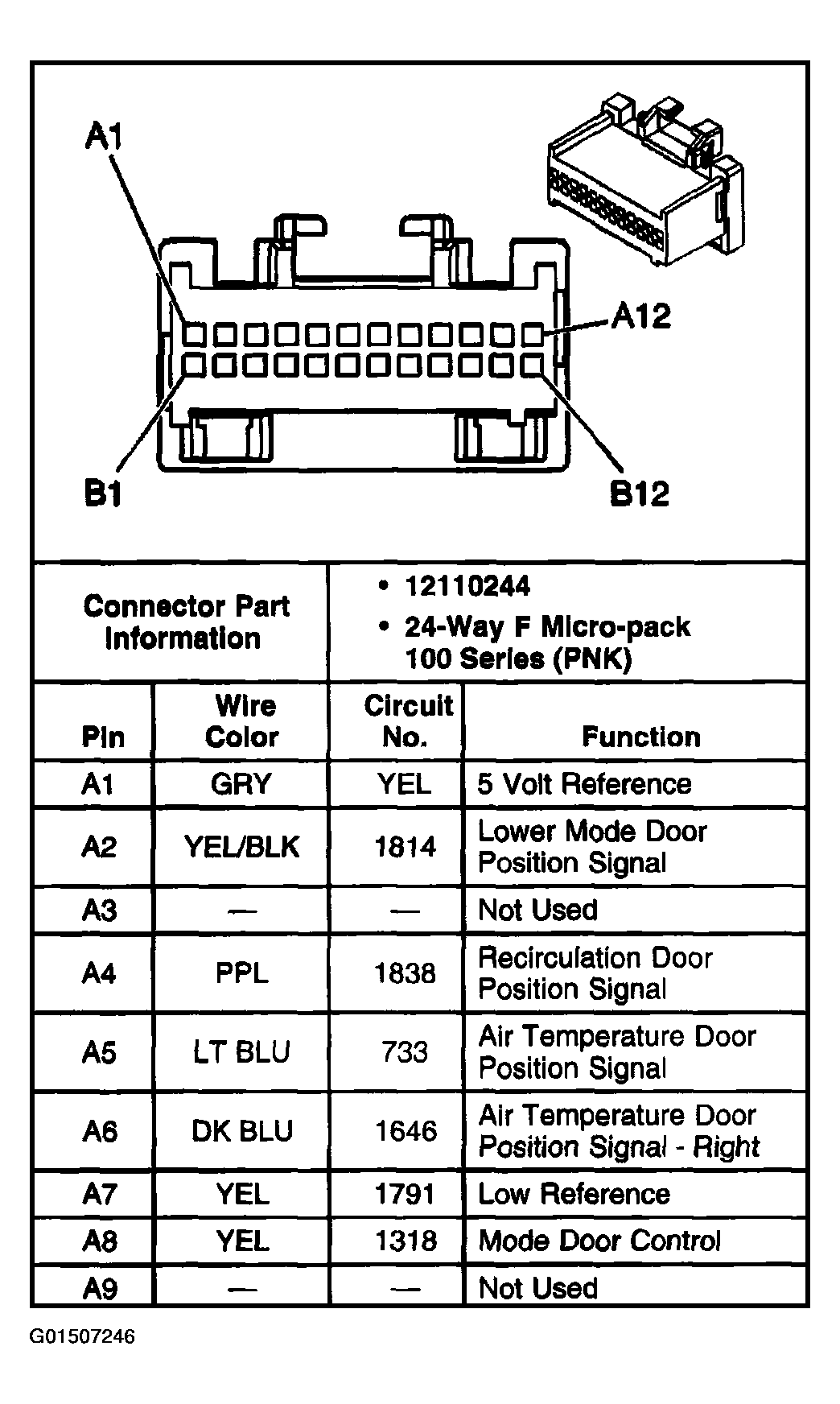

Fig 3: Identifying Dash Integration Module (DIM) C2 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

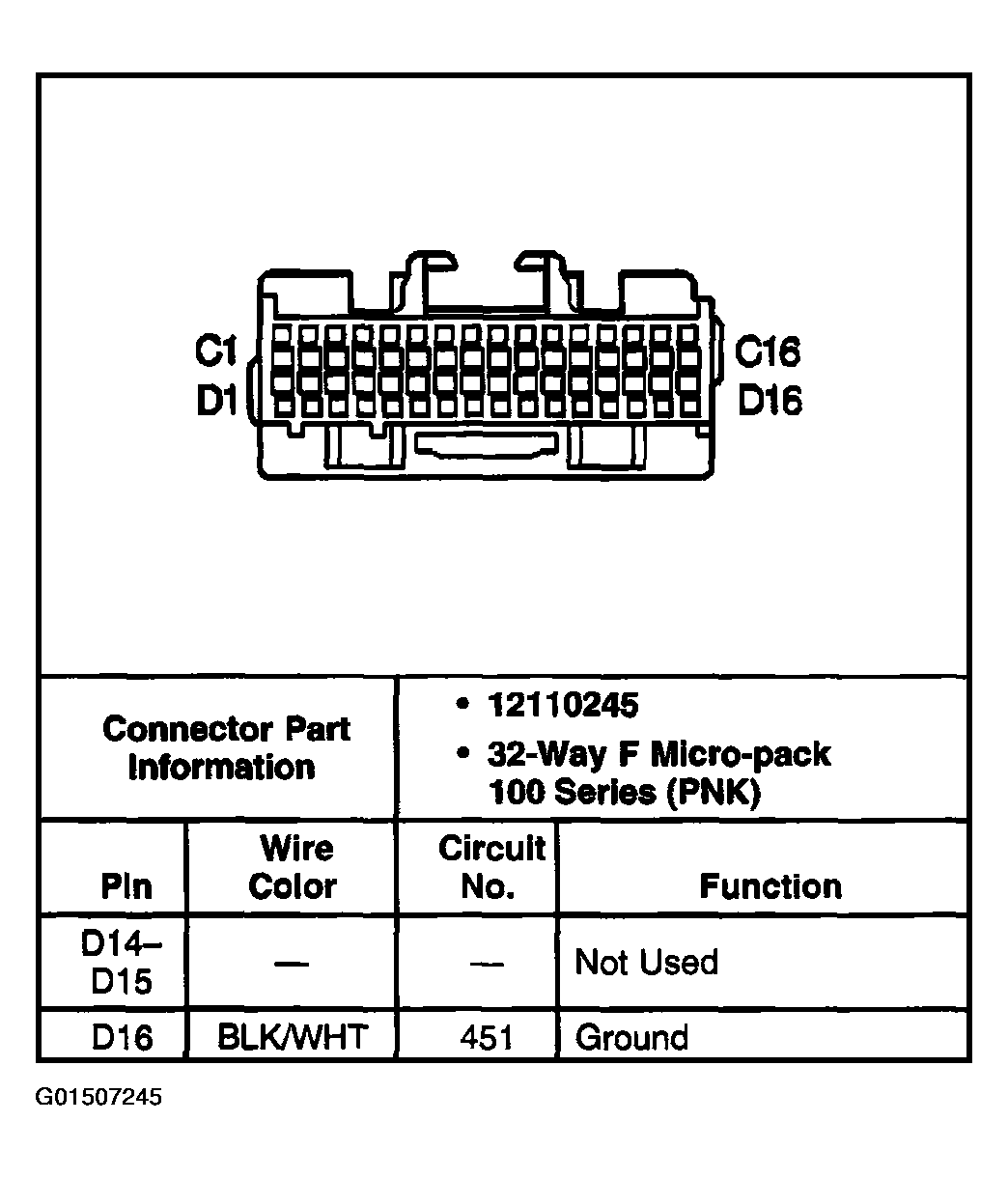

Fig 4: Identifying Dash Integration Module (DIM) C3 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

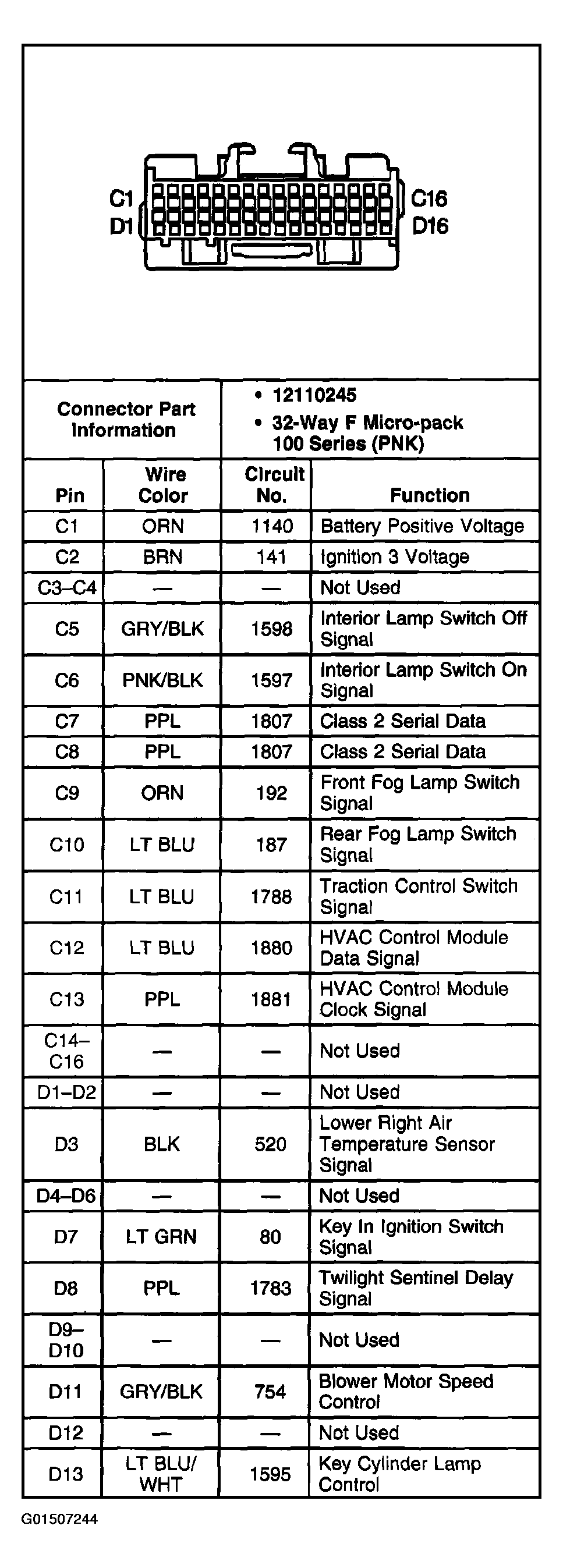

Fig 5: Instrument Panel Module (IPM) C1 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

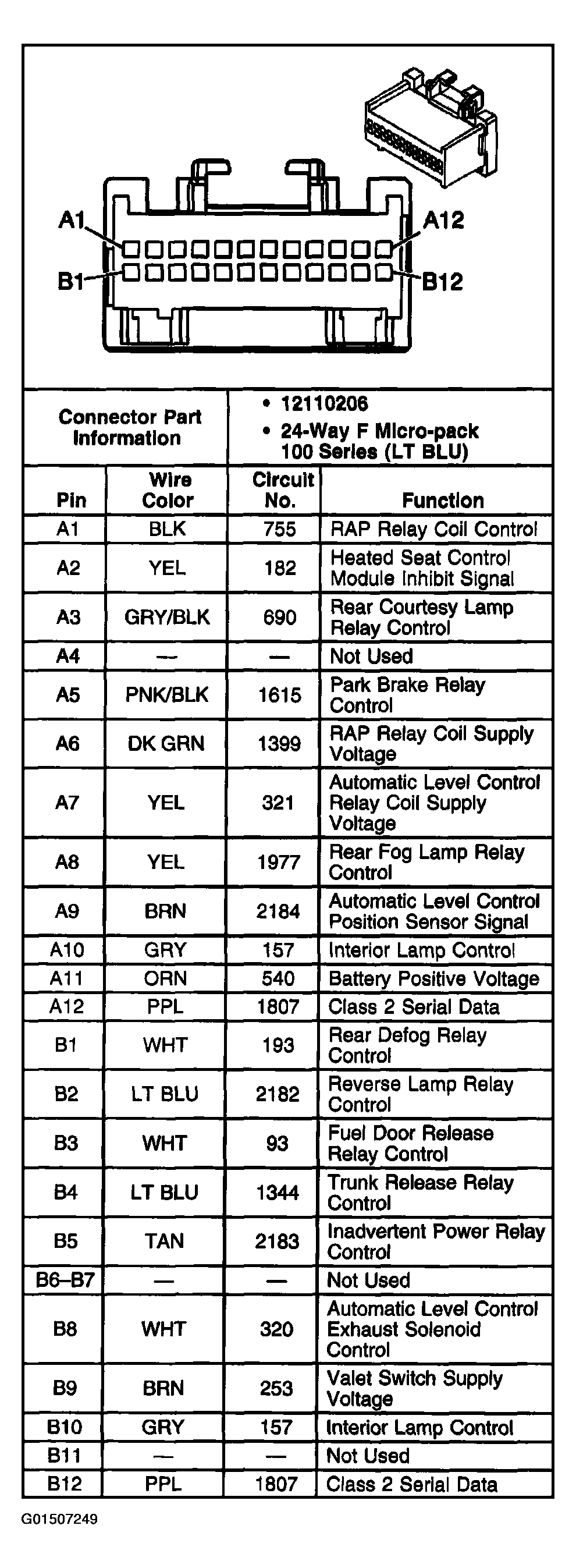

Fig 6: Instrument Panel Module (IPM) C1 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

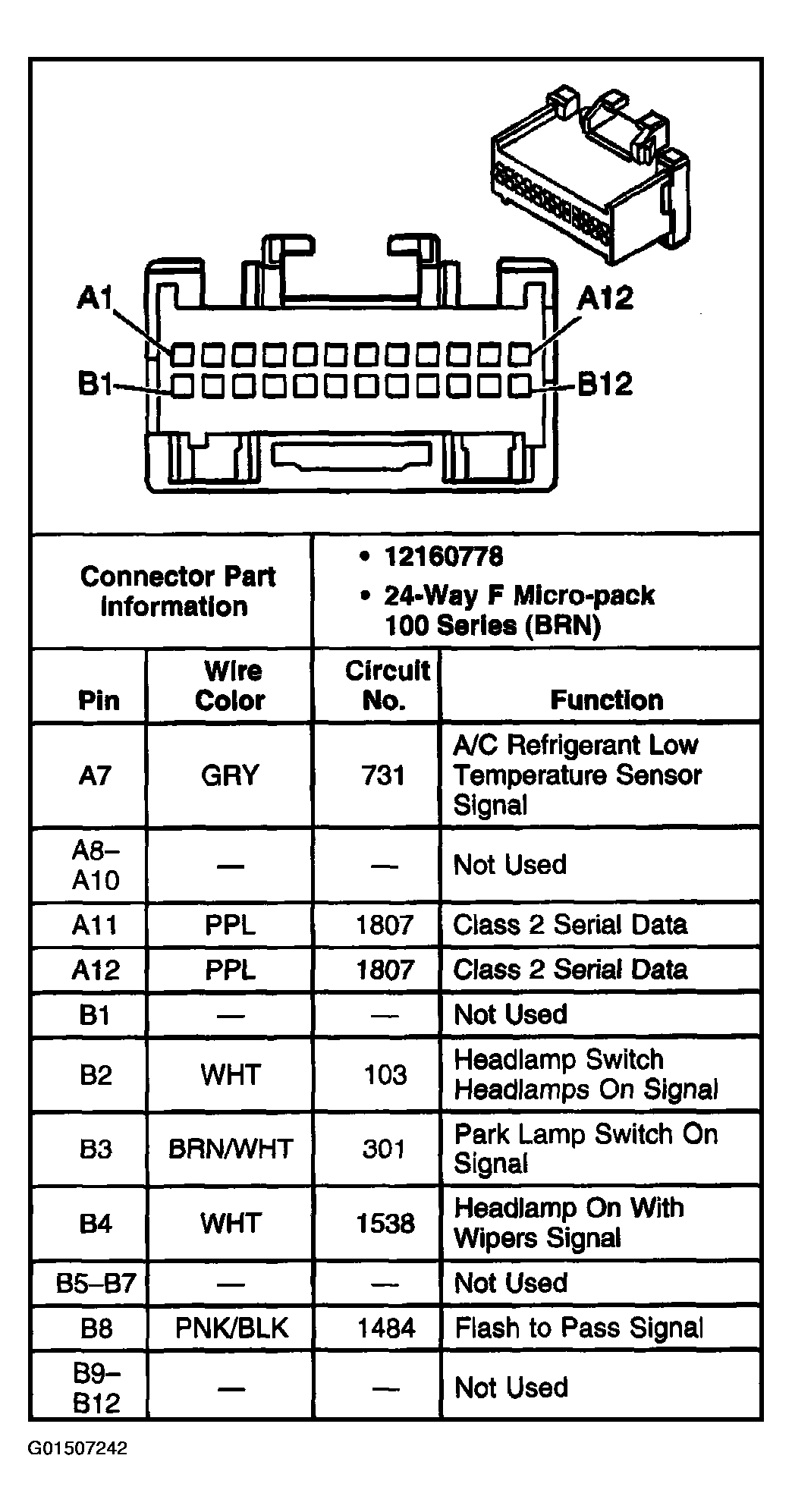

Fig 7: Instrument Panel Module (IPM) C2 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

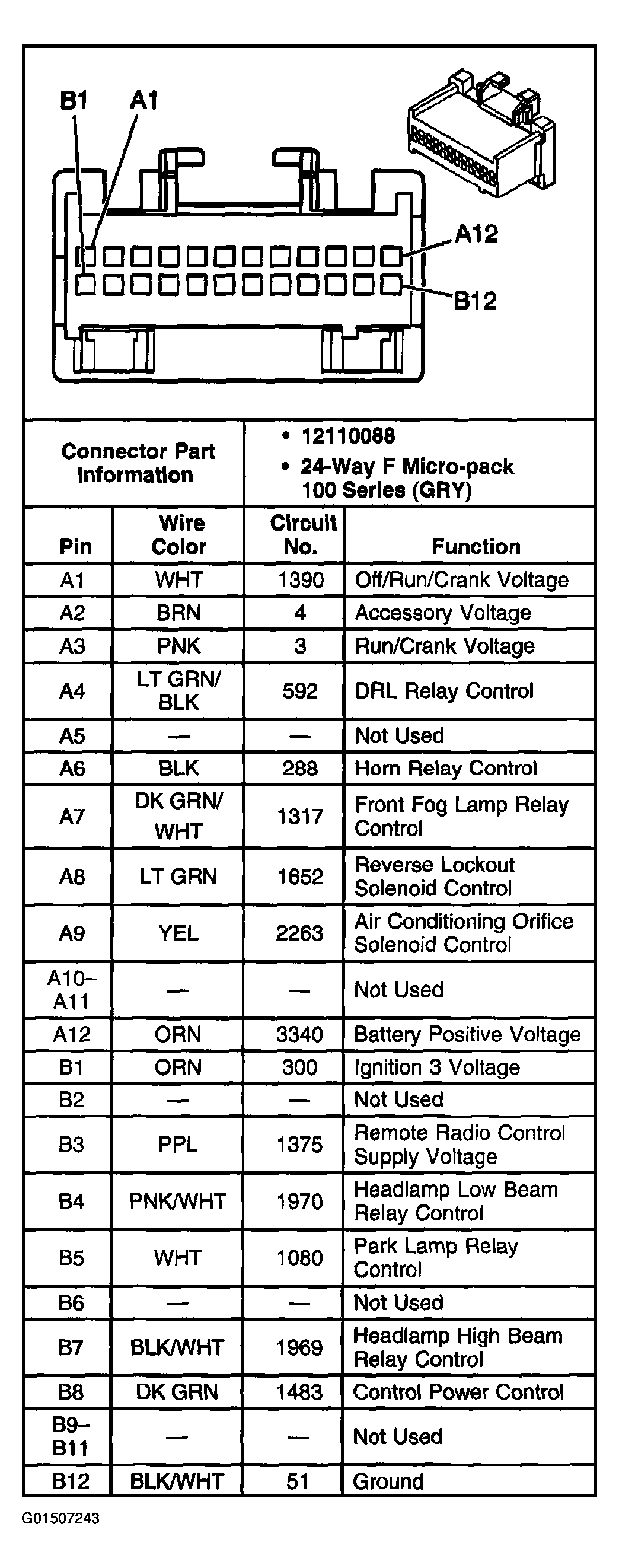

Fig 8: Instrument Panel Module (IPM) C2 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Rear Integration Module (RIM) C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Rear Integration Module (RIM) C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
