Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before replacing the Dash Integration Module (DIM), record the personalization settings to transfer to the new module (if they are available).
  2. Remove the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  3. Remove the DIM from the bracket by releasing the tab behind the module.
  4. Disconnect the electrical connectors (1) from the DIM (2).

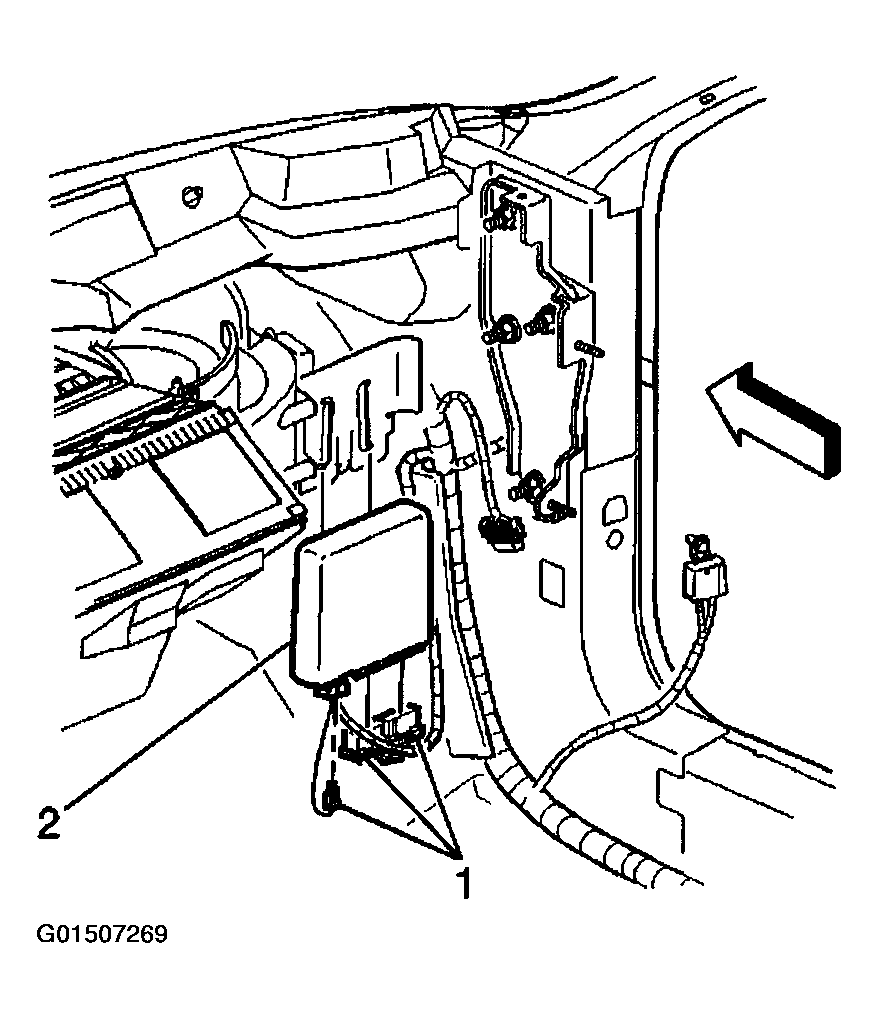

    5. Fig 1: Removing & Installing Dash Integration Module
    G01507269Courtesy of GENERAL MOTORS CORP.
