Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear integration module (RIM).
  2. Connect the RIM electrical connectors (3).
  3. Install the RIM (2) with the push pin retainers (1).
  4. Reposition the rear seat back insulator.
  5. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.
  6. Install the rear seat belt buckle anchor bolts.
  7. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  8. Reprogram the RIM. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)  .

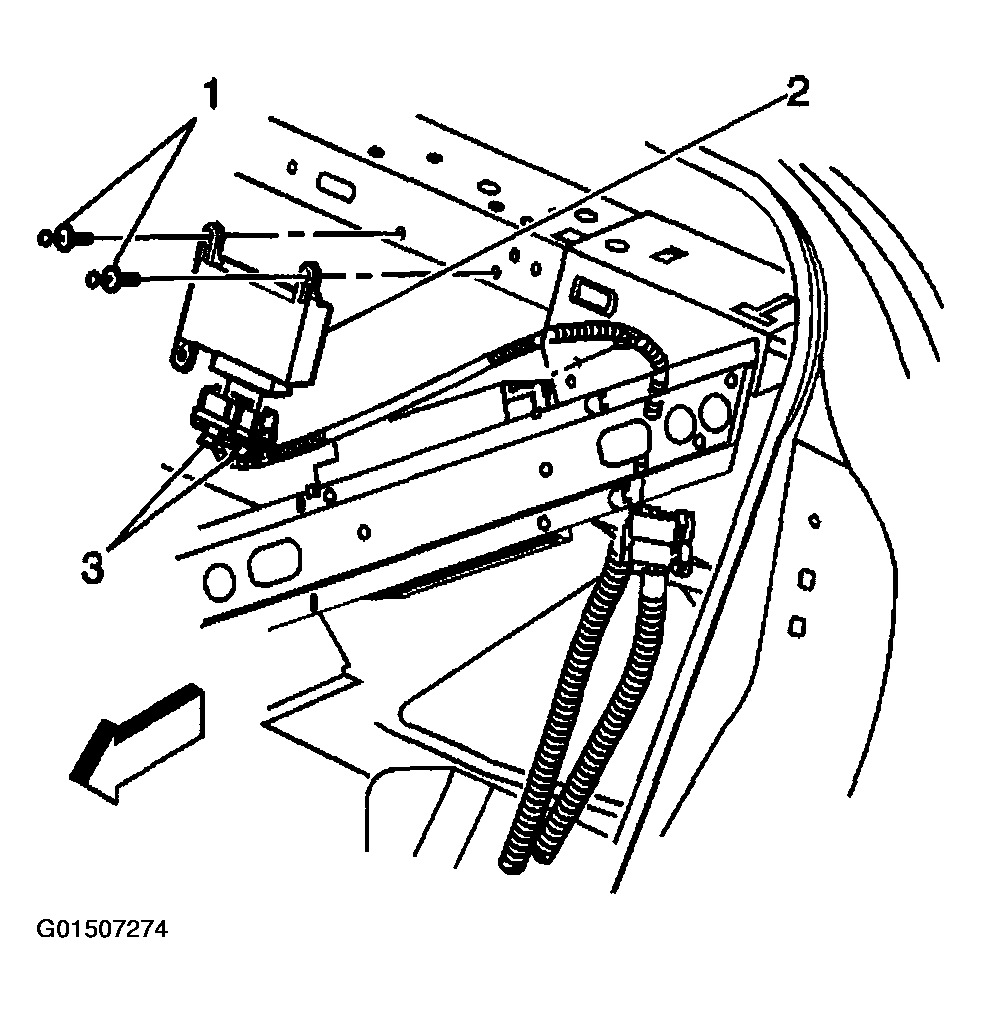

    9. Fig 1: Removing & Installing Rear Integration Module
    G01507274Courtesy of GENERAL MOTORS CORP.
