Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before replacing the rear integration module (RIM), record the personalization settings to transfer to the new module (if they are available).
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  3. Remove the rear seat belt buckle anchor bolts.
  4. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.
  5. Move the rear seat back insulator aside.
  6. Remove the push pin retainers (1).
  7. Disconnect the RIM electrical connectors (3).
  8. Remove the RIM (2).

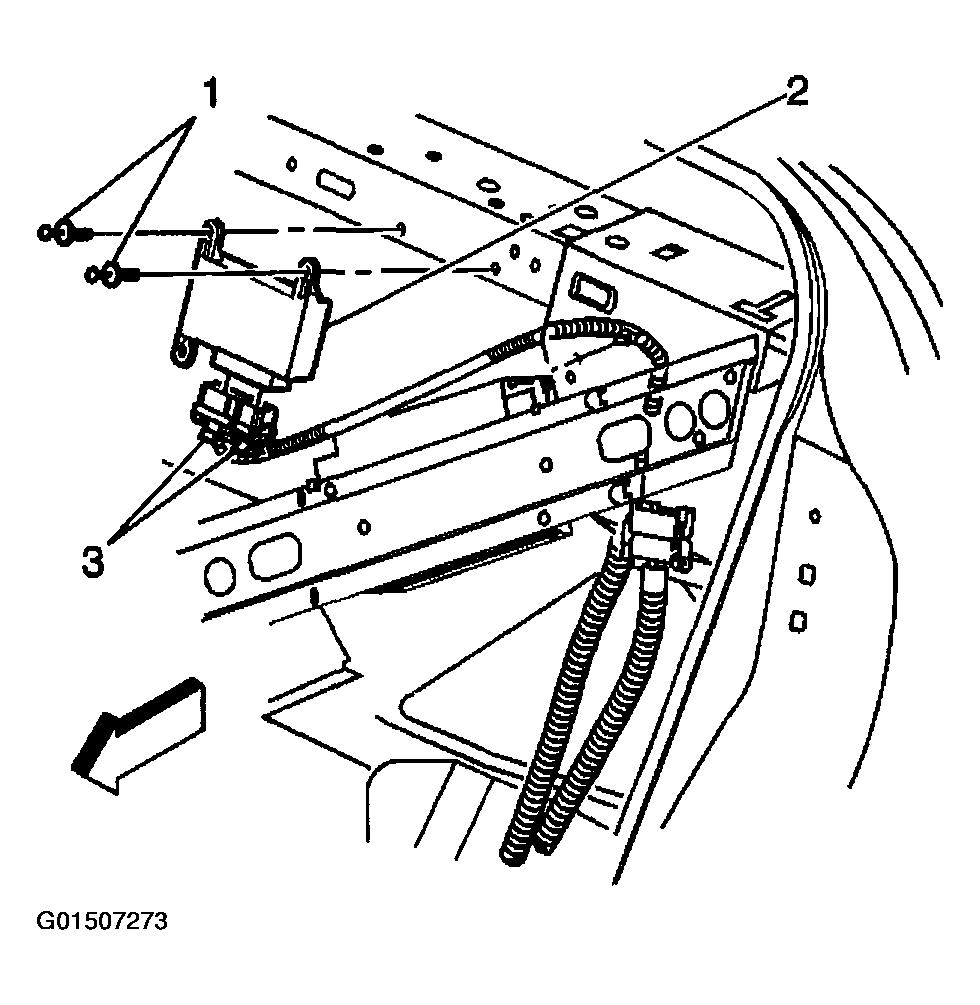

    9. Fig 1: Removing & Installing Rear Integration Module
    G01507273Courtesy of GENERAL MOTORS CORP.
