Data Link Communications Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Component Views - Lower Left Of The I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness Connector
2	Body Control Module (BCM) Connectors
3	Splice Pack SP205
4	Fuse Block - Left I/P
5	Data Link Connector (DLC)
6	I/P Courtesy Lamp - Left
7	I/P Courtesy Lamp Connector - Left
8	Instrument Panel
9	Left Windshield Pillar

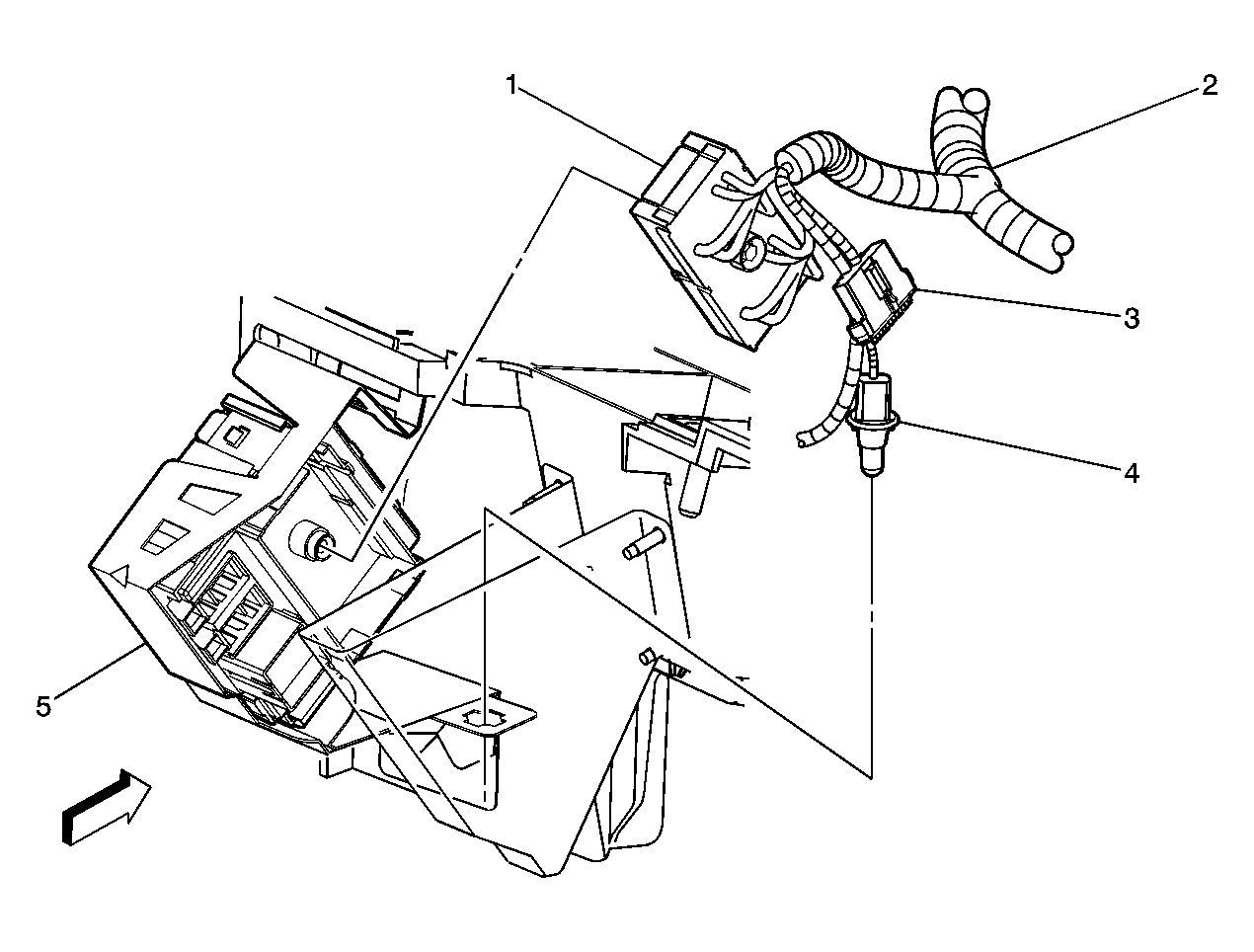

Fig 2: Component Views - Splice Pack, SP205

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness Connector
2	I/P Harness
3	Splice Pack - SP205
4	I/P Courtesy Lamp - Left
5	Fuse Block - Left I/P

Fig 3: Component Views - Splice Pack, SP207

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Splice Pack SP207
2	Relay Block - I/P
3	I/P Extension Harness
