Data Link Communications Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

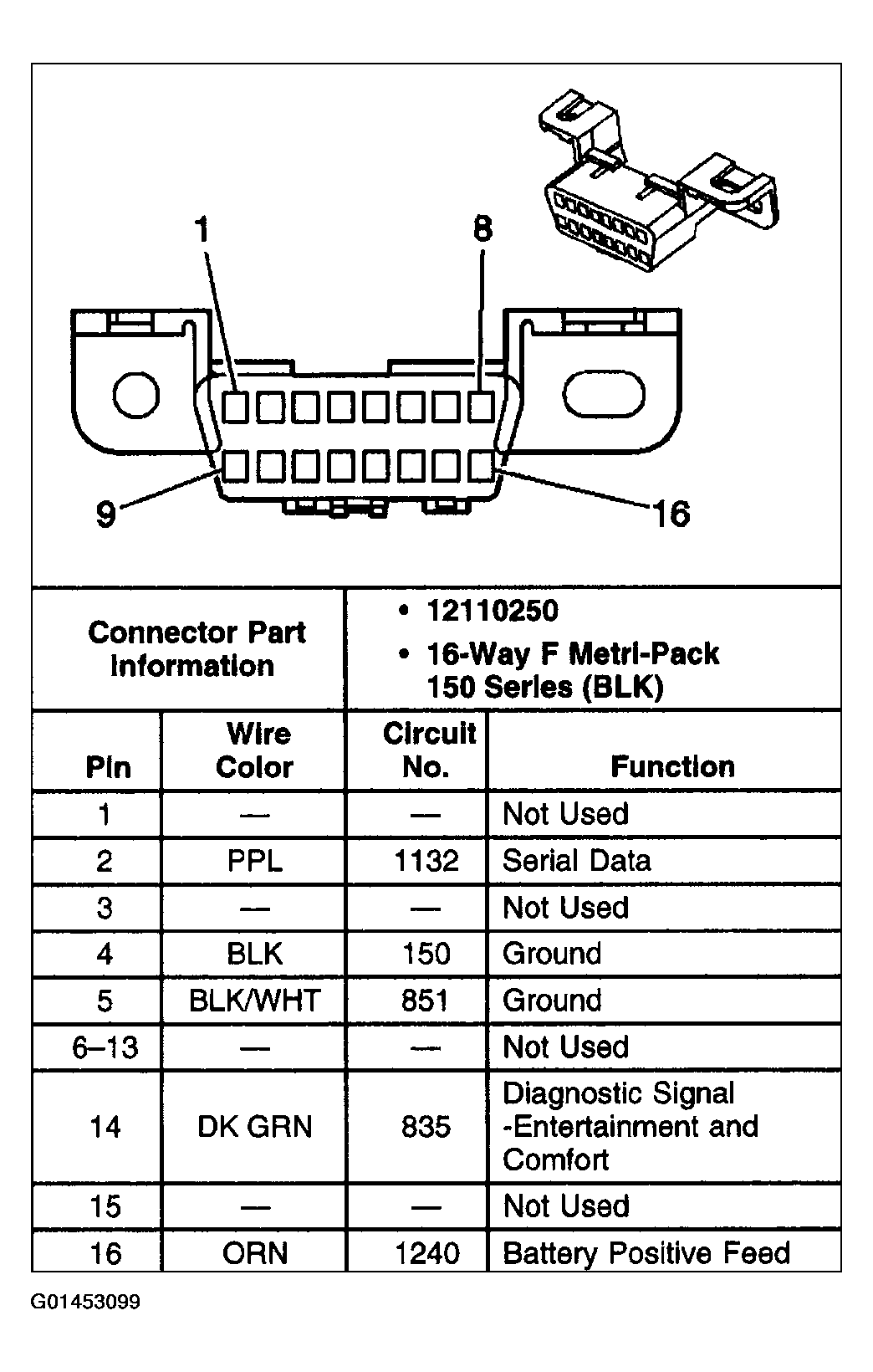

Fig 1: Data Link Connector (DLC)
G01453099Courtesy of GENERAL MOTORS CORP.

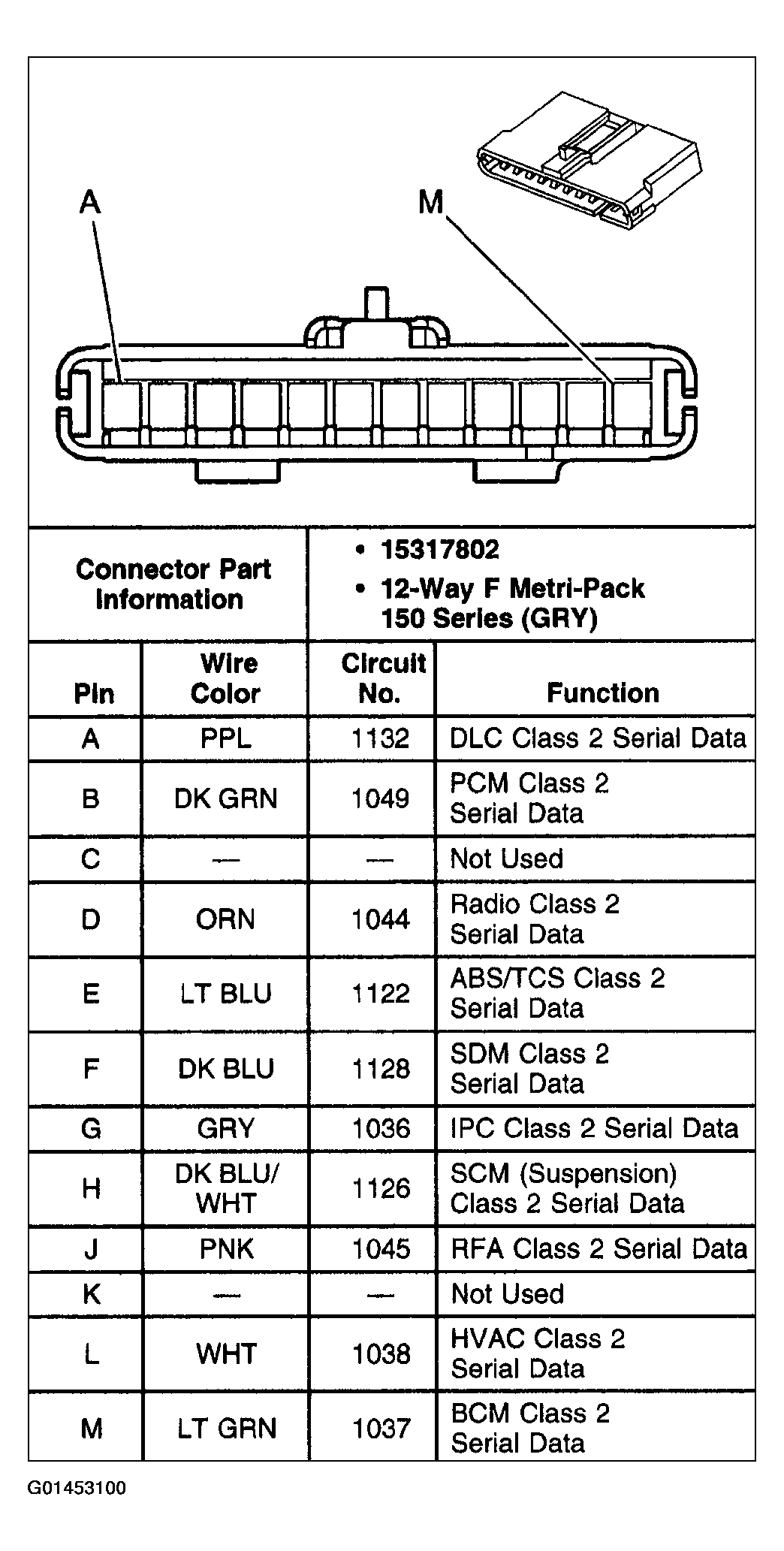

Fig 2: Star Connector 1
G01453100Courtesy of GENERAL MOTORS CORP.

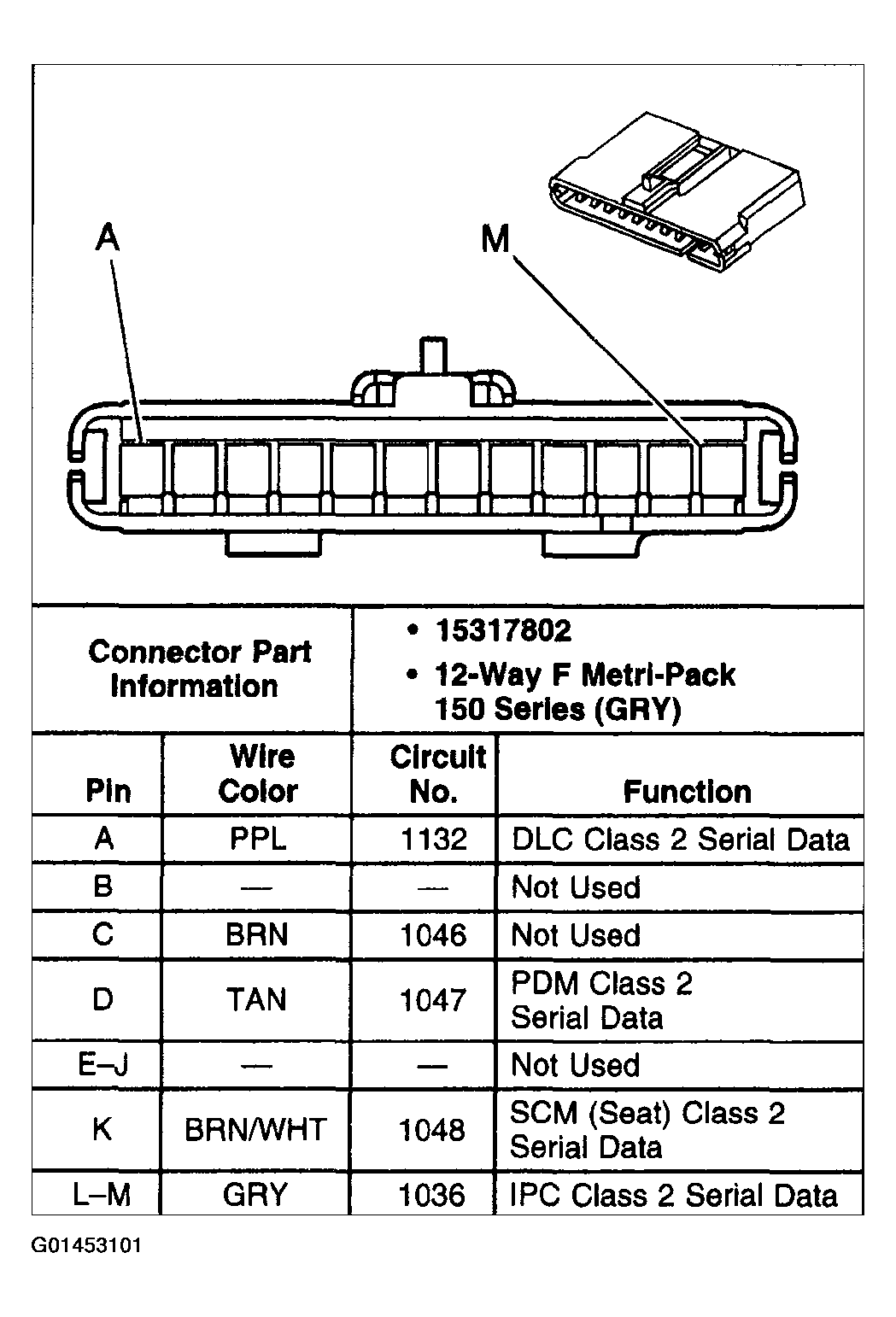

Fig 3: Star Connector 2
G01453101Courtesy of GENERAL MOTORS CORP.
