Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the data link connector to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the data link connector.

    Tighten

    Tighten the data link connector screws to 2 N.m (18 lb in).

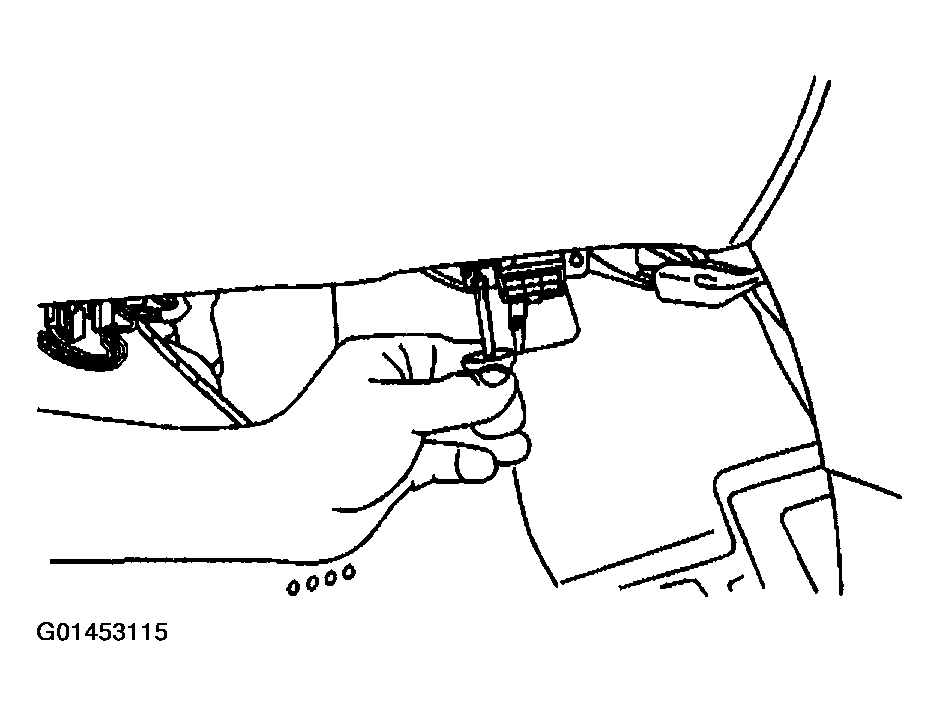

    Fig 1: Positioning Data Link Connector To Instrument Panel
    G01453115Courtesy of GENERAL MOTORS CORP.
