Keyless Entry Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

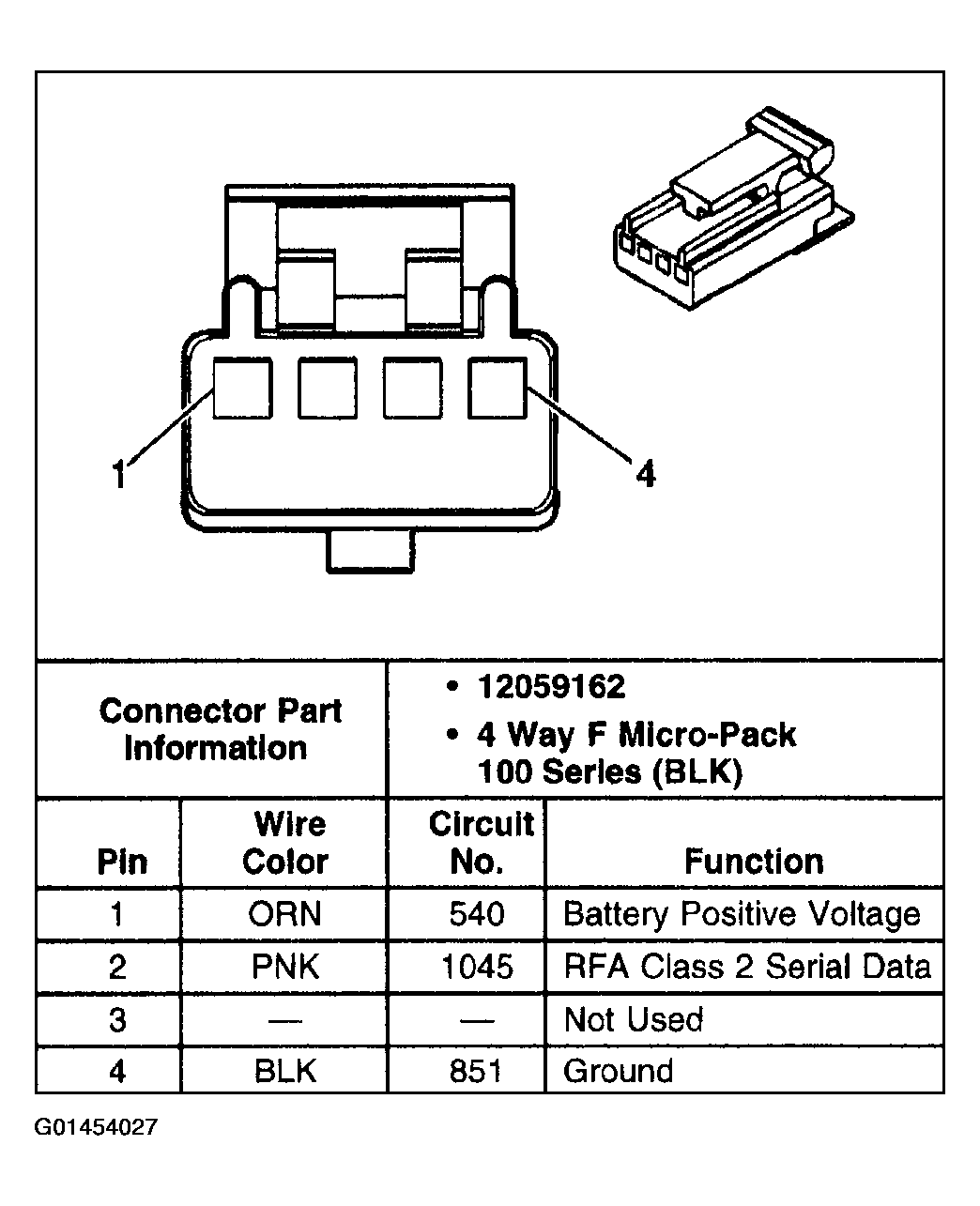

Fig 1: Remote Control Door Lock Receiver (RCDLR) Connector End View
G01454027Courtesy of GENERAL MOTORS CORP.
