Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Connect the receiver connector (2).
Line up the receiver (1) with the slots on the retainer.
Snap the receiver (1) into place on the retainer.

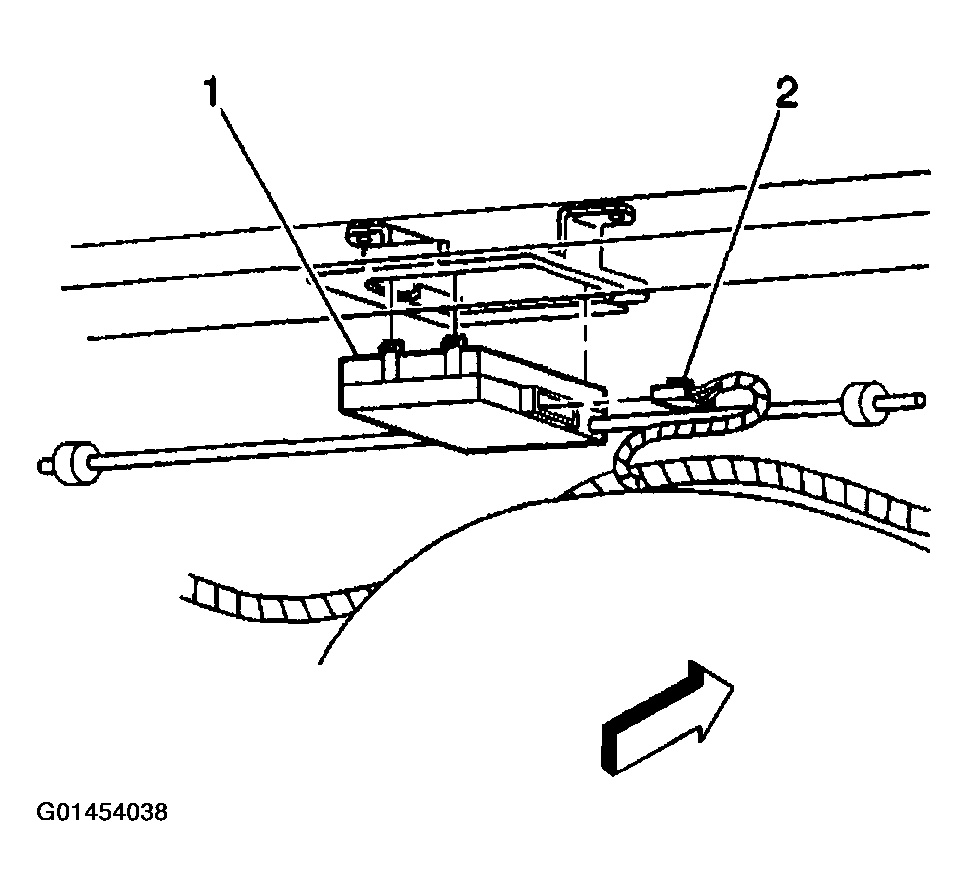

Fig 1: Connecting Receiver Connector
Courtesy of GENERAL MOTORS CORP.
Install the left rear compartment insulator (1).
Program the keyless entry transmitters. Refer to TRANSMITTER PROGRAMMING .
Program the TPM sensors. Refer to TIRE PRESSURE MONITORING SENSOR PROGRAMMING in Tire Pressure Monitoring.

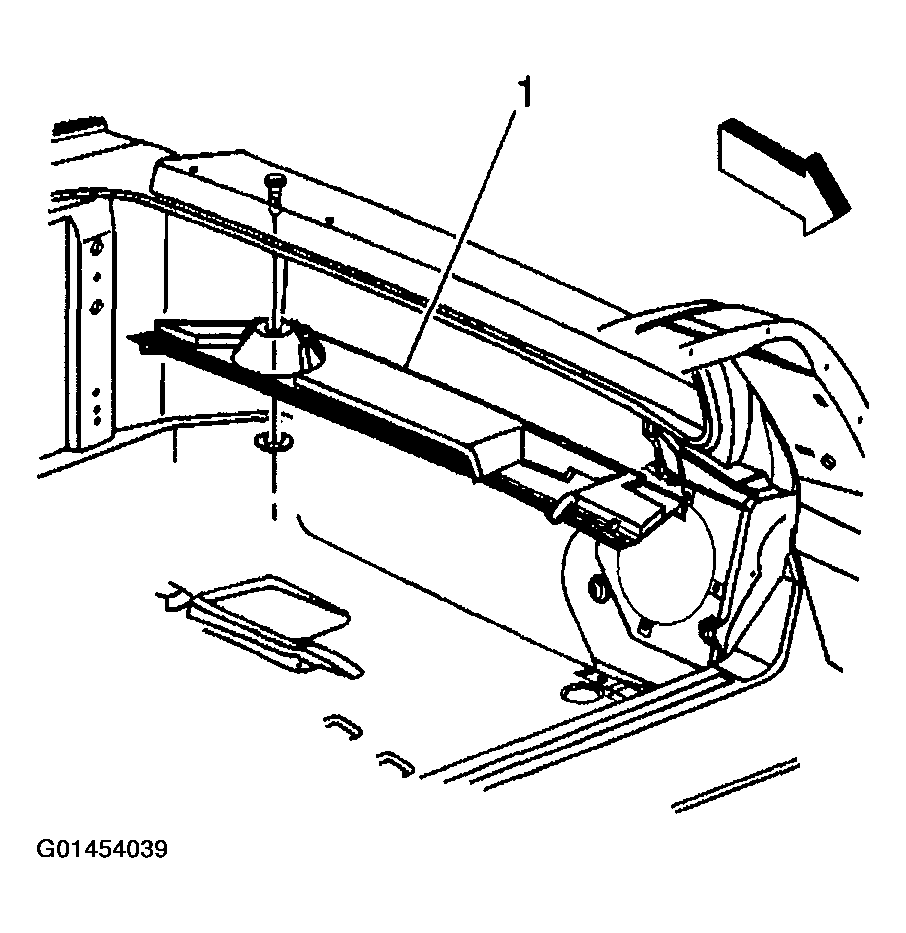

Fig 2: Left Rear Compartment Insulator
Courtesy of GENERAL MOTORS CORP.
