Installation Process

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

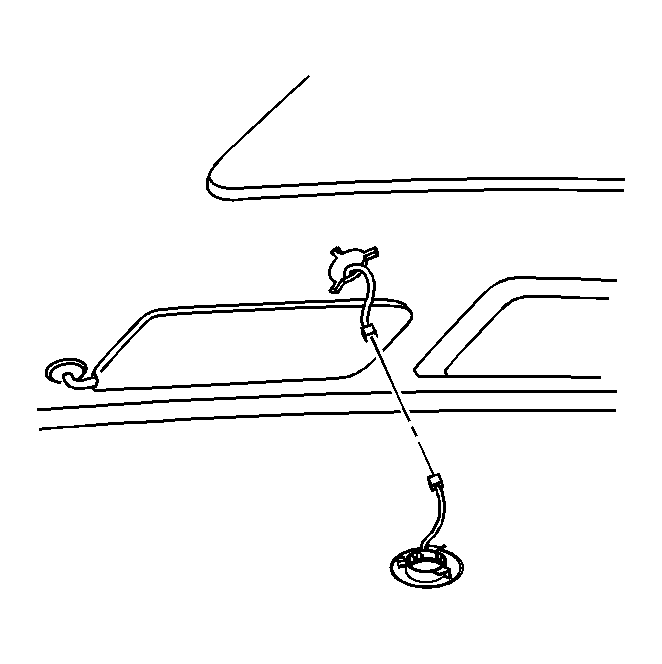

    Fig 1: Microphone Connector & Jumper Harness
    GM862105Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connection to the OnStar microphone.

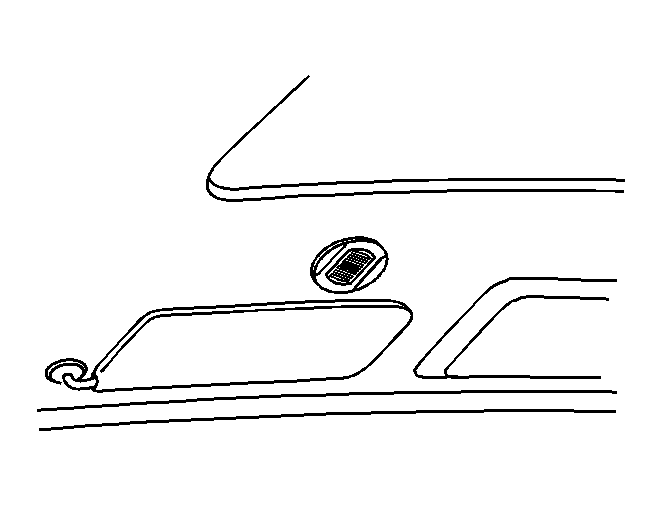

    2. Fig 2: OnStar® Microphone Bezel & Headliner
    GM862106Courtesy of GENERAL MOTORS CORP.
  2. Mount the OnStar® microphone and bezel to the headliner.
  3. Check OnStar® microphone for proper operation.
