Body Control System Component Views
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

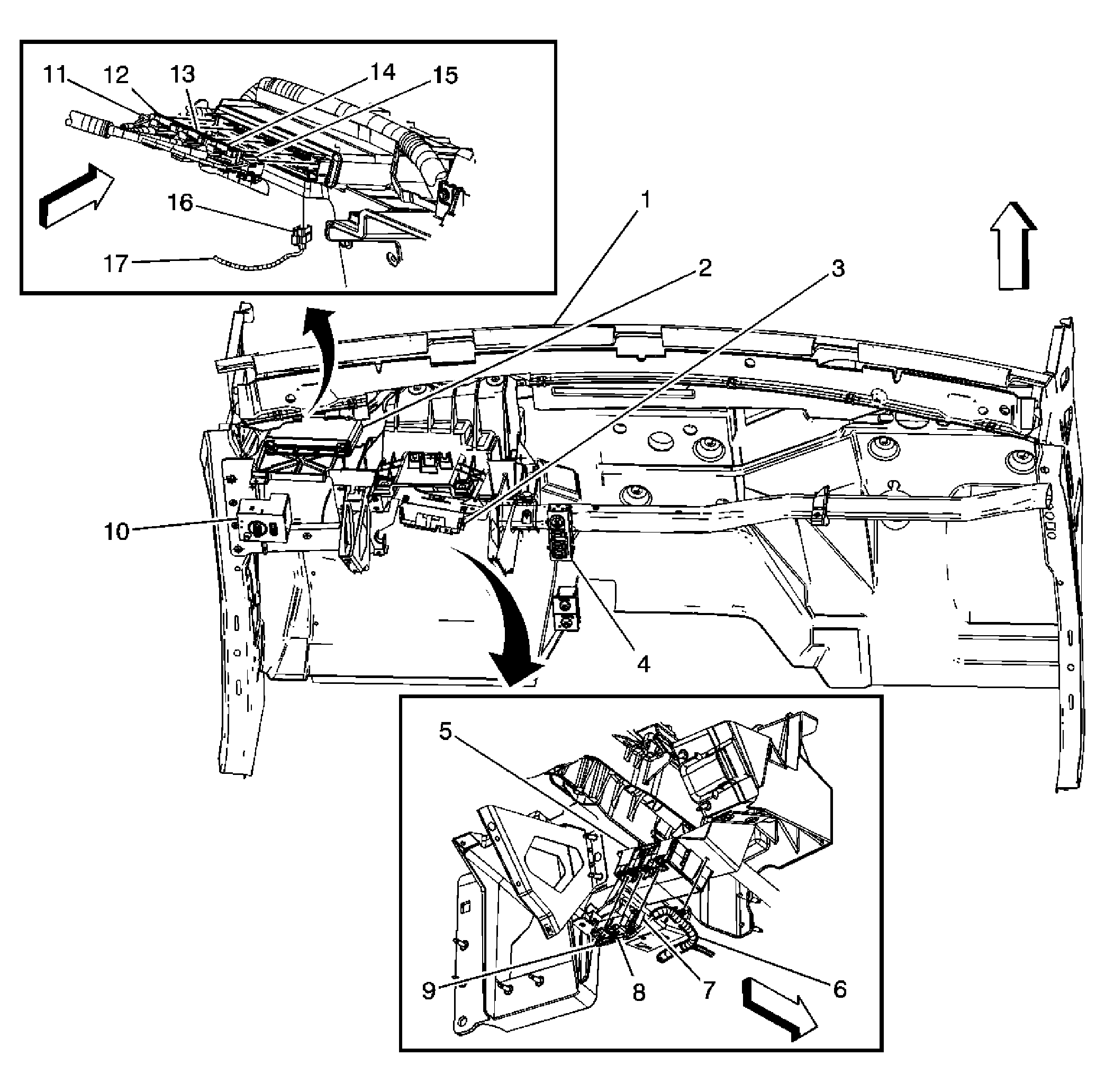

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel |
| 2 | Body Control Module (BCM) |
| 3 | Transfer Case Shift Control Module |
| 4 | Transfer Case Shift Control Switch |
| 5 | Transfer Case Shift Control Module |
| 6 | I/P Harness |
| 7 | Transfer Case Shift Control Module - C3 |
| 8 | Transfer Case Shift Control Module - C2 |
| 9 | Transfer Case Shift Control Module - C1 |
| 10 | Headlamp and Panel Dimmer Switch |
| 11 | BCM - C1 |
| 12 | BCM - C2 |
| 13 | BCM - C3 |
| 14 | BCM - C4 |
| 15 | BCM - C5 |
| 16 | BCM - C6 |
| 17 | Body Harness |
