Removal Procedure
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) in Engine Electrical.
- Remove the I/P carrier. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gauges and Console.

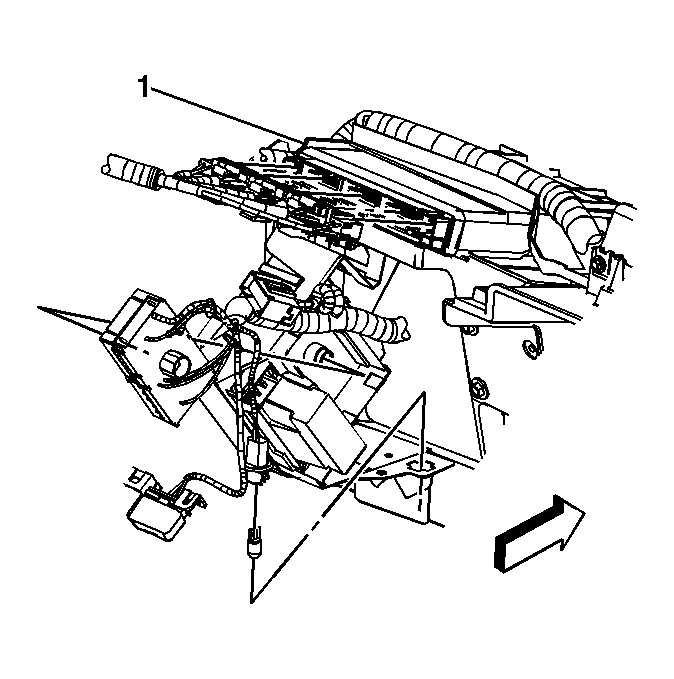

- Remove the body control module (1) from the body control module bracket.
