Connector Identification

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

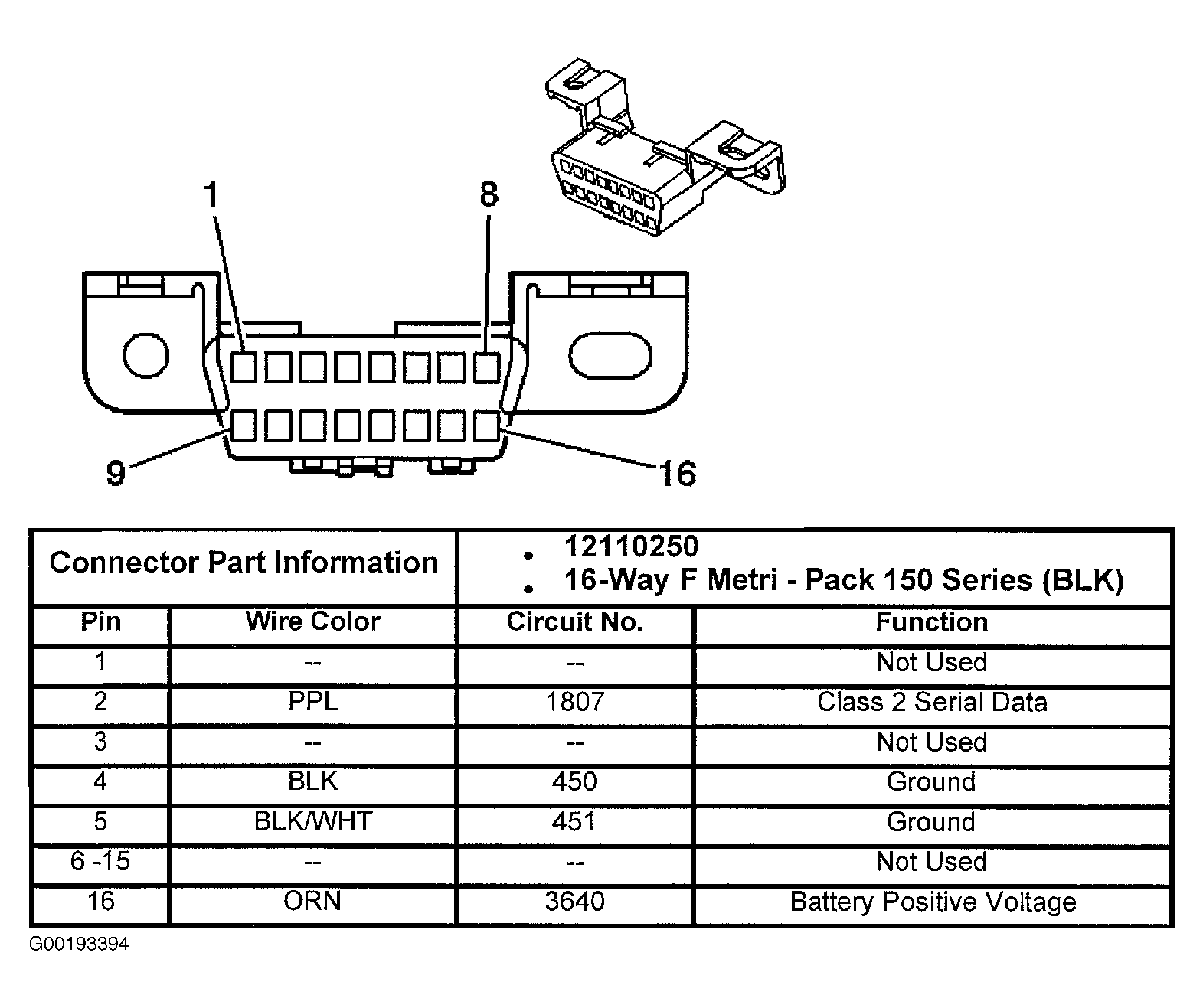

Fig 1: Identifying Data Link Connector Terminals
G00193394Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Door Module (Driver) Harness Connector C1 Terminal
G00193380Courtesy of GENERAL MOTORS CORP.

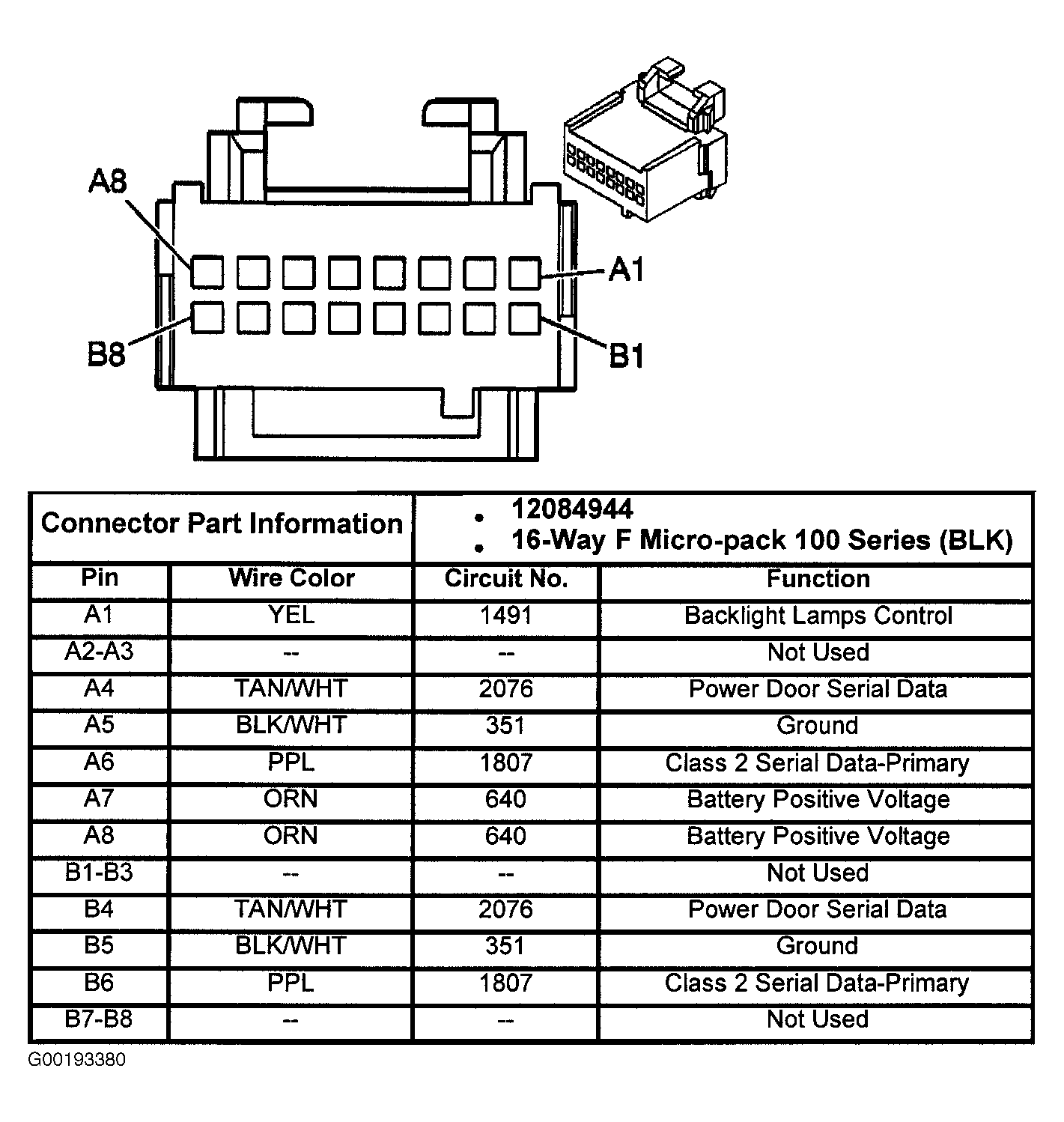

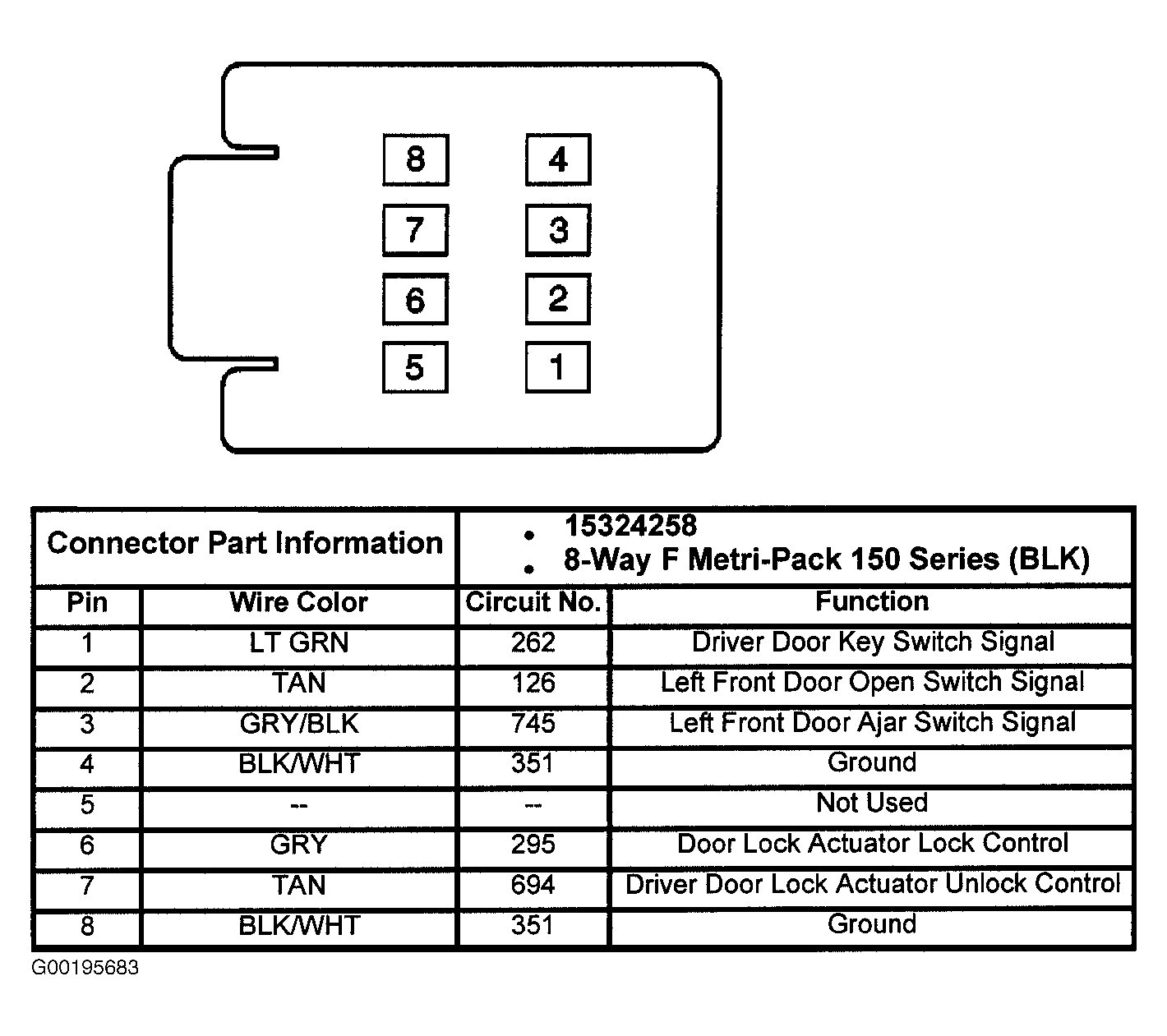

Fig 3: Identifying Door Module (Driver) Harness Connector C2 Terminal
G00195683Courtesy of GENERAL MOTORS
Fig 4: Identifying Door Module (Driver) Harness Connector C3 Terminal
G00193381Courtesy of GENERAL MOTORS CORP.

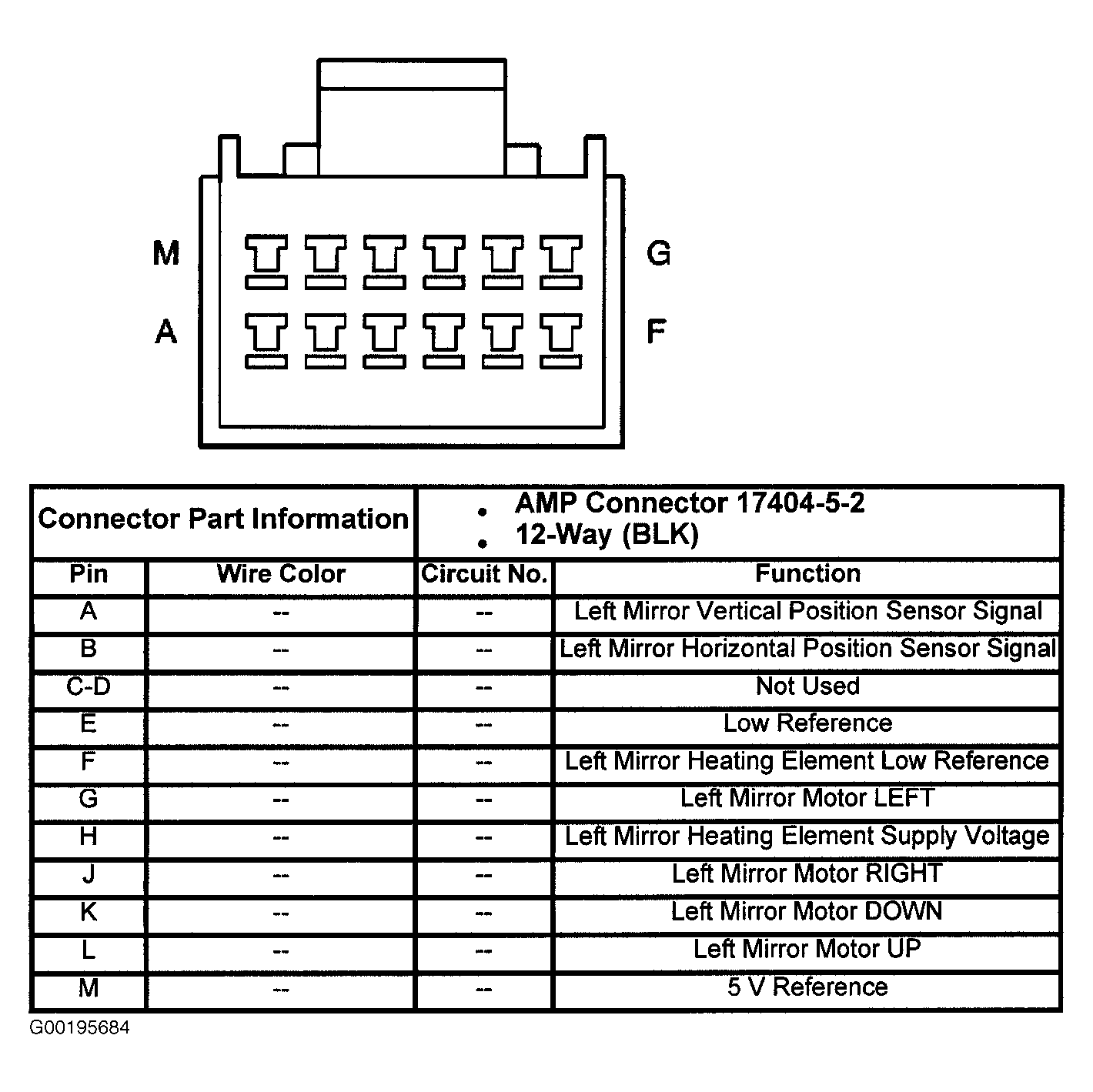

Fig 5: Identifying Door Module (Driver) Harness Connector C4 Terminal
G00195684Courtesy of GENERAL MOTORS CORP.

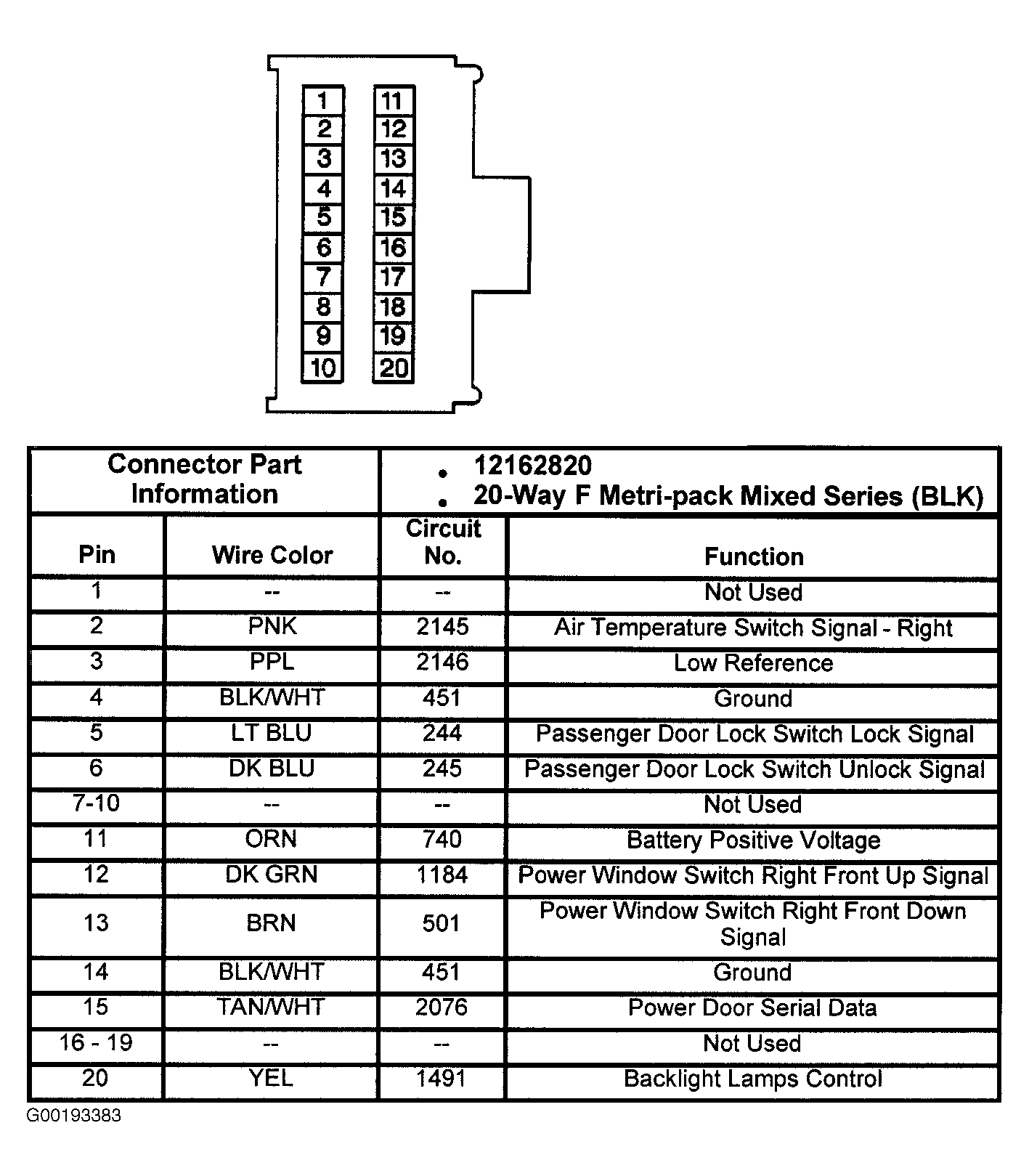

Fig 6: Identifying Door Module (Front Passenger) Harness Connector C1 Terminal
G00193383Courtesy of GENERAL MOTORS CORP.

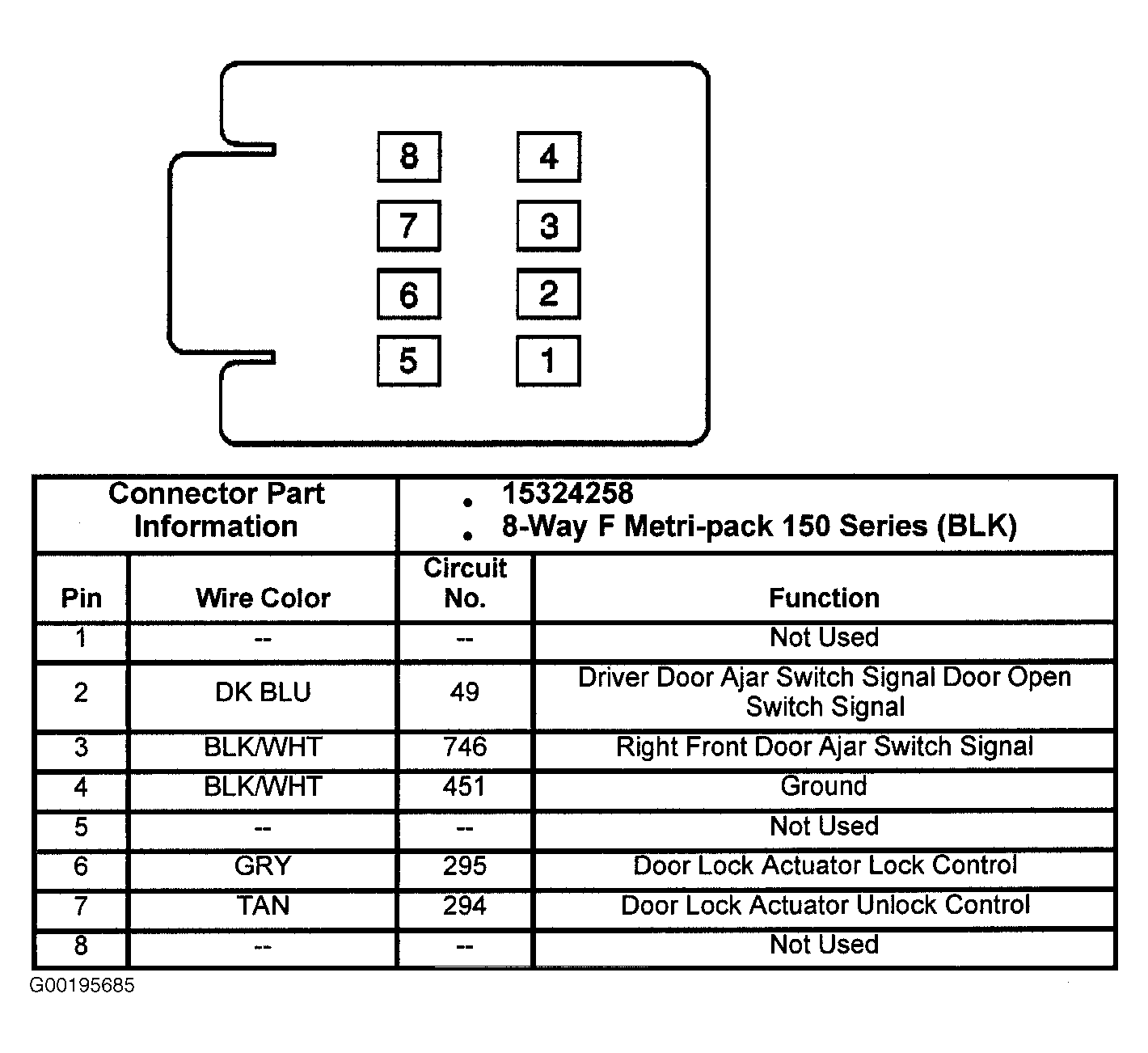

Fig 7: Indentifying Door Module (Front Passenger) Harness Connector C2 Terminal
G00195685Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Door Module (Front Passenger) Harness Connector C3 Terminal
G00193384Courtesy of GENERAL MOTORS CORP.

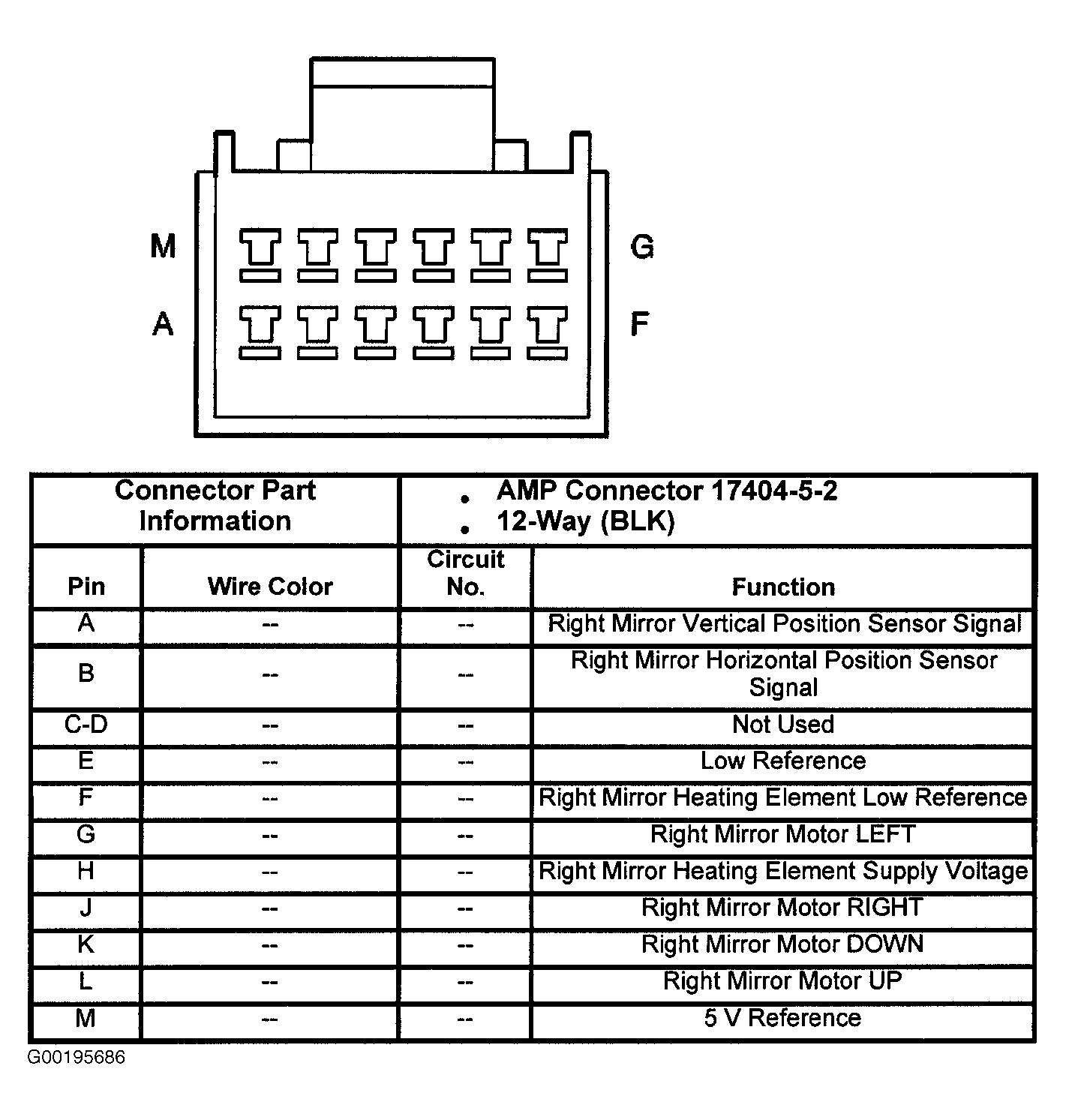

Fig 9: Identifying Door Module (Front Passenger) Harness Connector C4 Terminal
G00195686Courtesy of GENERAL MOTORS CORP.

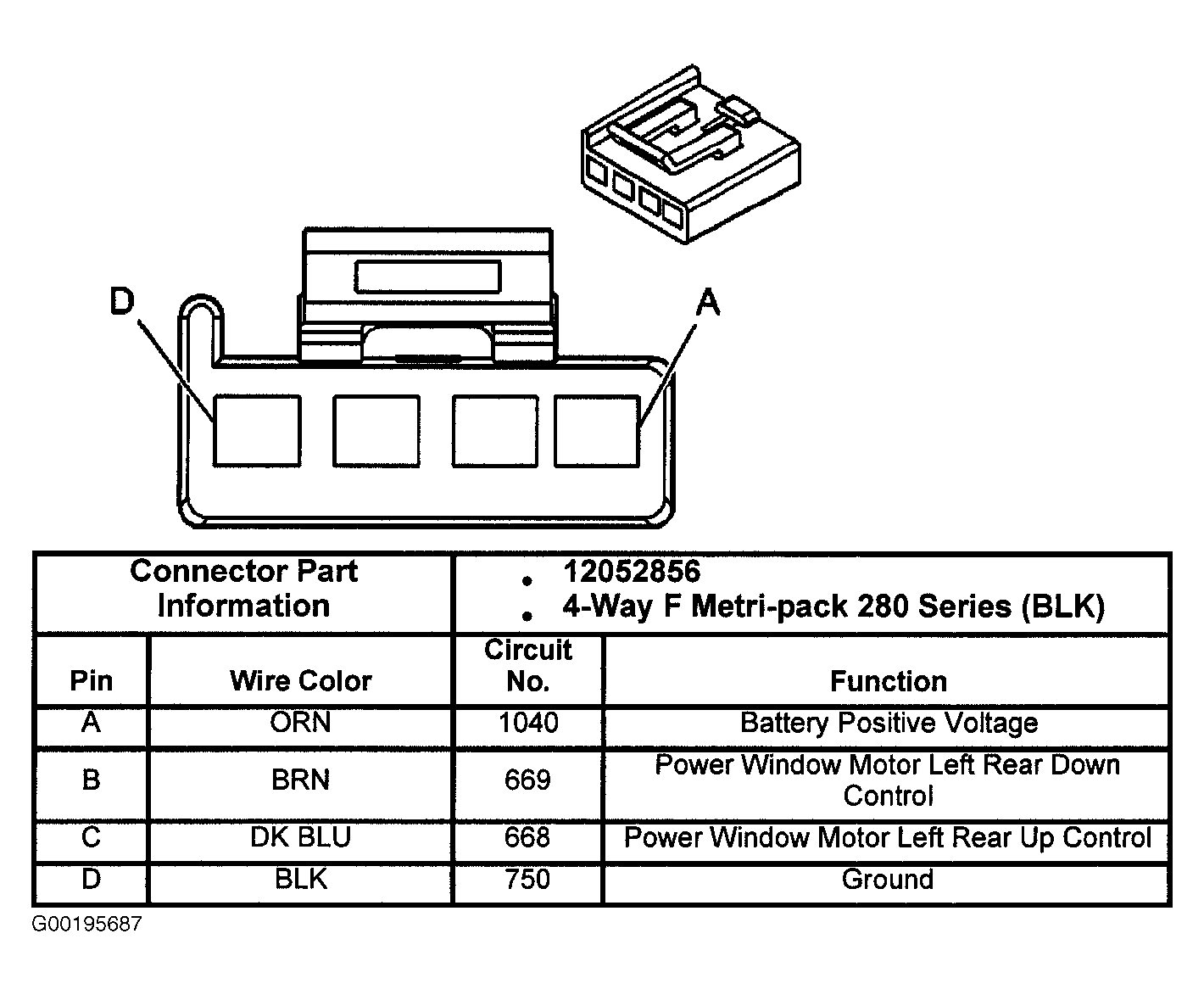

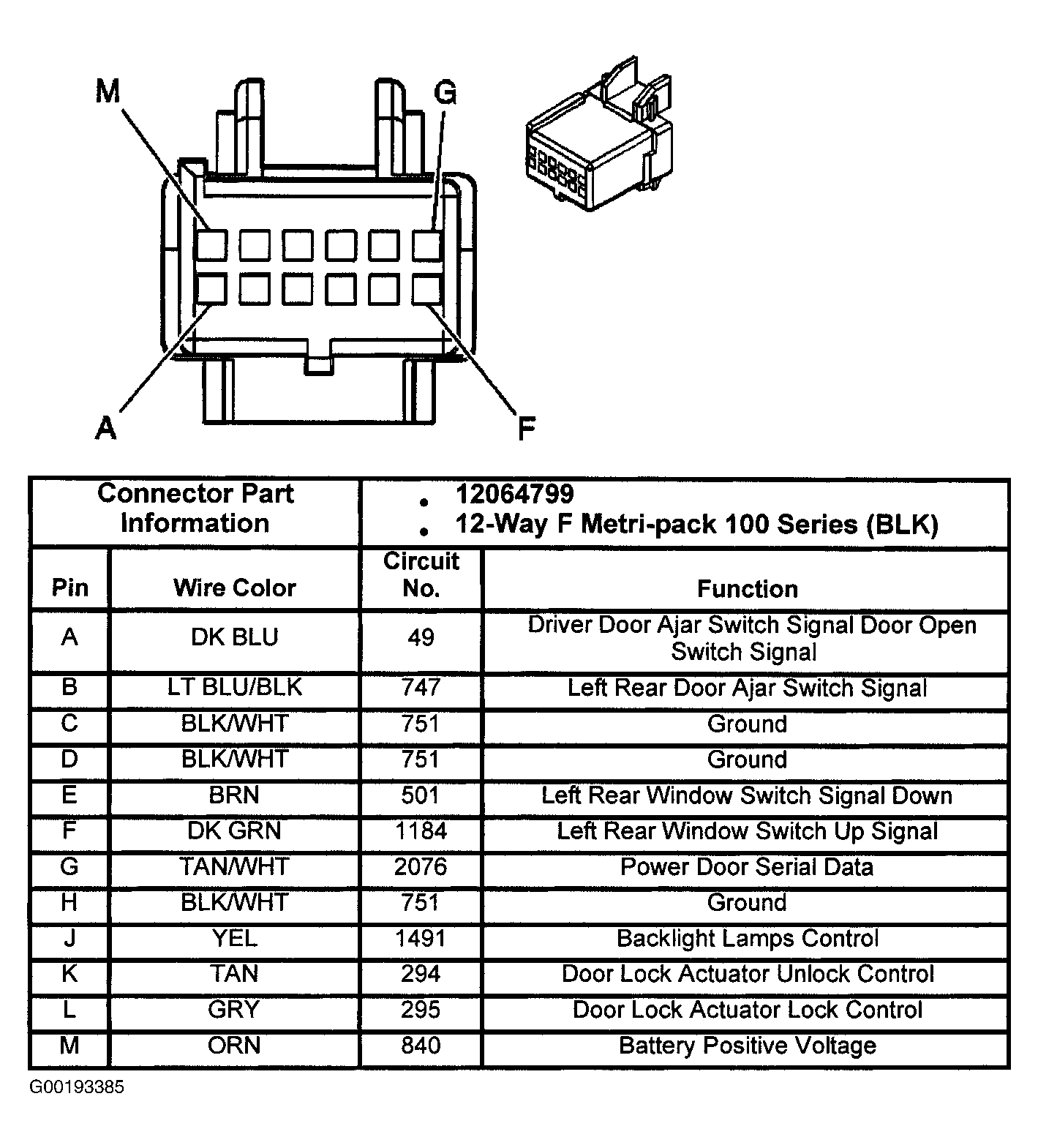

Fig 10: Identifying Door Module (Left Rear) Harness Connector C1 Terminal
G00193385Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Door Module (Left Rear) Harness Connector C2 Terminal
G00195687Courtesy of GENERAL MOTORS CORP.

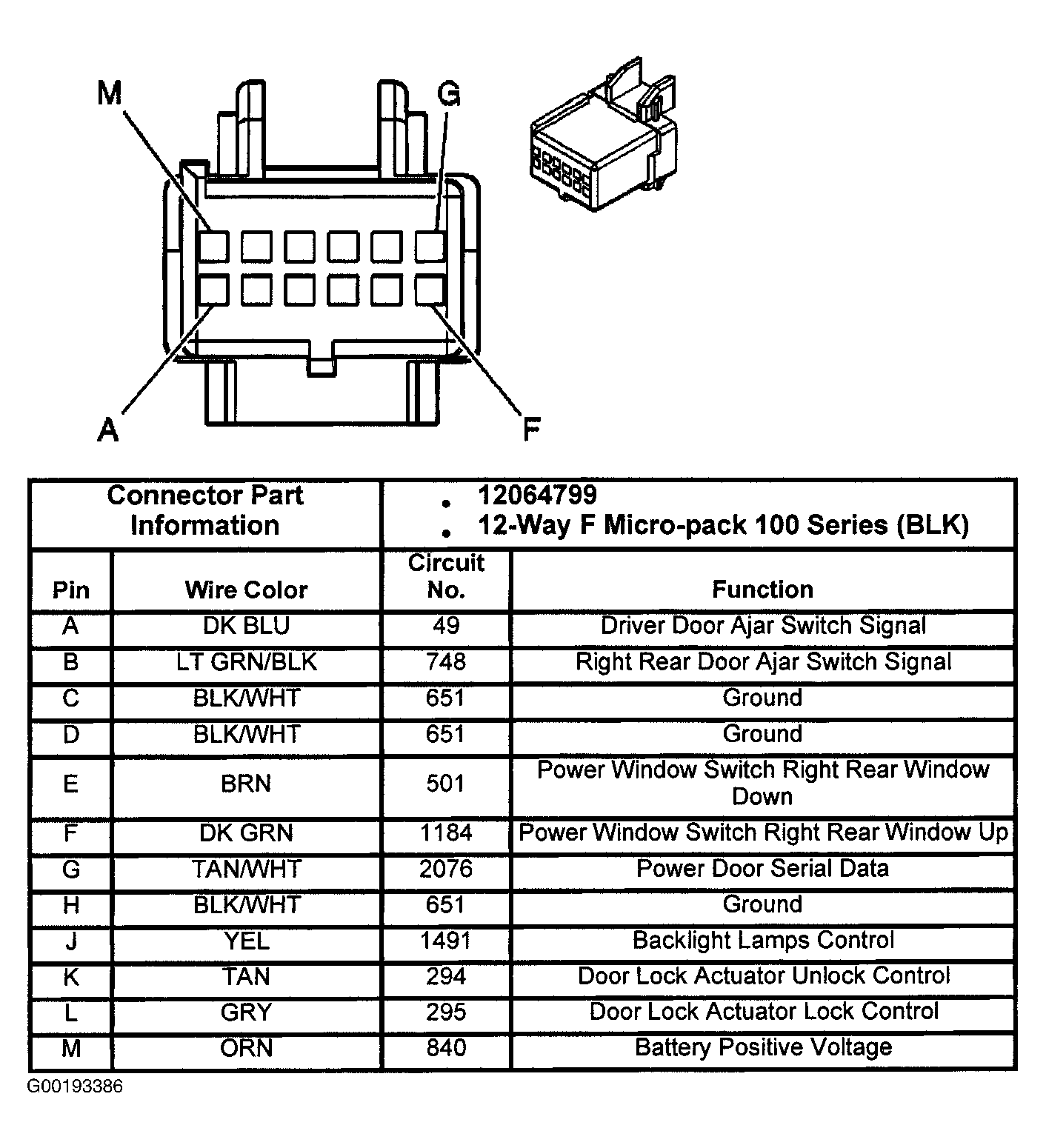

Fig 12: Identifying Door Module (Right Rear) Harness Connector C1 Terminal
G00193386Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Door Module (Right Rear) Harness Connector C2 Terminal
G00195688Courtesy of GENERAL MOTORS CORP.

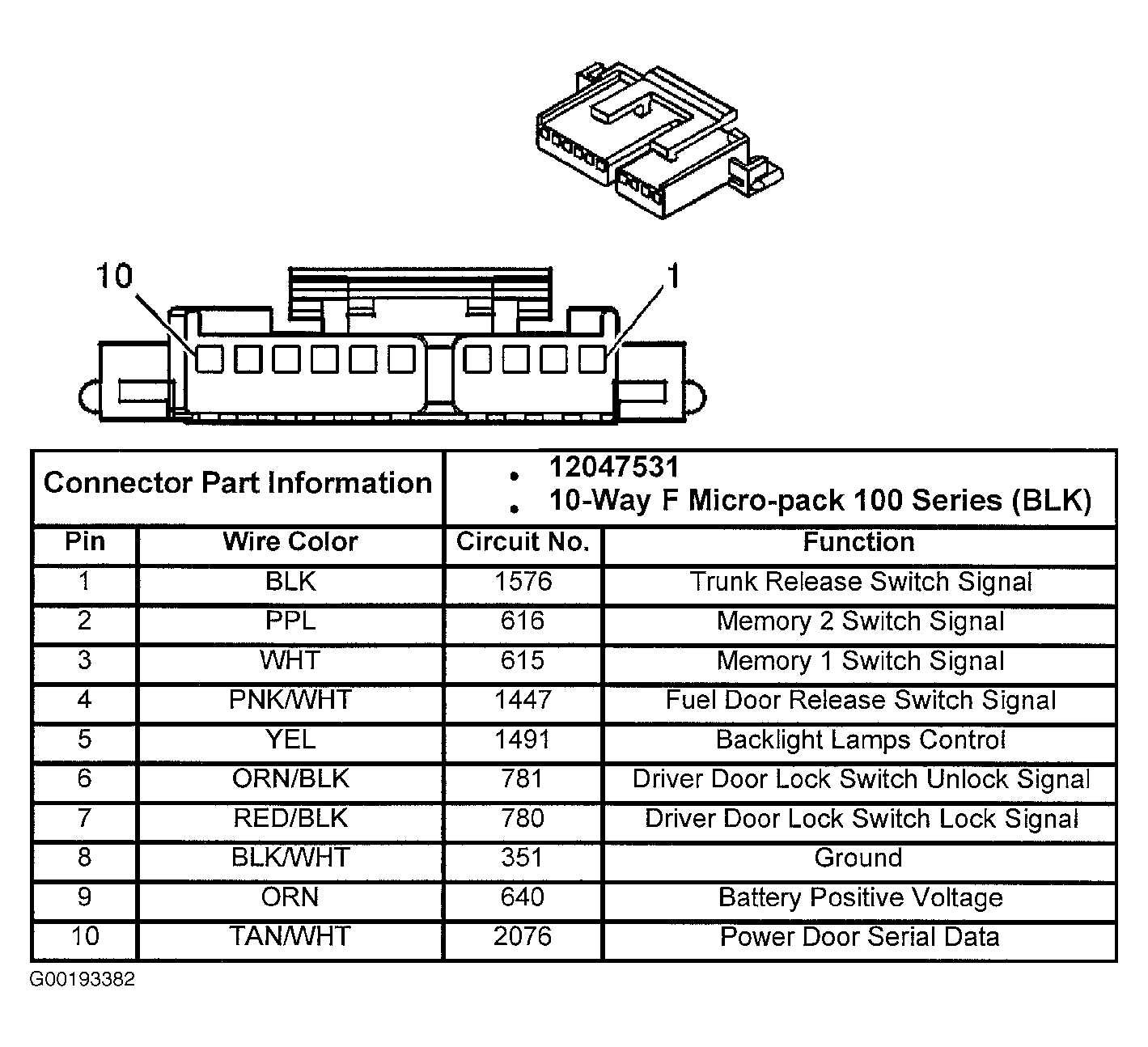

Fig 14: Identifying Driver Door Switch Assembly Connector Terminals
G00193382Courtesy of GENERAL MOTORS CORP.

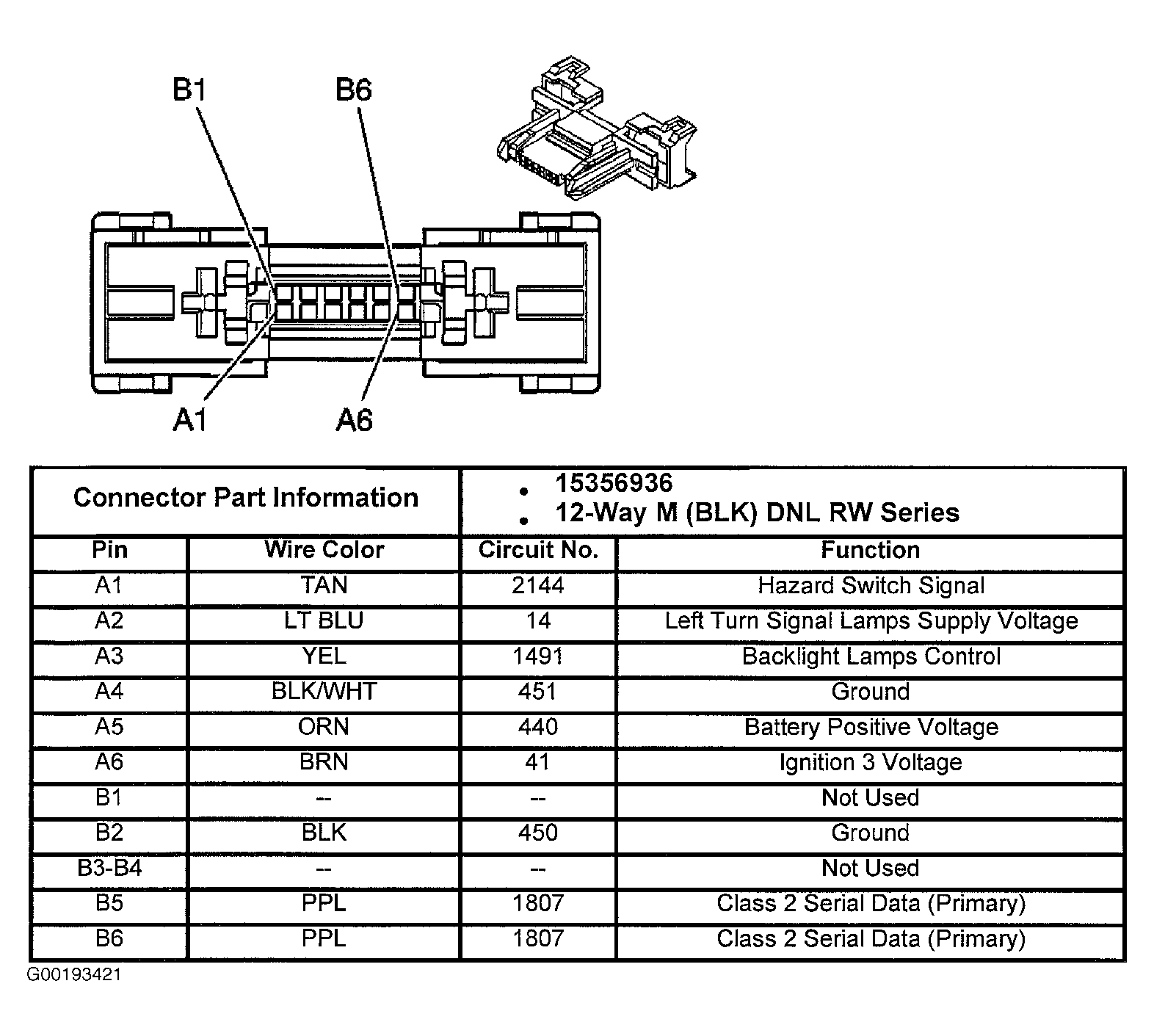

Fig 15: Identifying Driver Information Center Harness Connector Terminals
G00193421Courtesy of GENERAL MOTORS CORP.

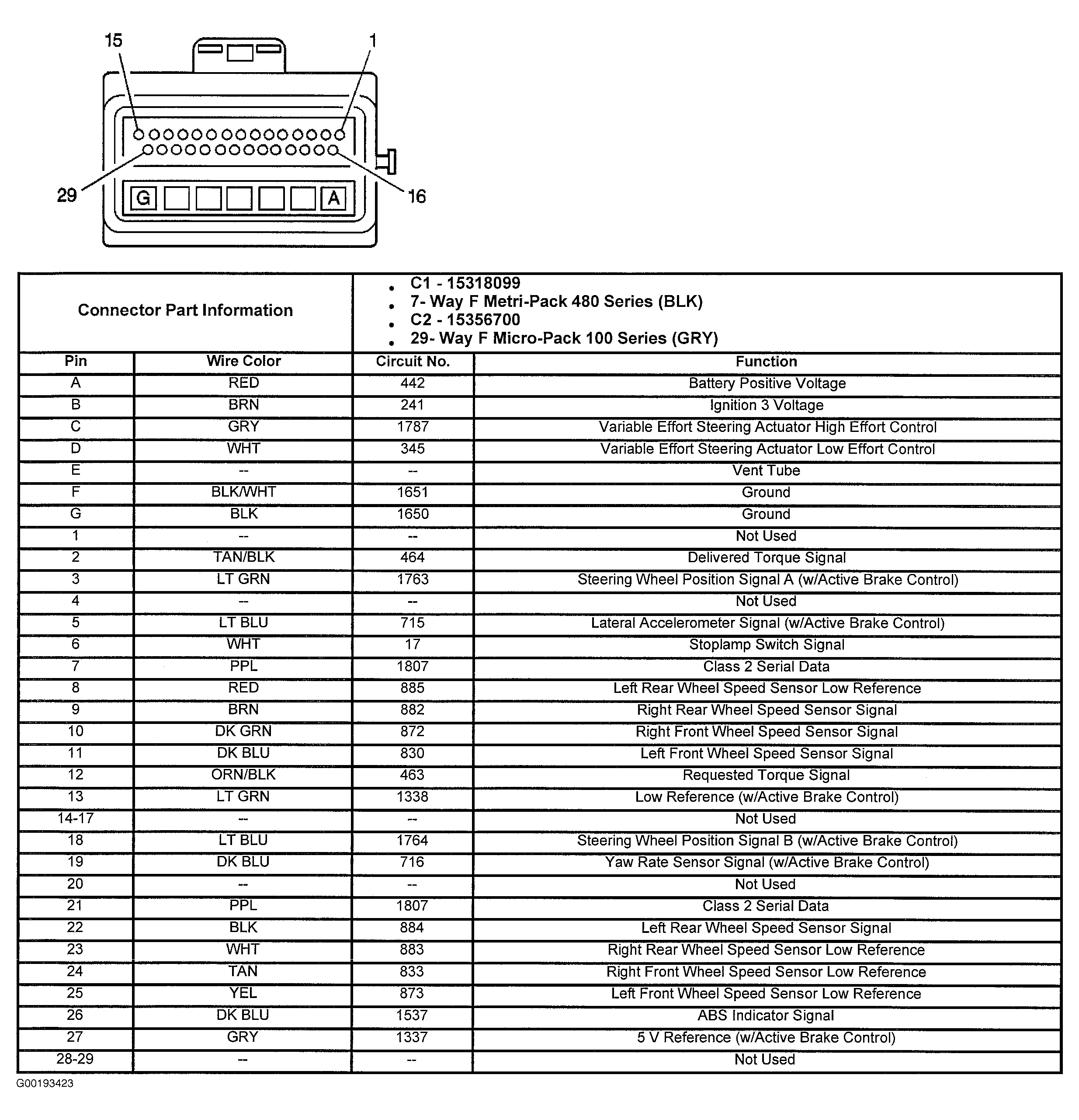

Fig 16: Identifying Electronic Brake Control Module Harness Connector Terminals
G00193423Courtesy of GENERAL MOTORS CORP.

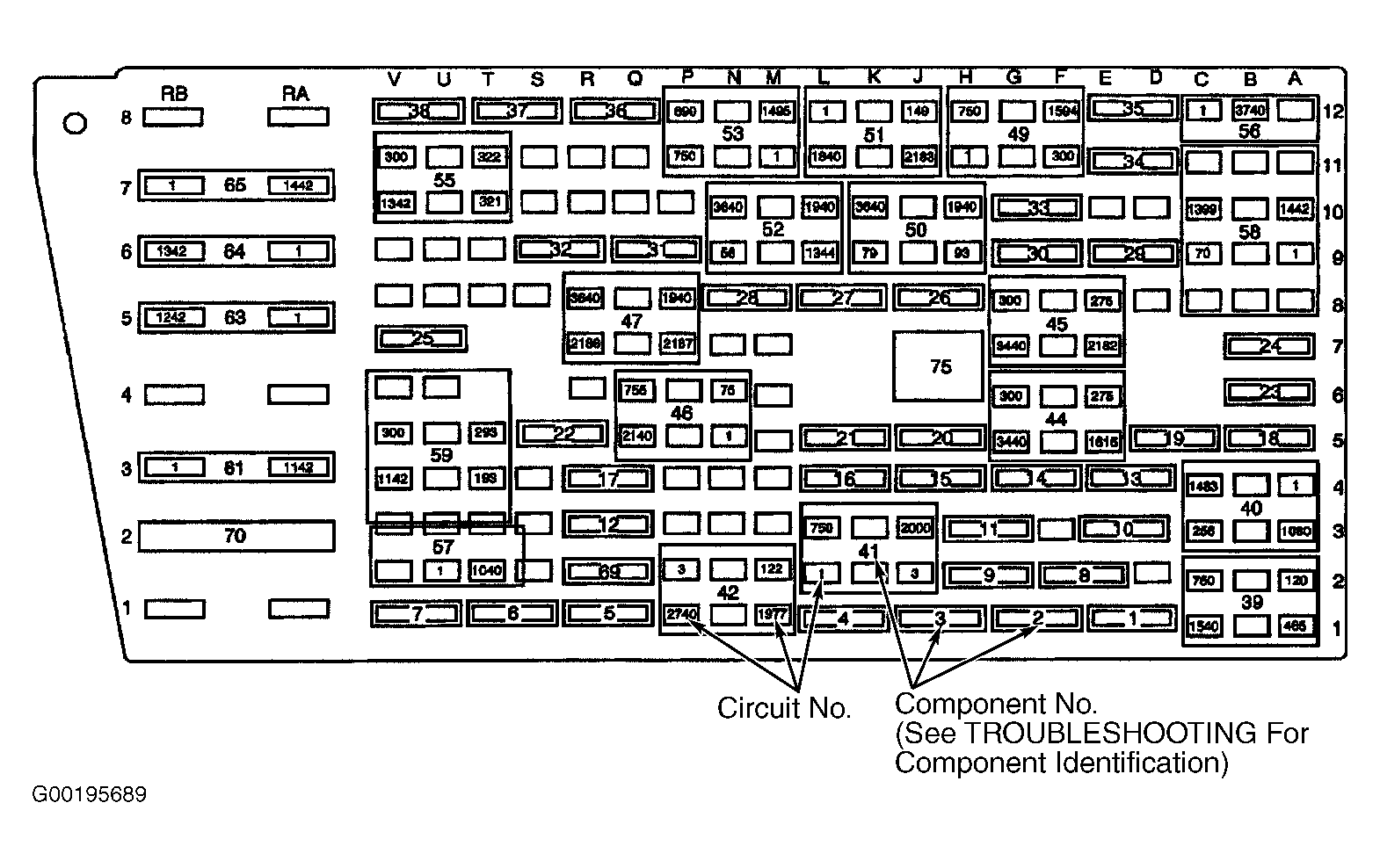

Fig 17: Identifying Fuse Box (Rear) Connectors & Component Side Terminals - Top View
G00195689Courtesy of GENERAL MOTORS CORP.

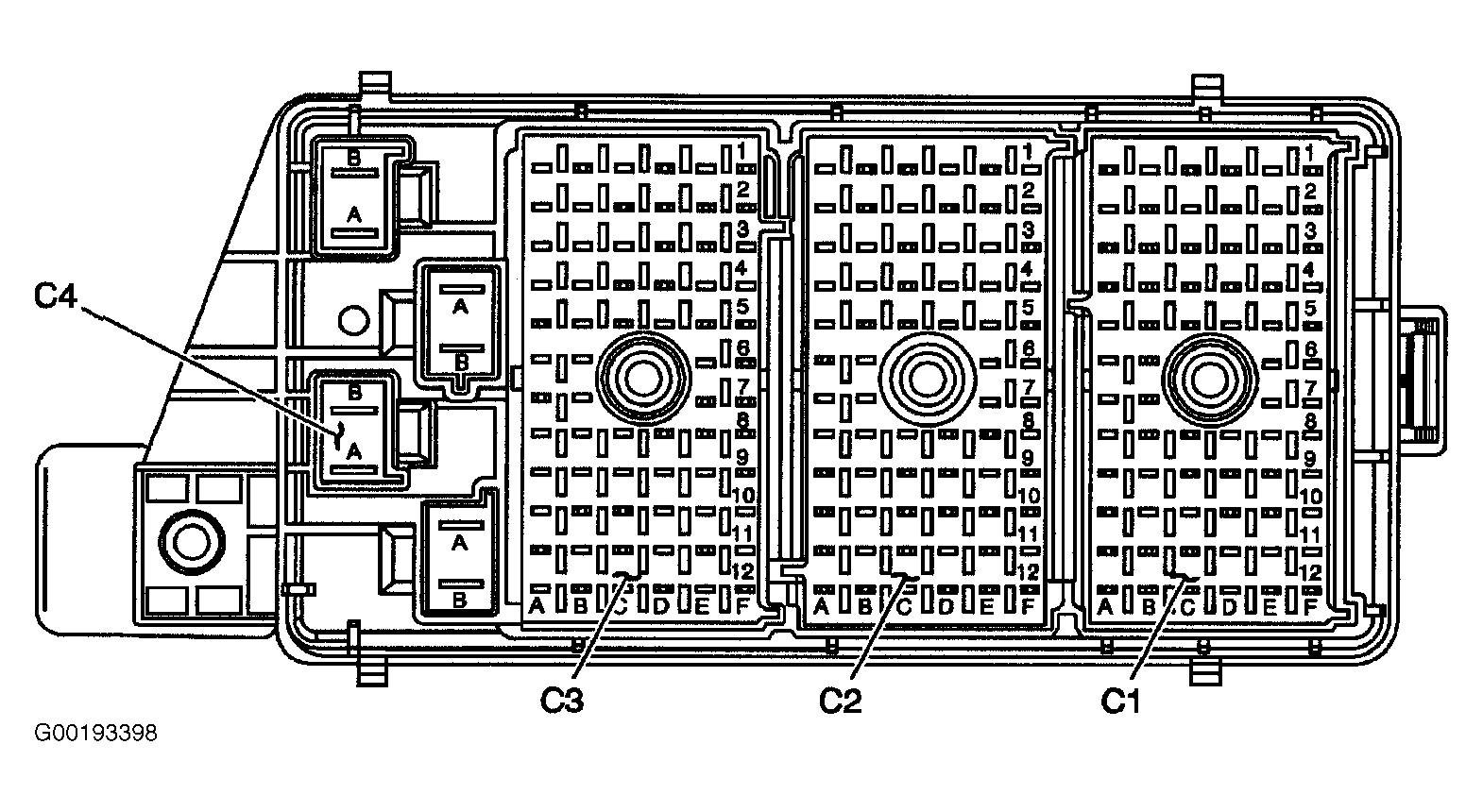

Fig 18: Identifying Fuse Block (Rear) Connectors & Component Side Terminals - Bottom View
G00193398Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Fuse Block (Rear) Harness Connector C1 Terminals
G00193372Courtesy of GENERAL MOTORS CORP.

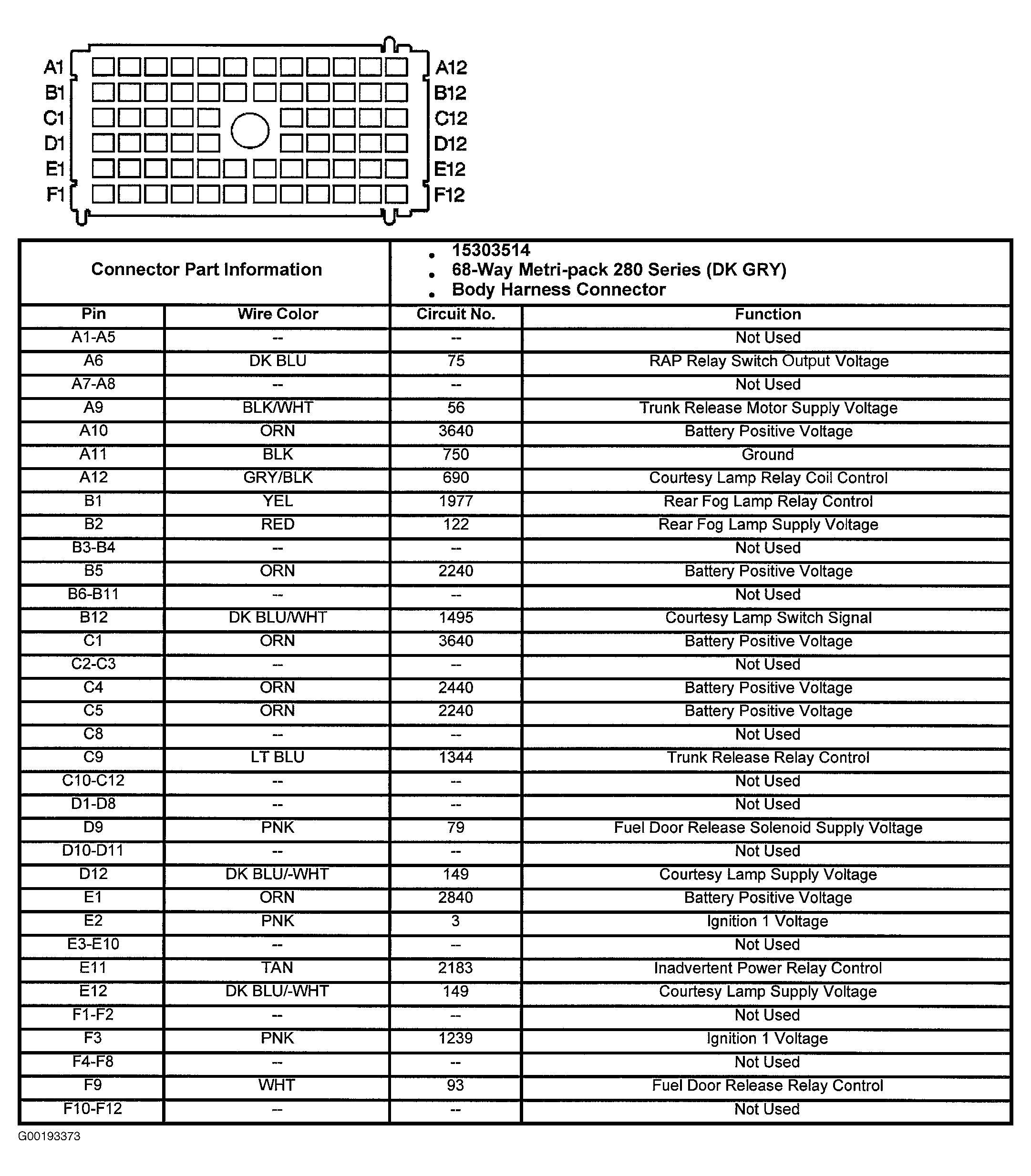

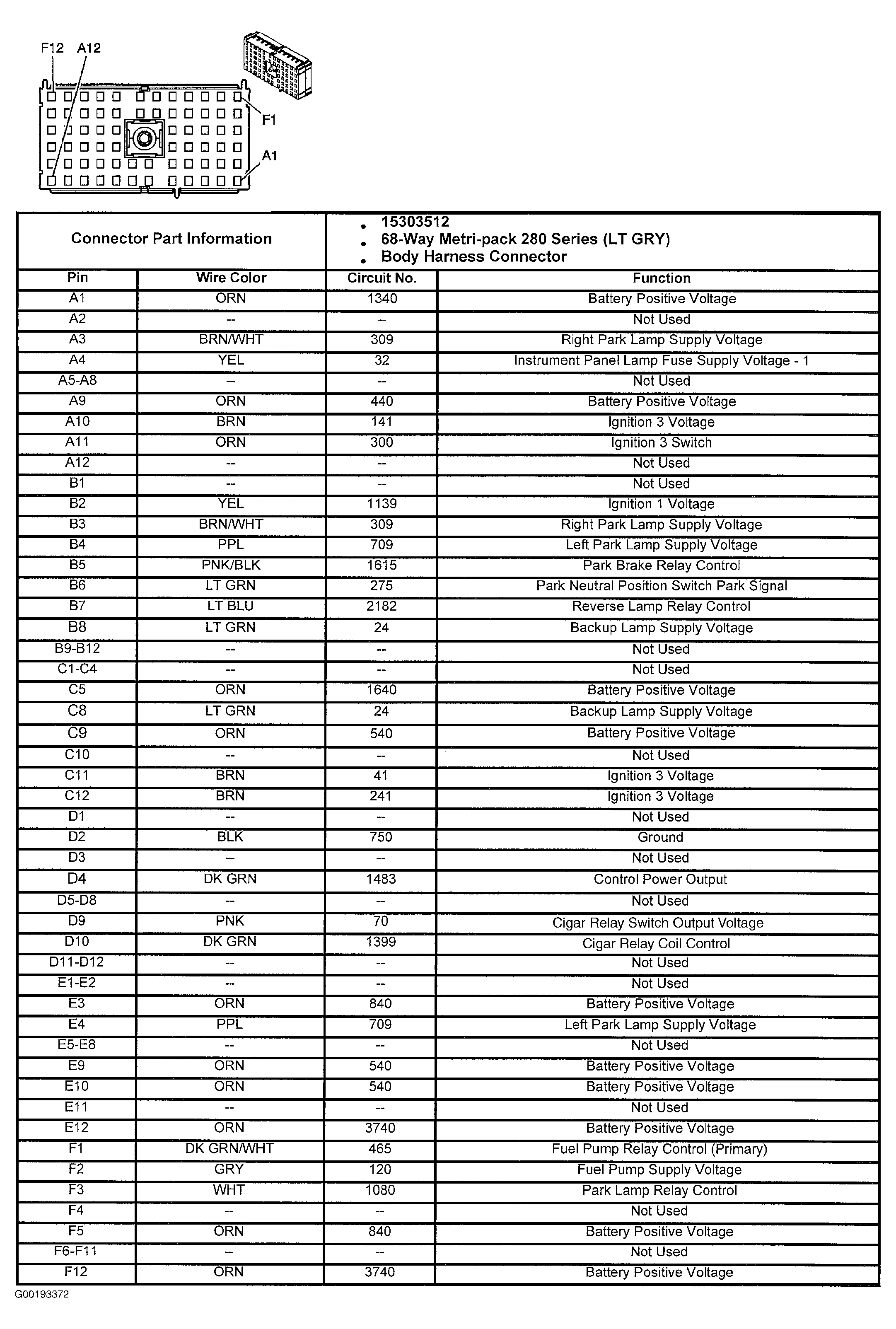

Fig 20: Identifying Fuse Block (Rear) Harness Connector C2 Terminals
G00193373Courtesy of GENERAL MOTORS CORP.

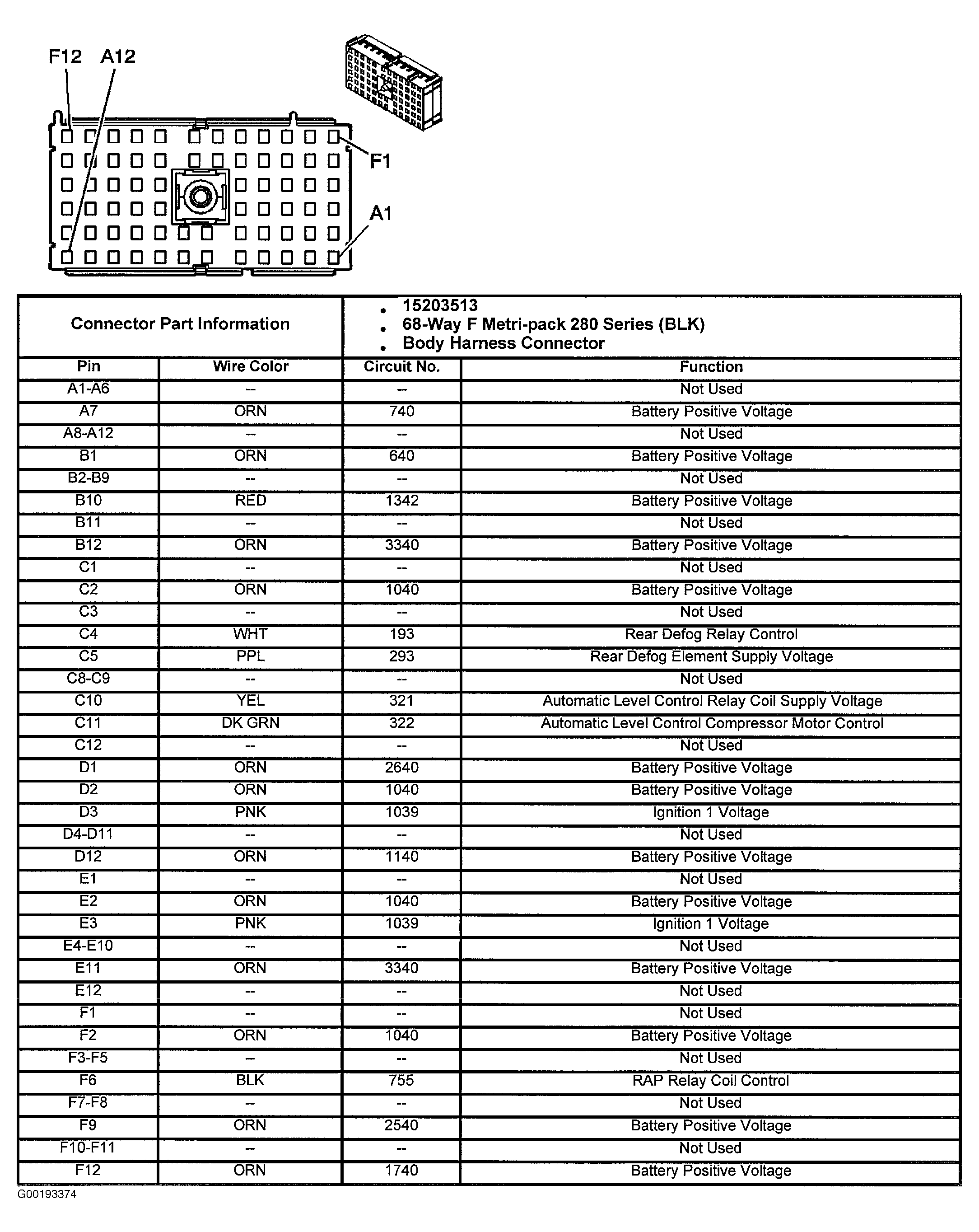

Fig 21: Identifying Fuse Block (Rear) Harness Connector C3 Terminals
G00193374Courtesy of GENERAL MOTORS CORP.

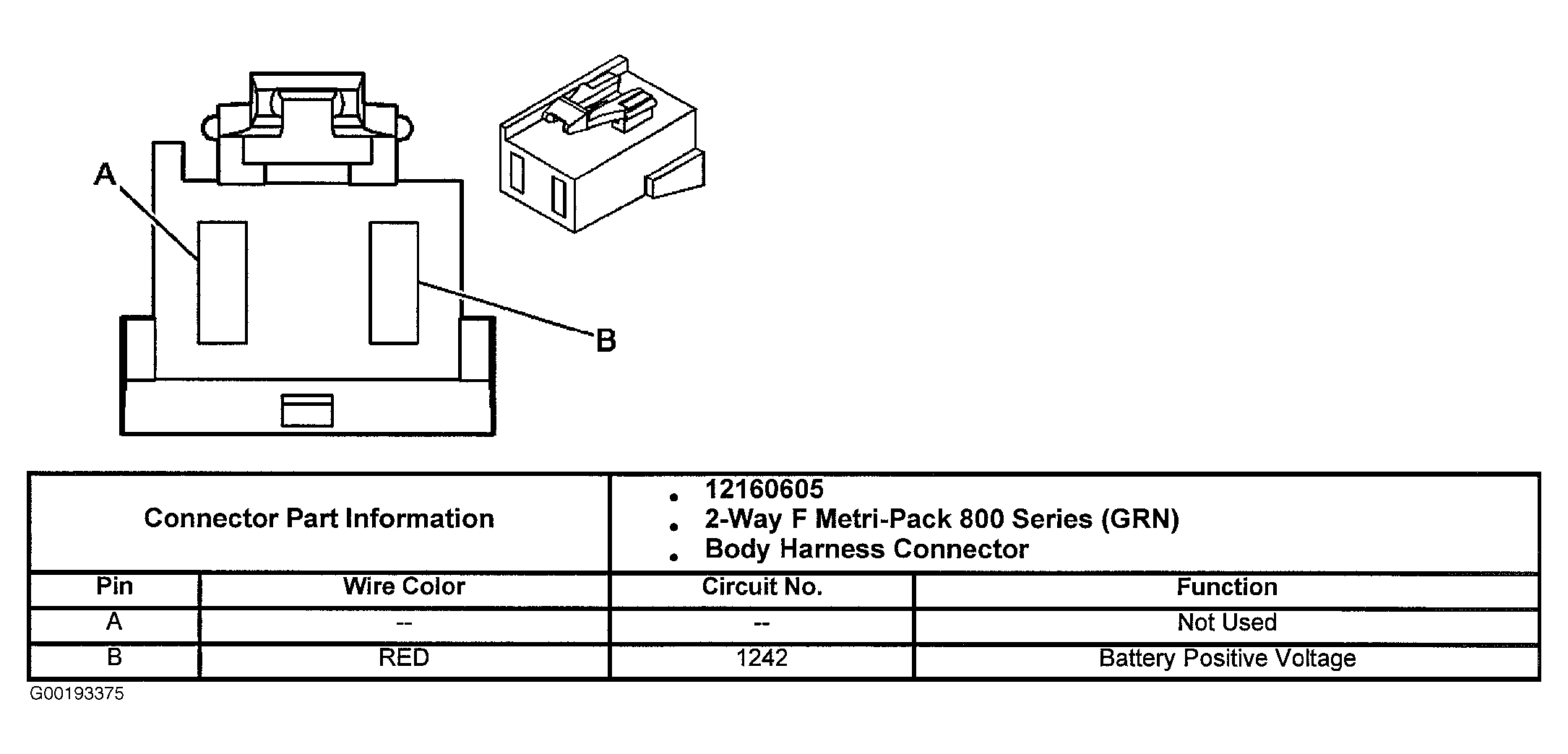

Fig 22: Identifying Fuse Block (Rear) Harness Connector C4 Terminals
G00193375Courtesy of GENERAL MOTORS CORP.

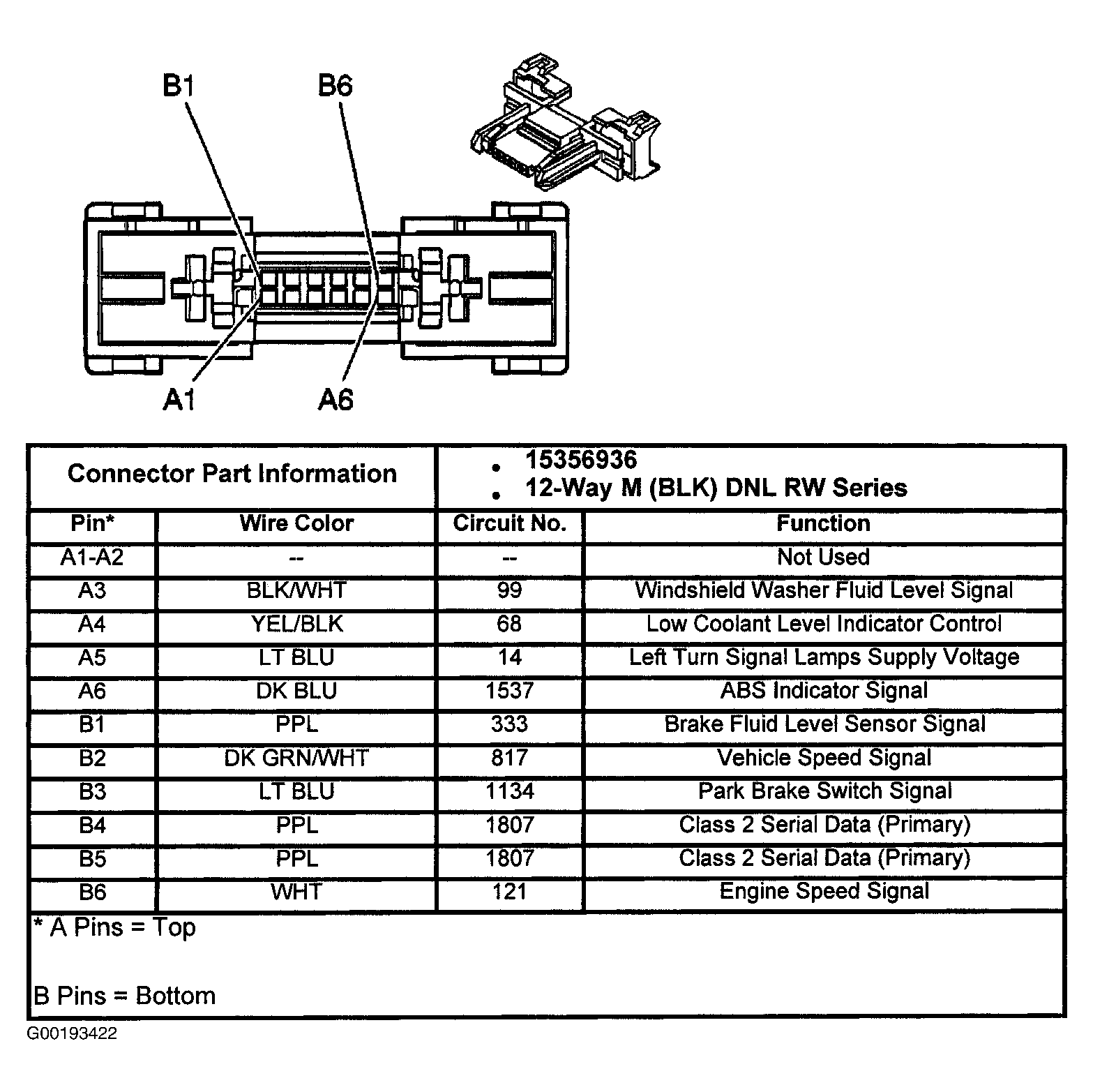

Fig 23: Identifying Instrument Panel Cluster Harness Connectors C1 Terminal
G00193422Courtesy of GENERAL MOTORS CORP.

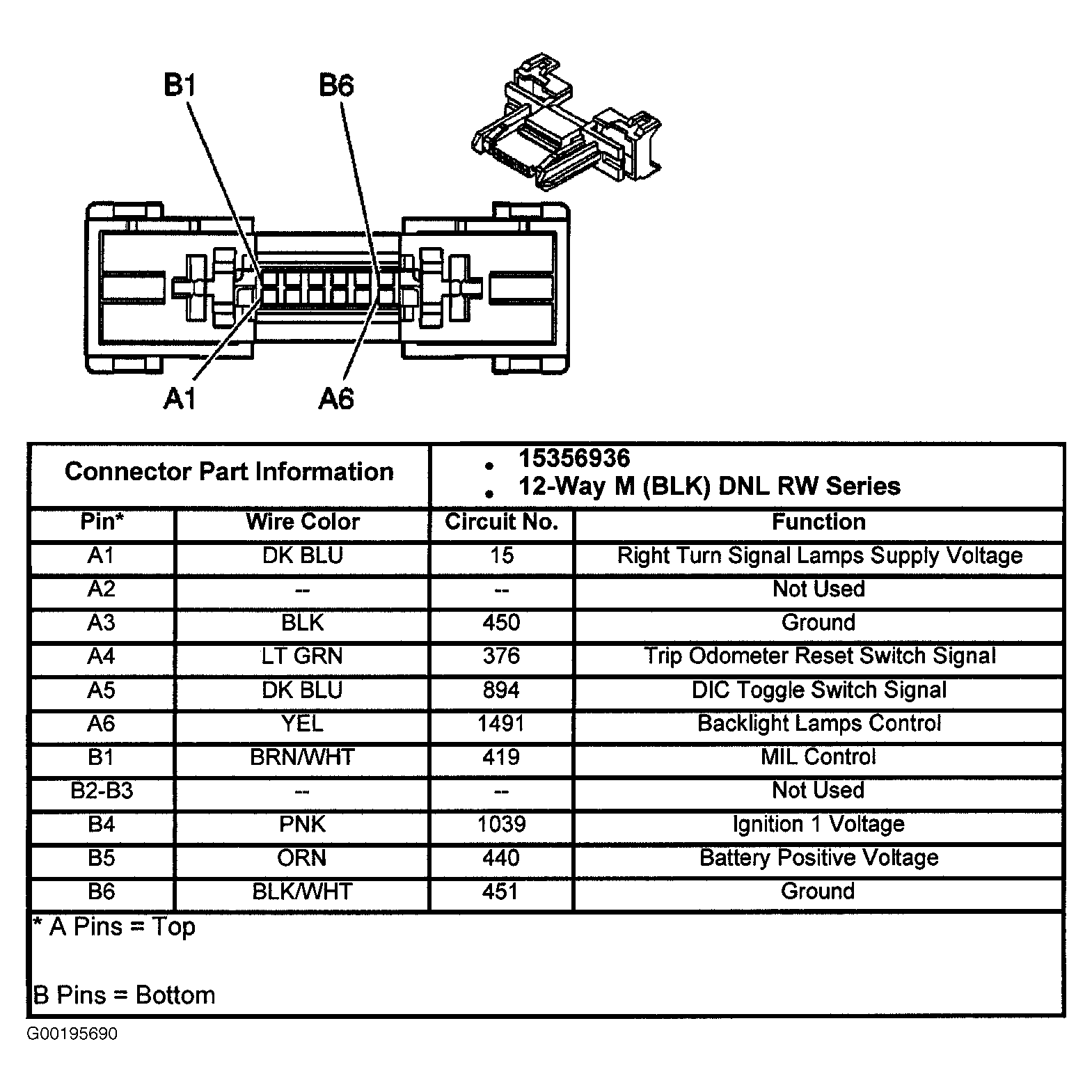

Fig 24: Identifying Instrument Panel Cluster Harness Connectors C2 Terminal
G00195690Courtesy of GENERAL MOTORS CORP.

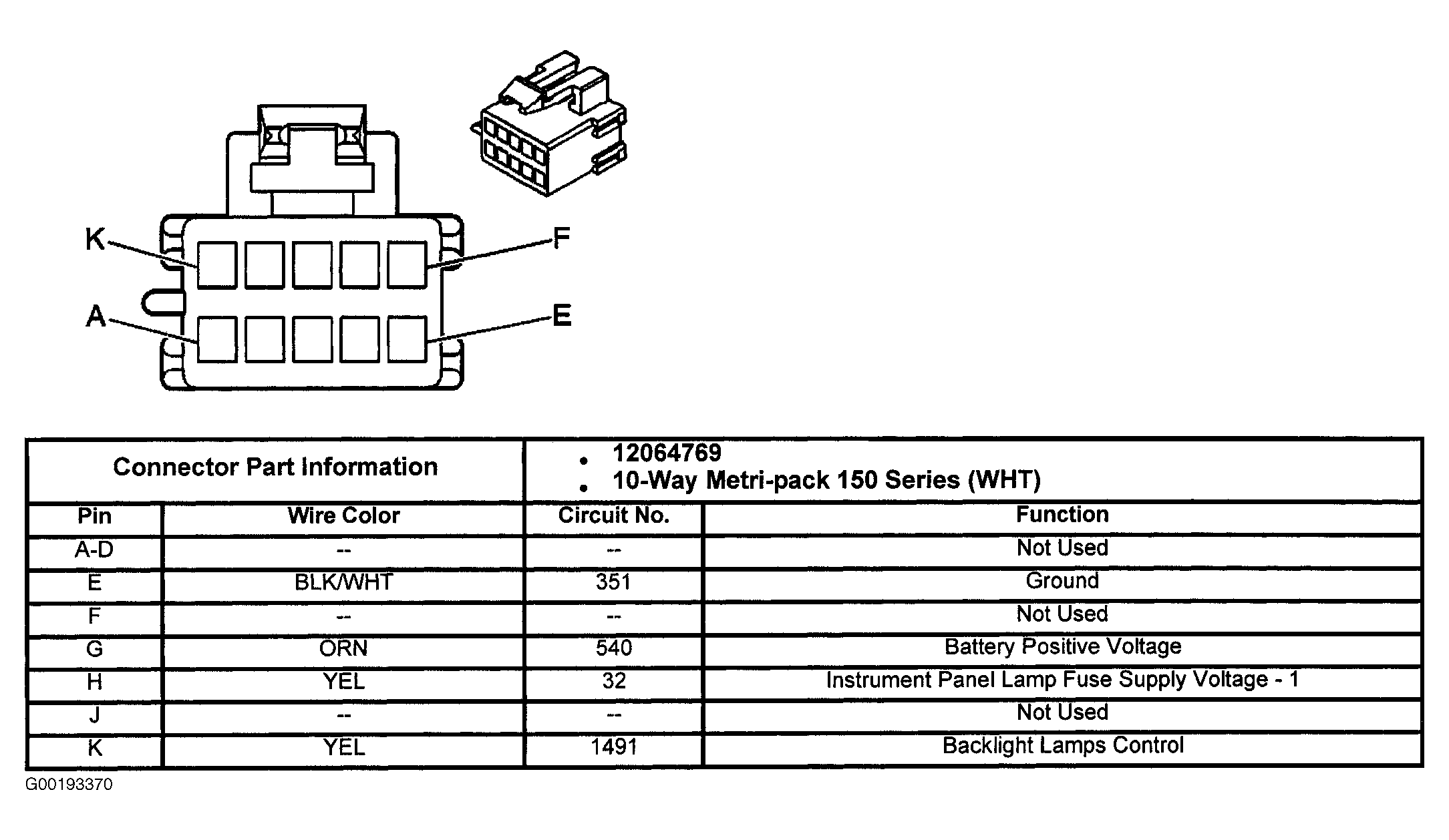

Fig 25: Identifying Integration Module (Dash) Harness Connector C1 Terminal
G00193370Courtesy of GENERAL MOTORS CORP.

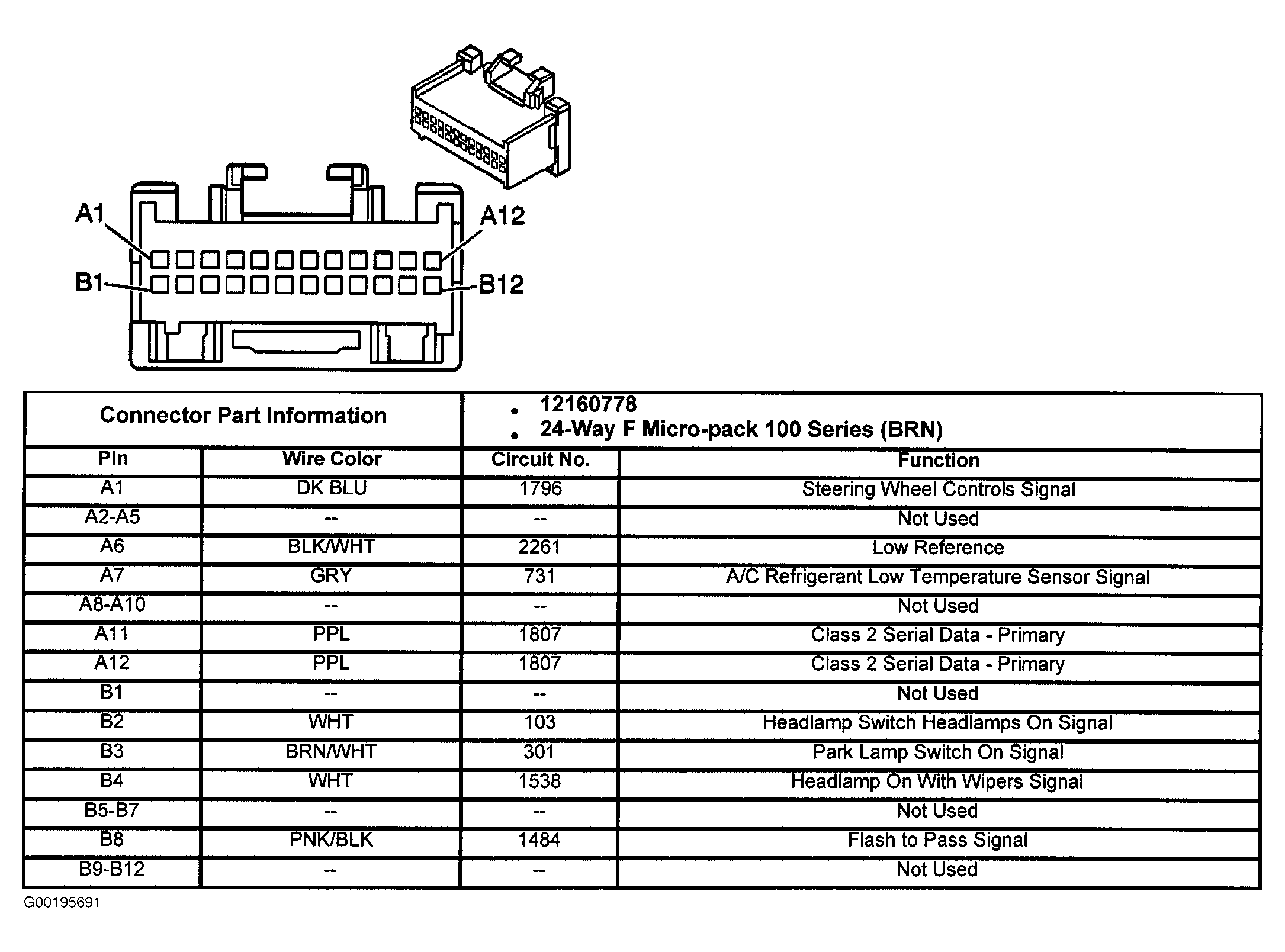

Fig 26: Identifying Integration Module (Dash) Harness Connector C2 Terminal
G00195691Courtesy of GENERAL MOTORS CORP.

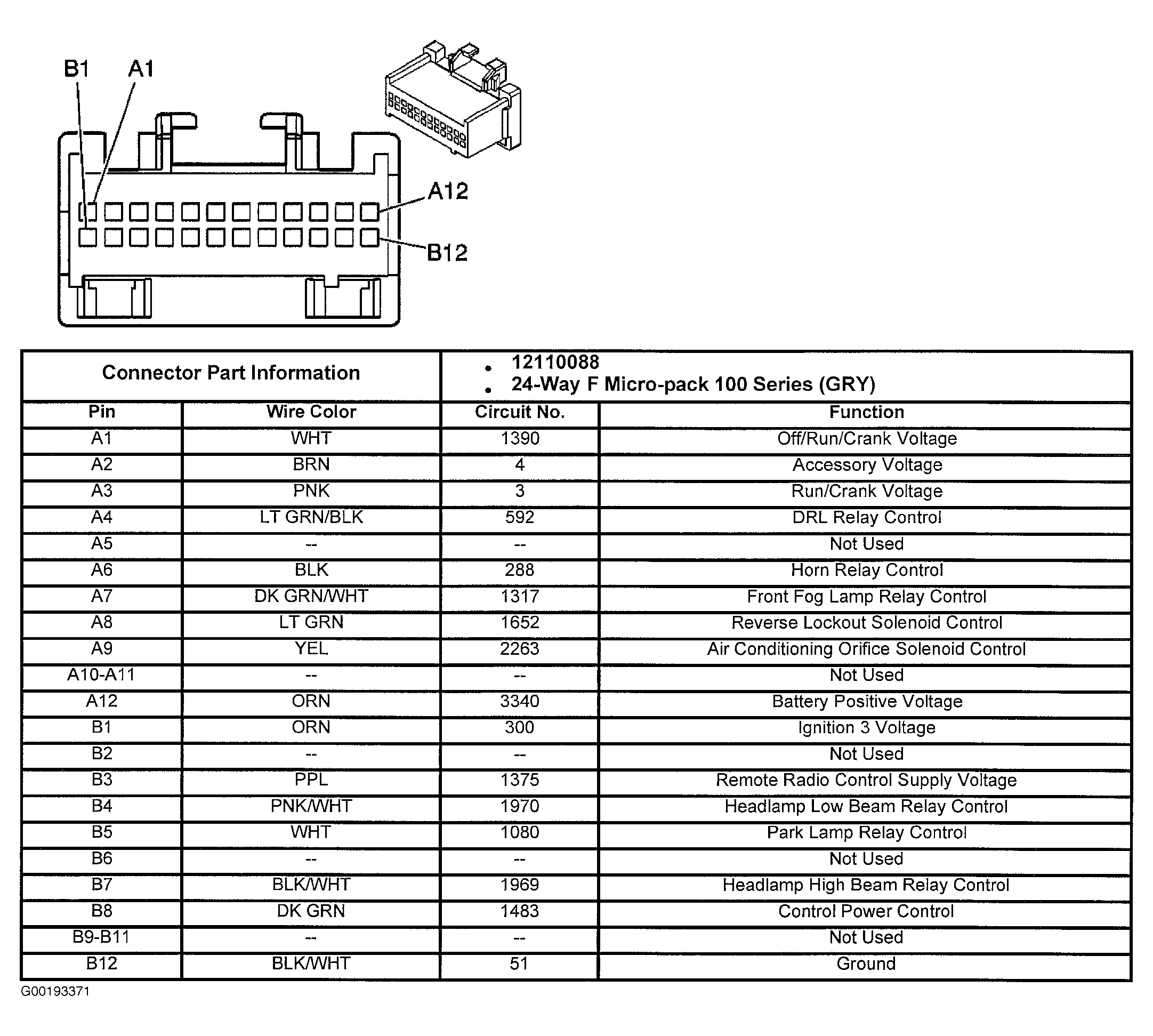

Fig 27: Identifying Integration Module (Dash) Harness Connector C3 Terminals
G00193371Courtesy of GENERAL MOTORS CORP.

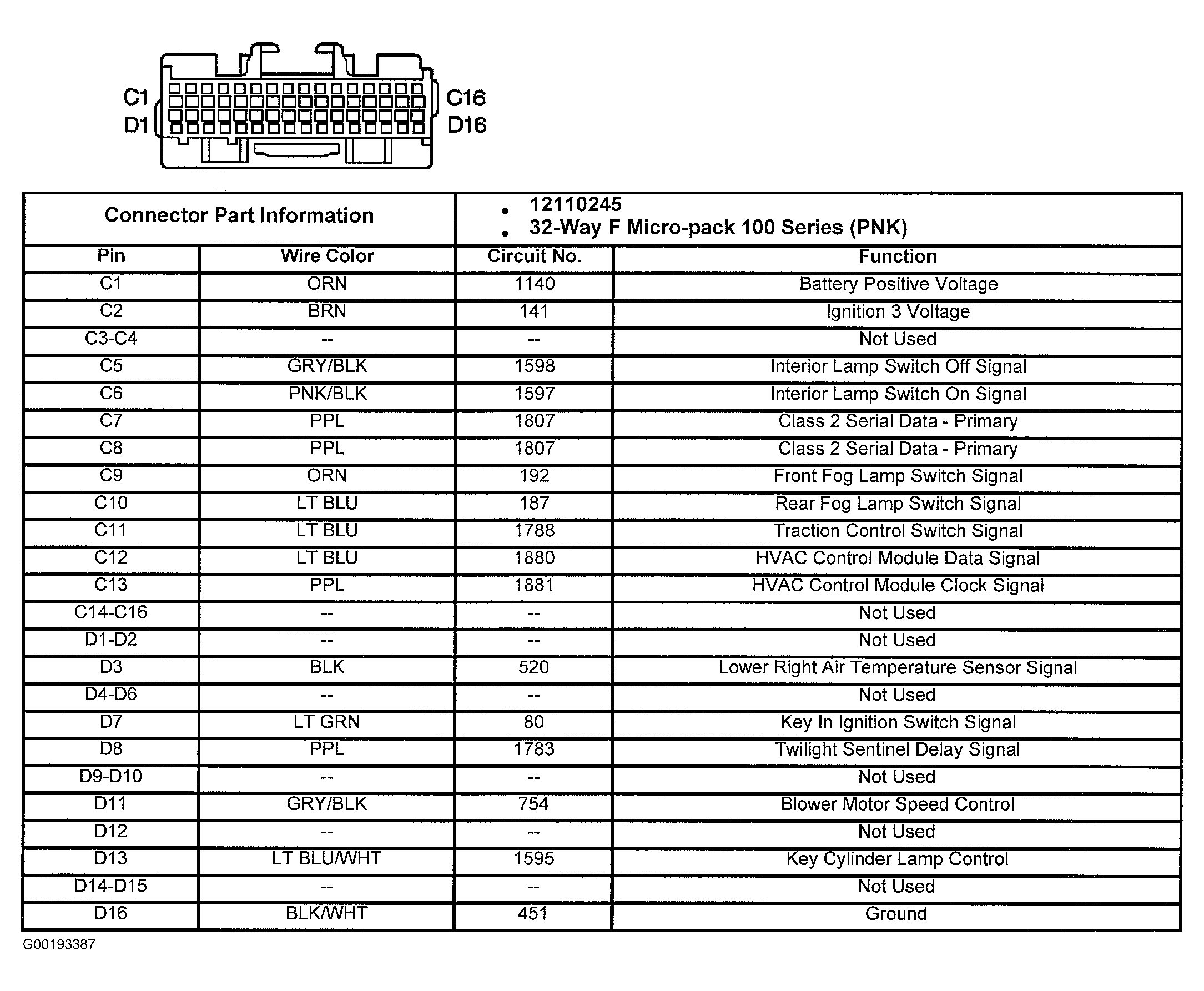

Fig 28: Identifying Integration Module (Instrument Panel) Connector C1 Terminals
G00193387Courtesy of GENERAL MOTORS CORP.

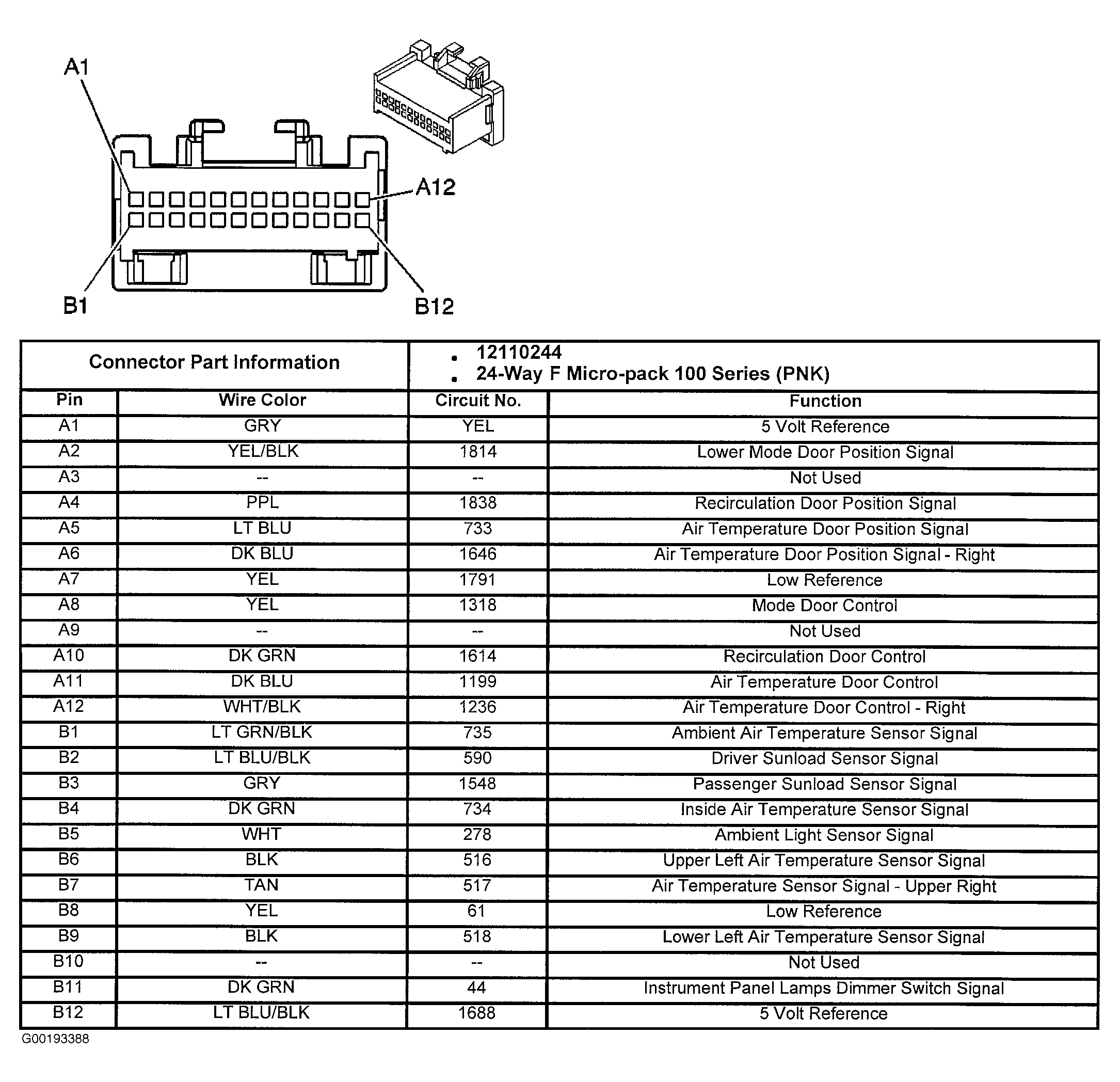

Fig 29: Identifying Integration Module (Instrument Panel) Connector C2 Terminals
G00193388Courtesy of GENERAL MOTORS CORP.

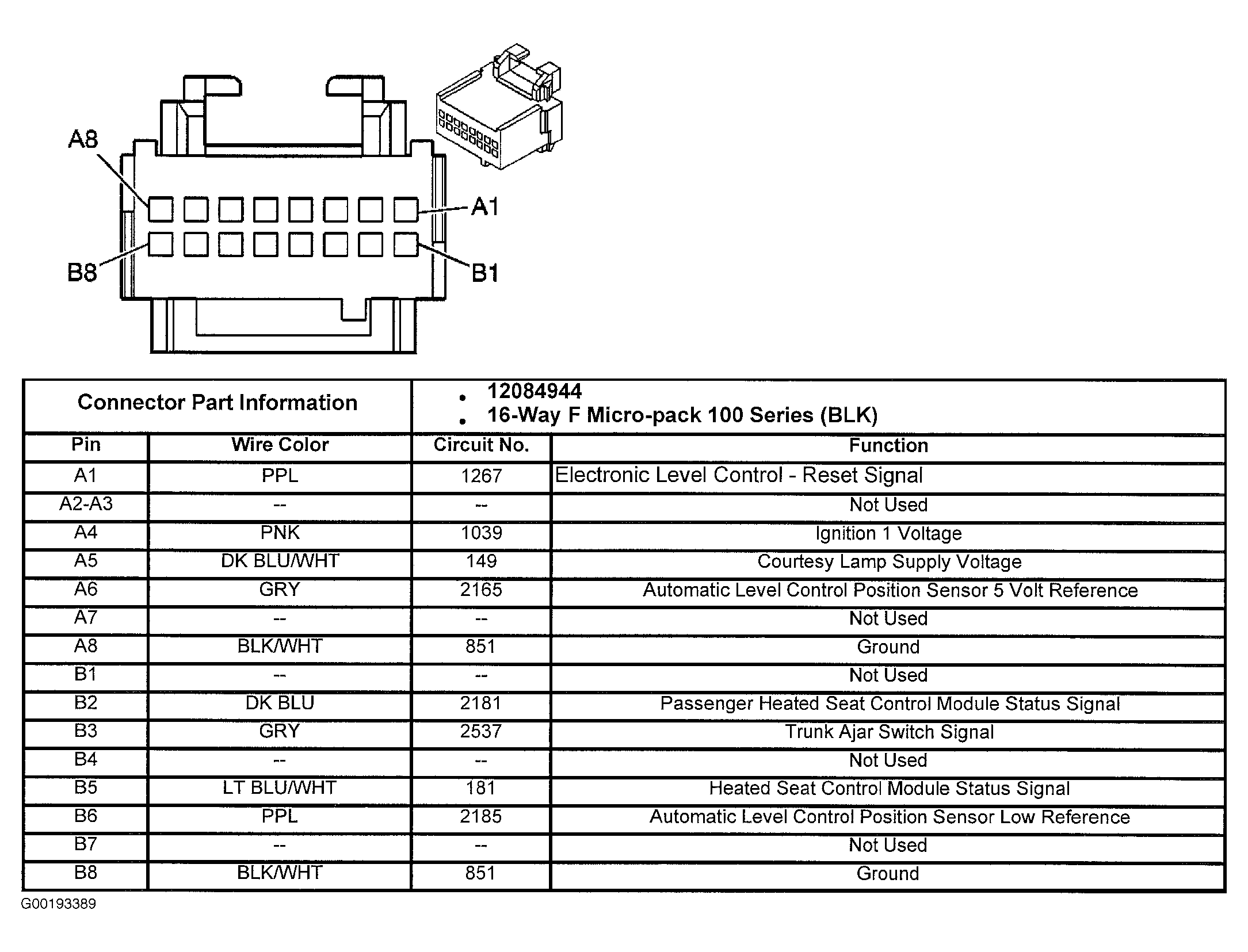

Fig 30: Identifying Integration Module (Rear) Harness Connector C1 Terminals
G00193389Courtesy of GENERAL MOTORS CORP.

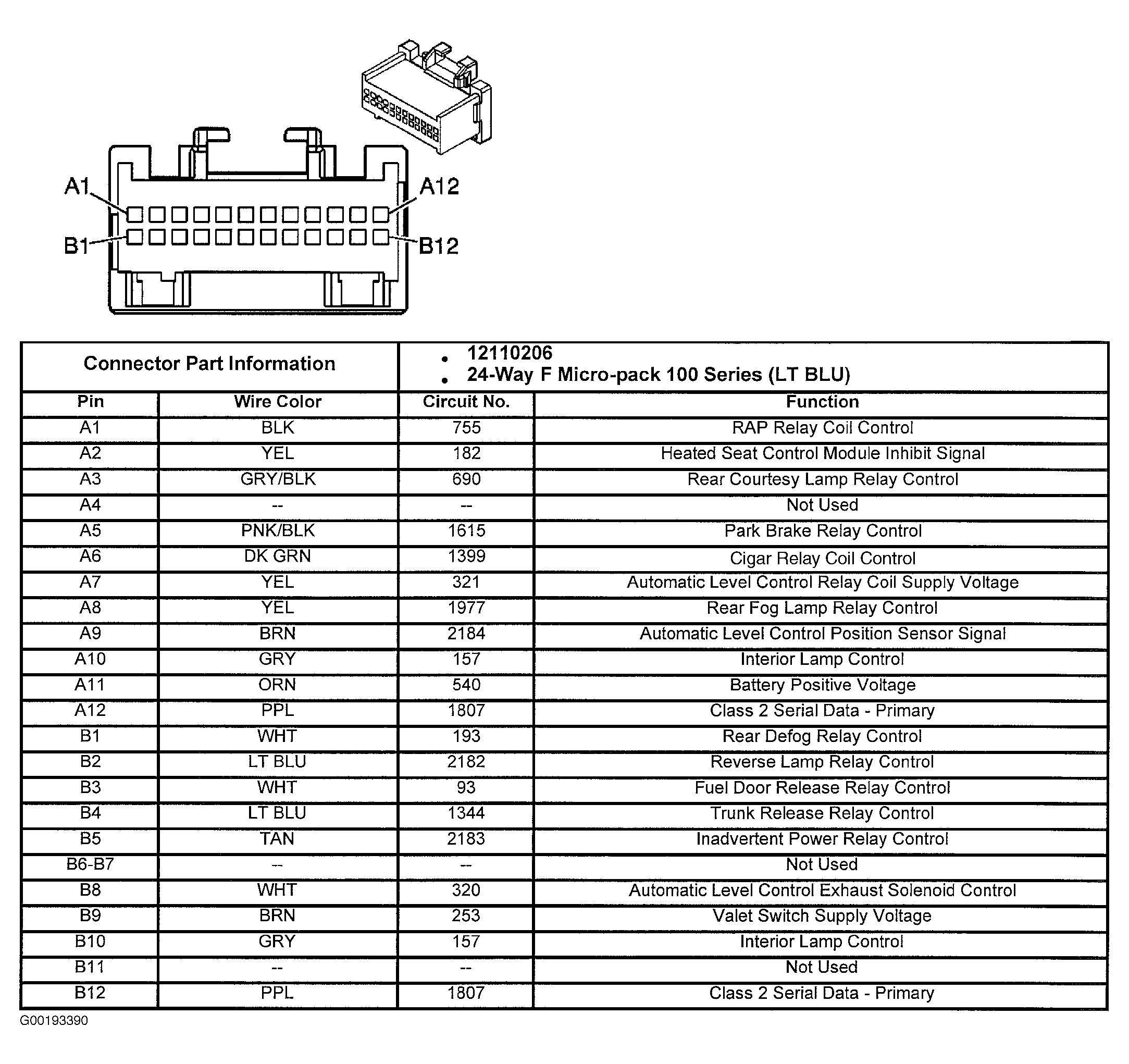

Fig 31: Identifying Integration Module (Rear) Harness Connector C2 Terminals
G00193390Courtesy of GENERAL MOTORS CORP.

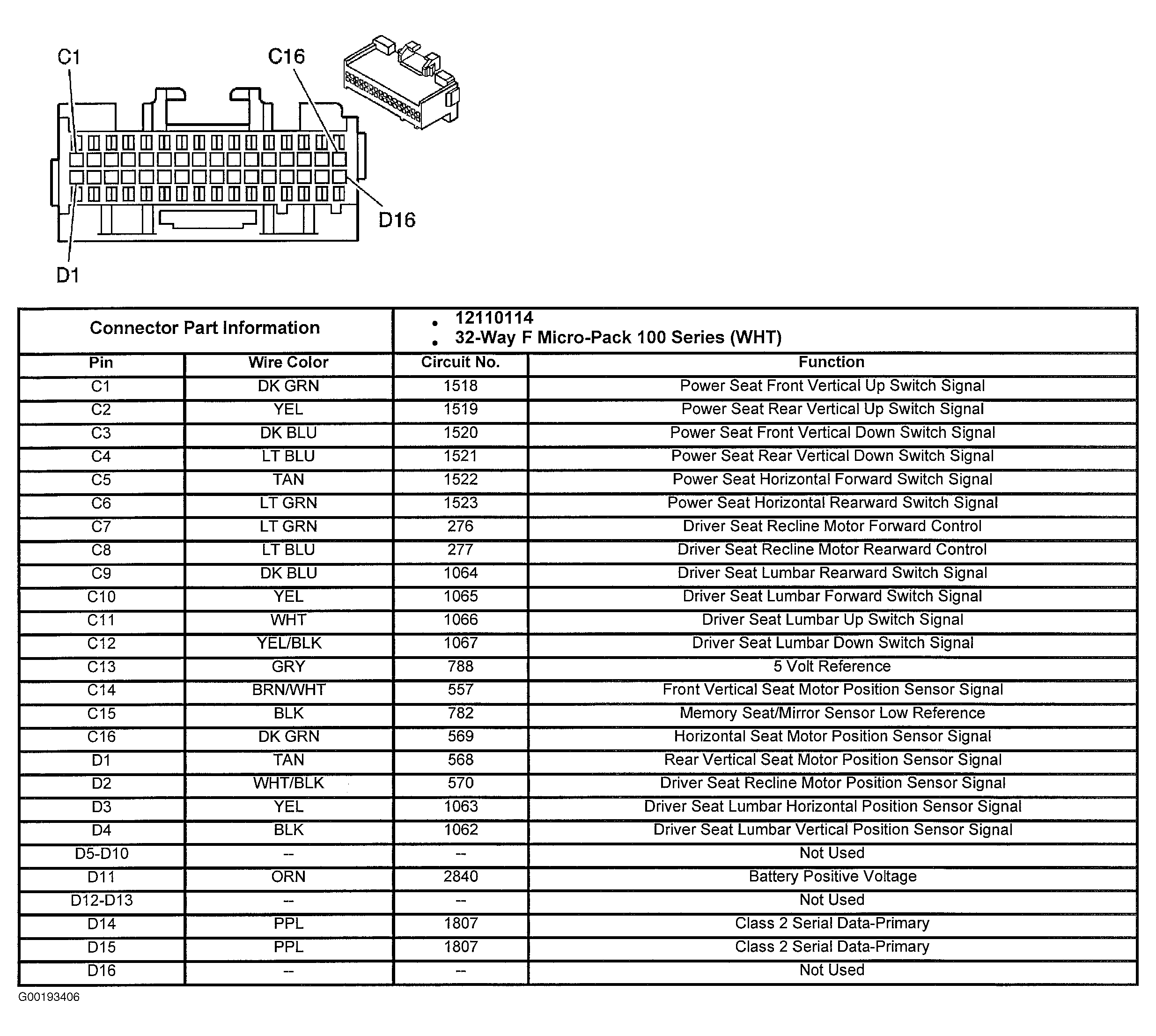

Fig 32: Identifying Memory Seat Module Harness Connector C2 Terminals
G00193406Courtesy of GENERAL MOTORS CORP.

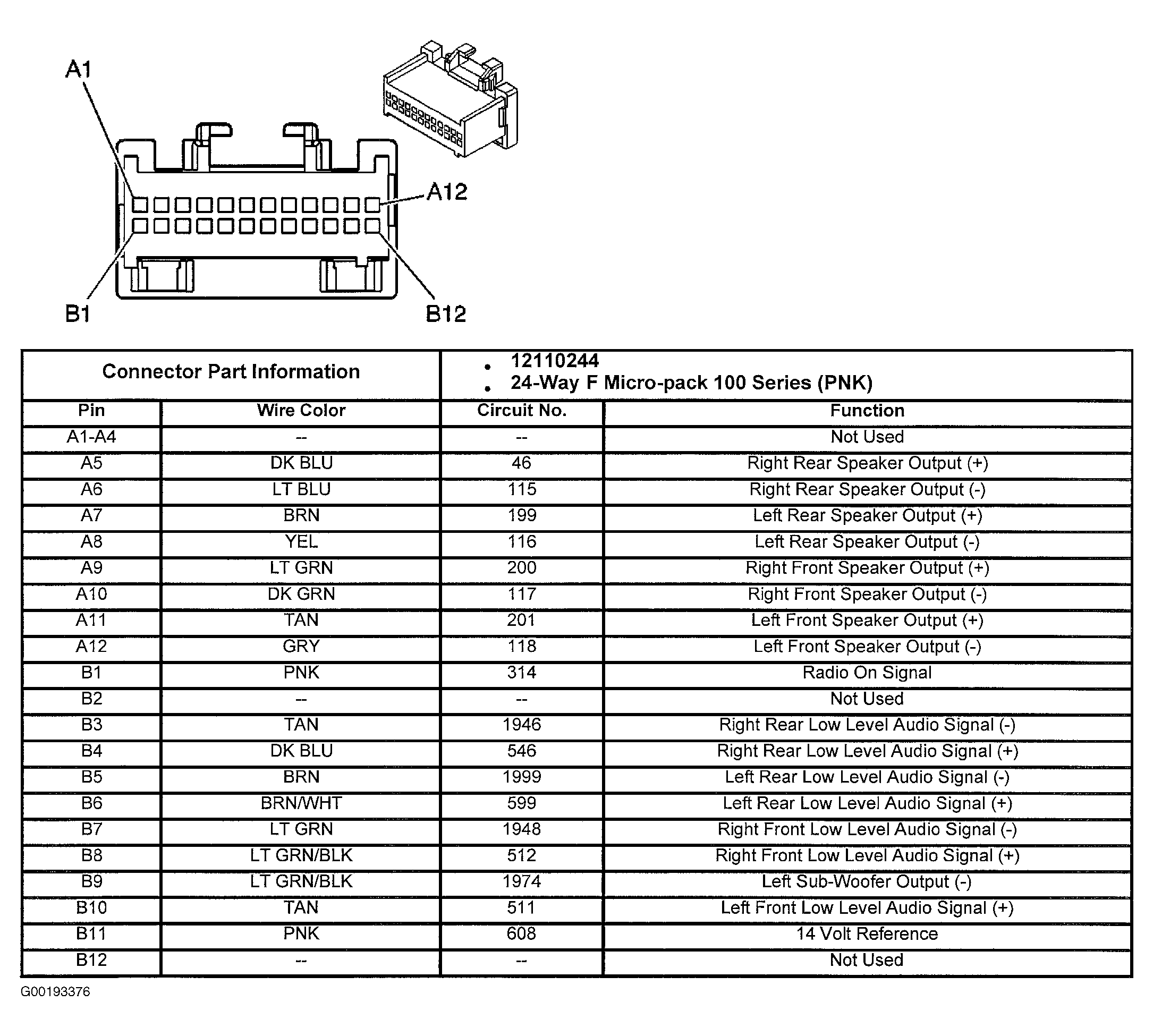

Fig 33: Identifying Radio Amplifier Harness Connector C1 Terminals
G00193376Courtesy of GENERAL MOTORS CORP.

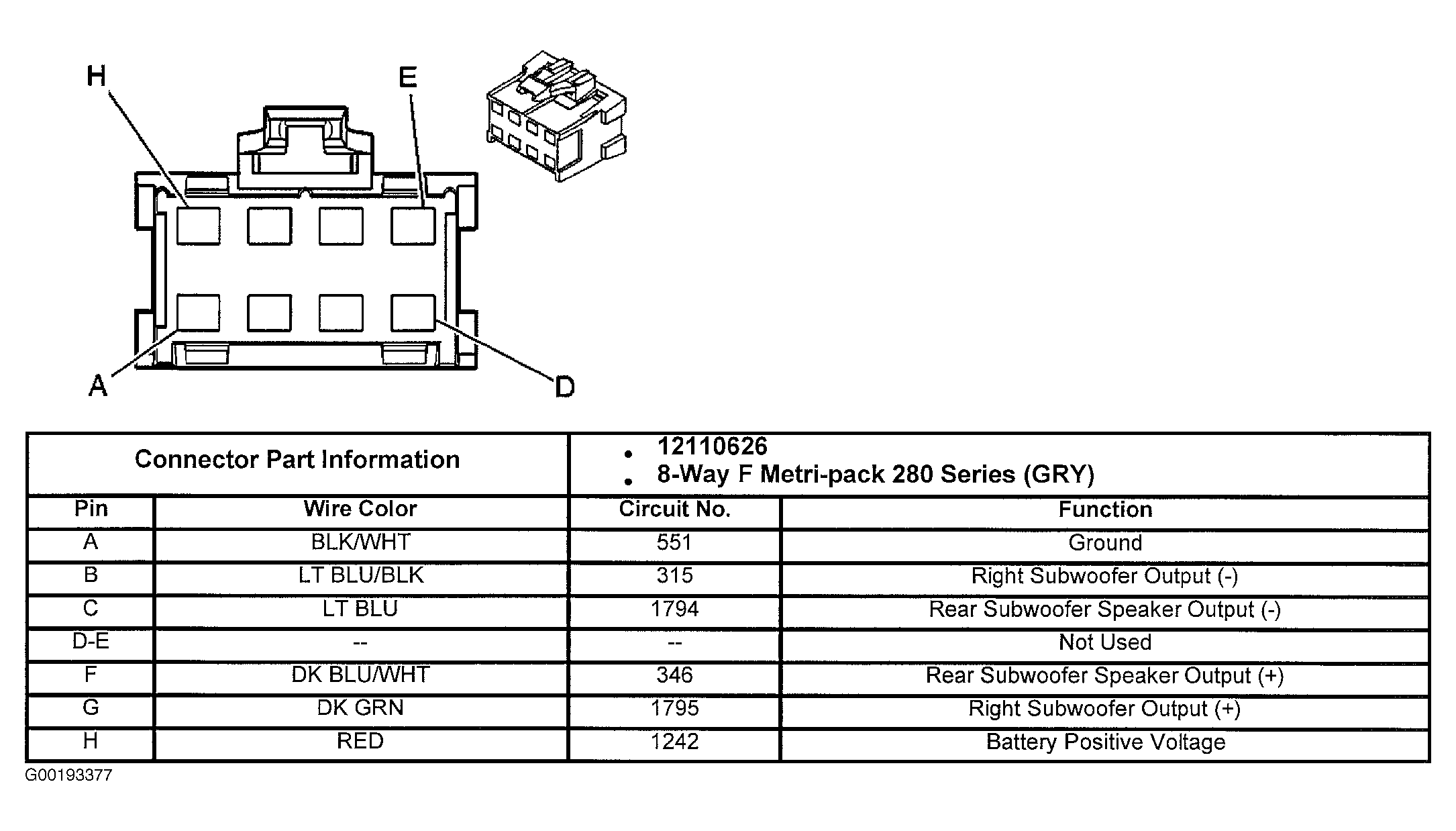

Fig 34: Identifying Radio Amplifier Harness Connector C2 Terminals
G00193377Courtesy of GENERAL MOTORS CORP.

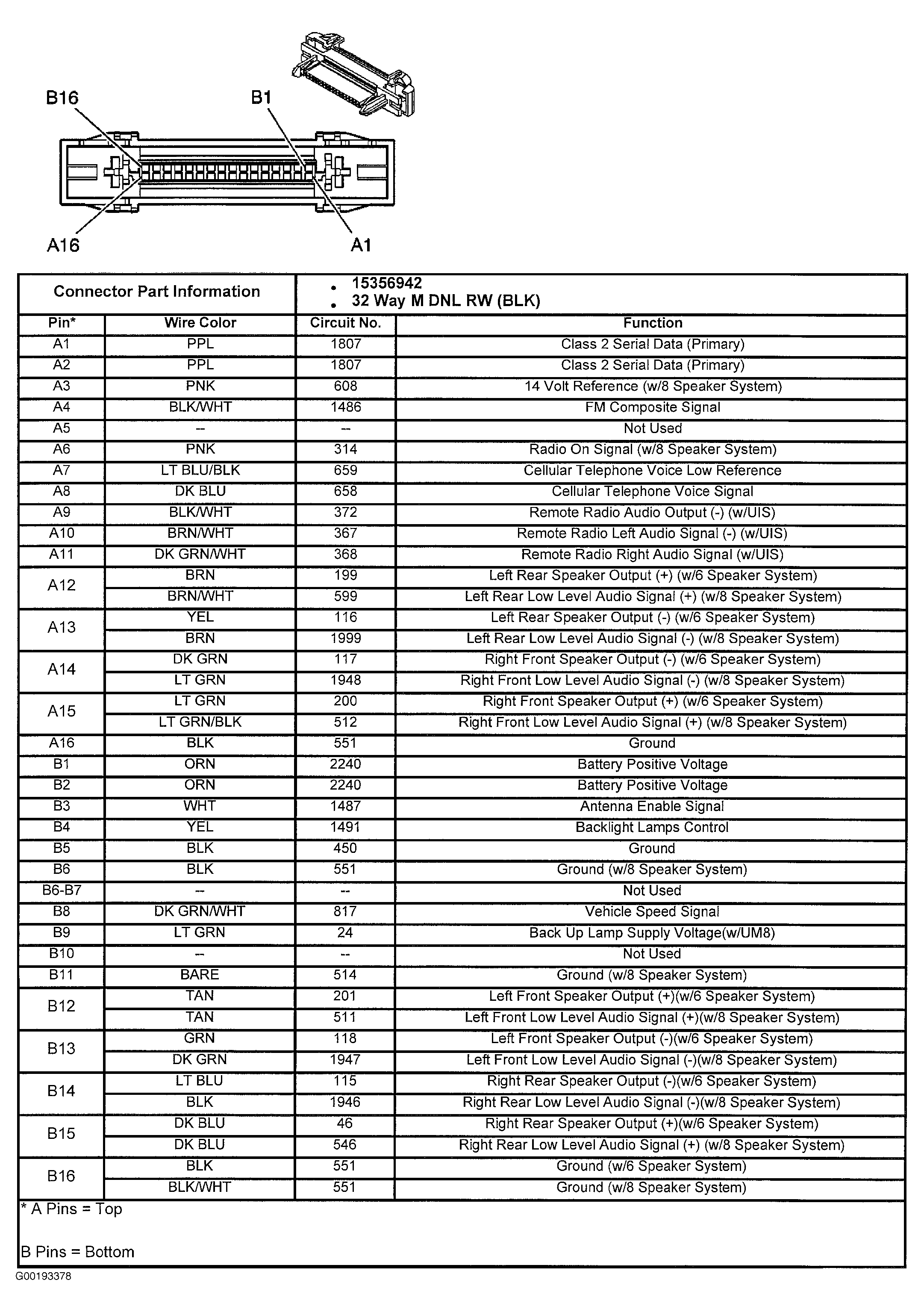

Fig 35: Identifying Radio Harness Connector Terminals
G00193378Courtesy of GENERAL MOTORS CORP.

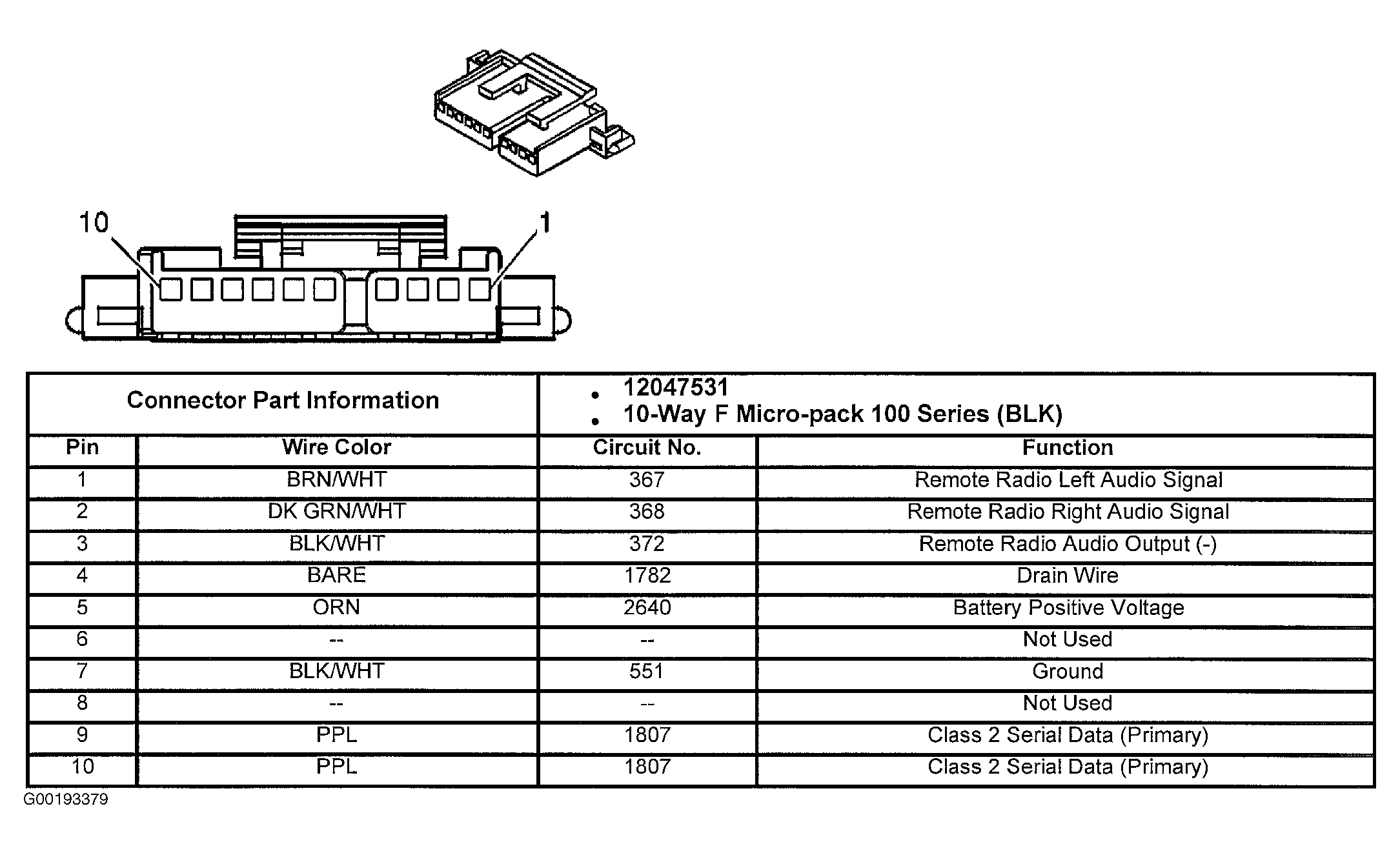

Fig 36: Identifying Remote CD Changer Terminals
G00193379Courtesy of GENERAL MOTORS CORP.

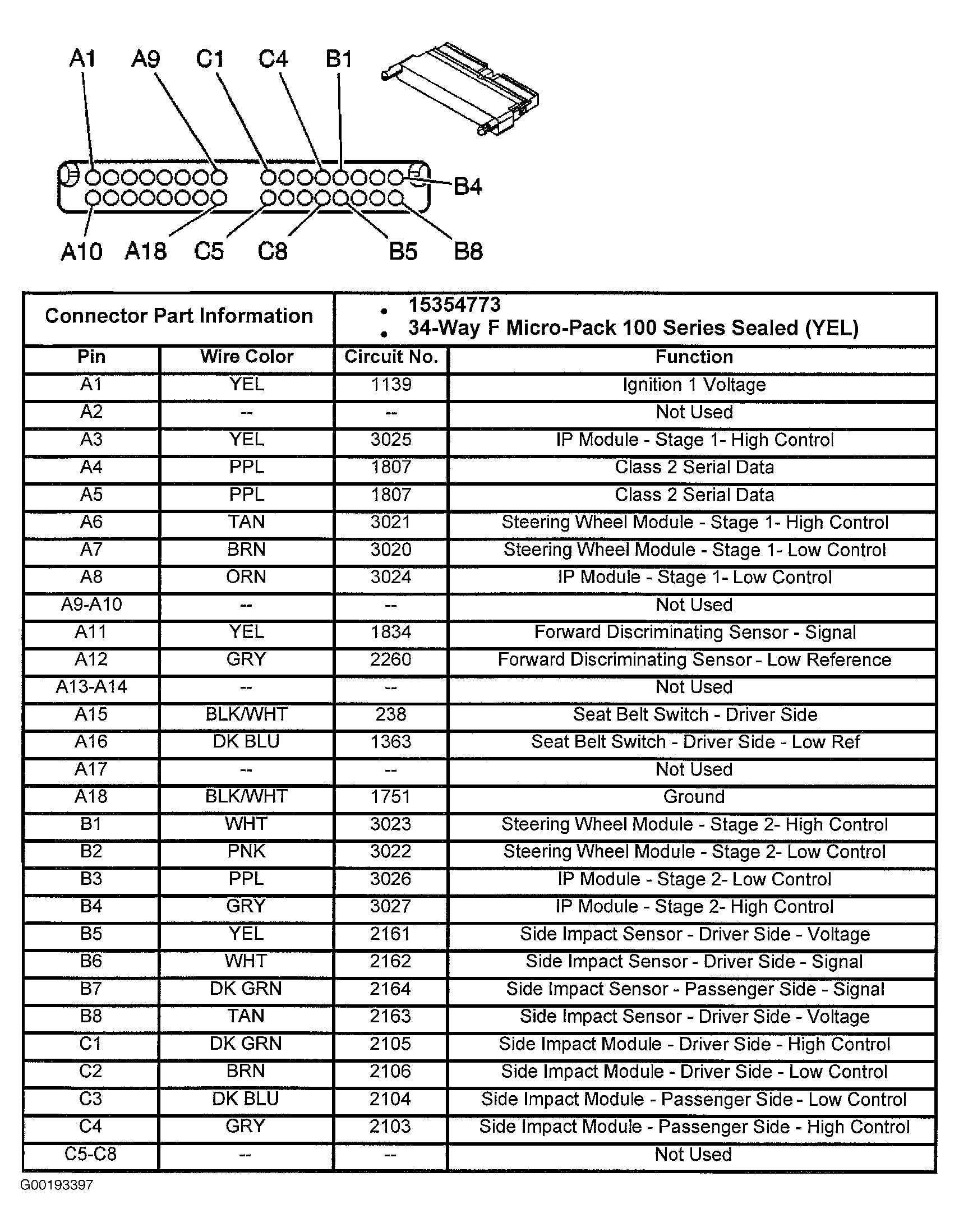

Fig 37: Identifying Sensing And Diagnostic Module Harness Connector Terminals
G00193397Courtesy of GENERAL MOTORS CORP.

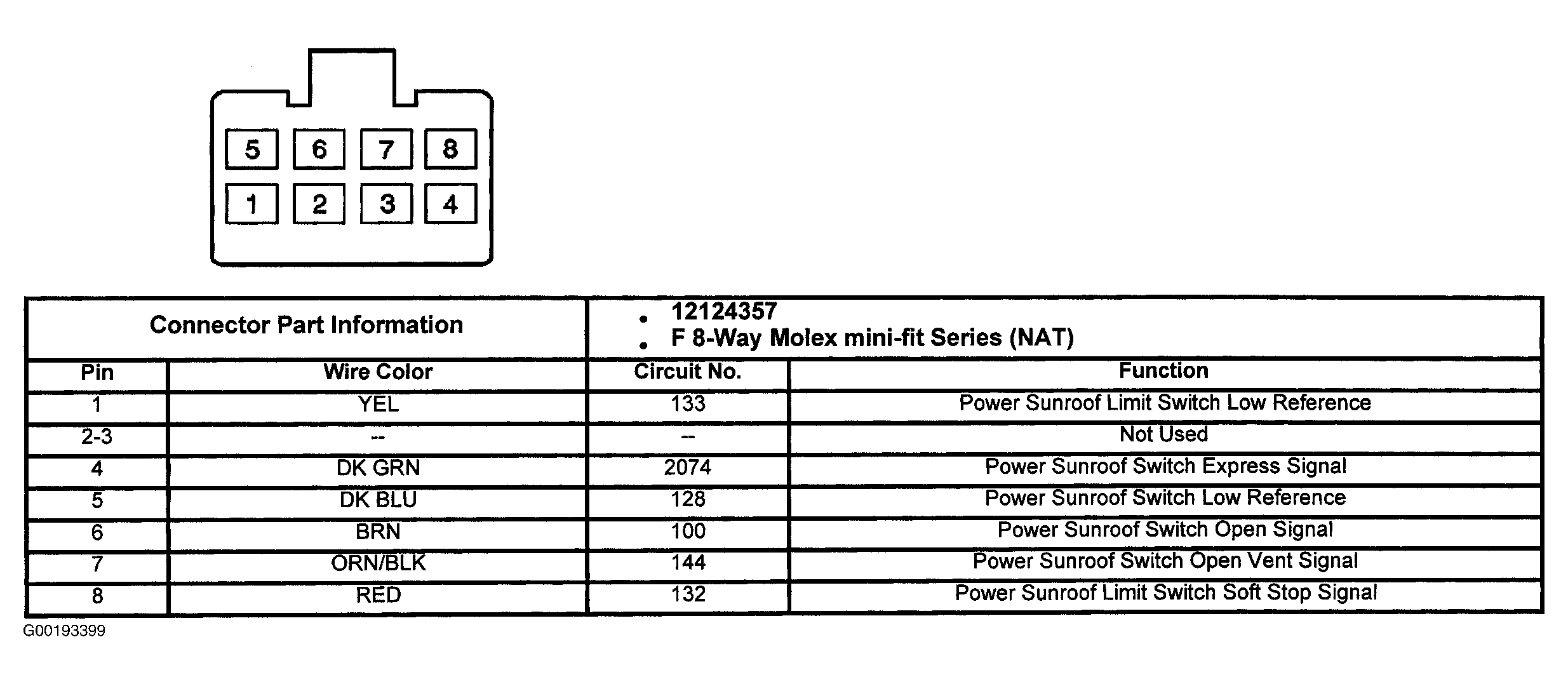

Fig 38: Identifying Sun Roof Express Module Harness Connector C1
G00193399Courtesy of GENERAL MOTORS CORP.

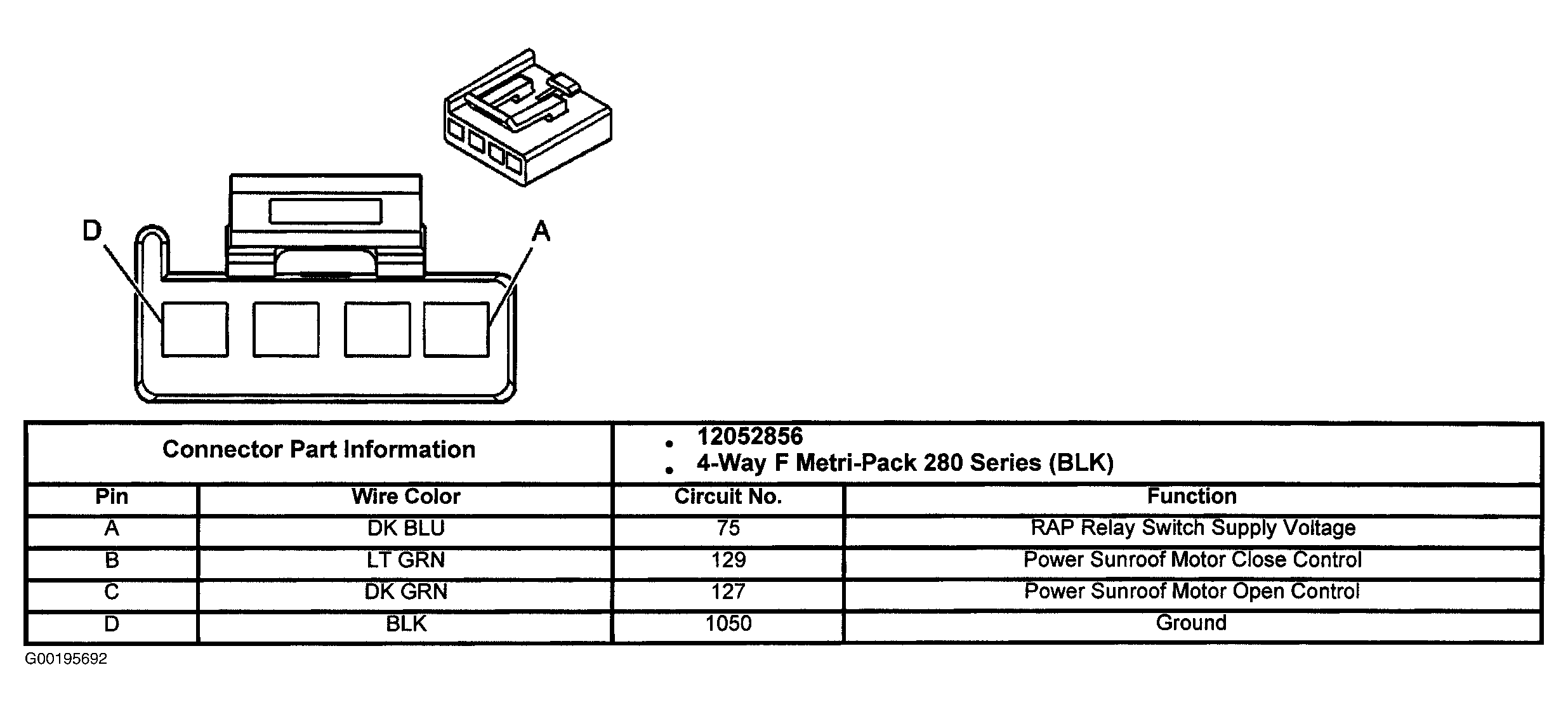

Fig 39: Identifying Sunroof Express Module Harness Connector C2
G00195692Courtesy of GENERAL MOTORS CORP.

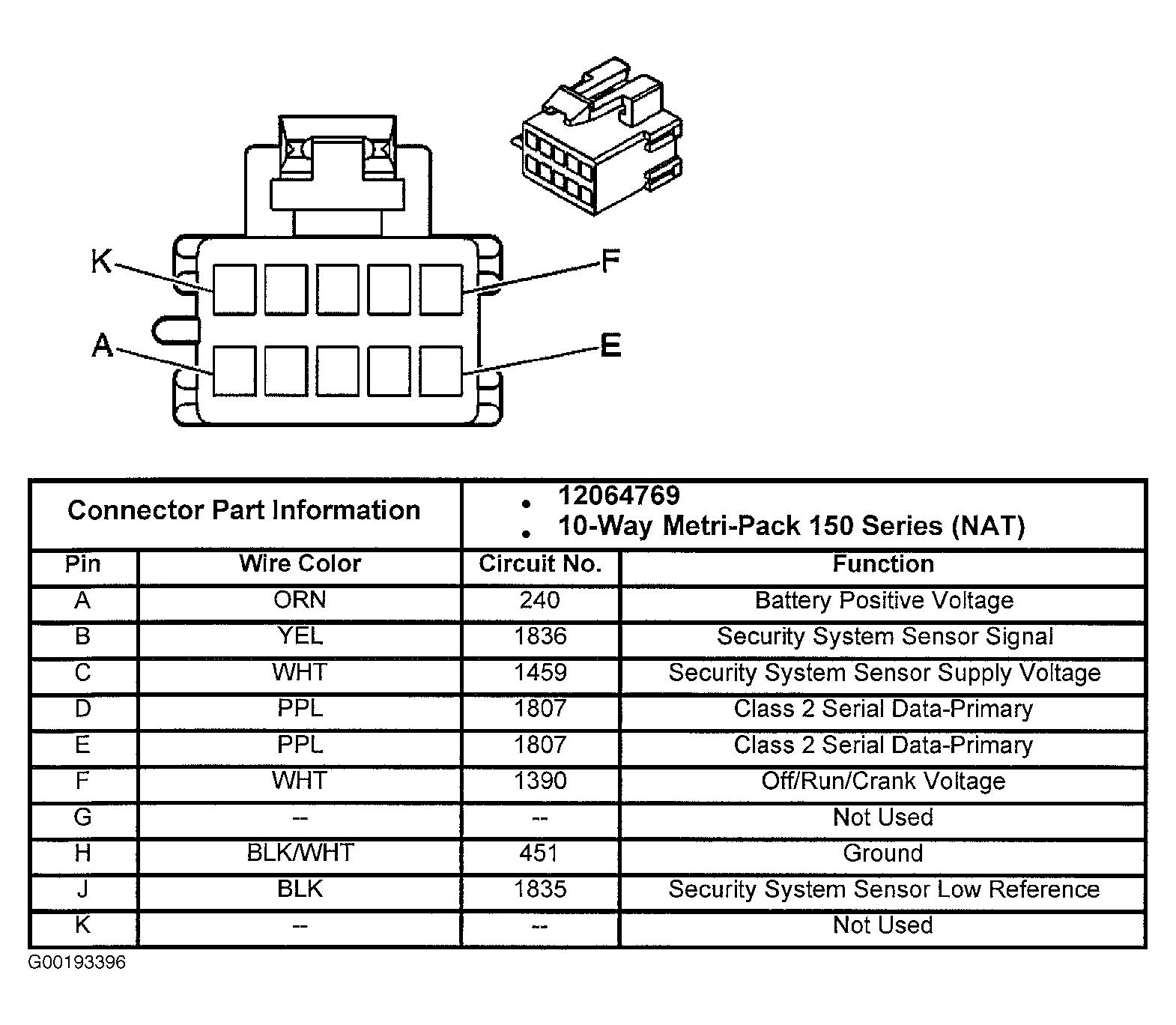

Fig 40: Identifying Theft Deterrent Control Module Harness Connector Terminals
G00193396Courtesy of GENERAL MOTORS CORP.

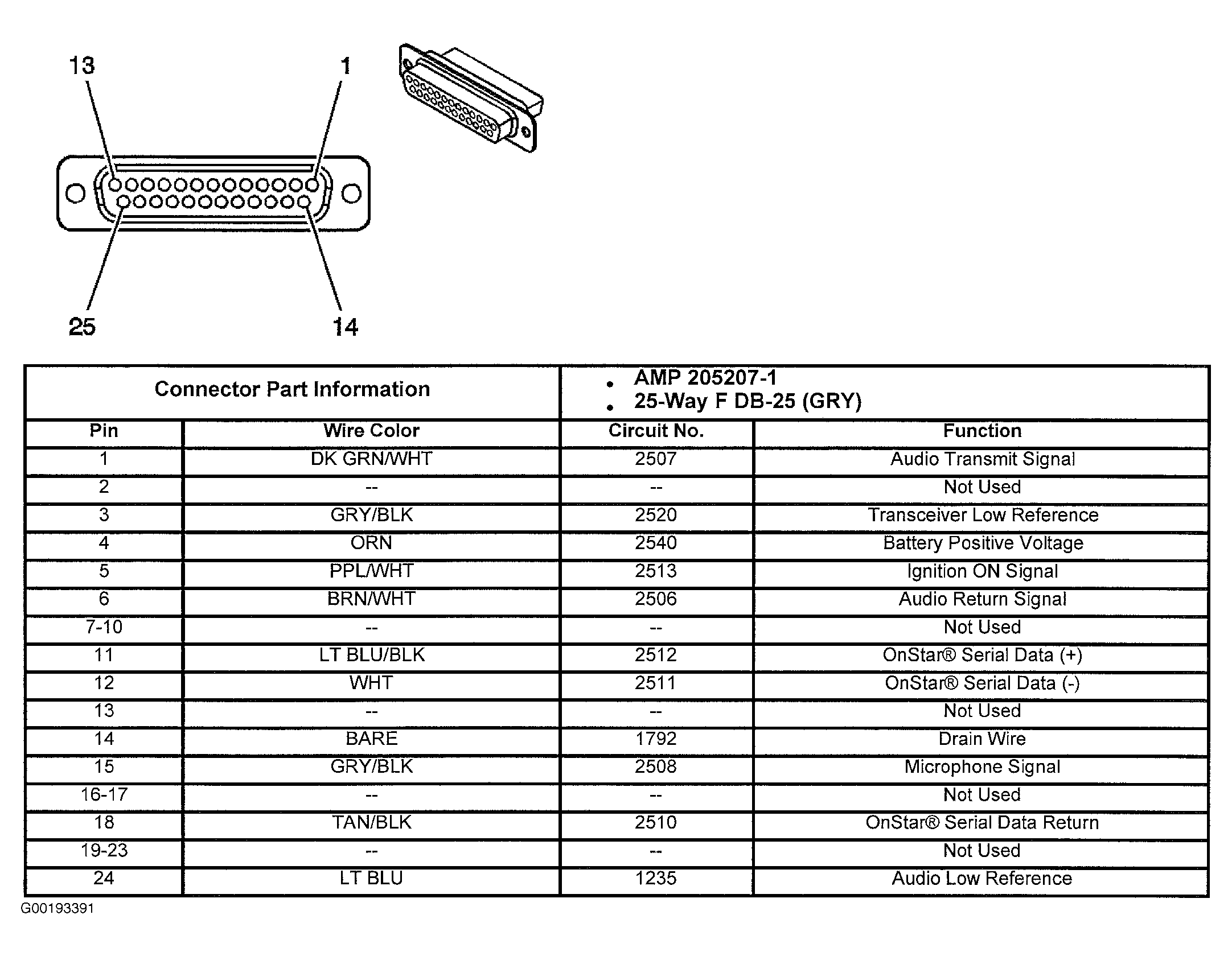

Fig 41: Identifying Vehicle Communication Unit Connector Terminals
G00193391Courtesy of GENERAL MOTORS CORP.

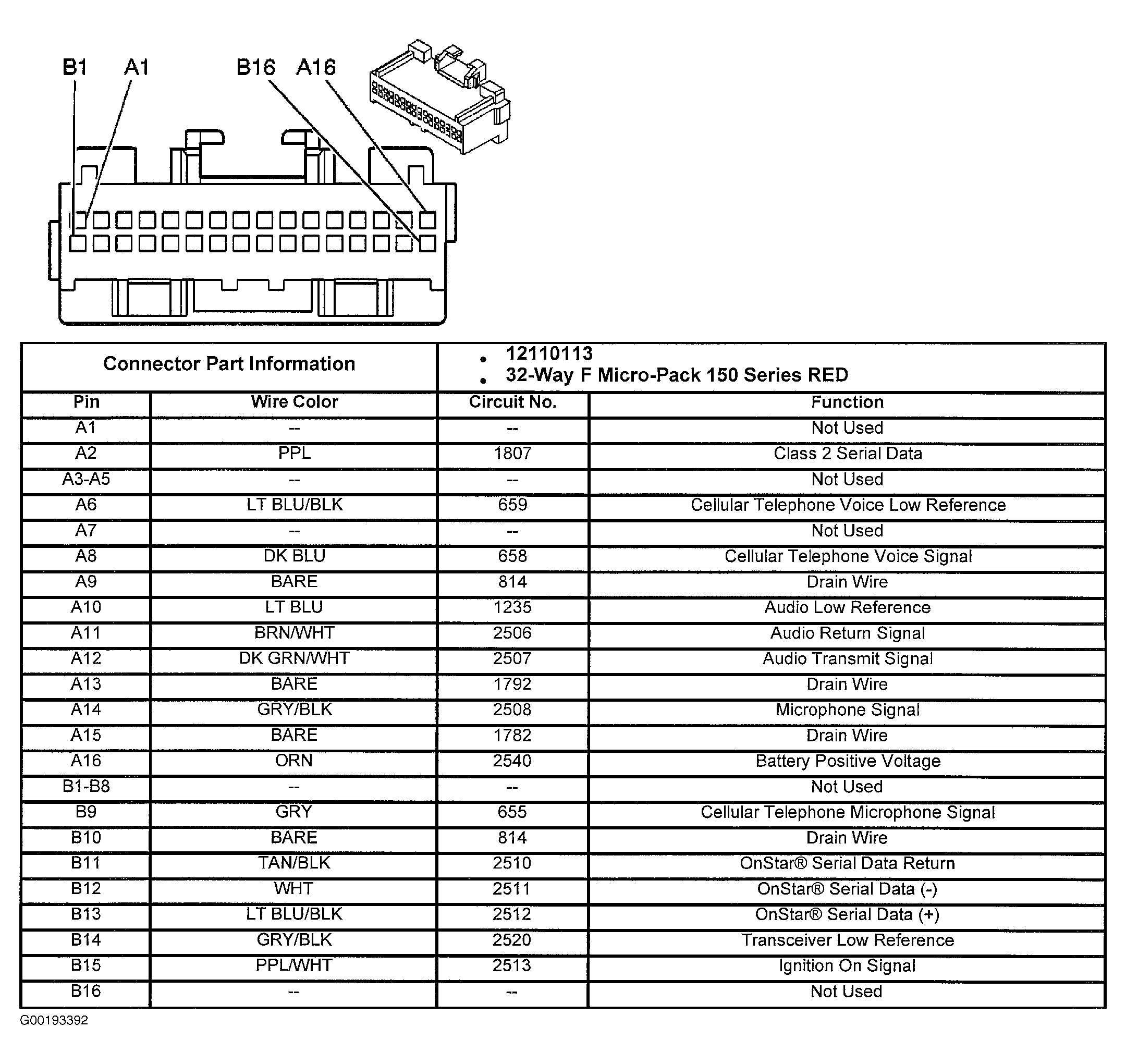

Fig 42: Identifying Vehicle Interface Unit Connector C1 Terminals
G00193392Courtesy of GENERAL MOTORS CORP.

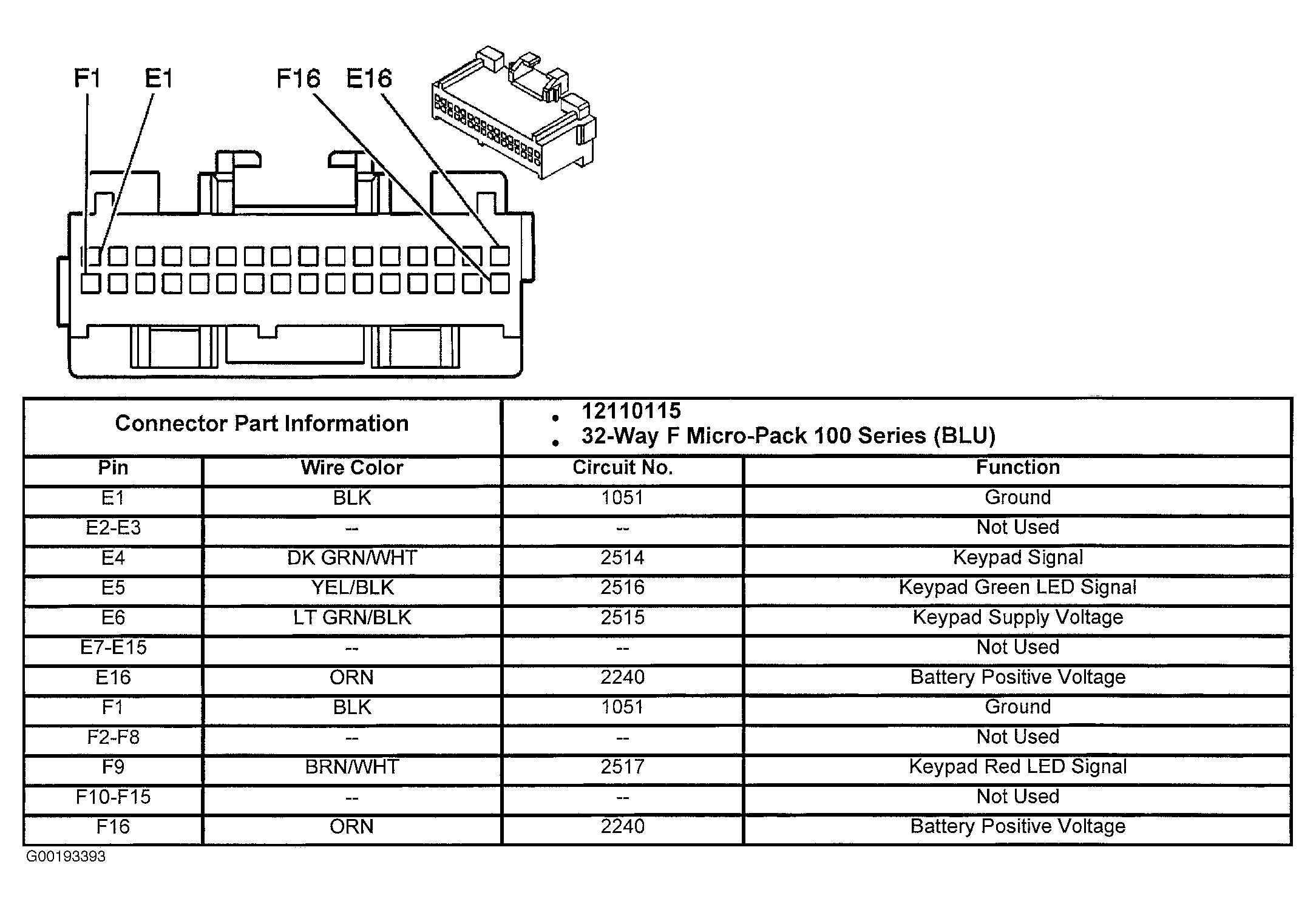

Fig 43: Identifying Vehicle Interface Unit Connector C2 Terminals
G00193393Courtesy of GENERAL MOTORS CORP.

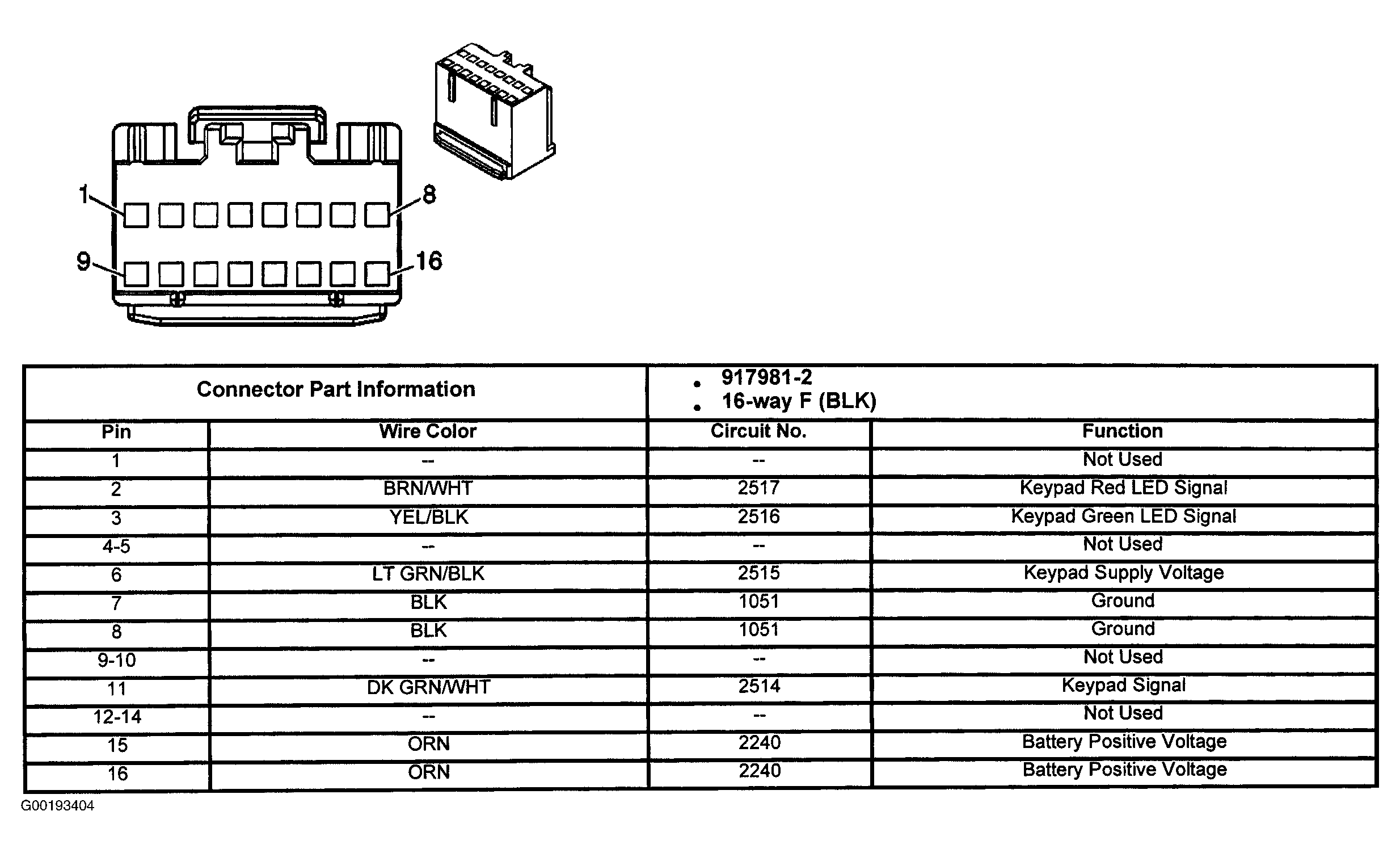

Fig 44: Identifying Vehicle Communciation Interface Module Harness Connector C1
G00193404Courtesy of GENERAL MOTORS CORP.

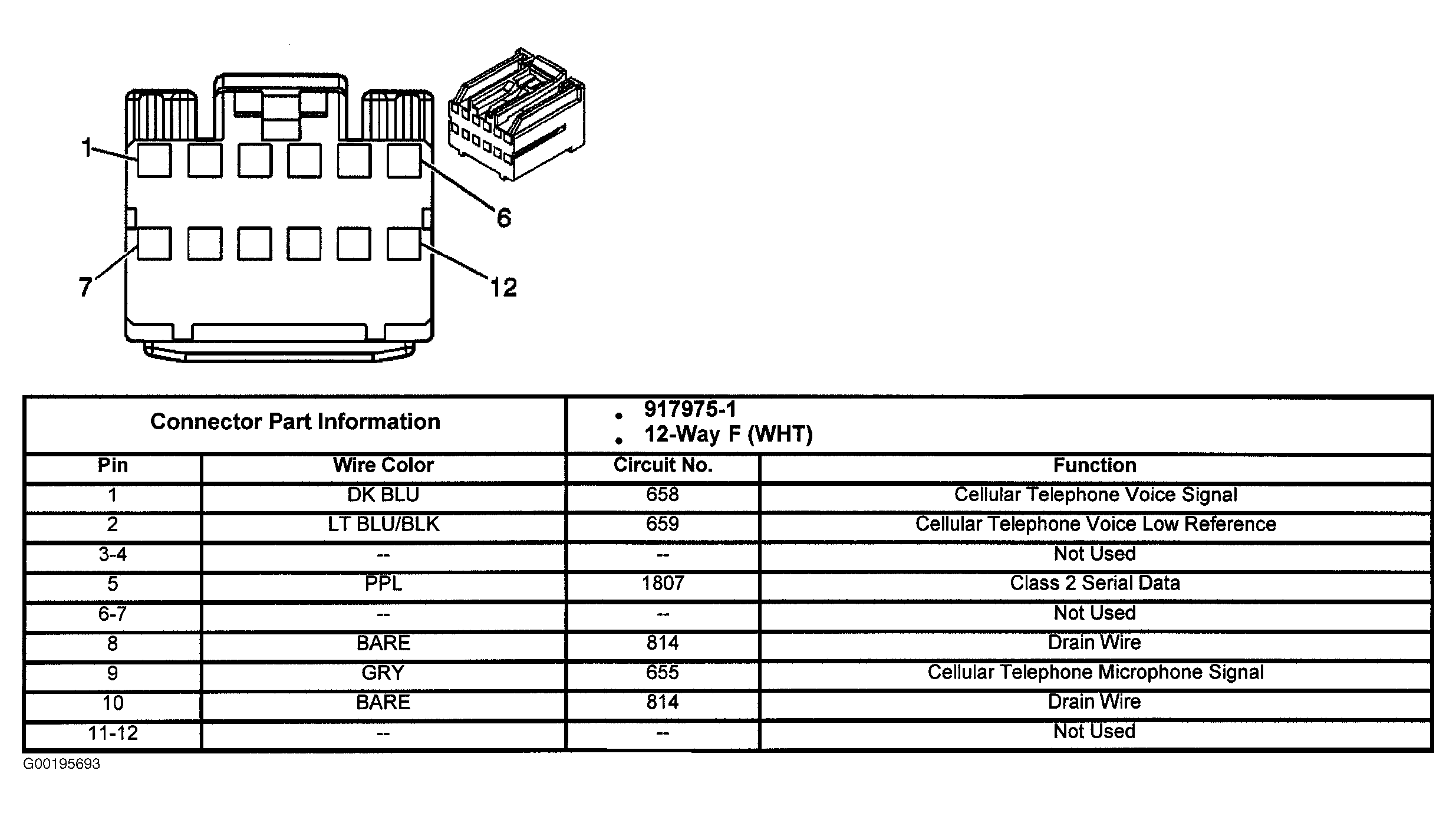

Fig 45: Identifying Vehicle Communication Interface Module Harness Connector C2
G00195693Courtesy of GENERAL MOTORS CORP.

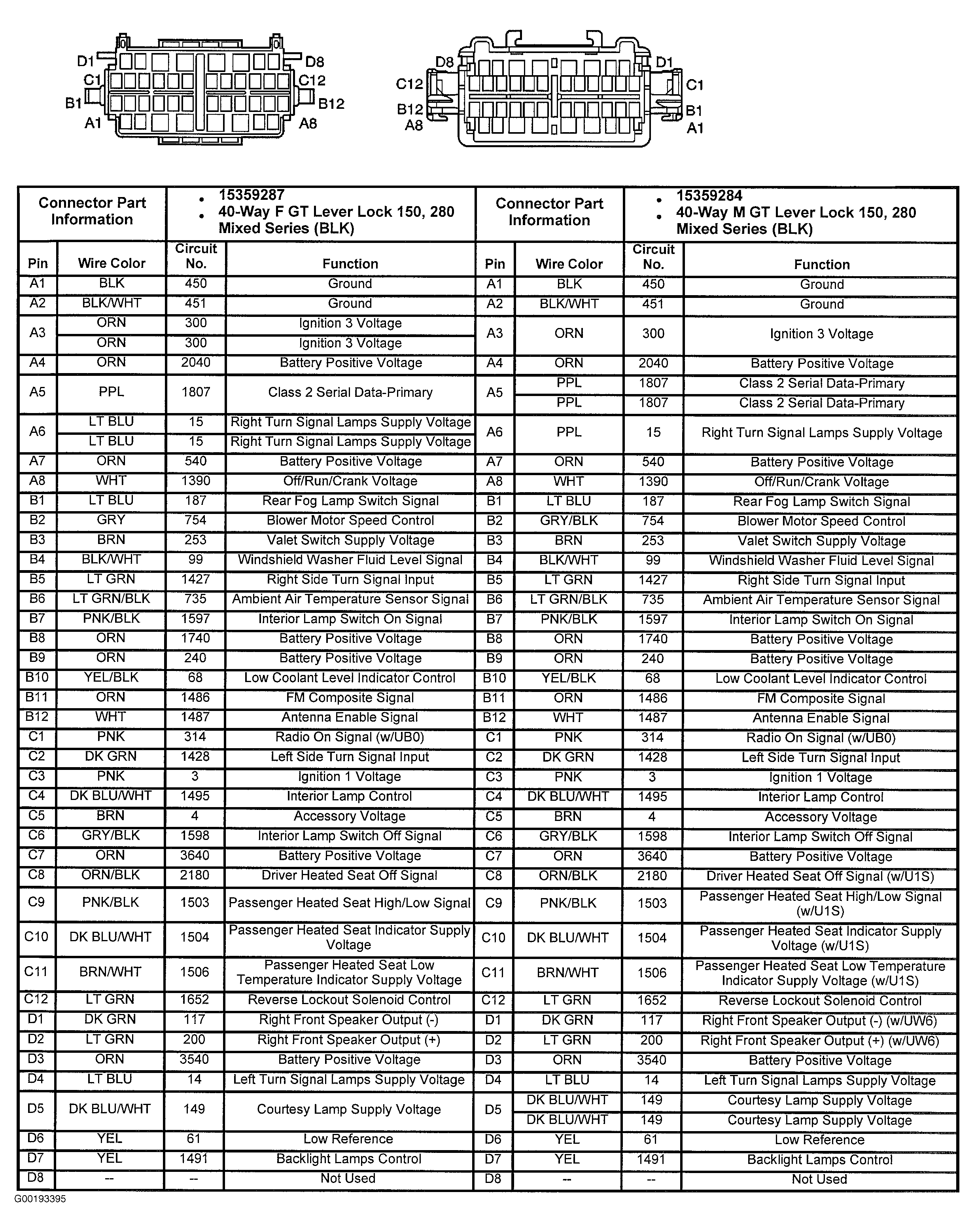

Fig 46: Identifying Inline Harness Connector C201 Terminals
G00193395Courtesy of GENERAL MOTORS CORP.
