Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the data link connector to the instrument panel.
NOTE: Refer to FASTENER NOTICE .
Install the data link connector bolt.
Tighten

Tighten the bolt to 6 N.m (53 lb in).

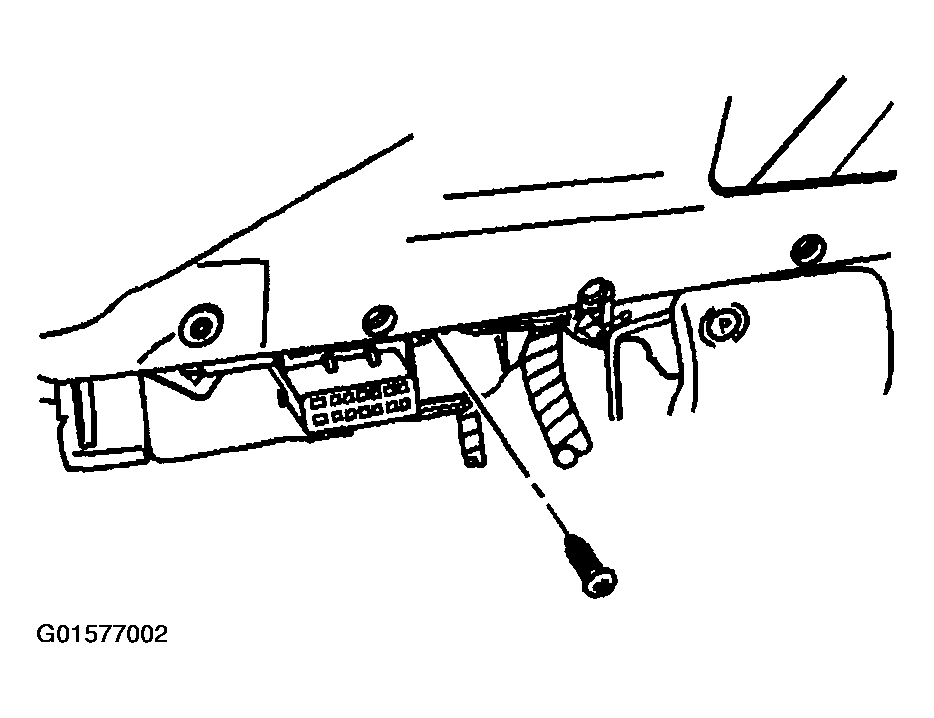

Fig 1: Installing Data Link Connector Bolt
Courtesy of GENERAL MOTORS CORP.
