Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt from the data link connector.
  2. Remove the data link connector from the instrument panel.

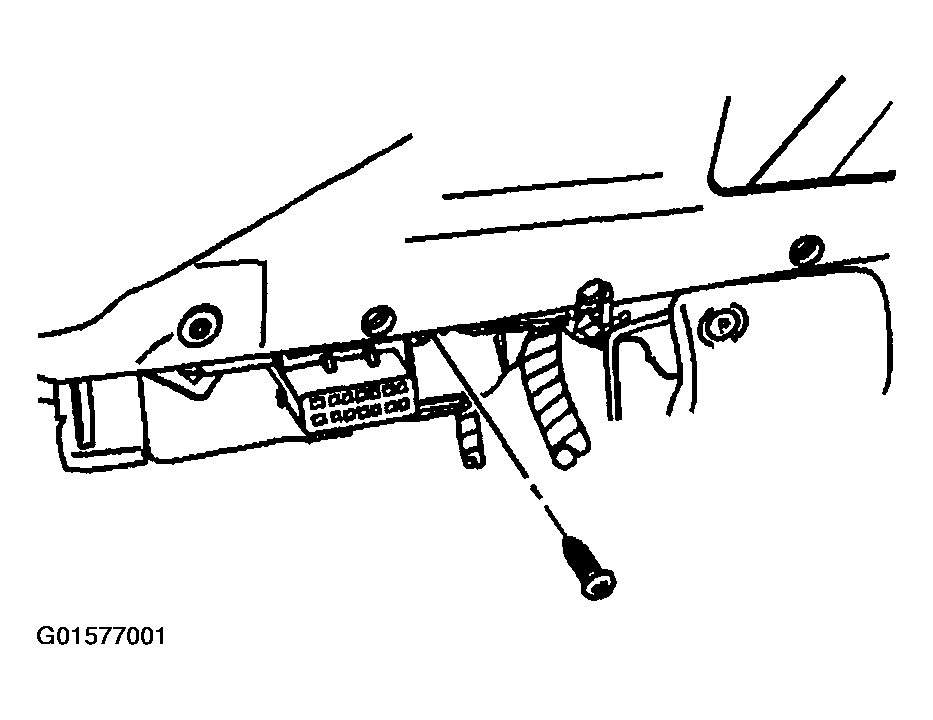

    Fig 1: Removing Data Link Connector Bolt
    G01577001Courtesy of GENERAL MOTORS CORP.
