Body Control System Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

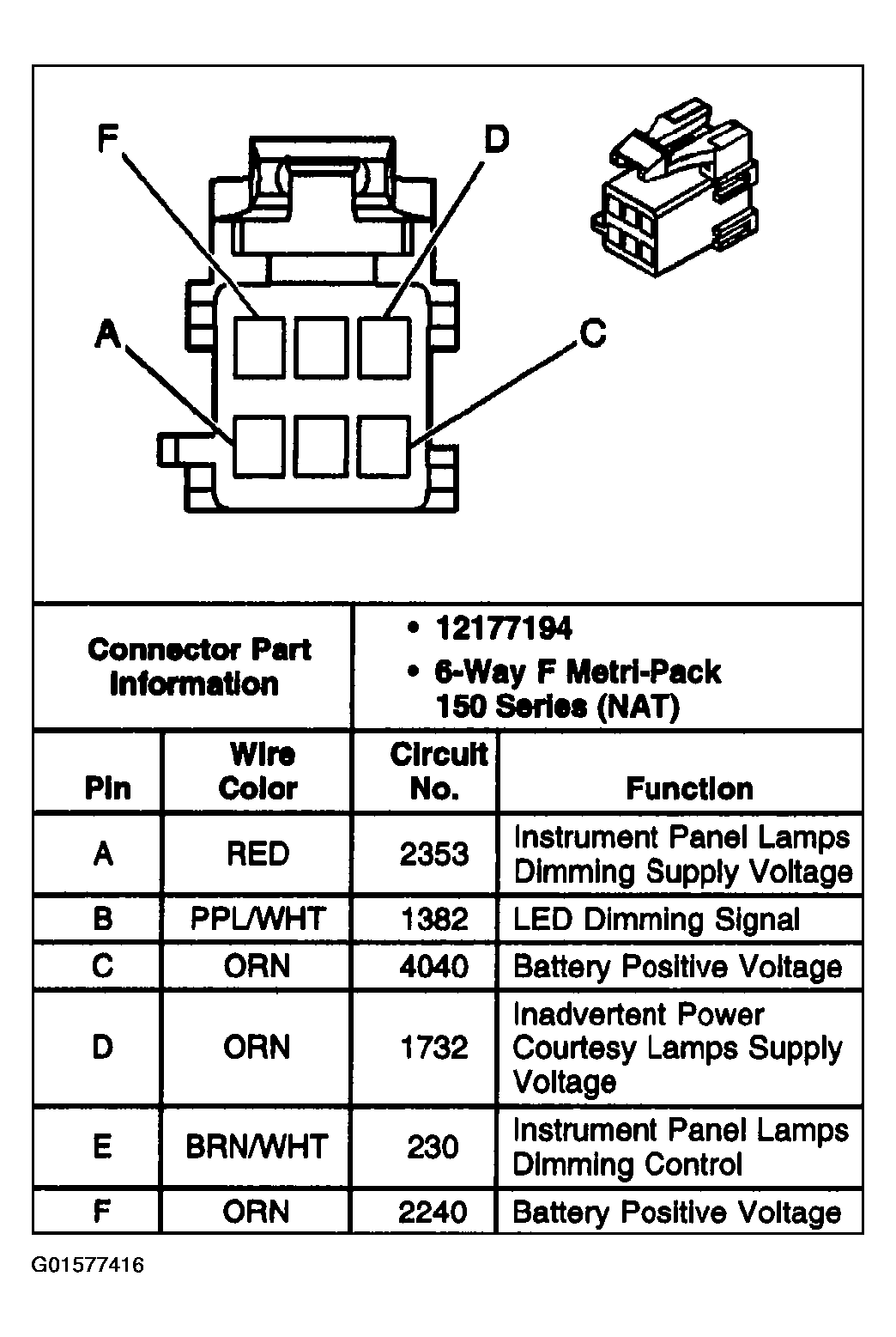

Fig 1: Body Control Module (BCM) - C1

G01577416

Courtesy of GENERAL MOTORS CORP.

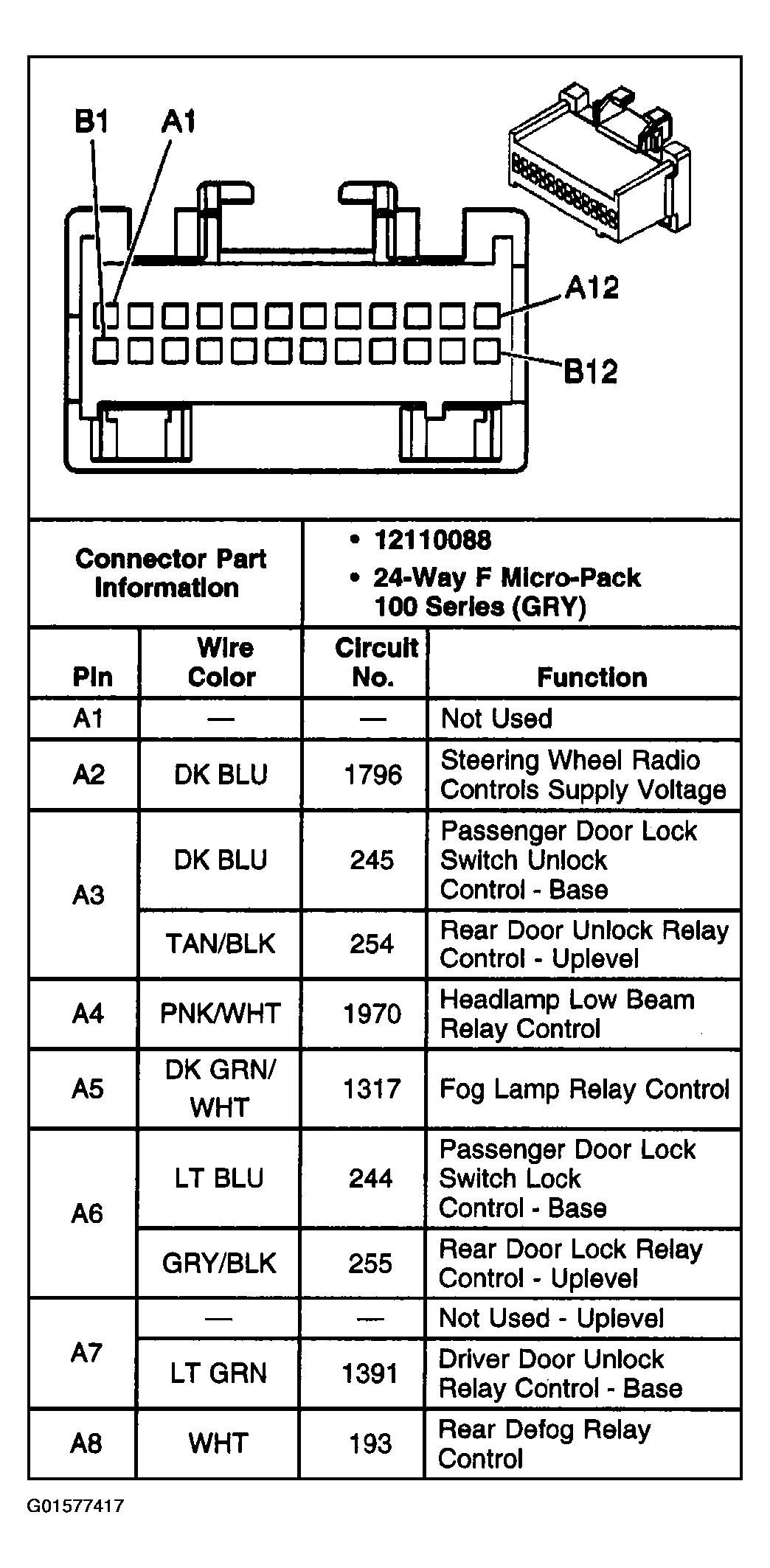

Fig 2: Body Control Module (BCM) - C2 (1 Of 2)

G01577417

Courtesy of GENERAL MOTORS CORP.

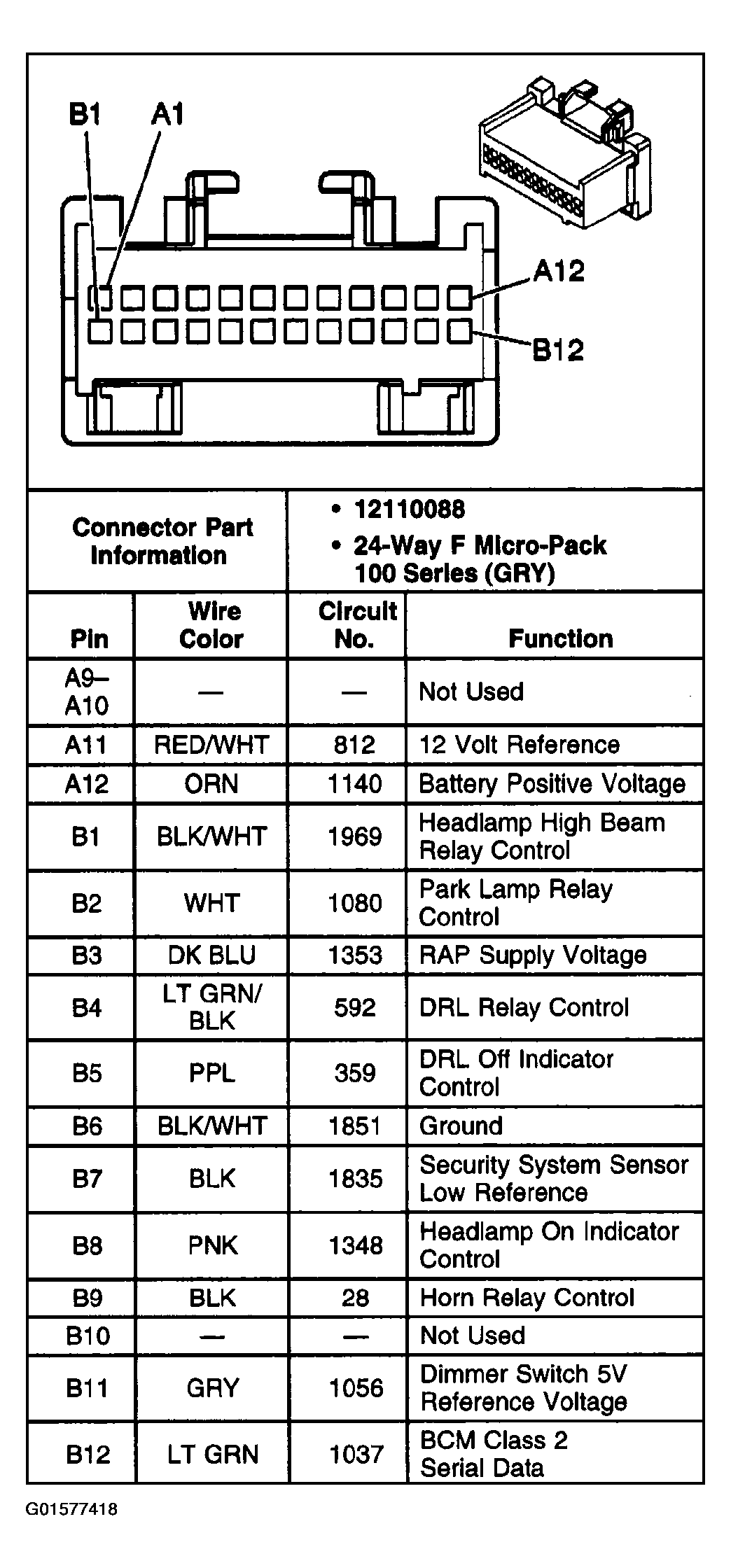

Fig 3: Body Control Module (BCM) - C2 (2 Of 2)

G01577418

Courtesy of GENERAL MOTORS CORP.

Fig 4: Body Control Module (BCM) - C3

G01577419

Courtesy of GENERAL MOTORS CORP.

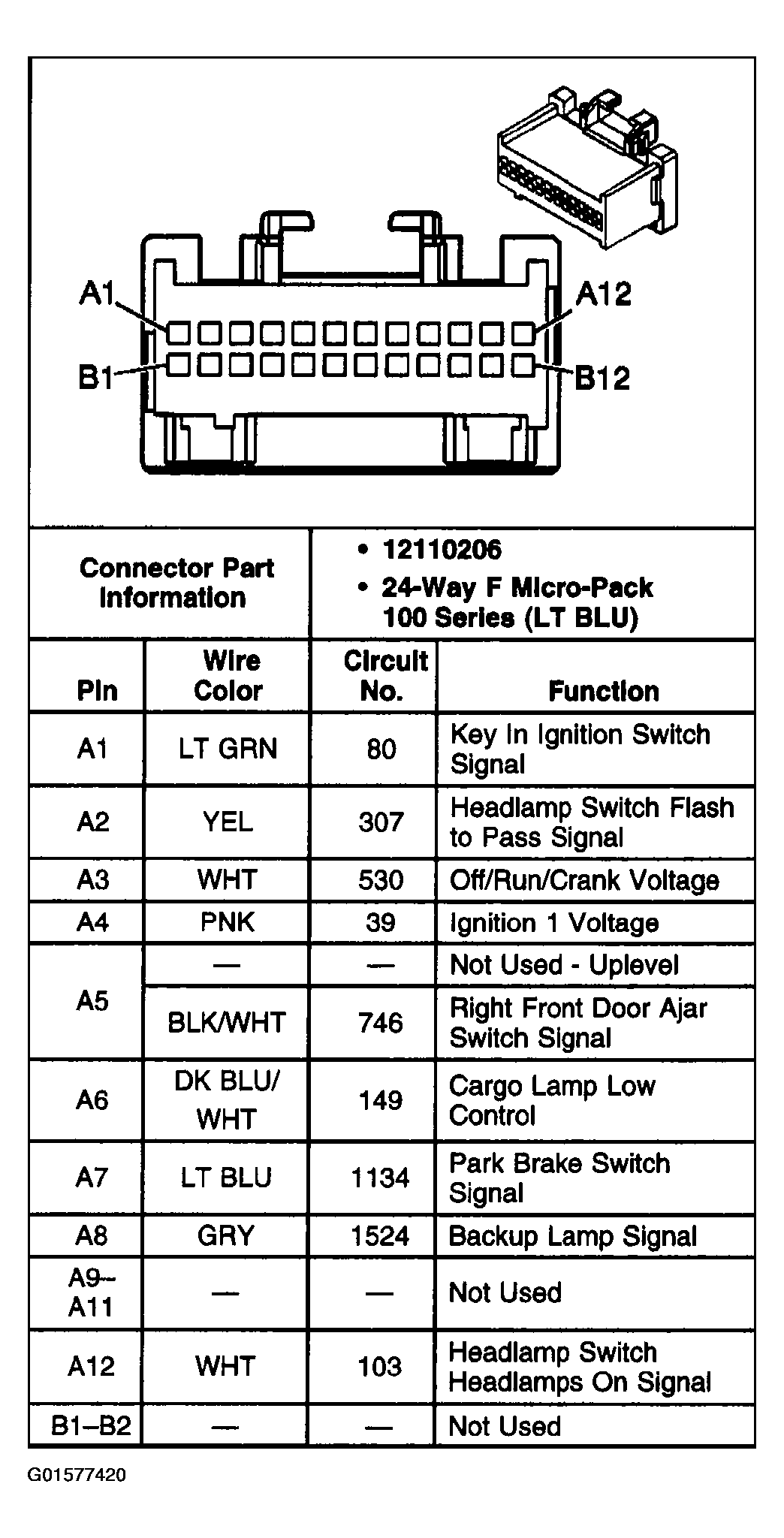

Fig 5: Body Control Module (BCM) - C4 (1 Of 2)

G01577420

Courtesy of GENERAL MOTORS CORP.

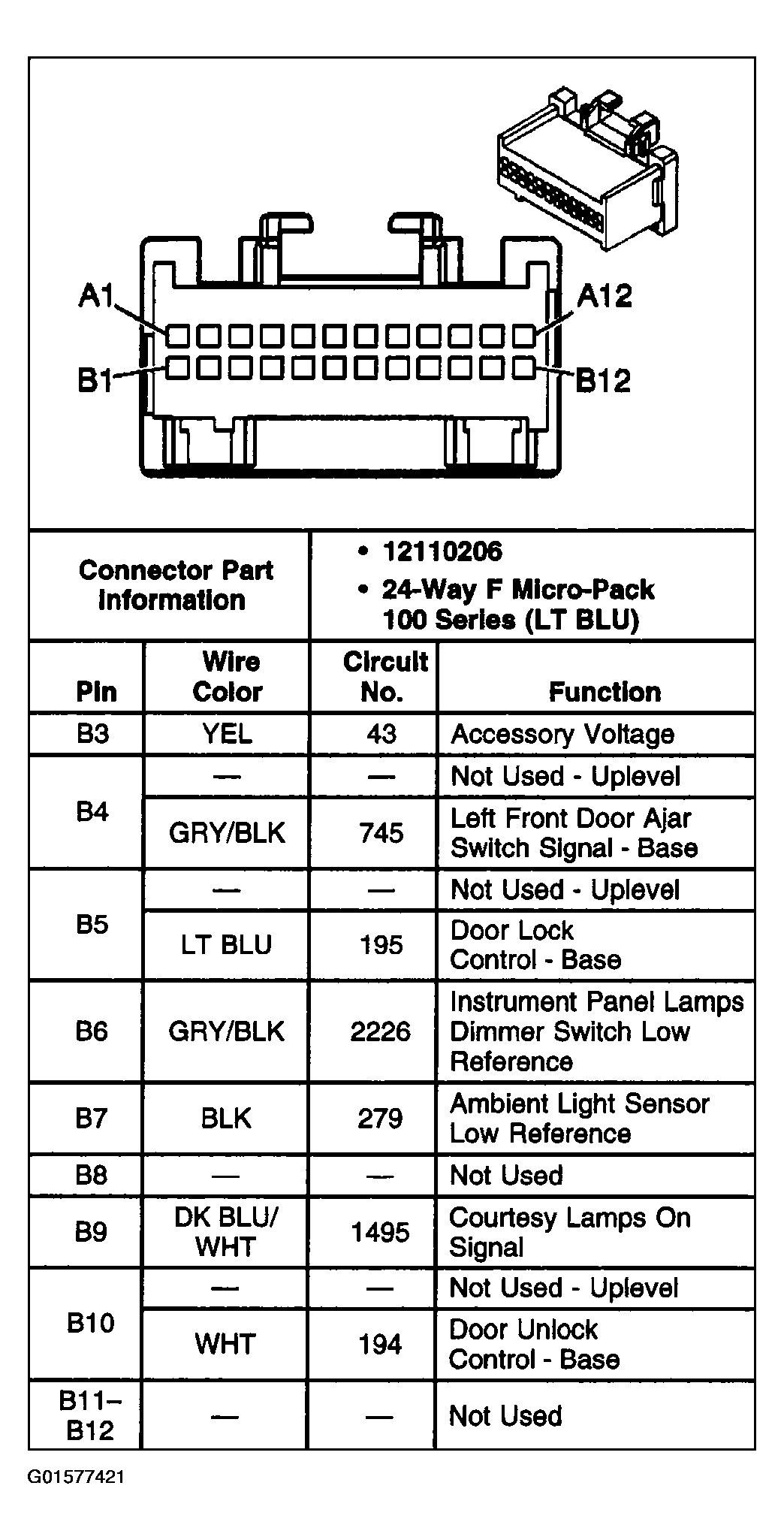

Fig 6: Body Control Module (BCM) - C4 (2 Of 2)

G01577421

Courtesy of GENERAL MOTORS CORP.

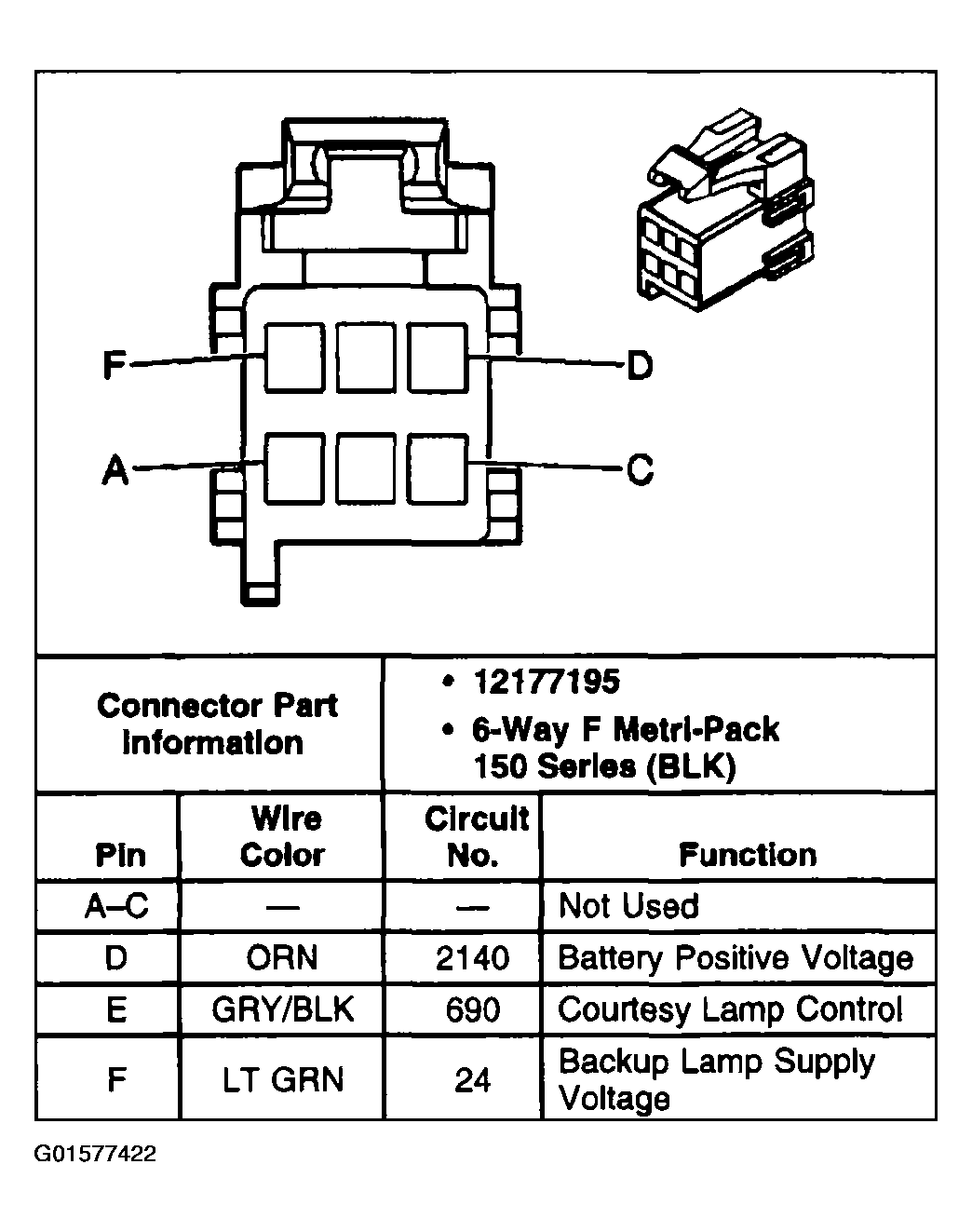

Fig 7: Body Control Module (BCM) - C5

G01577422

Courtesy of GENERAL MOTORS CORP.

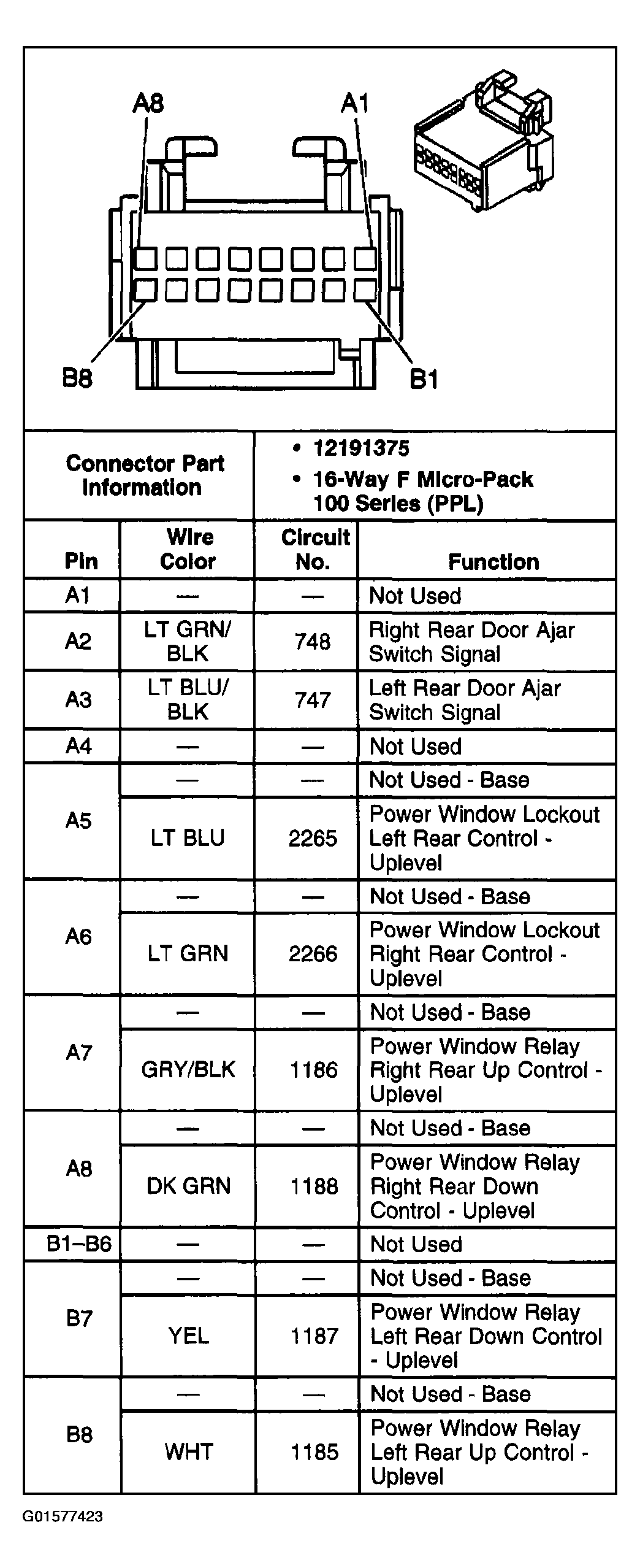

Fig 8: Body Control Module (BCM) - C6

G01577423

Courtesy of GENERAL MOTORS CORP.
