Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION .

Disconnect the negative battery cable(s).
Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

Fig 1: Disconnecting Negative Battery Cable
Courtesy of GENERAL MOTORS CORP.

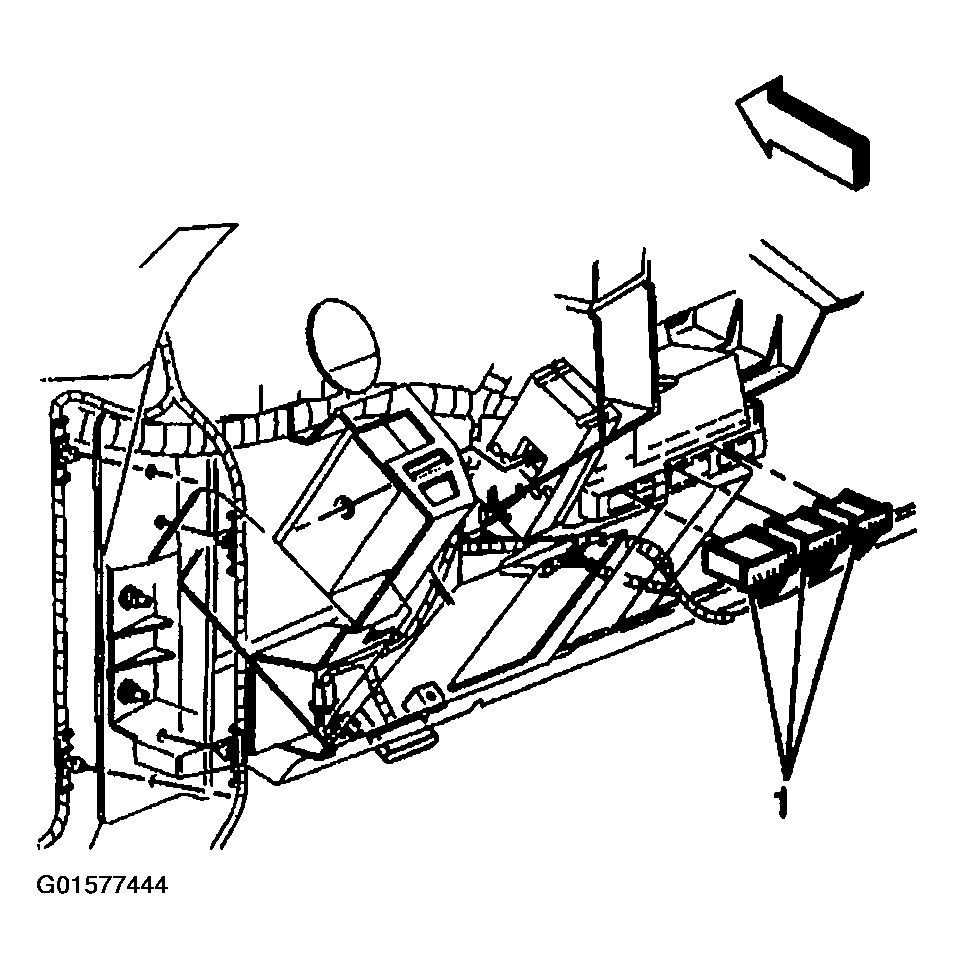

Disconnect the brown connector.
Disconnect all other connectors (1).
Remove the BCM from the sliding bracket.

Fig 2: Disconnecting Connectors
Courtesy of GENERAL MOTORS CORP.
