Connector Identification

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

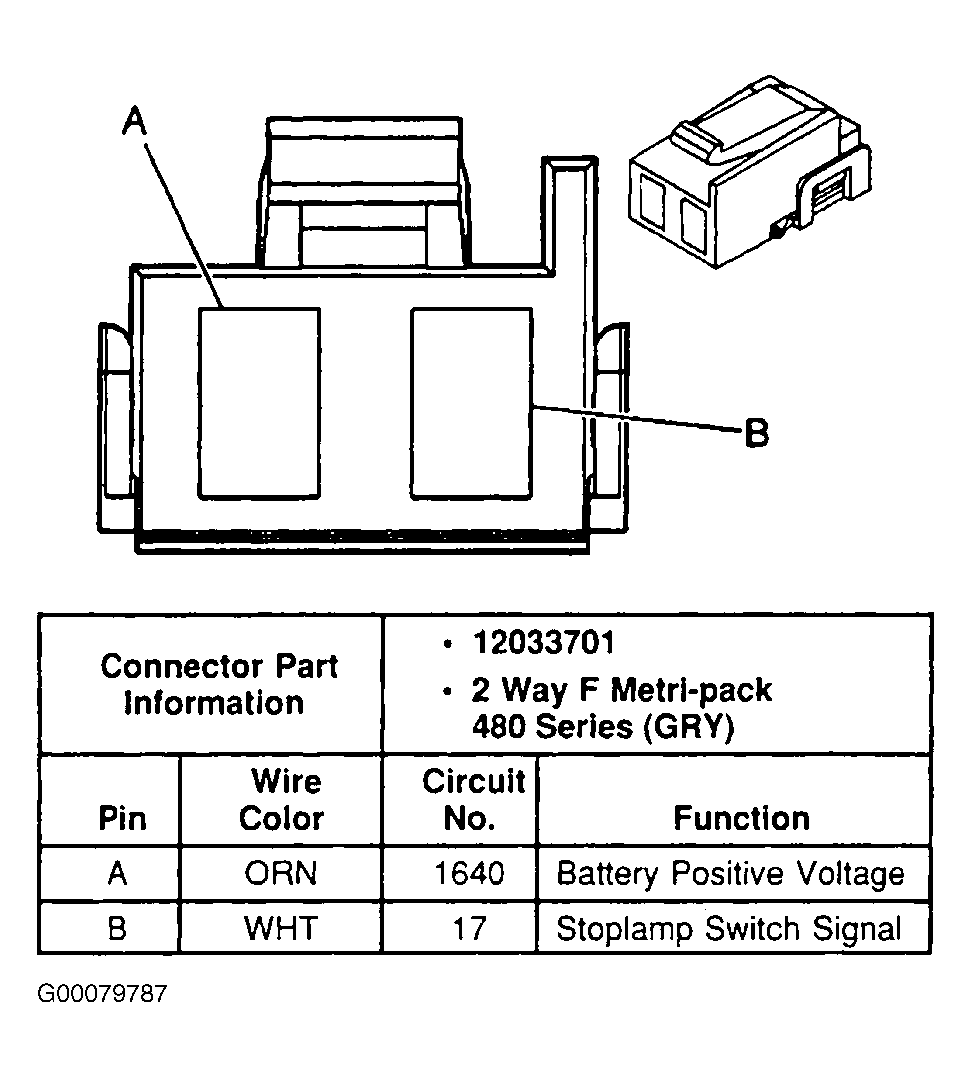

Fig 1: Identifying Stoplamp Switch Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

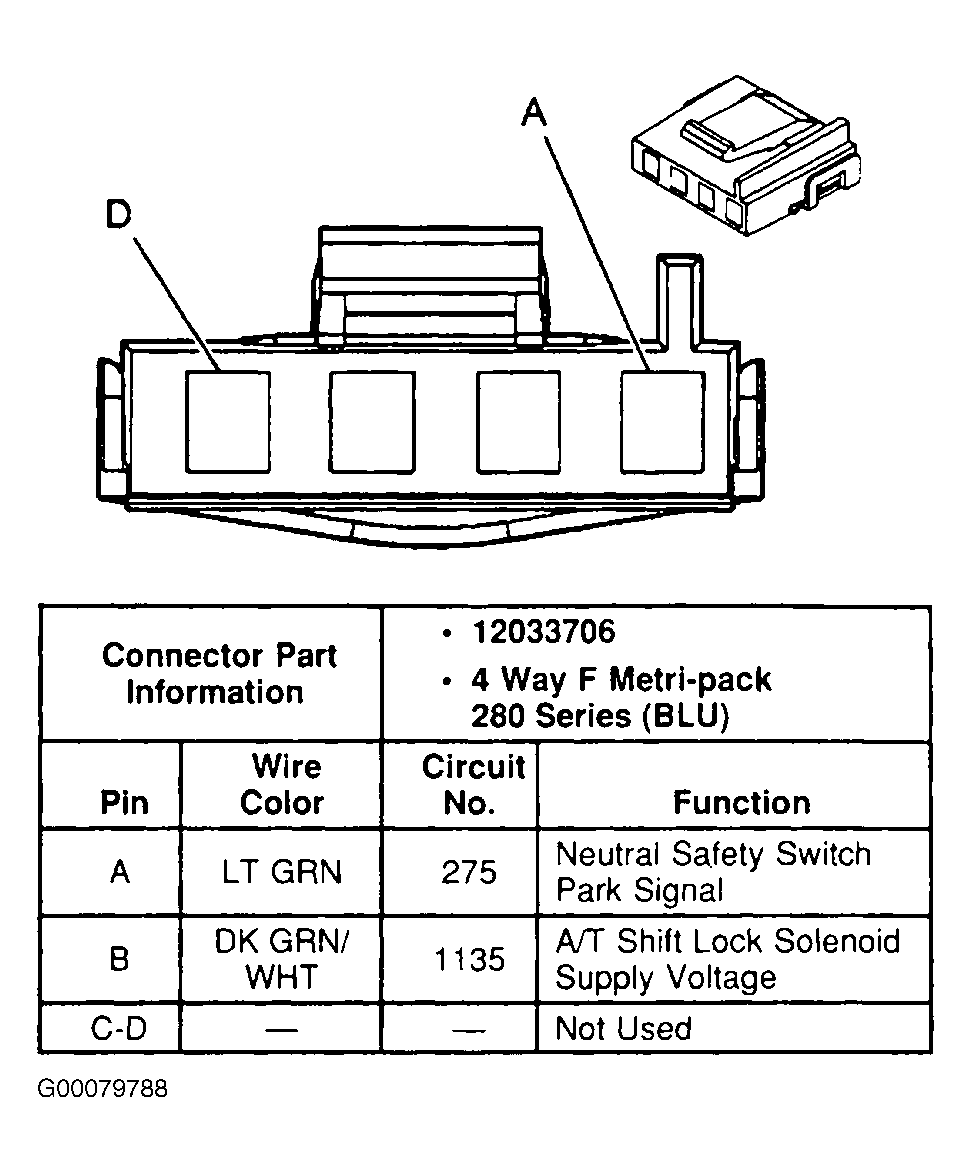

Fig 2: Identifying Stoplamp Switch Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.

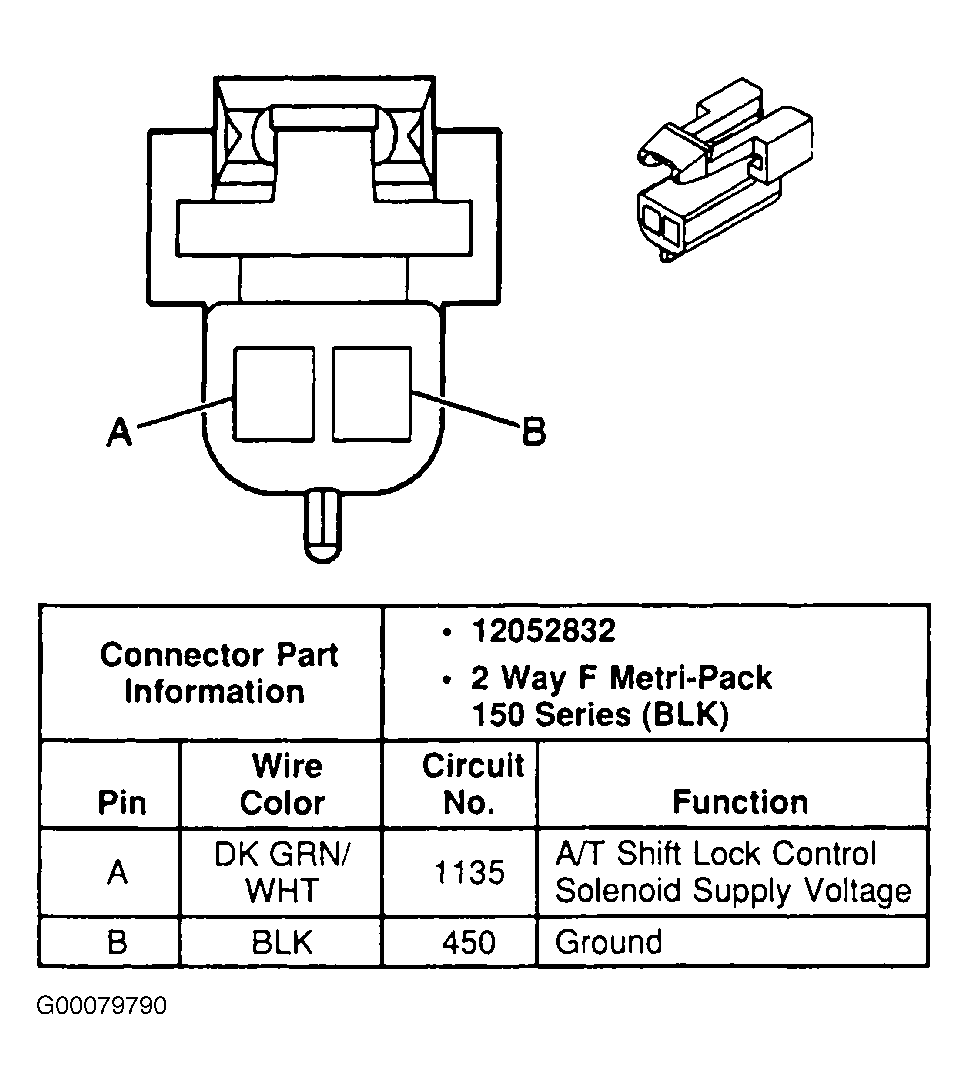

Fig 3: Identifying Shift Lock Solenoid Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

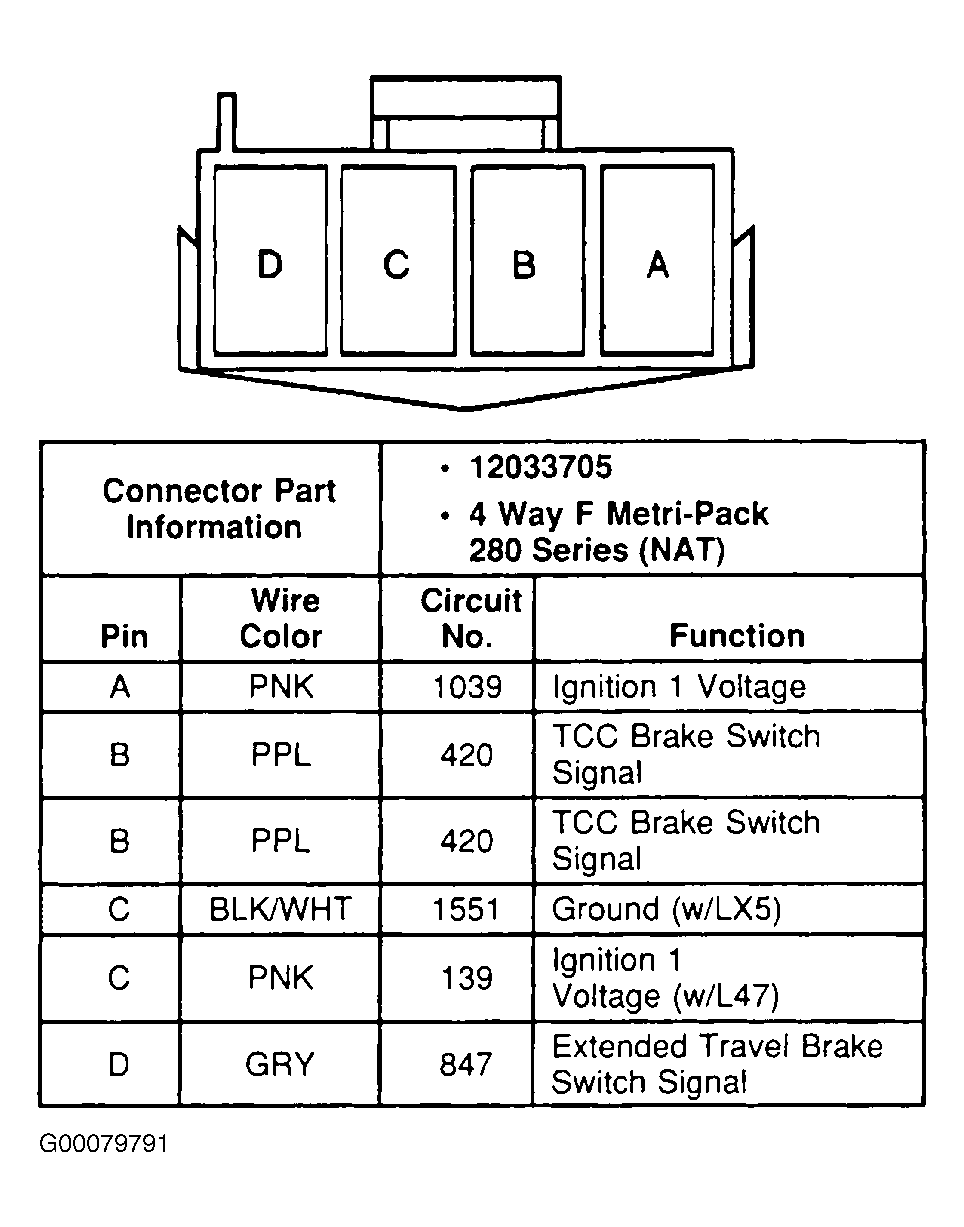

Fig 4: Identifying Shift Lock Solenoid Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.

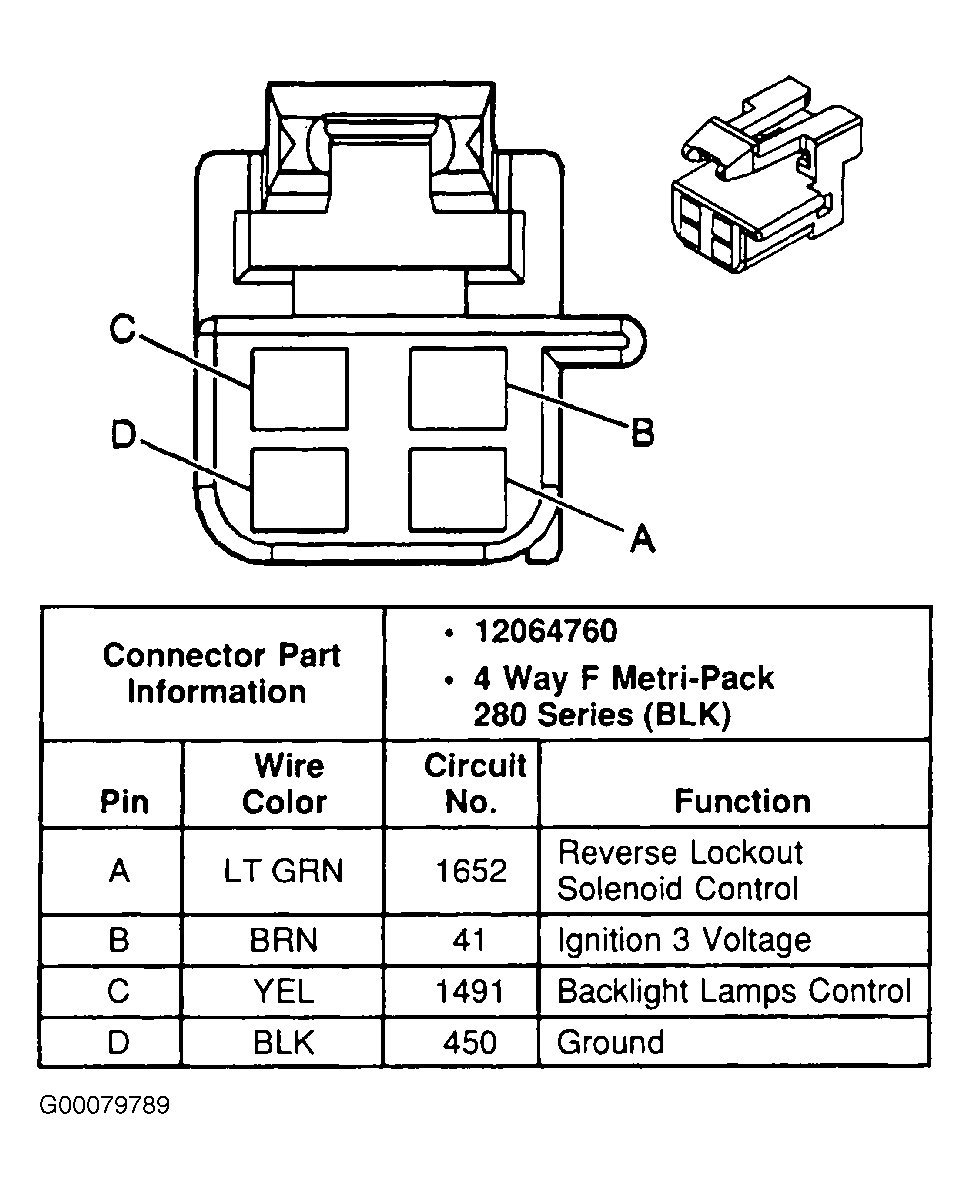

Fig 5: Identifying TCC/Stoplamp Switch Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.
