Body Control Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

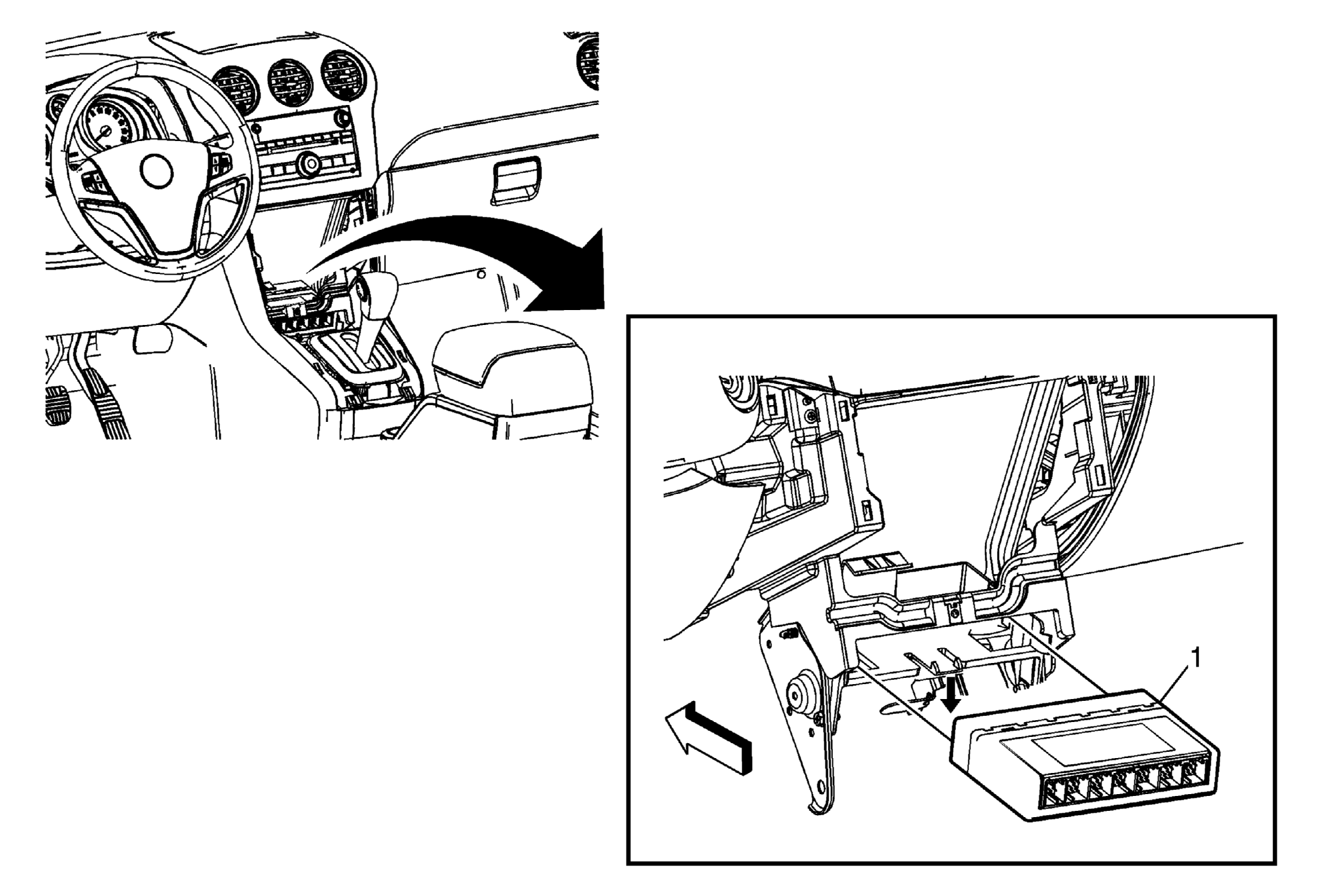

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement Remove the Transmission Control. Refer to Transmission Control Replacement
1	Body Control Module Procedure Disconnect the electrical connectors. Reprogram the module if replaced. Refer to Control Module References . Tip: Push tab to release the body control module from the bracket.

Callout

Component Name

Preliminary Procedure

Remove the accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement
Remove the Transmission Control. Refer to Transmission Control Replacement

Body Control Module

Procedure

Disconnect the electrical connectors.
Reprogram the module if replaced. Refer to Control Module References .

Tip: Push tab to release the body control module from the bracket.
