Serial Data Gateway Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

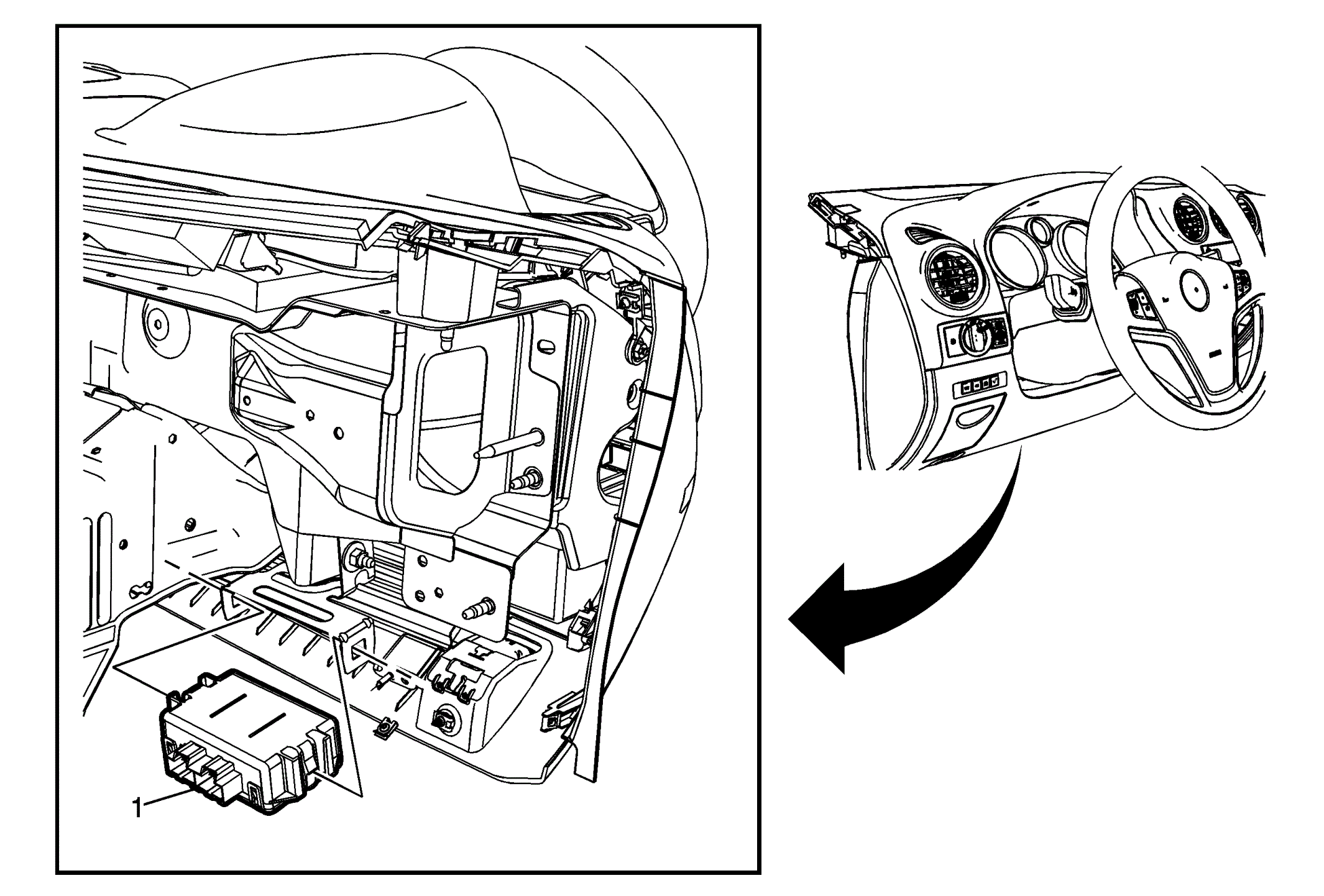

Fig 1: Serial Data Gateway Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1	Serial Data Gateway Module Procedure Press on the tabs to release the serial data gateway module. Disconnect the electrical connectors. Reprogram the serial data gateway module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures:
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .

Serial Data Gateway Module

Procedure

Press on the tabs to release the serial data gateway module.
Disconnect the electrical connectors.
Reprogram the serial data gateway module if replaced. Refer to Control Module References .
