Accessory AC and DC Power Control Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

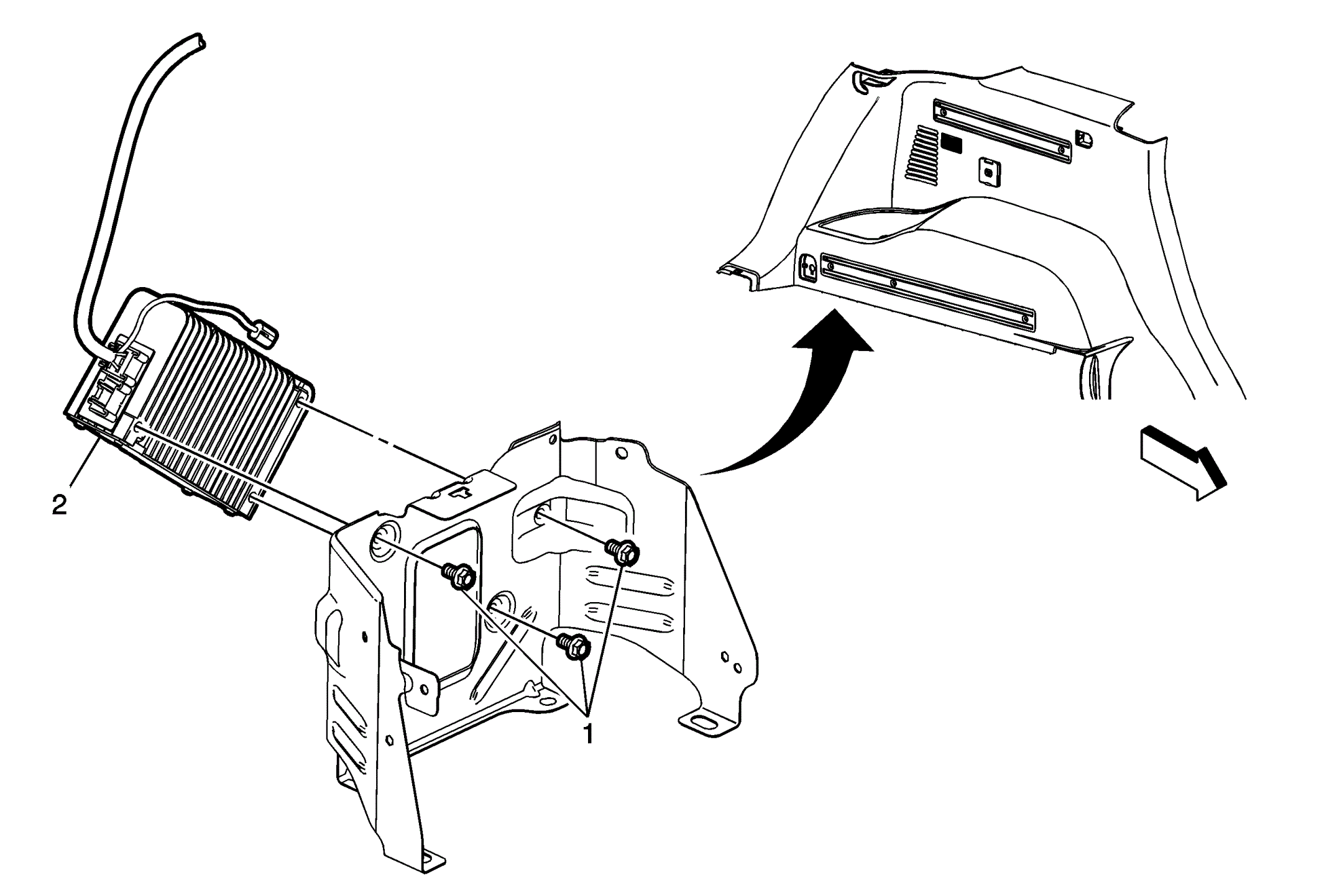

Fig 1: Accessory AC and DC Power Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the quarter lower rear trim panel - left side. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Accessory AC and DC Power Control Module Bolt (Qty: 3) CAUTION: Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connectors. For programming and setup procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the quarter lower rear trim panel - left side. Refer to Quarter Lower Rear Trim Panel Replacement .

Accessory AC and DC Power Control Module Bolt (Qty: 3)

CAUTION: Fastener Caution .

Tighten: 10 N.m (89 lb in)

Accessory AC and DC Power Control Module

Procedure

Disconnect the electrical connectors.
For programming and setup procedures, refer to Control Module References .
