Theft Deterrent Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

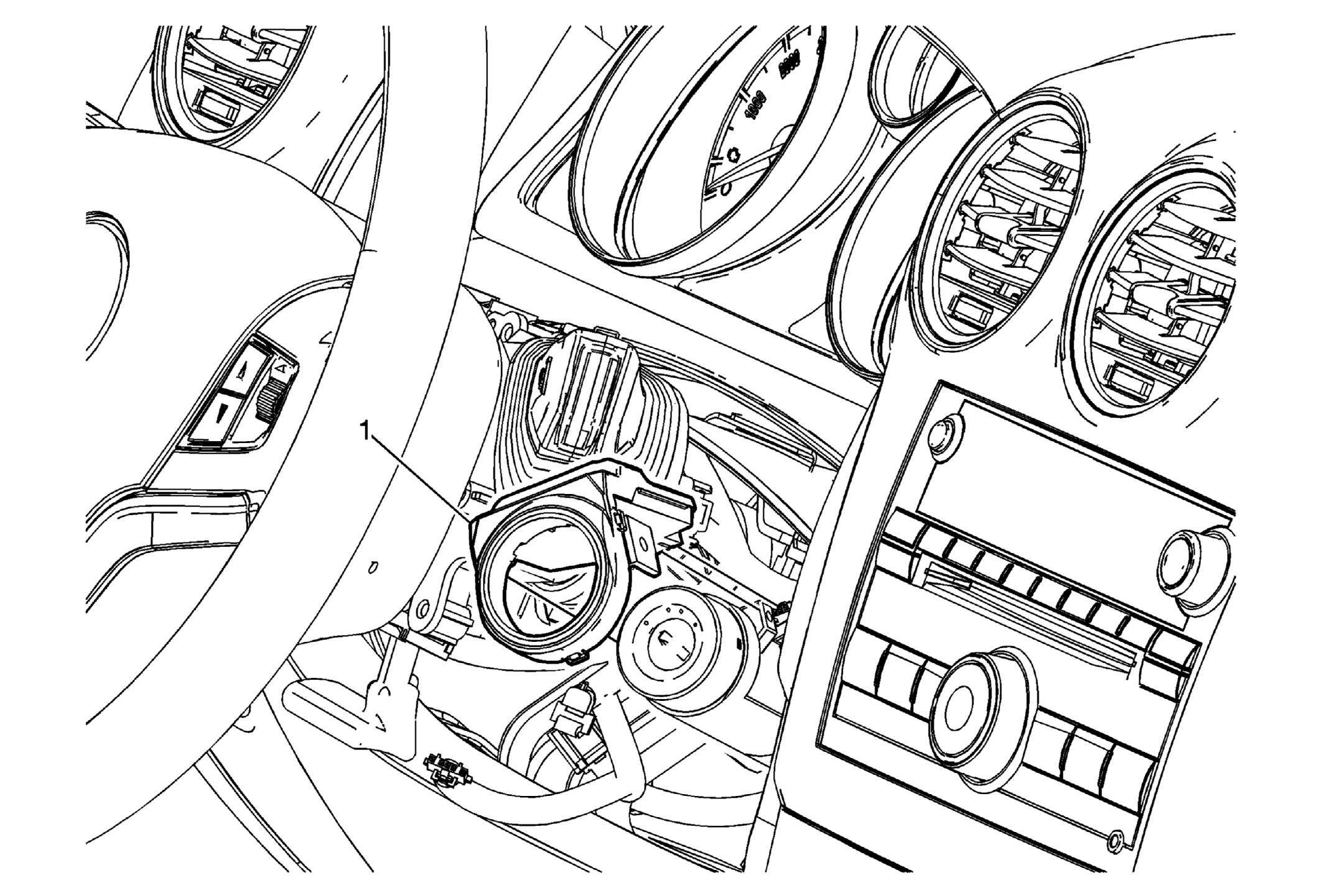

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement . Remove the ignition lock cylinder bulb. Refer to Ignition Lock Cylinder Bulb Replacement .
1	Theft Deterrent Module Assembly Procedure Disconnect the electrical connectors. Program the theft deterrent control module after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
Remove the ignition lock cylinder bulb. Refer to Ignition Lock Cylinder Bulb Replacement .

Theft Deterrent Module Assembly

Procedure

Disconnect the electrical connectors.
Program the theft deterrent control module after replacement. Refer to Control Module References .
