Flywheel/Flex Plate Torque

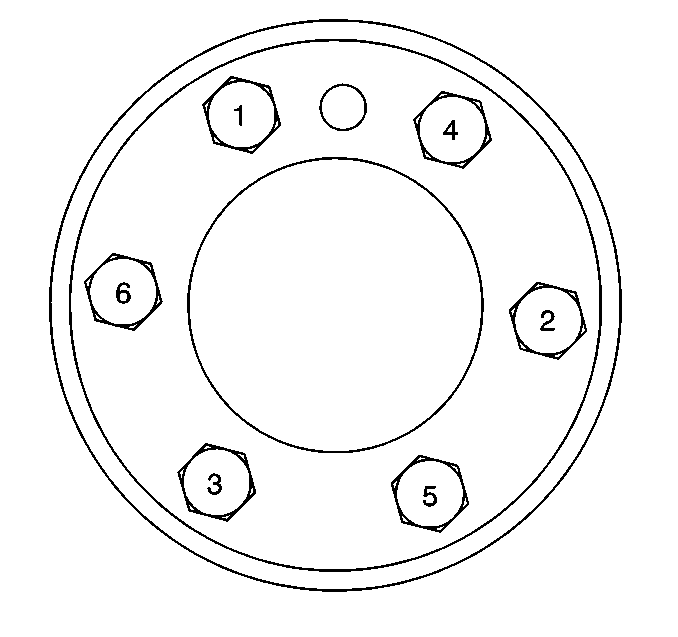

    Fig 1: Flywheel Bolt Tightening Sequence
    GM63174Courtesy of GENERAL MOTORS CORP.
  1. Tighten the engine flywheel bolts a first pass in sequence to 20 N.m (15 lb ft).
  2. Tighten the engine flywheel bolts a second pass in sequence to 50 N.m (37 lb ft).
  3. Tighten the engine flywheel bolts a final pass in sequence to 100 N.m (74 lb ft).
