Installation Procedure

    NOTE: The inlet and outlet hoses must not be twisted during installation. Do not bend or distort the inlet or outlet hoses to make installation easier. Failure to follow these procedures could result in component damage.
    NOTE: Refer toInstalling Hoses Without Twists Or Bends Notice .

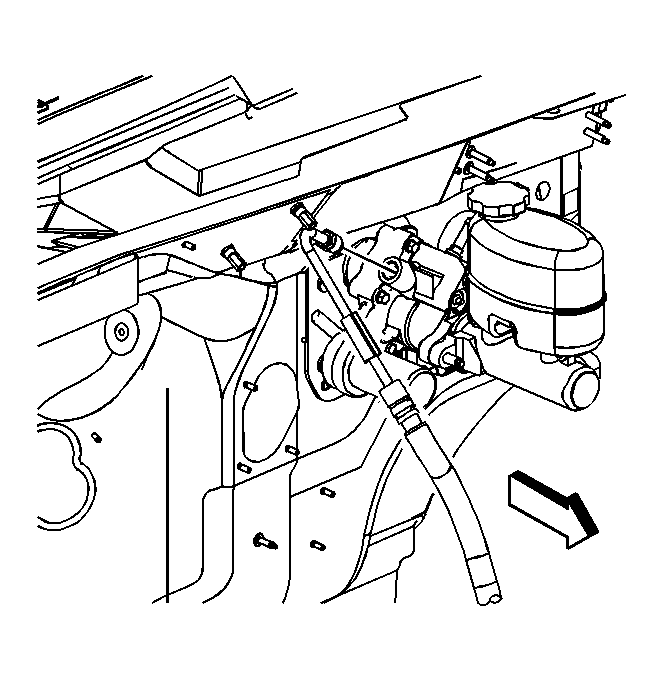

    Fig 1: Brake Booster Inlet Hose & Brake Booster
    GM795542Courtesy of GENERAL MOTORS CORP.
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the brake booster inlet hose to the brake booster.

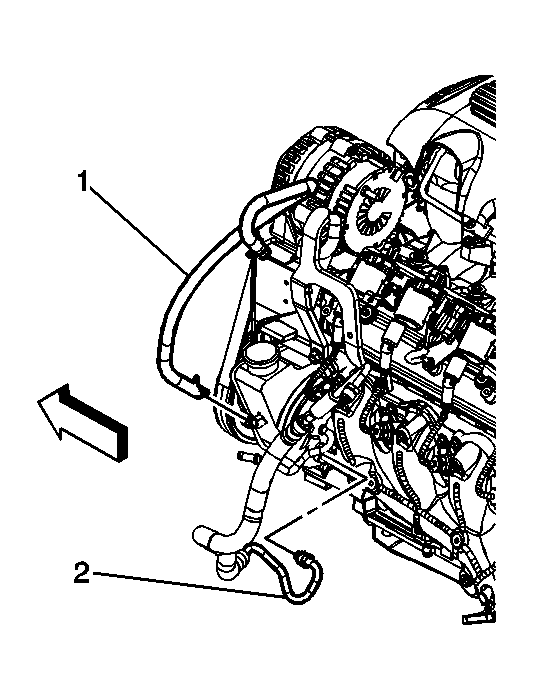

    3. Fig 2: Brake Booster Inlet Hose & Power Steering Pump
    GM795538Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the brake booster inlet hose (1) to the power steering pump.

    Tighten:  Tighten the brake booster inlet hose fittings to 28 N.m (21 lb ft).

  4. Remove the drain pan from under the vehicle.
  5. Bleed the power steering system. Refer to Bleeding the Power Steering System .
