Removal Procedure

Remove the hoses from the steering gear.
Disconnect the intermediate shaft from the steering gear. Refer to Intermediate Steering Shaft Replacement - Lower .

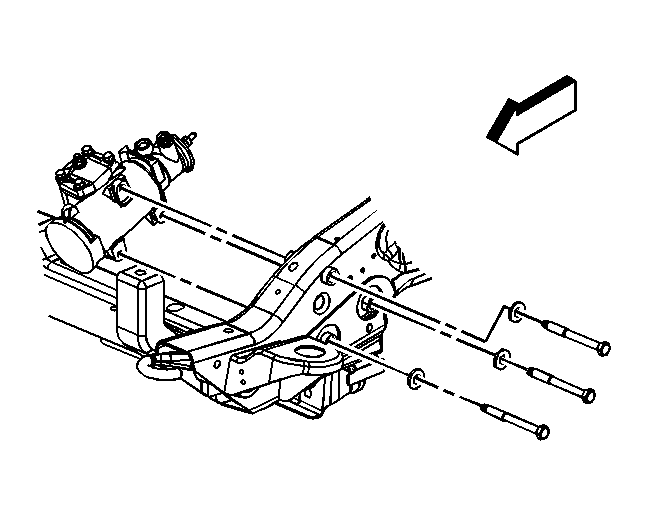

Fig 1: Power Steering Gear

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Power Steering Hose Disconnected Notice .

Raise the vehicle. Support the vehicle with suitable safety stands.
Remove the engine protection shield. Refer to Engine Protection Shield Replacement .
Remove the pitman arm from the steering gear. Refer to Pitman Arm Replacement .
Remove the bolts retaining the steering gear to the frame.
Remove the steering gear from the vehicle.
