Installation Procedure

  1. Place the power steering pump pulley on the end of the power steering pump shaft.
    Fig 1: View Of Power Steering Pump Pulley Installer
    GM643361Courtesy of GENERAL MOTORS CORP.
  2. Install the power steering pump pulley using J 25033-C  . See Special Tools .

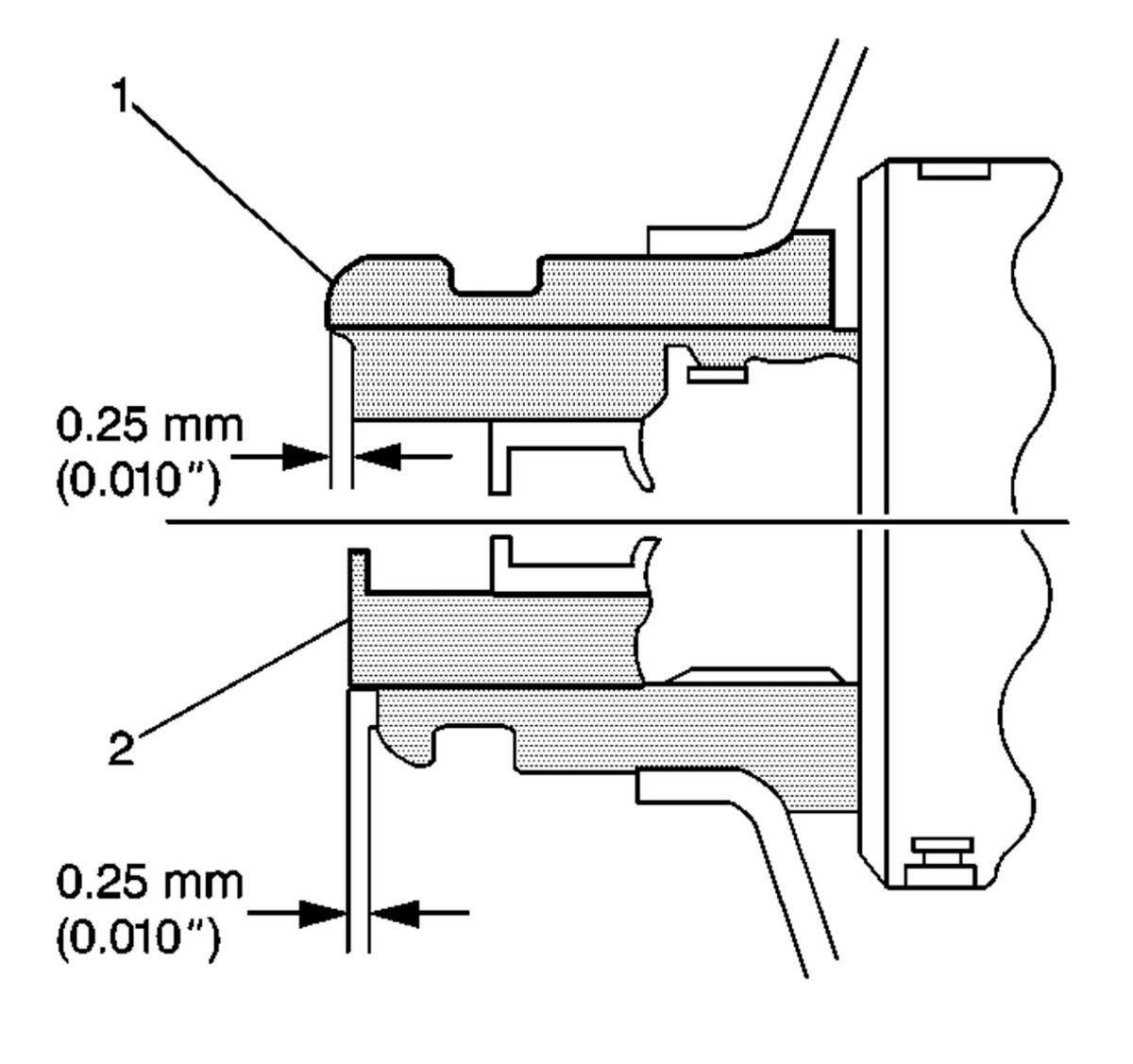

    3. Fig 2: Checking Power Steering Pump Pulley Installed Depth
    GM245012Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the power steering pump pulley is flush against the power steering pump shaft, with an allowable variance of 0.25 mm (0.010 in).
  4. Install the drive belt. Refer to Drive Belt Replacement - Accessory .
  5. Install the upper fan shroud. Refer to Fan Shroud Replacement .
