Removal Procedure

  1. Remove the upper fan shroud. Refer to Fan Shroud Replacement .
  2. Remove the drive belt. Refer to Drive Belt Replacement - Accessory .

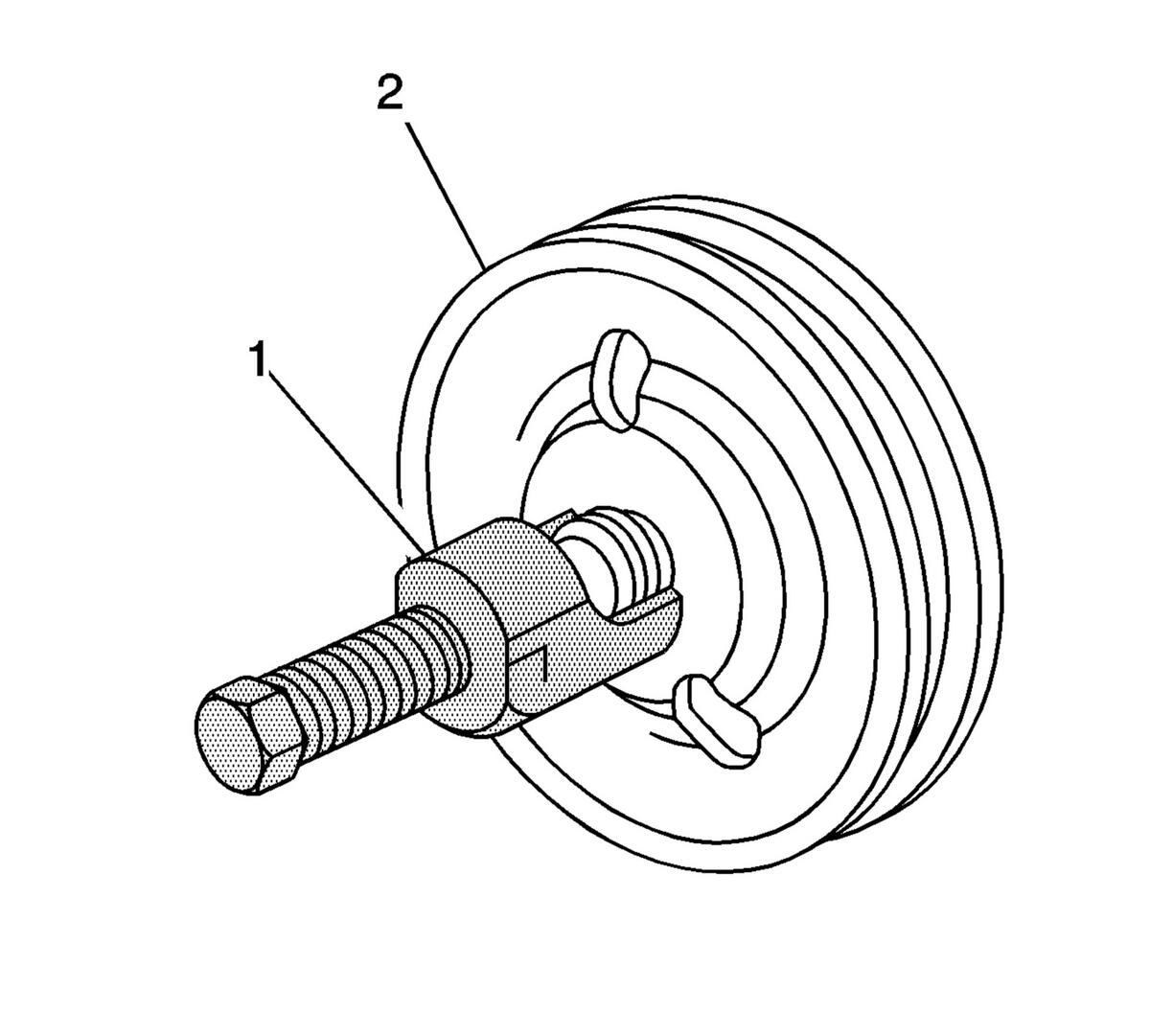

    3. Fig 1: View Of Power Steering Pump Pulley Remover
    GM649303Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering pump pulley using the J 25034-C  . See Special Tools .
