Steering Wheel and Column Component Views

Fig 1: Steering Wheel and Column Sub-System Component Views
GM856748Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Audio Controls - Left
2 Passlock Sensor Connector
3 Ignition Key Alarm Switch
4 Ignition Lock Cylinder Control Actuator
5 Ignition Lock Cylinder Control Actuator Connector
6 Ignition Switch
7 Ignition Key Cylinder
8 Steering Wheel Audio Controls - Right
9 Horn Switch
10 Steering Wheel Driver Information (DIC) Controls - Right
11 C277
12 Steering Wheel Driver Information Center (DIC) Controls - Left
13 Turn Signal/Multifunction Switch

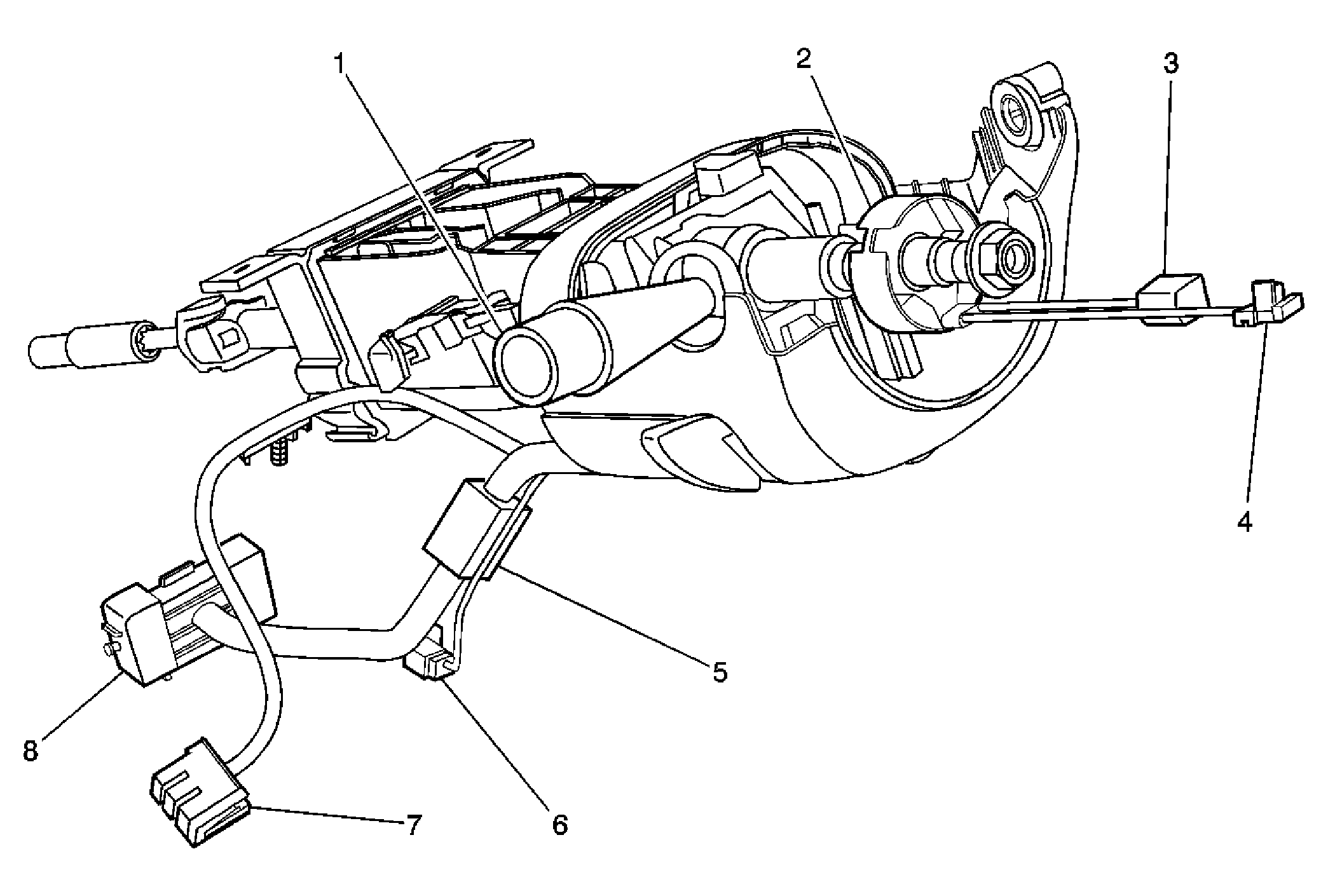

Fig 2: Steering Column Harness Connectors Component View
GM966906Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Multifunction Switch
2 Inflatable Restraint Steering Wheel Module Coil
3 C277 (8 Cavity)
4 Inflatable Restraint Steering Wheel Module Connector
5 Steering Wheel Controls Backlight Fuse
6 C203 (2 Cavity)
7 Fuse Block - I/P C2 (6 Cavity)
8 C202 (52 Cavity)
