Installation Procedure

    IMPORTANT: The turn signal switch housing must be pressed firmly against the steering column tilt head in order for the screws from the turn signal and multifunction switch assembly screws to line up.

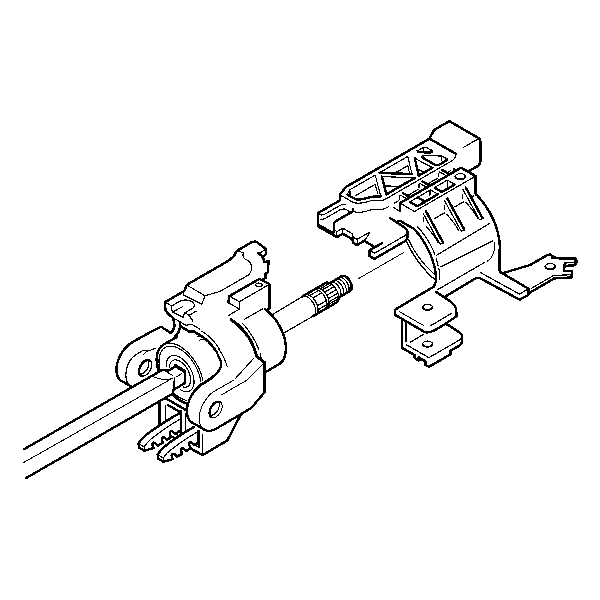

    Fig 1: View Of Turn Signal Switch Housing & Steering Column Shaft Assembly
    GM664269Courtesy of GENERAL MOTORS CORP.
  1. Slide the turn signal switch housing onto the steering column shaft assembly.
  2. Install the turn signal and multifunction switch assembly. Refer to Multifunction, Turn Signal Switch Replacement .
  3. Install the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement .
  4. Install the steering wheel onto the column. Refer to Steering Wheel Replacement .
  5. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
