Installation Procedure

  1. Install the steering column to the vehicle and connect the column to the intermediate shaft.

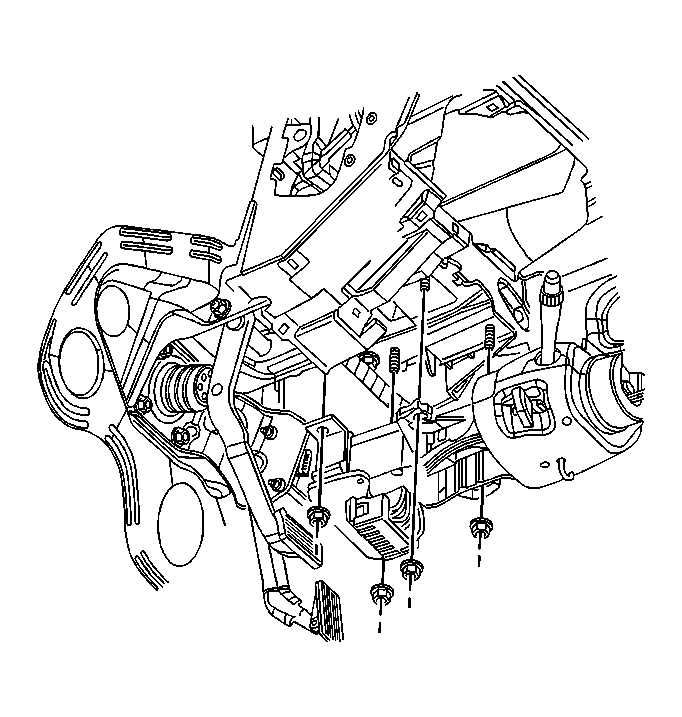

    Fig 1: View Of Steering Column Assembly
    GM731644Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice .
  2. Install the steering column mounting nuts.

    Tighten:  Tighten the nuts to 27 N.m (20 lb ft).

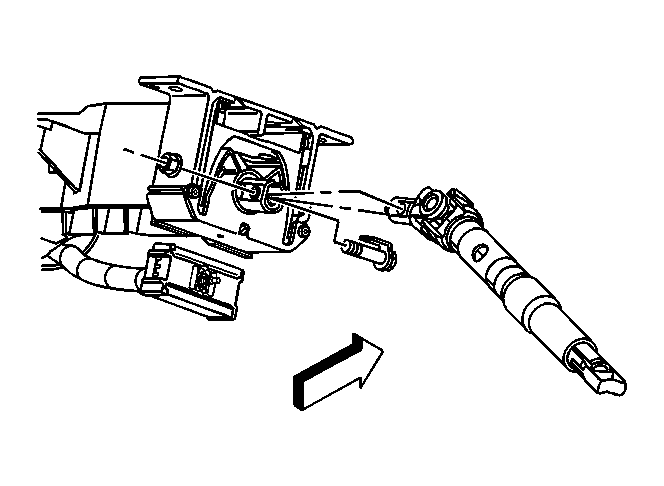

    3. Fig 2: View Of Steering Column & Upper Intermediate Shaft
    GM731631Courtesy of GENERAL MOTORS CORP.
  3. Install the intermediate shaft bolt to the steering column.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  4. Connect the wiring harness connector to the back of the fuse block.
  5. Connect the steering column electrical connector to the body wiring harness.
  6. Reposition the transfer case electronic control module bracket and install the bolts.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

  7. Install the transfer case electronic control module. Refer to Transfer Case Shift Control Module Replacement .

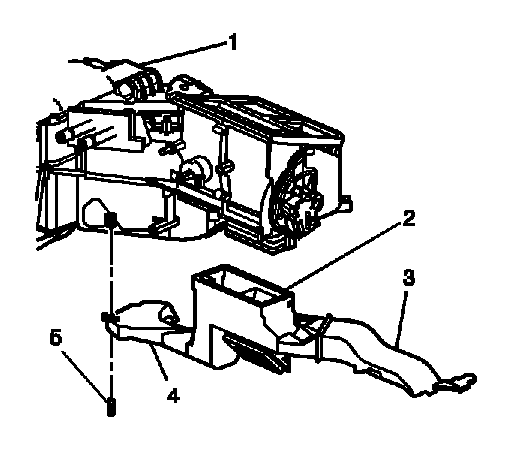

    8. Fig 3: View Of Floor Air Outlet Duct
    GM810840Courtesy of GENERAL MOTORS CORP.
  8. Connect the HVAC duct (3).
  9. Install the knee bolster deflector. Refer to Bracket Replacement - Steering Column .

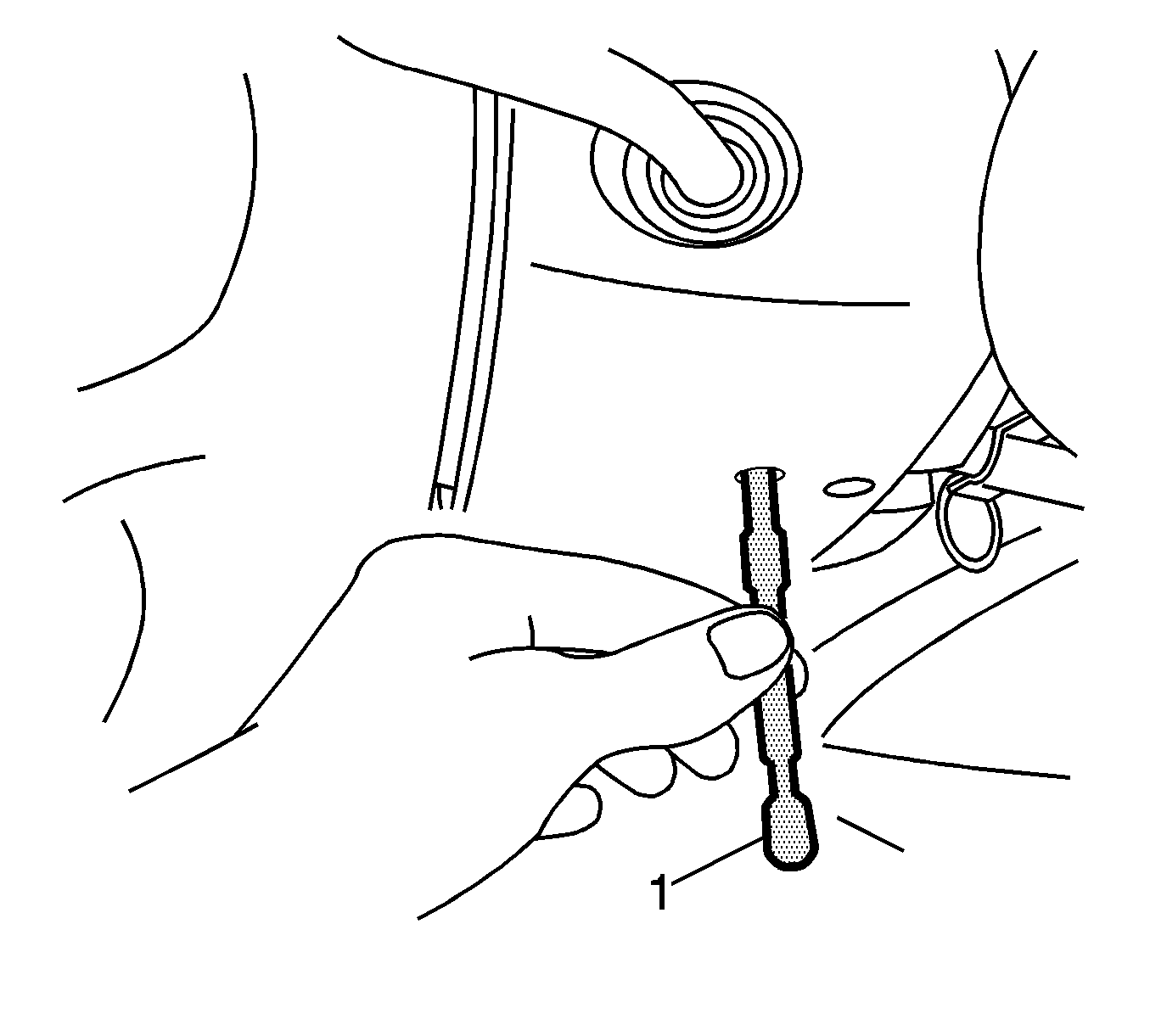

    10. Fig 4: Identifying J 42640
    GM333146Courtesy of GENERAL MOTORS CORP.
  10. Unlock the steering column by removing J 42640  from the lower trim cover access hole.
  11. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
