Removal Procedure

  1. Remove the steering wheel. Refer to Steering Wheel Replacement .
    2. Fig 1: View Of Shroud & Screws
    GM755486Courtesy of GENERAL MOTORS CORP.
  2. Remove the shroud retaining screws from the back of the steering wheel.
  3. Remove the shroud from the steering wheel.

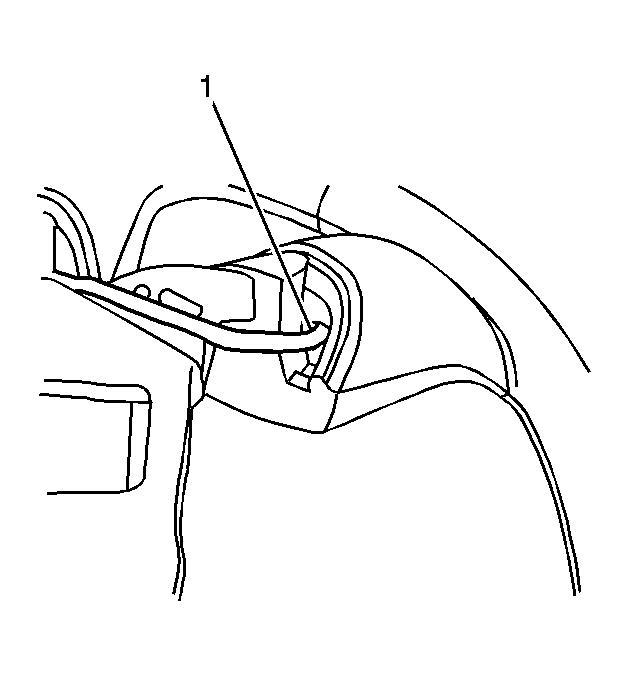

    4. Fig 2: Locating Wire Harness Cavity
    GM755485Courtesy of GENERAL MOTORS CORP.
  4. Position a blunt ended tool into the wire harness cavity (1) and apply moderate pressure in order to partially remove the steering wheel control switch from the steering wheel.
    5. Fig 3: View Of Steering Wheel Control Switch Electrical Connector
    GM652807Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the steering wheel control switch electrical connector.
    6. IMPORTANT: The bulbs in the steering wheel control switches are not serviceable. The switches should be replaced only as an assembly.
  6. Remove the steering wheel control switch from the steering wheel.
